19075
YIXUN mold
8480419090

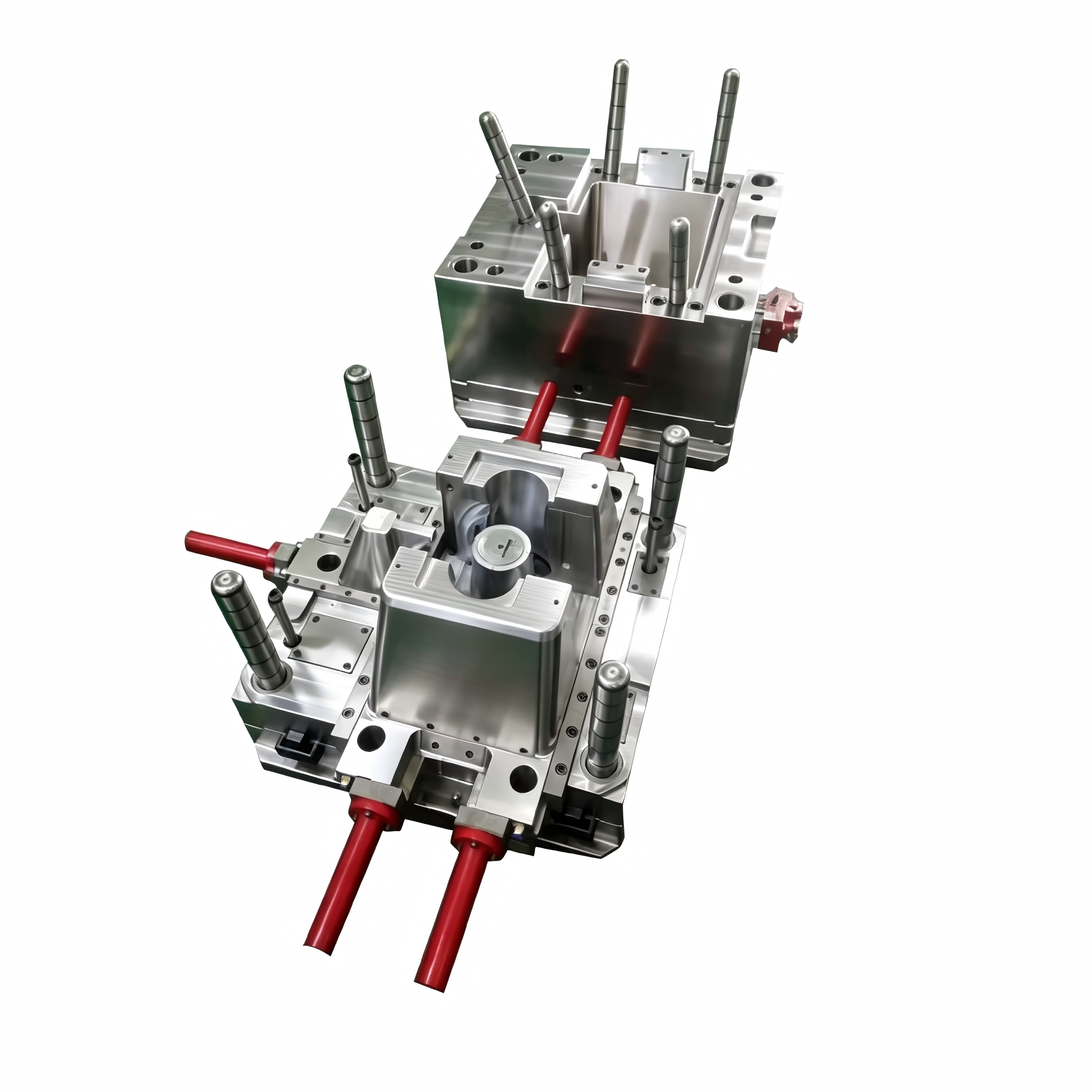

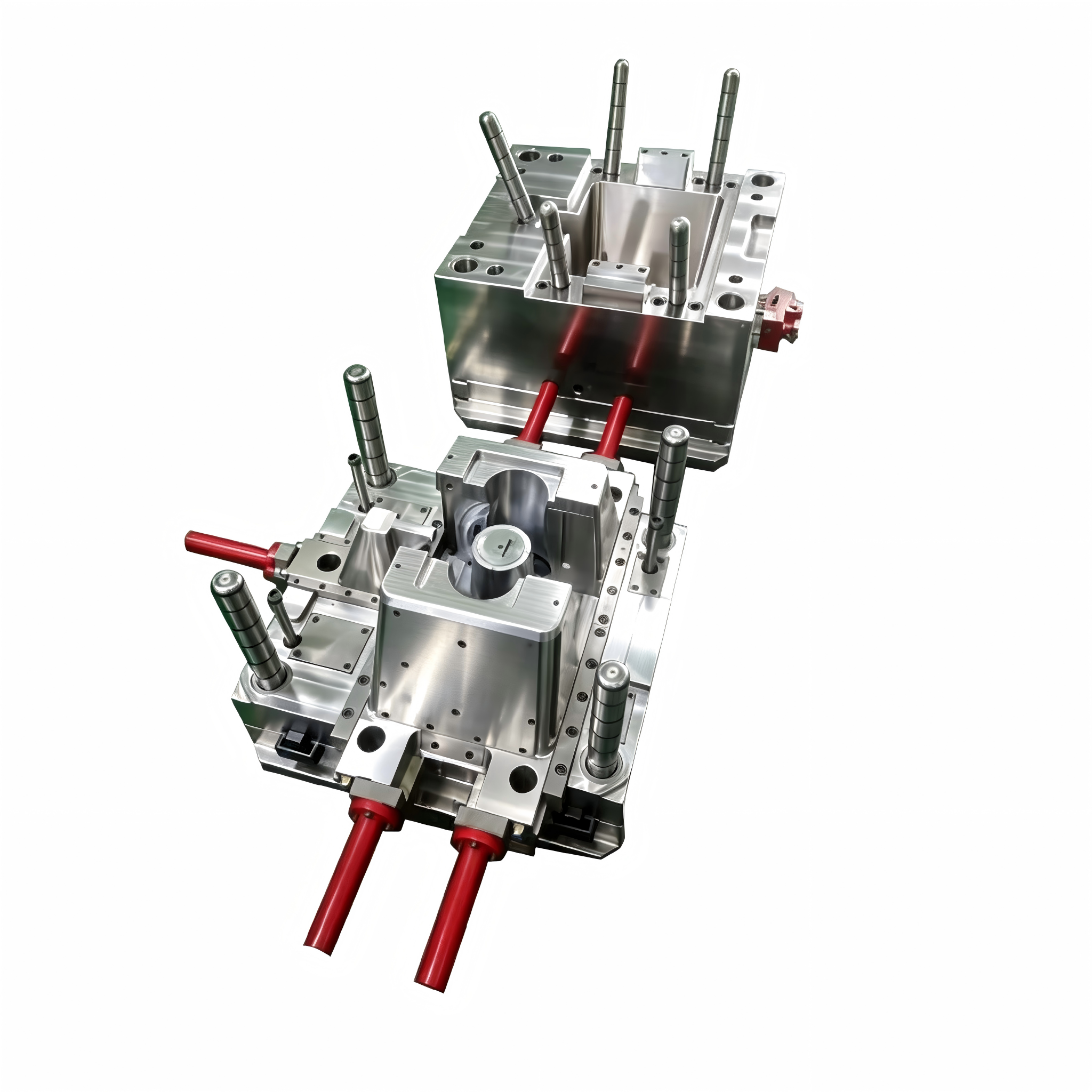

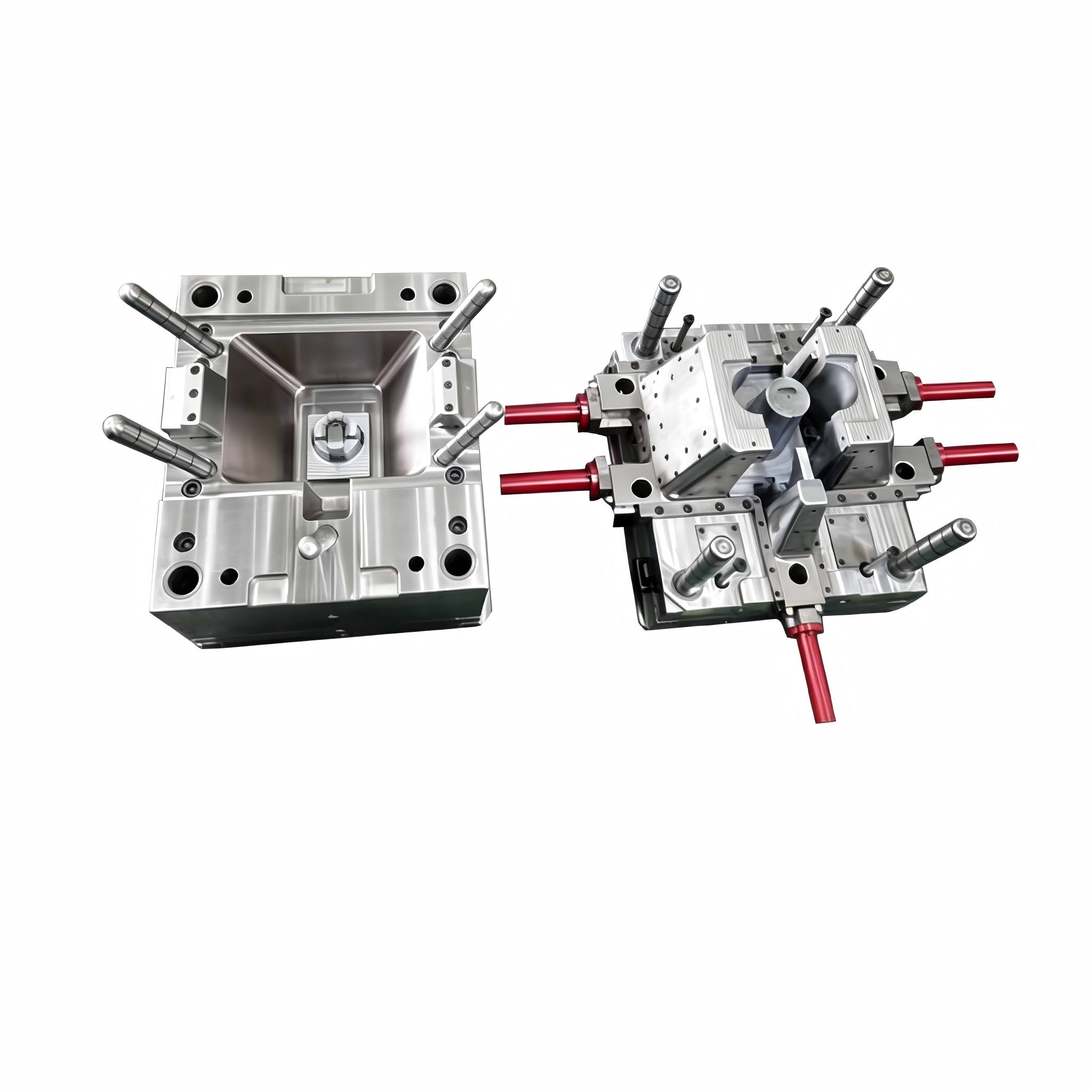

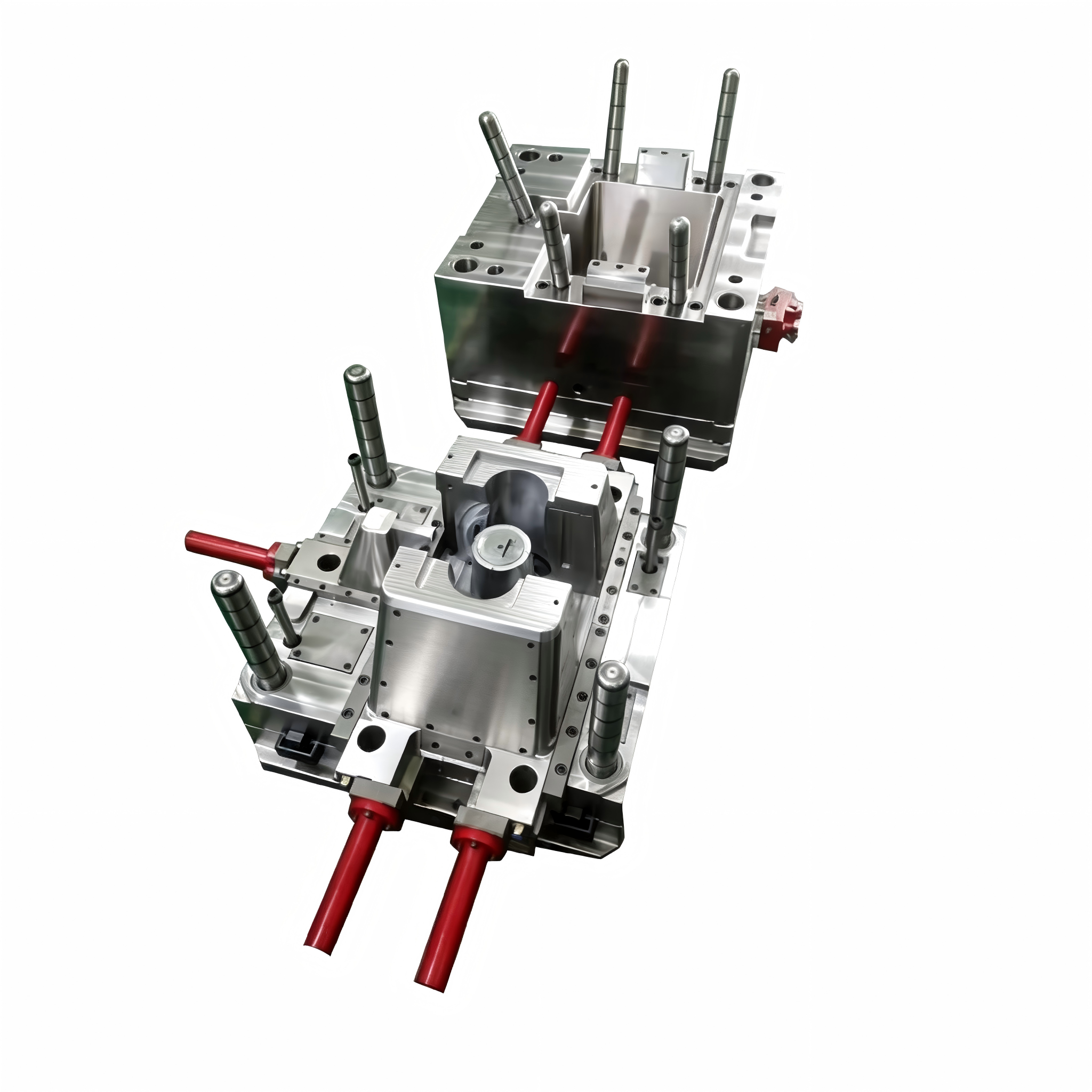

Mold core and cavity adopt premium NAK80 pre-hardened mold steel with original material certification, featuring excellent polishing performance, uniform hardness and outstanding scratch resistance, effectively avoiding surface scratches during long-term continuous demolding and daily mold maintenance.
No need for post-mold heat treatment, directly machinable to shorten mold lead time; good anti-corrosion and wear-resistant properties extend the service life up to 600,000–1,000,000 shots, perfectly matching high-volume mass production demand for household appliance containers.
Excellent texture etching performance, supporting matte, fine grain and other surface treatments to enrich the appearance of appliance shell products.
Adopts 5-axis CNC, precision EDM and wire cutting processing technology, overall dimensional tolerance controlled within ±0.02mm for large-size mold structure.
Precisely reserved buckle positioning holes, assembly limit bosses and internal reinforcing rib structures on the cavity, ensuring seamless assembly between the large container housing and other internal electrical components.
Optimized cooling circuit layout with evenly distributed red water channel connectors, achieving balanced rapid mold temperature control, reducing product warpage, shrinkage and deformation caused by uneven cooling for thick-wall large plastic parts.
High-rigidity heavy-duty standard mold base with multiple groups of high-precision guide pins and guide sleeves, effectively resisting mold expansion force during large-volume plastic melt injection, preventing mold deformation and dimensional offset in long-term production.
Equipped with stable multi-point ejection system to ensure balanced demolding of large-size thick-wall container housings, avoiding product sticking, tilting and surface scratch during ejection.
Optional cold runner or hot runner feeding solution to balance melt filling, eliminate weld lines and short-shot defects for oversized appliance plastic shells.
| Item | Detailed Parameter |
|---|---|
| Applicable Product | Large Household Appliance Container Housing & Equipment Outer Shell |
| Mold Core & Cavity Material | NAK80 Pre-Hardened Mold Steel |
| Quality Certification | ISO9001 Quality Management System Certified |
| Mold Surface Feature | High Gloss Scratch Resistant Polished Surface |
| Dimensional Tolerance | ±0.02mm Strict Precision Control |
| Standard Mold Service Life | 600,000 ~ 1,000,000 Shots |
| Cooling System | Optimized Equilibrium Circulating Water Cooling Channel |
| Optional Runner Type | Cold Runner / Hot Runner Customizable |
| Applicable Raw Materials | PP, ABS, PC, PC/ABS, High Toughness Engineering Plastics |
Large household appliance storage container shells, water tank & washing equipment inner plastic housings
Kitchen electrical large-capacity box, food processor & commercial appliance outer structural casings
Industrial equipment large-size protective plastic enclosures and storage box components
Smart home device thick-wall plastic shells and large-size mounting container parts
Household cleaning equipment, refrigeration appliance internal plastic container accessories
ISO9001 certified professional mold manufacturer with rich experience in large-size appliance housing mold development, proficient in thick-wall plastic molding and anti-warpage process optimization.
Strict scratch resistance & dimensional inspection for every finished mold, providing material test reports, dimensional inspection sheets and full-process quality documents for customer factory audit and product certification.
Provide one-stop service including DFM structural analysis, mold flow simulation, precision machining, multiple rounds of trial molding and after-sales mold maintenance support.
Customized solutions for large-size mold cooling system, ejection structure and surface finish, fully meeting diverse appearance and assembly requirements of household appliance brands.
