23287
YIXUN mold
8480419090
Outstanding thermal fatigue resistance, high-temperature toughness and anti-wear performance, perfectly adapting to long-term continuous high-pressure injection of high-viscosity PC engineering plastic
Excellent thermal deformation resistance, effectively avoiding dimensional deviation and blade unbalance caused by repeated temperature cycling during mass production
Fine internal metallurgical structure prevents mold cracking and corrosion, ideal for frequent continuous automatic molding production
Standard service life reaches 800,000 to 1,200,000 shots, greatly reducing your later mold replacement and maintenance costs
Achieves ultra-smooth molding surface with low roughness, thoroughly eliminates flow marks, haze, tiny scratches and trapped air spots on transparent PC fan blades
Ensures high light transmittance and uniform appearance of finished fan blades, avoids secondary surface trimming
Polished cavity is easy to clean and resistant to plastic residue adhesion, supporting frequent color switching production without color contamination
Guarantees excellent aerodynamic performance and dynamic balance of fan blades, effectively reducing fan operating noise and vibration
Complete traceable quality documents including raw material certificate, vacuum heat treatment report, precision dimensional inspection record and mold trial validation report
Multi-round size calibration before delivery to guarantee machining tolerance within ±0.01mm, ensuring high interchangeability of finished fan blades
Strict anti-rust packaging and surface protection process to prevent scratch, oxidation and collision damage during international transportation
Balanced runner gating design ensures uniform melt filling for each fan blade, effectively eliminates weld lines which will affect fan dynamic balance
Customized dense exhaust slots on parting line solve gas trapping problems of high-viscosity PC material, avoiding burning marks and bubble defects
Optimized spiral circulating cooling layout realizes fast and uniform mold temperature control, shortens molding cycle and prevents thin-wall fan blade warpage deformation
Multi-point balanced ejection system ensures synchronous demolding, avoids blade bending, breakage and sticking to the mold
Household appliance cooling fan blades (air conditioner, refrigerator, heater, range hood)
Industrial ventilation fan, axial flow fan and centrifugal fan plastic blades
Automotive radiator, new energy vehicle electronic cooling fan components
Computer CPU, power supply, server radiator transparent PC fan blades
Medical equipment, beauty instrument, small mechanical cooling fan accessories
| Item | Specification |
|---|---|

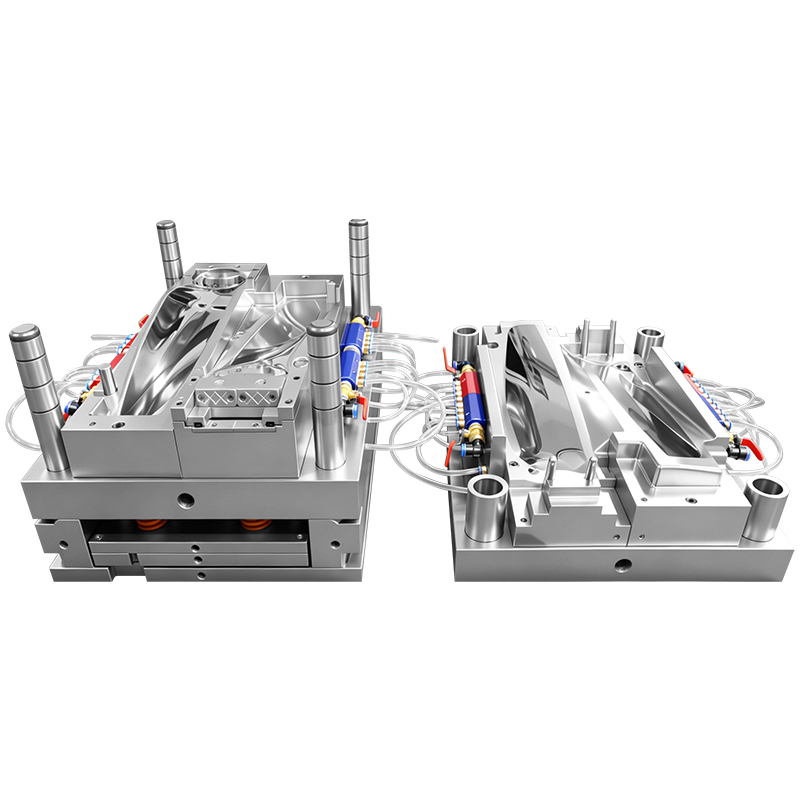

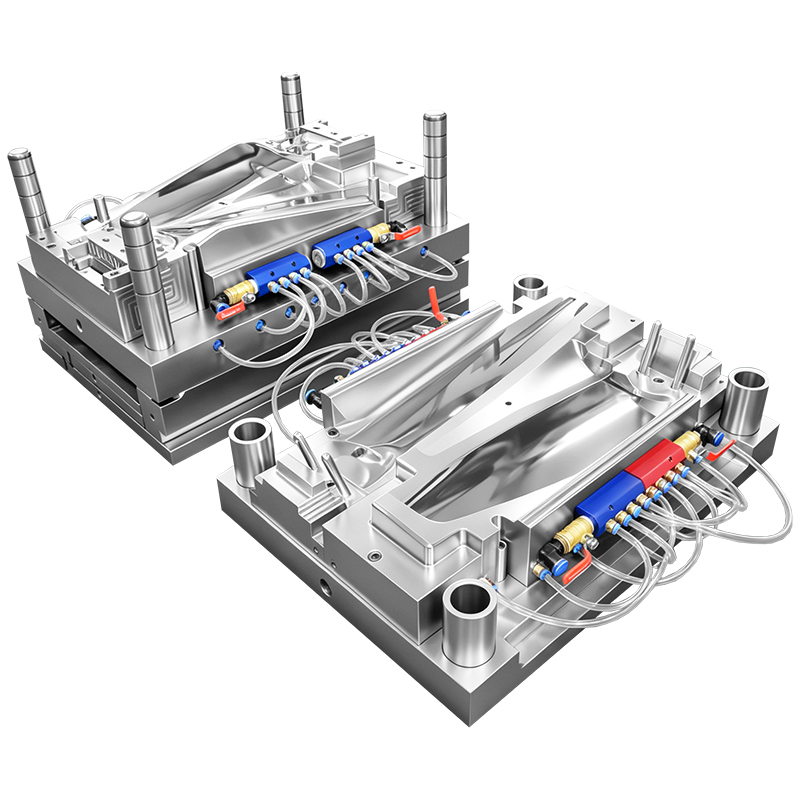

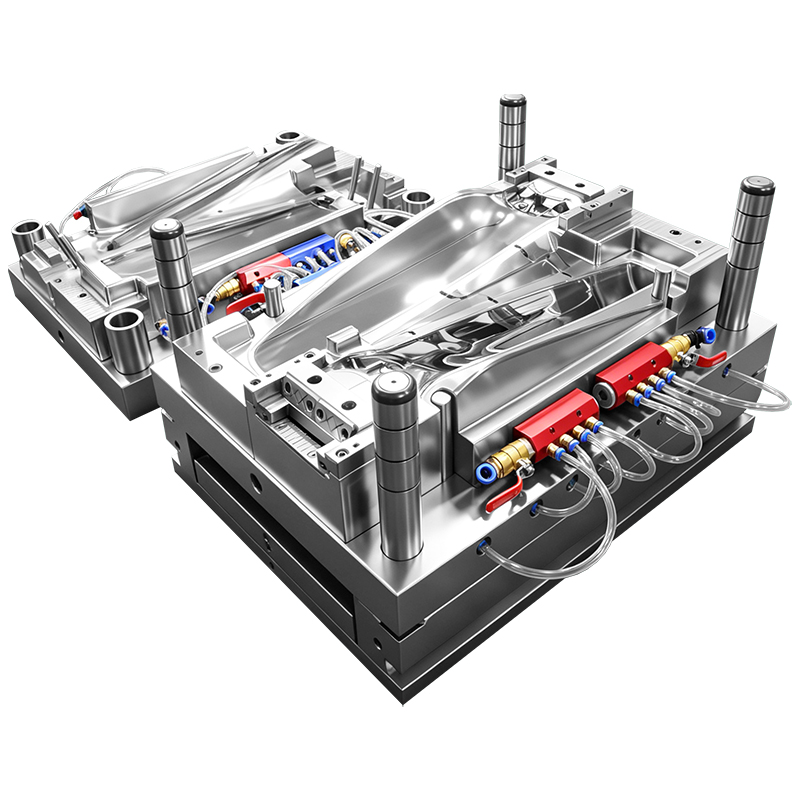

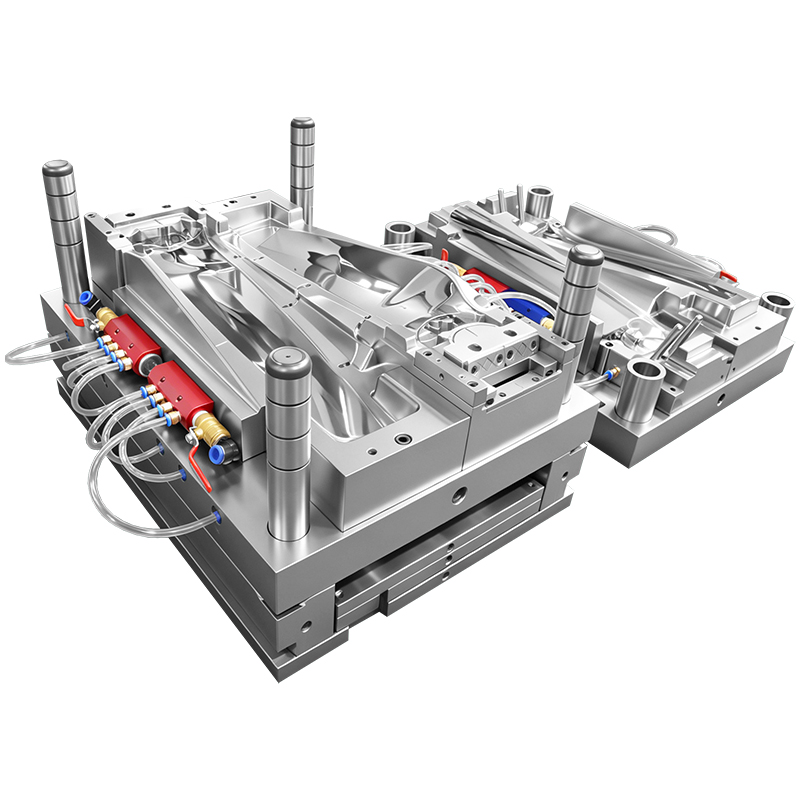

| Mold Name | PC Fan Blade Injection Mold |
| Quality Certification | ISO9001 Quality Management System Certified |
| Core & Cavity Material | H13 Hot Work Mold Steel |
| Hardness | HRC 48-52 (Vacuum Heat Treated) |
| Cavity Surface Treatment | High Gloss Mirror Polishing |
| Recommended Raw Material | PC (Polycarbonate), Glass-Filled PC Optional |
| Mold Base | High Rigidity Standard S50C Mold Base |
| Gate Type | Cold Runner Pin Point Gate / Hot Runner Optional |
| Expected Mold Lifespan | 800,000 – 1,200,000 Shots |
| Applicable Injection Machine | 200T – 500T Horizontal Injection Molding Machine |
Professional Mold Flow Simulation: We conduct pre-production mold flow analysis to optimize gating, cooling and exhaust structure, effectively prevent fan blade warpage, imbalance and surface defects.
Strict Pre-Delivery Mold Validation: Each mold undergoes multiple trial injections and dynamic balance testing for finished fan blades, free samples are provided for your appearance and performance confirmation.
Global Remote Technical Support: We offer online mold installation guidance, PC injection parameter debugging, polished mold daily maintenance training and lifelong technical consultation.
ODM & OEM Available: Support fan blade diameter, blade quantity, angle structural customization, logo engraving, and surface matte/texture treatment according to your design drawings or samples.
