| Quantity: | |
|---|---|
22083
YIXUN mold
8480419090
Only replace the customized front and rear mold inserts to switch between two product sizes, greatly saving secondary mold development cost and production lead time
Keep the original mold base, hot runner system, ejection and cooling structure unchanged, no repeated equipment debugging required
Uniform mold installation size ensures stable clamping and injection process, consistent product dimensional precision for both 0.5L and 1L containers
Perfect for small-batch diversified order production, effectively improve factory equipment utilization rate
Excellent thermal fatigue resistance, high-temperature toughness and wear resistance, perfectly fit long-term continuous high-pressure injection molding of thick-wall PP container products
Strong anti-deformation and anti-cracking performance, effectively avoid mold damage caused by frequent switching production of two different-size products
Fine internal metallurgical structure supports high mirror polishing, effectively prevent rust and residue adhesion during PP molding
Mold service life reaches 1,000,000 to 1,500,000 shots under standardized production
Balanced melt flow distribution ensures uniform filling of large-size container cavity, eliminate short shot, weld line, sink mark and warpage defects
No runner waste, greatly reduce PP raw material consumption and post-trimming labor cost, improve production yield
Stable mold temperature control shortens molding cycle, significantly boost hourly output for bulk container orders
Suitable for high-speed continuous automatic injection production, compatible with medium & large tonnage horizontal injection molding machines
Achieve ultra-smooth container outer surface with low surface roughness, no flow marks or air traces
Convenient for subsequent surface processing including silk printing, heat transfer labeling, spraying and UV coating
Easy to clean and maintain, effectively avoid plastic residue accumulation and color migration during color switching production

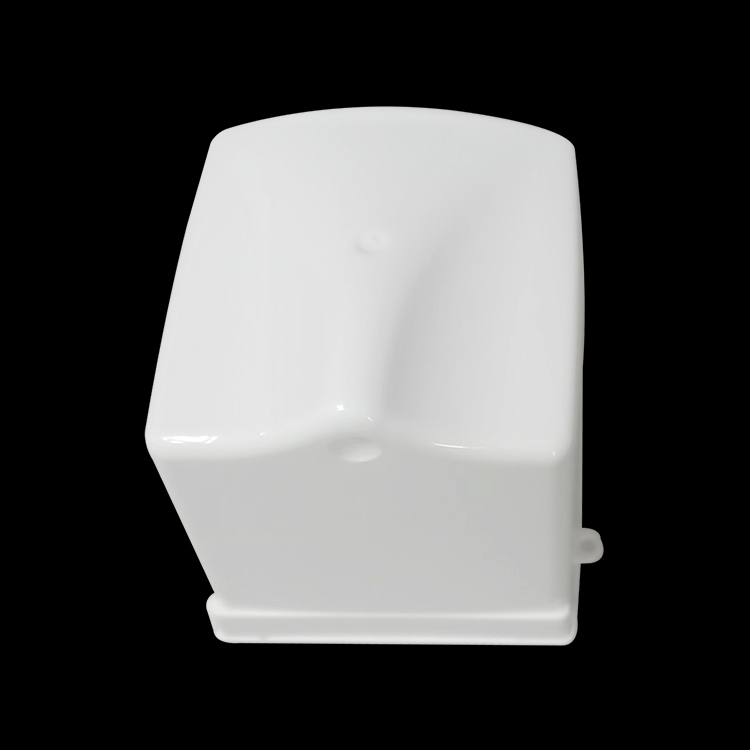

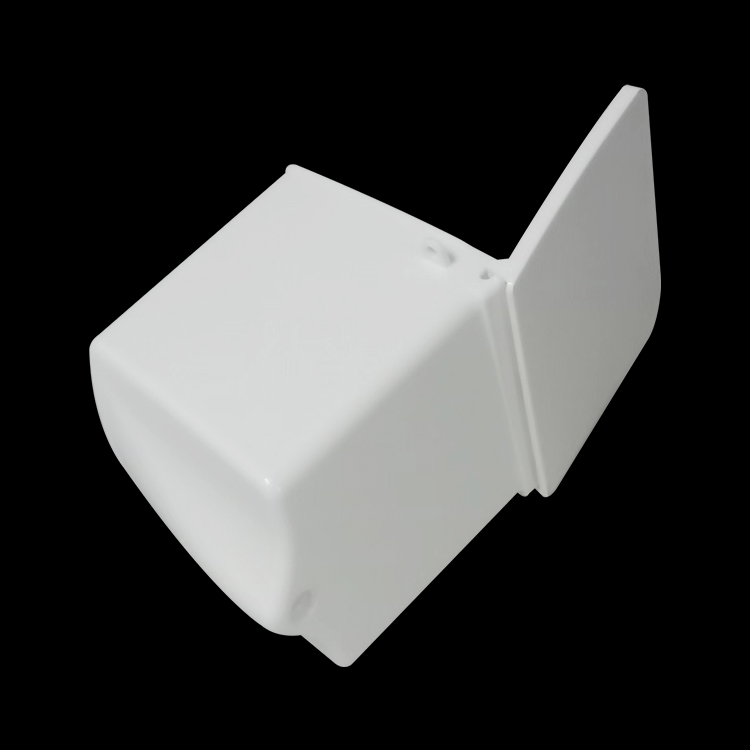

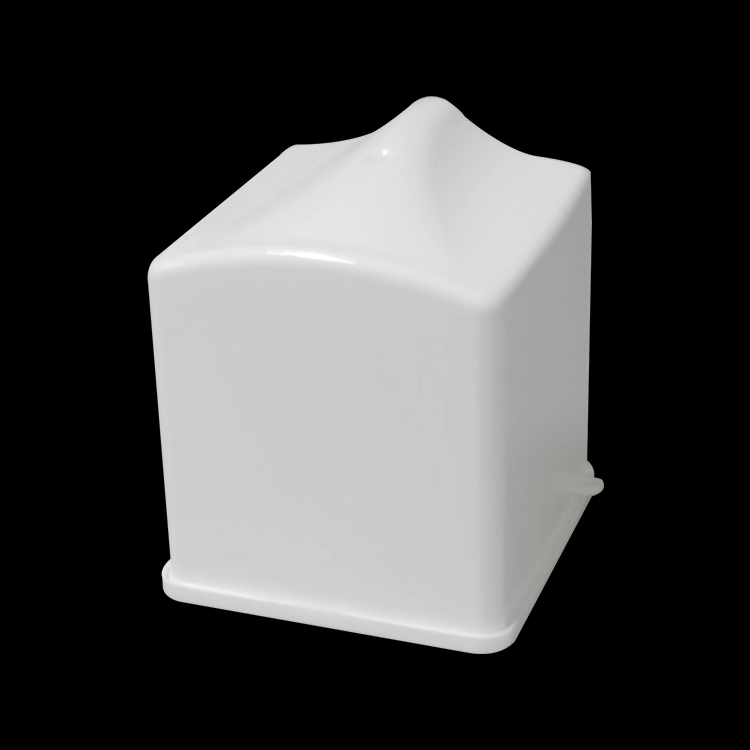

0.5L / 1L PP food-grade plastic storage containers
Household sealed plastic boxes, cosmetic packaging containers
Industrial reagent liquid plastic packaging barrels & shell bodies
Electronic component packaging, hardware parts storage plastic casings
Custom multi-specification plastic container mass production
| Item | Specification |
|---|---|

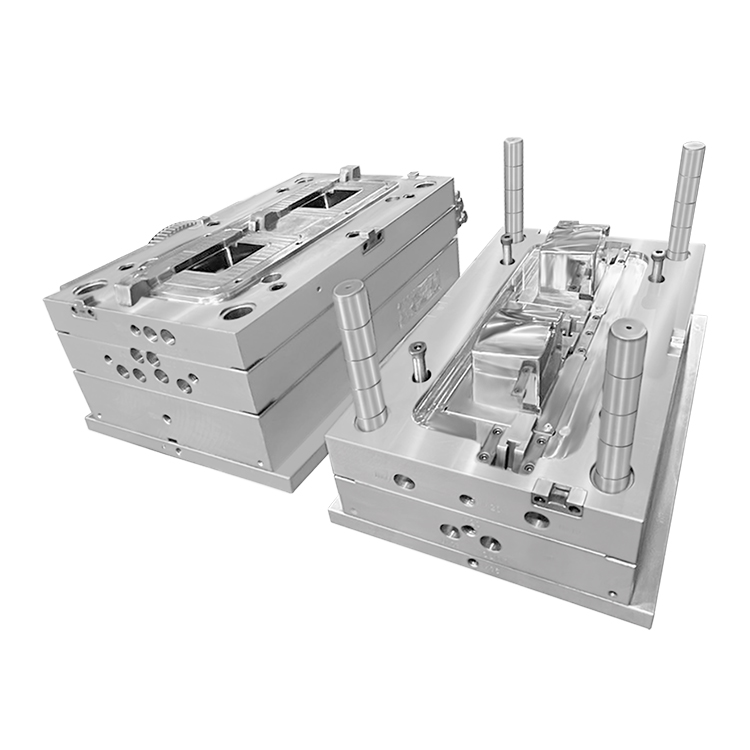

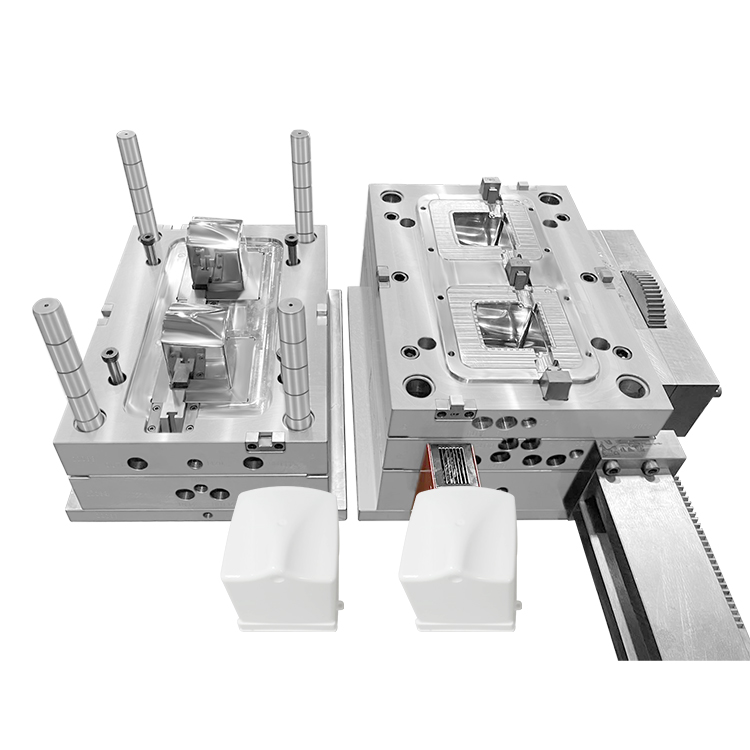

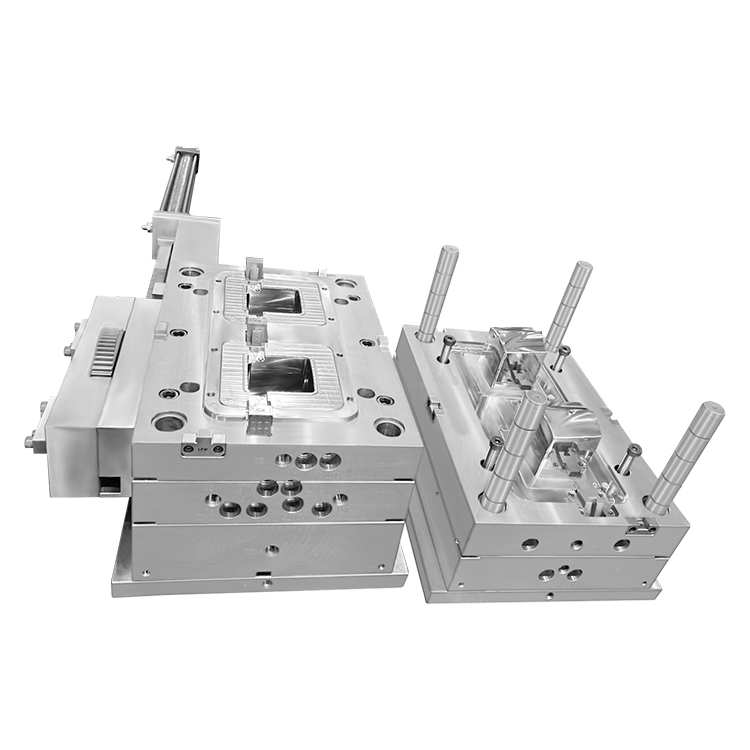

| Mold Product | 0.5L & 1L PP Container Body Injection Mold |
| Cavity Layout | 1×2 Cavity |
| Plastic Material | PP (Polypropylene) |
| Material Shrinkage Rate | 1.016 |
| Gating System | Hot Runner |
| Front Mold Material | 1.2767, HRC 54-56 |
| Rear Mold Material | 1.2767, HRC 54-56 |
| Cavity Surface Finish | High Mirror Polishing |
| Core Feature | Interchangeable Front & Rear Mold Inserts |
| Estimated Mold Lifespan | 1,000,000 – 1,500,000 Shots |
| Applicable Machine | 450T ~ 800T Horizontal Injection Molding Machine |
Professional Mold Flow Simulation: We conduct detailed mold flow analysis for two container sizes in advance to optimize hot runner layout, cooling channel and exhaust structure, avoid common thick-wall molding defects.
Strict Interchangeability Verification: Before delivery, we fully test the installation accuracy of two sets of mold inserts to ensure seamless size switching without clamping deviation or flash.
Complete Quality Documentation: Provide steel material certificate, heat treatment test report, dimensional inspection record and multi-time mold trial reports for quality traceability.
Global After-sales Support: Offer remote hot runner parameter debugging, insert replacement operation guidance, mold maintenance training and lifelong technical consultation.
Flexible OEM & ODM: Support container shape optimization, capacity adjustment, anti-slip structure design, logo engraving and customized surface texture treatment.
