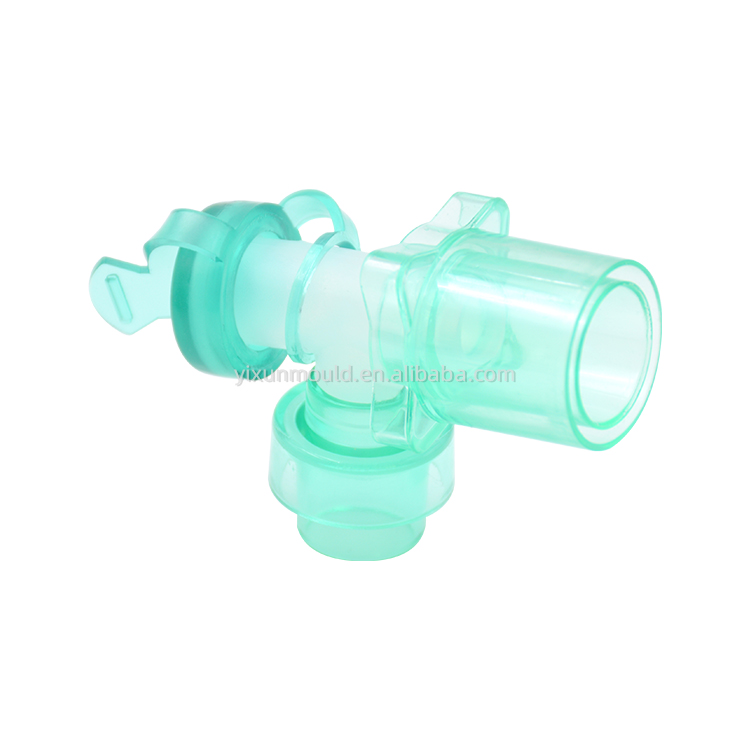

ISO9001 Certified Injection Mold for Plastic Connectors (Medical Care & Household Use)

Overview

This specification covers ISO9001 certified injection molds designed for producing plastic connectors serving both medical care and household applications. These dual-purpose connectors require designs that balance performance, safety, and cost-effectiveness across different use environments.

Certification & Quality System

ISO9001:2015 Requirements

• Quality Management System for consistent production

• Process Approach: Documented mold design and manufacturing processes

• Risk-Based Thinking: Preventive actions for potential defects

• Continuous Improvement: Regular review and optimization

• Supplier Management: Certified material and component suppliers

• Document Control: Revision-controlled drawings and specifications

Material Compatibility

Primary Materials for Connectors:

Mold Steel & Construction

Steel Selection Based on Application:

Critical Design Features for Connectors

Connector-Specific Requirements:

1. Precision Features:

• Threads (internal/external) with tight tolerances

• Snap-fit engagements with consistent retention force

• Leak-proof sealing surfaces

• Alignment features (keys, slots, guides)

2. Gating & Filling:

• Hot runner preferred for gate quality and material savings

• Submarine or pinpoint gates for cosmetic surfaces

• Balanced filling for multi-cavity molds

• Valve gates for large connectors to prevent drool

3. Ejection System:

• Multiple ejection points to prevent distortion

• Stripper plates for thin-walled connectors

• Non-marking ejectors for sealing surfaces

• Early return mechanisms for safety

4. Cooling Design:

• Conformal cooling for complex connector geometries

• Temperature control zones for critical dimensions

• Quick cooling for cycle time optimization

Dual-Use Considerations

Medical vs. Household Requirements:

Quality Control & Inspection

Connector-Specific QC Measures:

1. Dimensional Verification:

• CMM for critical connector interfaces

• Thread gauges (Go/No-Go)

• Leak testing fixtures

• Snap-fit engagement force testing

2. Functional Testing:

• Connection/disconnection force measurement

• Seal integrity testing (pressure/vacuum)

• Cycle life testing for reusable connectors

• Chemical resistance validation

3. Visual Standards:

• No flash on sealing surfaces

• Smooth operation of moving features

• Consistent color (for colored materials)

• Gate vestige within specification

Mold Features by Production Volume

Recommended Configurations:

Certification Documentation

ISO9001 Compliant Documentation:

• Design Review Records with customer approval

• DFMEA/PFMEA for risk management

• Control Plans for critical dimensions

• Inspection Instructions with acceptable criteria

• Material Certificates (steel, components)

• Process Parameter Records

• Preventive Maintenance Schedule

• Non-Conformance Reporting System

Cost Optimization Strategies

For Dual-Use Applications:

1. Modular Design: Interchangeable inserts for different connector sizes

2. Family Molds: Multiple connector types in one mold (for household variants)

3. Standard Components: Use of catalog mold base and components

4. Simplified Cooling: Strategic cooling rather than full conformal cooling

5. Material Selection: Optimize for processability rather than highest performance

Validation Approach

Tiered Validation Strategy:

1. Basic Validation (All Connectors):

• Dimensional accuracy

• Material certification

• Process capability (Cp/Cpk > 1.33)

2. Enhanced Validation (Medical-Critical Connectors):

• Biocompatibility testing (if required)

• Sterilization validation

• Extractables testing

• Extended functional testing

3. Household Connector Validation:

• Safety testing (sharp edges, small parts)

• Durability testing

• Environmental testing (temperature, UV)

Recommended Specifications

Optimal Mold Design Parameters:

• Surface Finish: SPI-A2 (medical areas at A1)

• Tolerances: ±0.03mm (critical features ±0.02mm)

• Venting: Adequate to prevent burns on sealing surfaces

• Corrosion Protection: Passivation or coating for medical surfaces

• Ejection: 10-15% of projected area for thin-walled connectors

• Cooling: 50-60% of mold cycle time

Maintenance Requirements

Preventive Maintenance Schedule:

• Daily/Weekly: Cleaning, lubrication check

• Monthly: Wear inspection, alignment check

• Quarterly: Hot runner maintenance, component inspection

• Annually: Full disassembly and refurbishment

• Per 50,000 cycles: Polish critical surfaces, replace wear components

Supplier Selection Criteria

ISO9001 Mold Maker Requirements:

• Certification: Valid ISO9001 certificate

• Experience: Connector mold portfolio

• Quality System: Documented and implemented

• Testing Capability: In-house measurement equipment

• Material Sourcing: Certified suppliers for medical-grade materials

• Documentation: Complete DMF (Device Master File) capability

Regulatory Considerations

Medical Device Classification Impact:

• Class I Connectors: Basic QMS, general controls

• Class II Connectors: Special controls, performance standards

• Household Connectors: Consumer product safety standards

• Cross-Over Products: Must meet the stricter requirement

Risk Management

Dual-Use Specific Risks:

1. Material Contamination: Separate production runs or thorough purging

2. Documentation Mix-up: Clear labeling and storage

3. Regulatory Confusion: Clear classification by intended use

4. Quality Standard Dilution: Maintain highest standard across all production

This mold specification provides a balanced approach for manufacturing plastic connectors that may serve both medical and household applications under an ISO9001 quality system, ensuring quality while optimizing costs for different market requirements.
