ISO9001 Certified Custom Mold 2+2 Cavity PC Material Large Gate Subgate Sensor Panel Plastic Injection Mold

ISO9001 Certified Custom Mold 2+2 Cavity PC Material Large Gate Subgate Sensor Panel Plastic Injection Mold

Our ISO9001 certified custom injection mold is engineered for high-volume production of PC material sensor panels, built with a 2+2 cavity configuration and large gate subgate system to ensure exceptional precision, efficiency, and surface quality. Designed for demanding electronic and industrial applications, this mold delivers consistent, high-performance parts with every cycle.

Quantity:
Availability:





Inquire Add to Basket

Model:
26005
Brand:
YIXUN mold
Code:
8480419090

Product Description

Product Overview

Our ISO9001 certified custom injection mold is engineered for high-volume production of PC material sensor panels, built with a 2+2 cavity configuration and large gate subgate system to ensure exceptional precision, efficiency, and surface quality. Designed for demanding electronic and industrial applications, this mold delivers consistent, high-performance parts with every cycle.

Key Features

✅ ISO9001 Certified Manufacturing

We strictly follow ISO9001 quality management standards, ensuring every mold undergoes rigorous testing and inspection to meet global quality benchmarks.

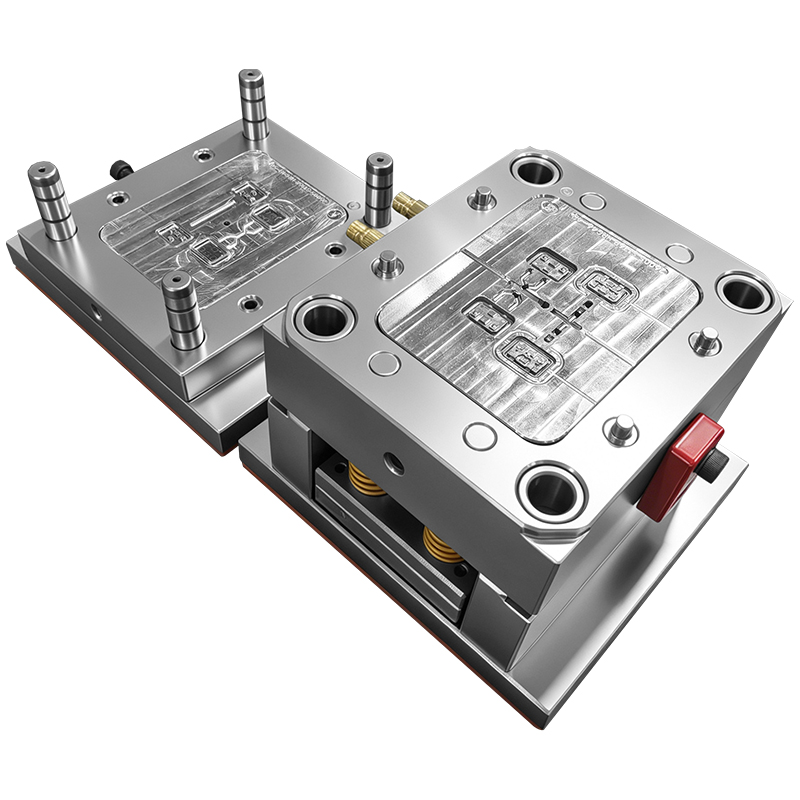

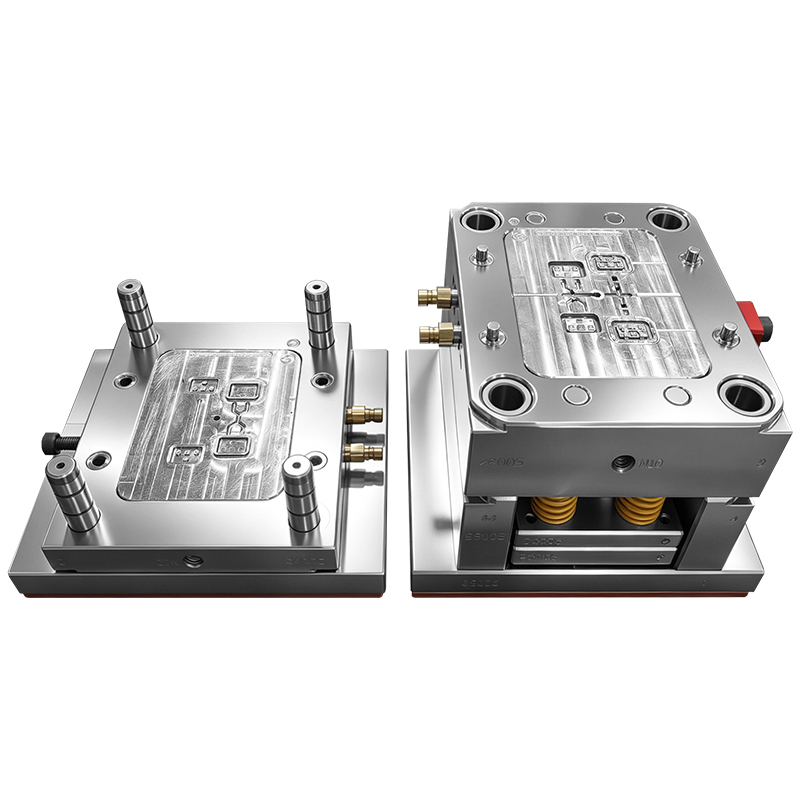

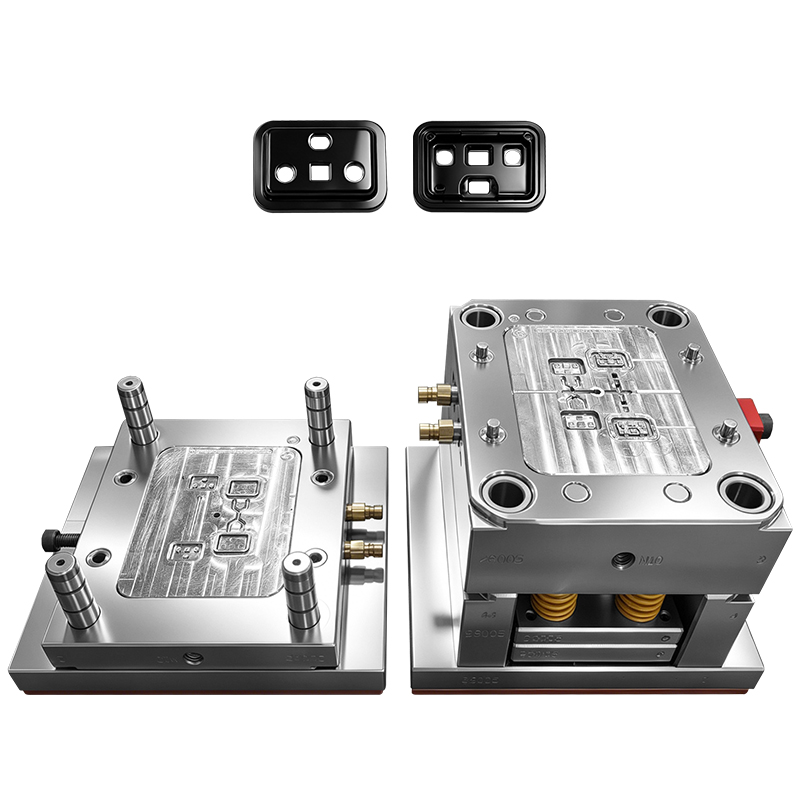

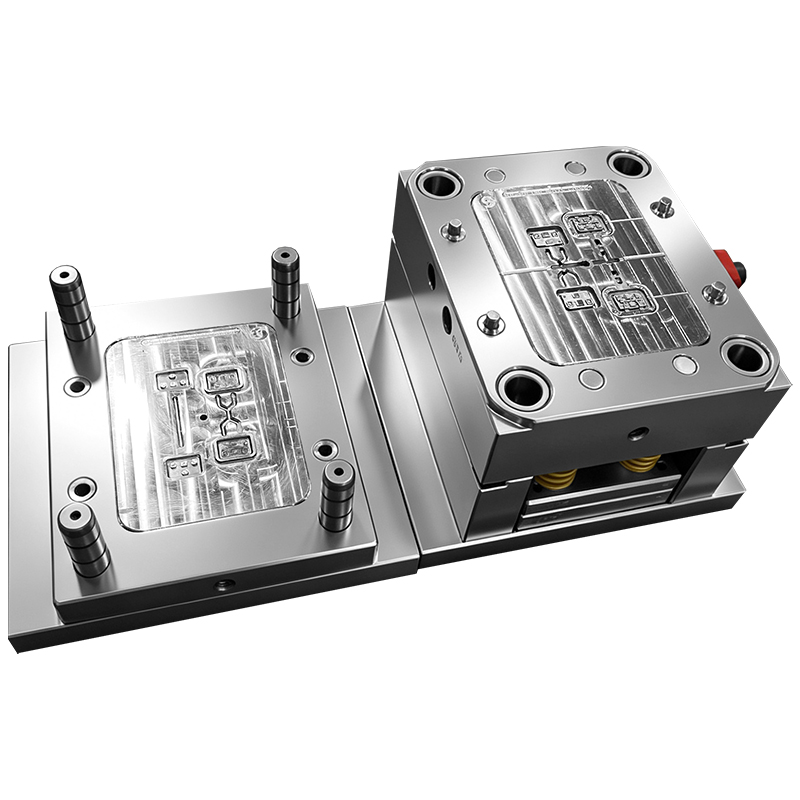

✅ 2+2 Cavity Mold Design

The balanced 2+2 cavity layout optimizes production output, reducing cycle time while maintaining identical part quality across all cavities. This configuration balances efficiency and cost-effectiveness for medium to high-volume orders.

✅ PC Material Compatibility

Engineered for polycarbonate (PC) resins, including flame-retardant and high-flow grades (e.g., Lexan® 943 / HFD1830), this mold supports high-temperature processing and delivers the excellent impact resistance, clarity, and dimensional stability required for sensor panel applications.

✅ Large Gate Subgate System

A precision-designed large gate subgate system ensures uniform material flow, minimizes shear stress, and eliminates common molding defects like sink marks or warpage—critical for maintaining the smooth, high-gloss surface finish seen on the sensor panel.

✅ High-Precision Tooling

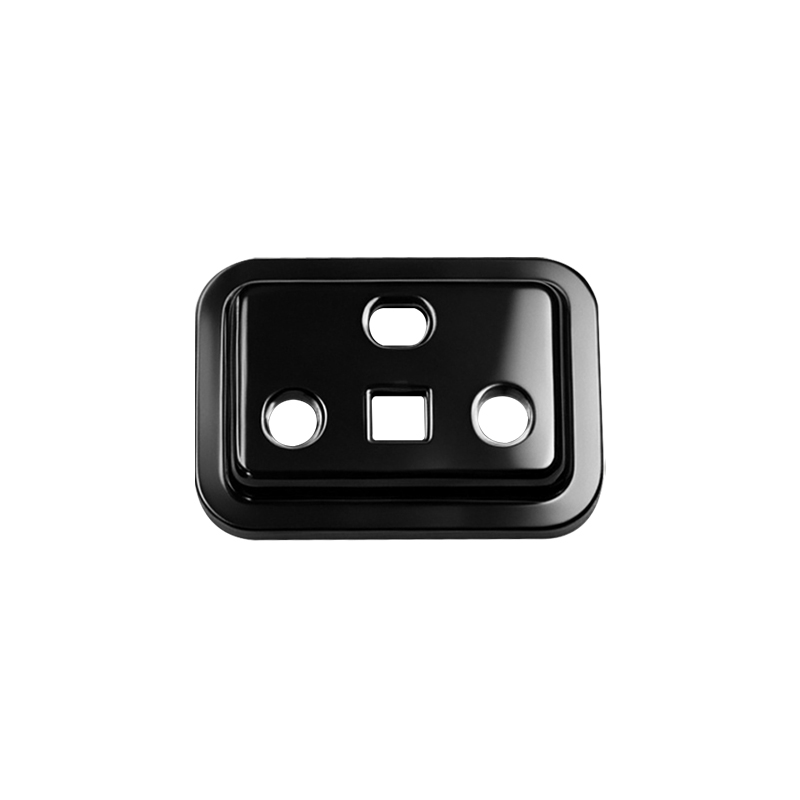

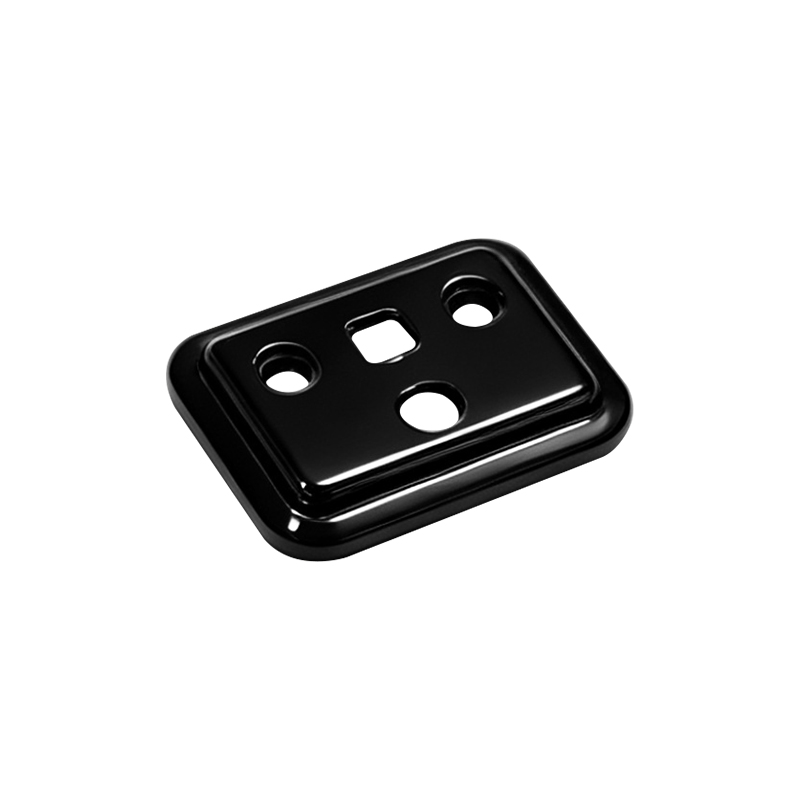

Built with high-grade mold steel and precision CNC machining, this mold delivers tight tolerances on critical features, including the panel’s cutouts, recesses, and rounded edges, ensuring perfect fit and function in sensor assemblies.

Technical Specifications

Item	Details
Mold Type	Custom Plastic Injection Mold
Cavity Number	2+2 Cavity
Material Compatibility	PC (Polycarbonate), including flame-retardant/UV-stabilized grades
Gate System	Large Gate Subgate
Certification	ISO9001
Mold Life	500,000+ cycles (dependent on material and maintenance)
Part Application	Sensor housing panels, electronic device covers, industrial control panels
Surface Finish	High-gloss, customizable texture options available

Application Scenarios

This mold produces sensor panels ideal for use in:

Smart home sensors (motion, door/window, environmental)
Industrial automation control systems
Automotive electronic components
Consumer electronics enclosures requiring high impact resistance
Medical device housings (with biocompatible PC grades)

Why Choose Our Mold?

Consistent Quality: The balanced 2+2 cavity design and subgate system ensure every part meets strict dimensional and aesthetic standards.
Cost Efficiency: Optimized cycle times and durable mold construction reduce per-unit production costs over the mold’s lifecycle.
Customization Flexibility: We offer full OEM/ODM services, including design modifications, material selection, and surface finish adjustments to match your exact requirements.
Reliable Support: Our team provides comprehensive after-sales service, including mold maintenance guidance and troubleshooting, to keep your production running smoothly.

Ready to start your custom mold project? Contact us today to discuss your specifications, request a quote, or learn more about our ISO9001 certified injection molding solutions.
