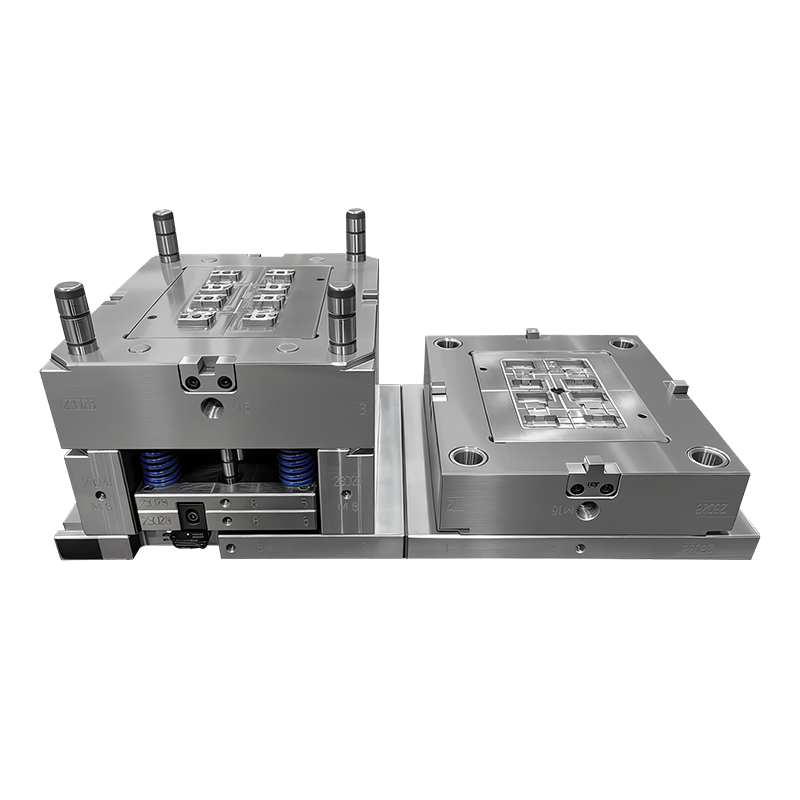

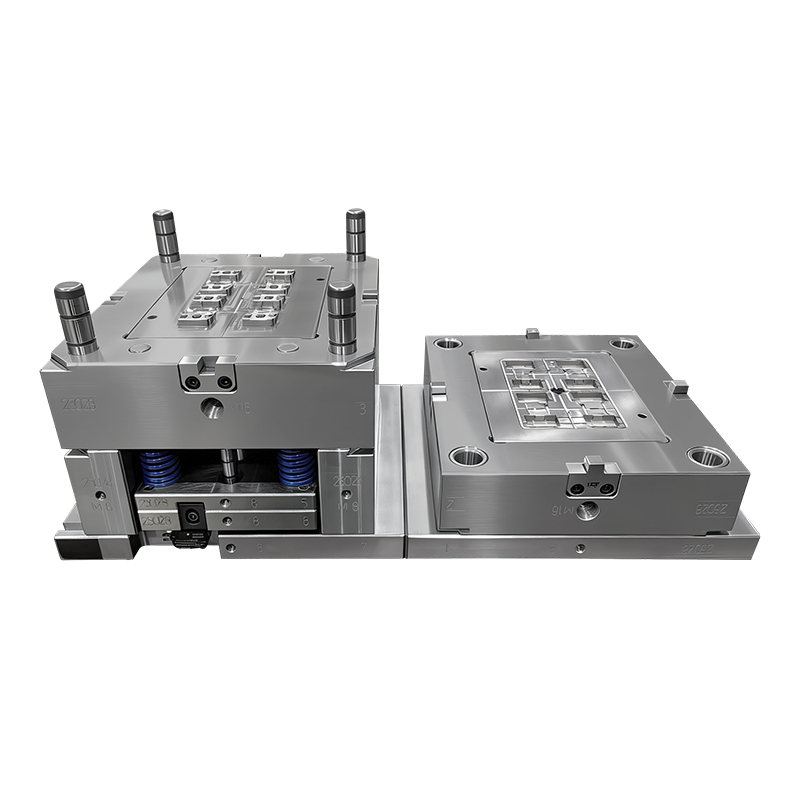

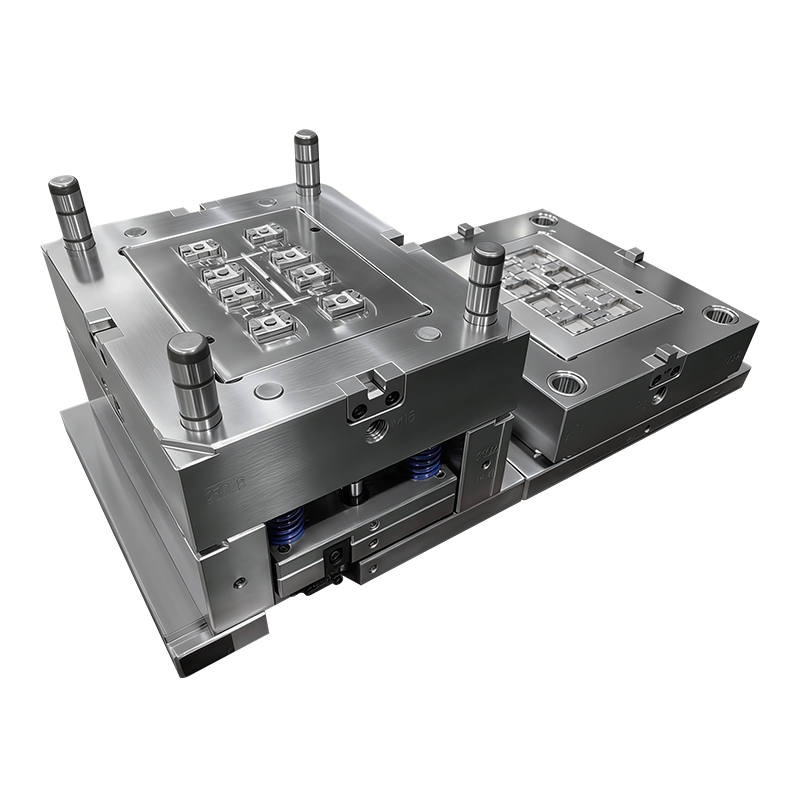

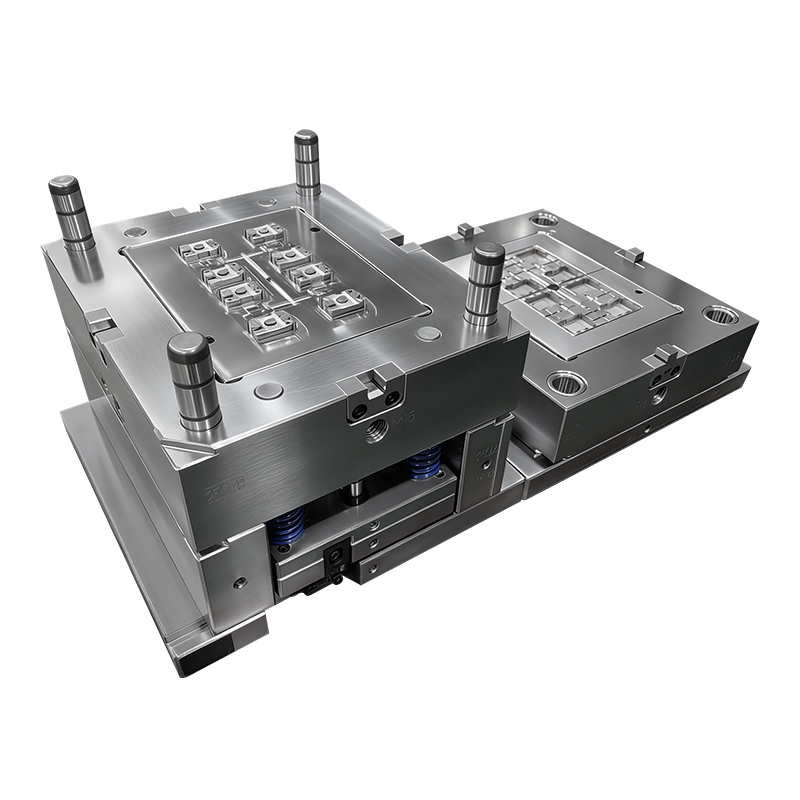

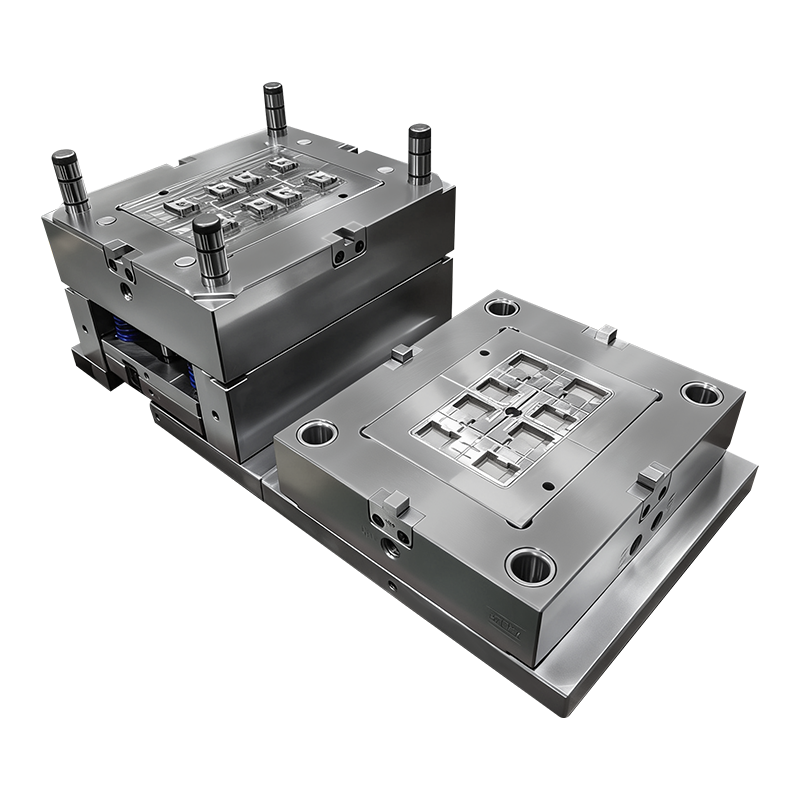

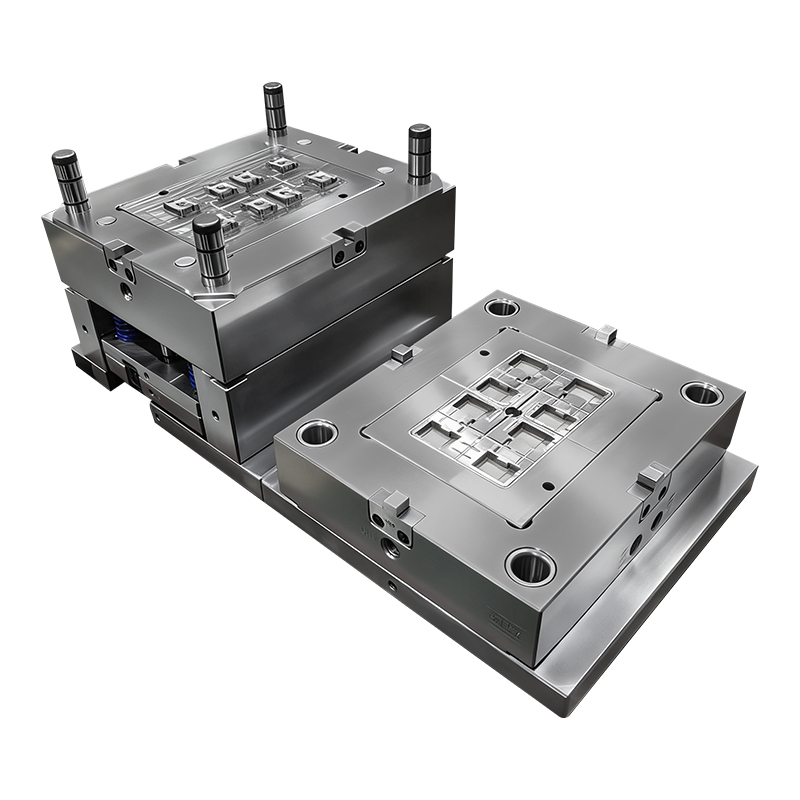

ISO9001 Certificated Long Mold Life Molding Companies Custom Switch Panel Manufacturing Mold

1. Product Overview

2. Core Design & Features

• Precision Molded Construction: Manufactured via high-precision injection molding, ensuring consistent dimensional accuracy and smooth surface finish.

• Regulatory Markings: Permanent, molded-in CE marking confirms compliance with EU safety, health, and environmental protection standards.

• Integrated Structural Features:

• Central cutout for switch/actuator installation

• Built-in mounting clips and alignment tabs for quick, secure assembly

• Raised part number (4301-01) and brand markings for traceability and identification

• Clean, Functional Aesthetics: Uniform surface finish with no visible gate marks, suitable for both visible and internal panel applications.

3. Recommended Material & Performance

Property	Typical Material (ABS/PC Blend or V0-rated ABS)
Flame Retardancy	UL94 V0 rated, meeting IEC 60695-11-10 standards
Electrical Insulation	High dielectric strength, suitable for low-voltage electrical applications
Impact Resistance	Excellent toughness to withstand installation and daily use
Temperature Resistance	Stable performance across -20°C to +80°C operating range
Color & Finish	Customizable colors with matte or glossy finishes to match your panel design

4. Mold & Manufacturing Highlights

• Injection Molding Process: High-volume production-ready mold design, ensuring repeatable quality and cost efficiency.

• Molded-In Markings: Part numbers, logos, and CE markings are integrated directly into the mold, eliminating secondary printing or engraving steps.

• Dimensional Consistency: Tight tolerance control ensures perfect fit with matching switches and panel assemblies, reducing assembly errors.

5. Applications

• Industrial control panels and electrical enclosures

• Commercial building automation systems

• Household and light commercial switchgear

• Custom electronic control housings requiring CE compliance

6. Customization Options

• What materials are available?
  We offer standard ABS, flame-retardant ABS/PC (UL94 V0), and PC grades. Custom materials (anti-static, reinforced) are available upon request.
• What surface finishes are available?
  Standard matte/textured (VDI 18–24) is included; glossy polish or custom textures (e.g., leather grain) can be added for premium aesthetics.
• What is the lead time?
  Mold fabrication: 3–4 weeks. Mass production: 2–4 weeks, depending on order quantity.
• Can the cutout/design be modified?
  Yes. We can adjust the central opening, mounting features, or other dimensions via mold revisions.
• Can you add custom colors or finishes?
  Yes. We can match custom Pantone/RAL colors, and offer secondary operations like painting or laser engraving for brand-specific needs.
