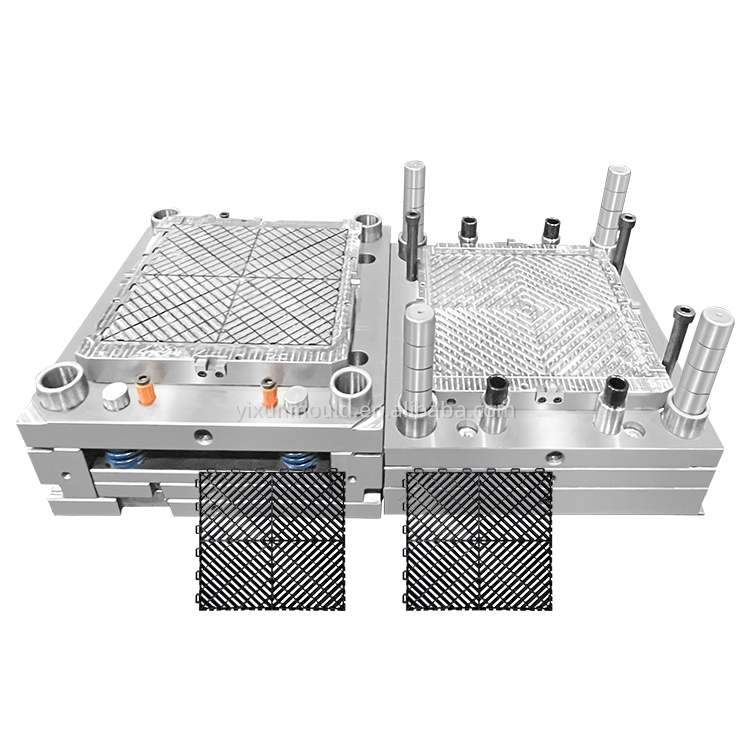

ISO9001 1*1 Injection Mold for Plastic Interlocking Grid Panel PP Material

Our Heavy-Duty Plastic Interlocking Grid Panel is a versatile, modular paving solution designed for indoor/outdoor use. Made from high-strength HDPE (or PP), it combines durability, easy installation, and drainage performance—ideal for patios, pool decks, warehouse floors, and pet enclosures. With interlocking clips and a diamond-grid design, it creates stable, slip-resistant surfaces in minutes, no tools required.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • YIXUN mold

  • 8480419090

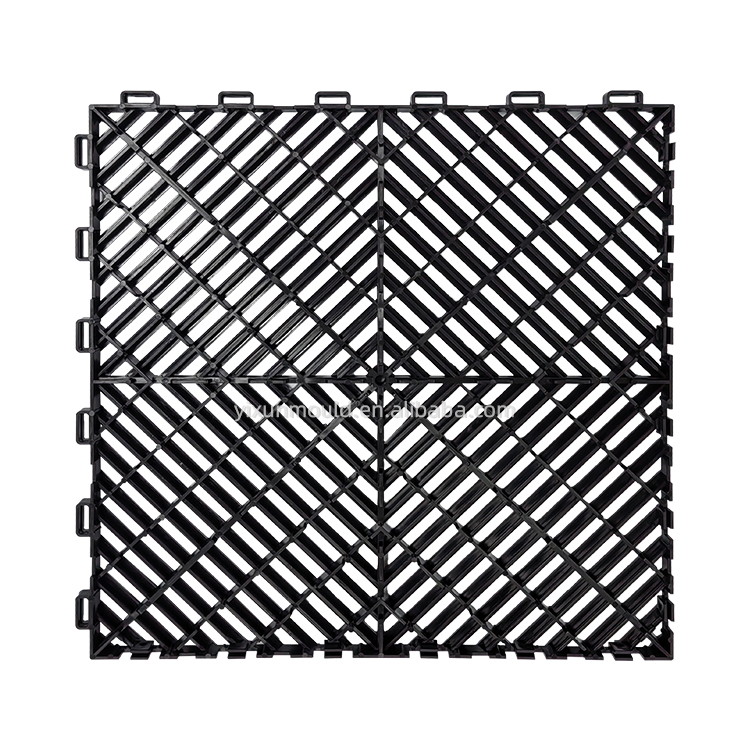

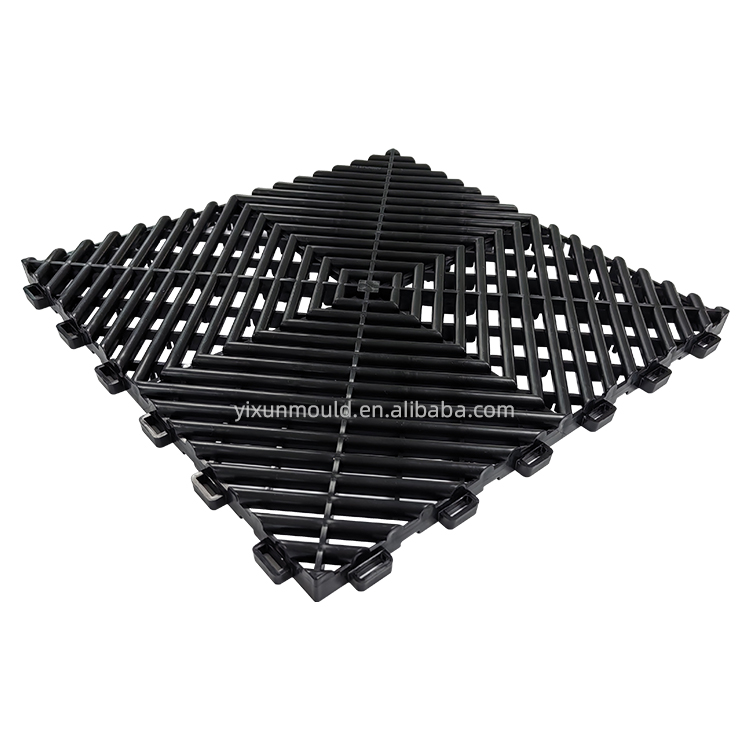

Heavy-Duty Plastic Interlocking Grid Panel (For Flooring & Paving)

Product Overview

Our Heavy-Duty Plastic Interlocking Grid Panel is a versatile, modular paving solution designed for indoor/outdoor use. Made from high-strength HDPE (or PP), it combines durability, easy installation, and drainage performance—ideal for patios, pool decks, warehouse floors, and pet enclosures. With interlocking clips and a diamond-grid design, it creates stable, slip-resistant surfaces in minutes, no tools required.

Key Features

  1. Interlocking Modular Design
    Edge clips (male/female) allow quick  (splicing) of multiple panels into custom-sized floors/patios. Disassemble and reconfigure anytime for flexible use.
  2. Durable & Weather-Resistant
    Crafted from UV-stabilized HDPE/PP:
    • Load capacity: Up to 2000 lbs (907 kg) per panel (even weight distribution).

    • Resists corrosion, water, UV rays, and temperature extremes (-40°F to 140°F / -40°C to 60°C).

  3. Drainage & Ventilation
    Diamond-grid hollow structure ensures 100% water/air flow:
    • Prevents water pooling (perfect for poolside, shower areas, or rainy climates).

    • Reduces mold/mildew under floors (ideal for warehouse shelving or pet cages).

  4. Low-Maintenance & Eco-Friendly
    • Easy to clean (hose down or wipe; debris falls through grid).

    • Recyclable material—sustainable choice for commercial/residential projects.

Technical Specifications

Specification Details
Material Food-grade HDPE / PP (BPA-free, non-toxic)
Size per Panel 12" x 12" / 24" x 24" / 36" x 36" (custom sizes available)
Thickness 0.4" (10mm) / 0.6" (15mm) (thicker options for heavy-load scenarios)
Color Black, Gray, Brown (custom colors for bulk orders)
Installation Tool-free interlocking (clips snap into place manually)
Application Scenarios Patio flooring, pool deck drainage, warehouse ventilation mats, pet cage liners, event temporary paving

Why Choose Our Grid Panel?

  • Cost-Effective: Reusable, long-lasting (10+ years lifespan) — no need for frequent replacements.

  • Versatile: Works on uneven ground (sand, gravel, concrete) — ideal for DIY or professional projects.

  • Safe: Slip-resistant surface (even when wet) + rounded edges (no sharp corners).

Installation Guide (3 Simple Steps)

  1. Prepare the Base: Ensure the ground is flat (remove debris; use sand/gravel for uneven areas).

  2. Interlock Panels: Align the male clip of one panel with the female slot of another; press firmly until it clicks.

  3. Finish & Use: Cover the desired area; trim edge panels (if needed) with a utility knife for a perfect fit.

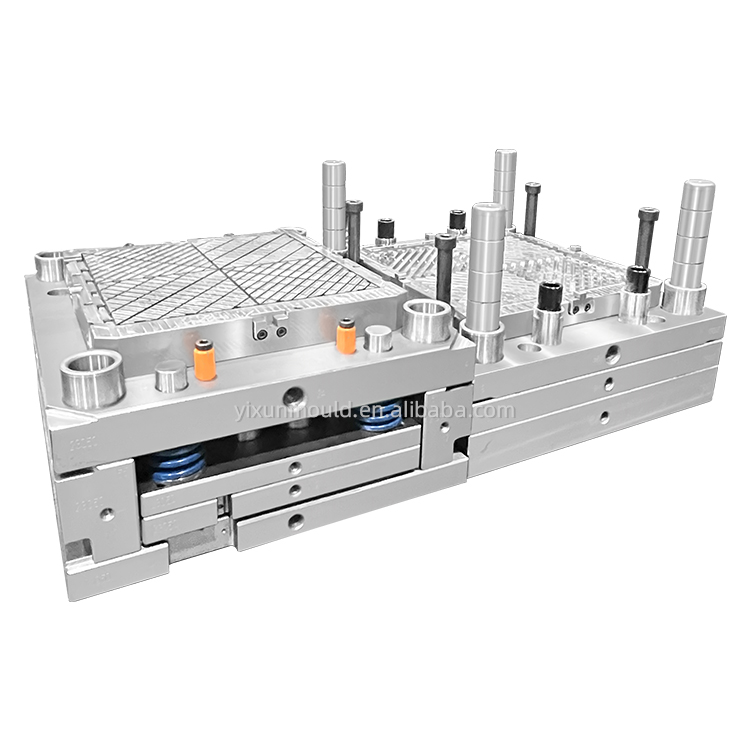

Interlocking Grid Panel Interlocking Grid Panel injection moldmold maker
