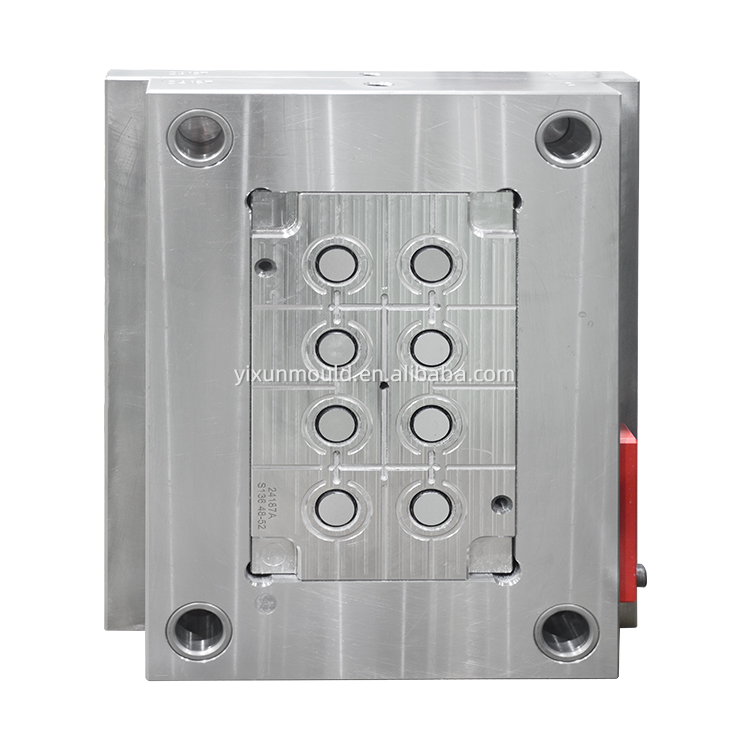

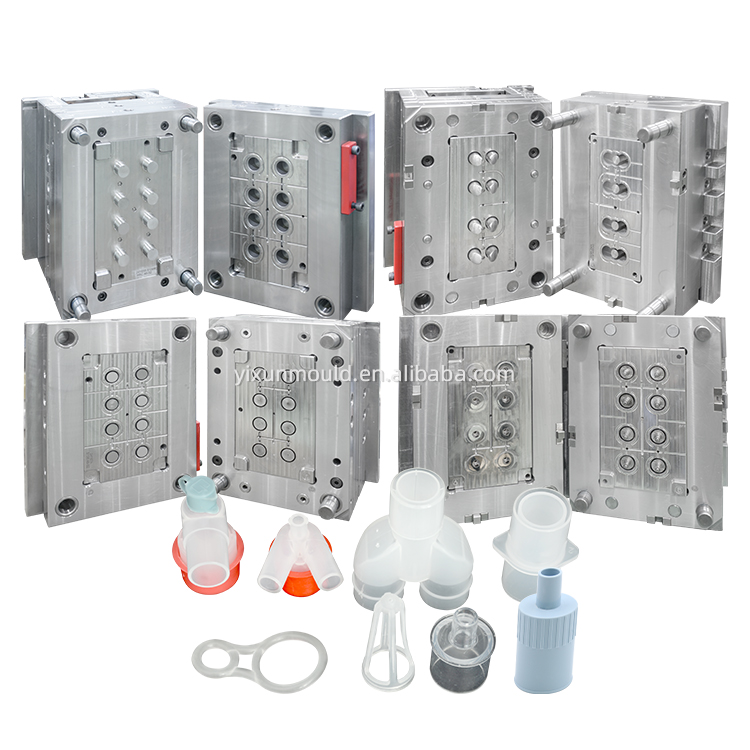

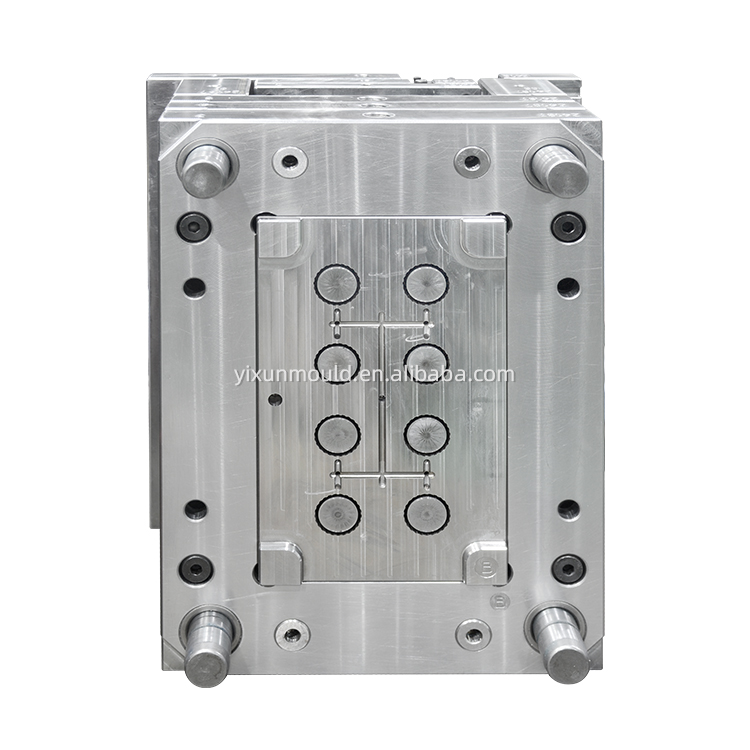

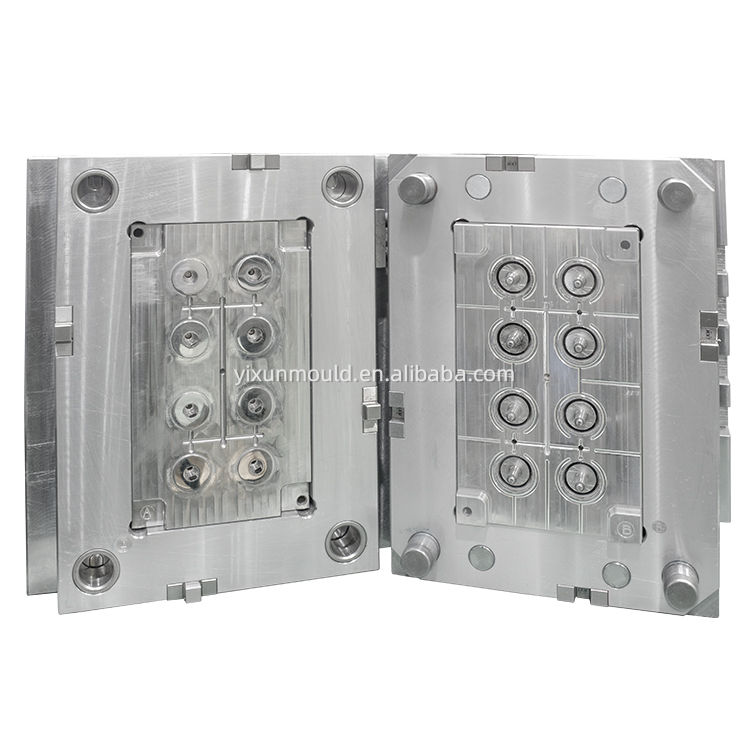

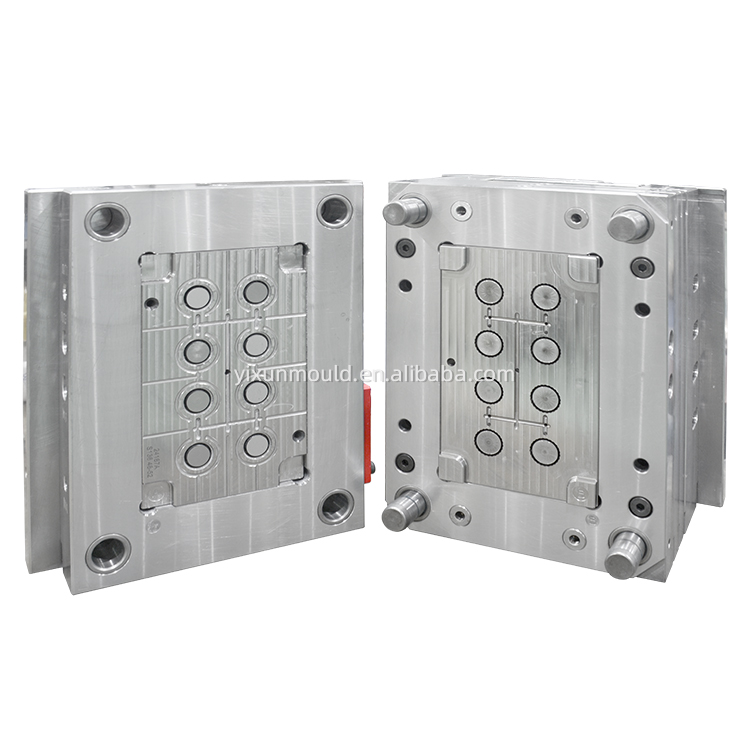

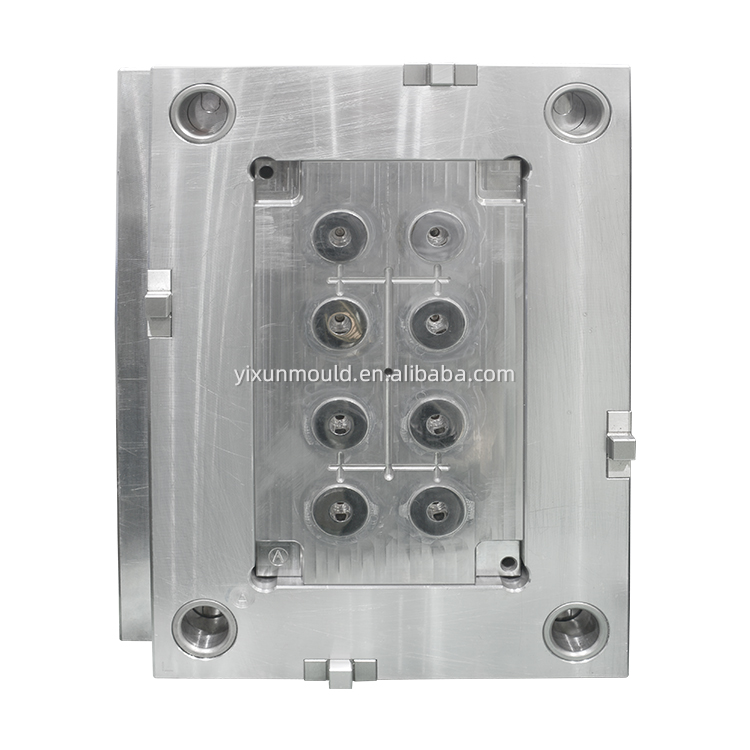

ISO13485 Steel Injection Mold for Plastic Products for Filter Made with PP Material

Overview

This specification covers ISO13485 certified injection molds designed specifically for manufacturing plastic filter products using Polypropylene (PP) material for medical/healthcare applications.

Certification & Compliance

ISO13485 Requirements

• Full Quality Management System for medical device manufacturing

• Risk Management: ISO14971 compliance

• Design Control: Documented design and development process

• Traceability: Material and process documentation

• Cleanliness Standards: Mold maintenance and storage protocols

• Validation: Installation, Operational, and Performance Qualification (IQ/OQ/PQ)

Material Specifications

Polypropylene (PP) for Medical Filters

• Grade: Medical-grade PP (USP Class VI, ISO 10993 compliant)

• Characteristics:

• Chemical resistance

• Autoclavable (for sterilization)

• Good flow properties

• Low moisture absorption

• Filter-Specific Properties:

• Porous structure compatibility

• Consistent melt flow for precise filtration features

• Biocompatibility for medical applications

Mold Steel Requirements

Special Requirements:

• Corrosion resistance: Critical for medical applications

• Non-porous surfaces: Prevent bacterial growth

• Electropolishing: Required for all fluid-contact surfaces

Mold Design for Filter Products

Critical Features:

1. Precision Gating:

• Hot runner preferred for minimal gate vestige

• Valve gates for clean separation

2. Micro-Features:

• Fine filtration mesh/membrane structures

• Consistent wall thickness for filtration membranes

• Micro-pins for filter support grids

3. Ejection System:

• Gentle ejection to avoid filter media damage

• Multiple ejection points for thin-walled filters

• Non-marking ejector pins

4. Cooling System:

• Balanced cooling for uniform crystallization

• Baffles and bubblers for complex geometries

• Temperature control ±1°C for consistency

Validation Documentation

Required Documentation Package:

• Design History File (DHF)

• Device Master Record (DMR)

• Process Validation Reports

• Material Certificates (steel, components)

• Surface Finish Certifications

• Cleaning Validation Protocols

• Mold Maintenance Records

Production Environment Requirements

Cleanroom Compatibility:

• Class: Typically ISO Class 7 or 8 cleanroom

• Mold Storage: Clean, dry, controlled environment

• Assembly/Disassembly: Cleanroom procedures

• Packaging: Vapor-corrosion inhibited packaging

Sterilization Considerations:

• Autoclave compatibility of molded parts

• Gamma/Ethylene oxide sterilization validation

• Material stability post-sterilization

Quality Control Measures

Inspection Requirements:

• First Article Inspection (FAI) per AS9102

• Dimensional checks: CMM measurement

• Surface roughness: Ra ≤ 0.2 μm for fluid paths

• Visual inspection: No pits, porosity, or defects

• Function testing: Filter performance validation

Testing Protocols:

• Flow rate testing

• Bubble point testing (for membrane filters)

• Extractables testing

• Bioburden testing

• Integrity testing

Recommended Specifications

For Medical Filter Molds:

• Runner System: Hot runner with temperature control

• Cavity Finish: SPI-A1 mirror polish (Ra ≤ 0.012 μm)

• Tolerances: ±0.02mm or tighter

• Venting: Adequate to prevent burns/dieseling

• Corrosion Protection: Passivation of stainless components

PP-Specific Design:

• Shrinkage: Account for 1.5-2.0% shrinkage

• Gate size: Adequate for PP's flow characteristics

• Cooling: Extended cooling time for PP crystallization

Maintenance & Lifecycle

Preventive Maintenance:

• Regular cleaning: After each production run

• Surface preservation: Rust prevention

• Component replacement: Scheduled based on cycles

• Documentation: Maintenance logs per ISO13485

Expected Mold Life:

• Primary components: 1,000,000+ cycles

• Ejector system: Regular replacement at 200,000 cycles

• Hot runner components: 500,000+ cycles with maintenance

Cost Considerations

• Initial investment: 30-50% higher than standard molds

• Documentation: 15-25% of total project cost

• Maintenance costs: Higher due to stringent requirements

• ROI: Justified by medical-grade pricing and regulatory compliance

Supplier Qualification

• Mandatory: ISO13485 certification

• Experience: Medical device mold manufacturing

• Facilities: Cleanroom molding capability

• Documentation: Robust quality system

• Validation support: IQ/OQ/PQ protocol development
