The simplest way to remember the difference is this:
A Hydraulic Cylinder creates linear, push-pull movement.
A Hydraulic Motor creates continuous rotary movement.
Think of it like this: a hydraulic cylinder is the powerful arm that pushes and pulls, while a hydraulic motor is the relentless engine that turns and spins.
| Feature | Hydraulic Cylinder | Hydraulic Motor |
|---|---|---|
| Primary Function | Generates linear force and motion | Generates rotary torque and motion |
| Movement Type | Reciprocating (Extend/Retract) | Continuous Rotation (Clockwise/Counter-clockwise) |
| Key Applications in Molds | Ejection, side-core pulling, slider actuation | Unscrewing threaded parts, gear-driven demolding |
| Analogy | The strong arm of a robot | The wheel of a car |
| Control Focus | Stroke end position, linear speed, thrust force | Rotation angle/revolution, rotational speed, torque |
Hydraulic Cylinders: The Linear Powerhouses
Cylinders convert hydraulic energy into a powerful, straight-line mechanical force. They are the most common hydraulic components in a mold.
Typical Applications:
Ejection: Used as independent ejector cylinders to push the ejector plate and release the part from the mold cavity. This allows for precise control over ejection stroke, speed, and force.
Side-Action Core Pulling: When a part has an undercut or a side hole, a cylinder is used to move a core or slider sideways to release the part before ejection.
Sequence Control: In multi-plate molds, cylinders can control the precise order in which the mold plates open.

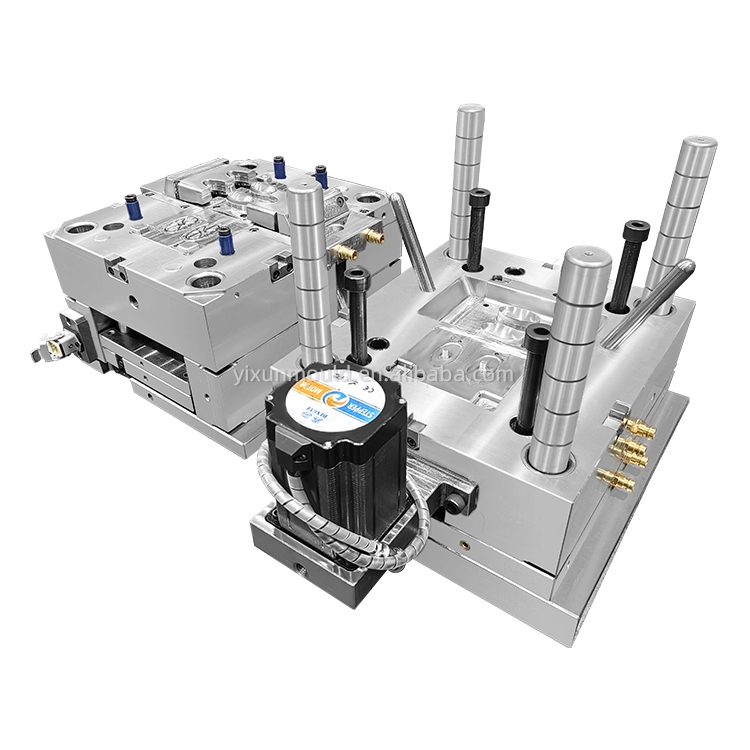

Hydraulic Motors: The Rotary Experts
Motors convert hydraulic pressure into a smooth, continuous spinning motion. They are the specialized solution for a specific set of challenges.
Typical Applications:
Thread Unscrewing: This is their primary role. For parts like bottle caps, screws, or fittings with internal or external threads, a hydraulic motor rotates the threaded mold core to "unscrew" the part.
Complex Demolding: Used for parts with internal gears or helical features that require a twisting motion to release.
Yes, they can and frequently are used together in the same mold! This combination is essential for manufacturing complex parts that feature both undercuts (requiring linear pulling) and threads (requiring rotary unscrewing).
A common hydraulic power unit and control system sequences their actions with precision.
Real-World Product Example: A Bottle Cap with a Safety Clip
Imagine a sports drink bottle cap that has internal threads and an external, tamper-evident safety clip (an undercut). The demolding sequence is a perfect dance between the cylinder and the motor:
Mold Opens: The main plates of the mold separate.
Cylinder Actuates (Pulls): One or more hydraulic cylinders retract, pulling the sliders that formed the side clip away from the part.
Motor Actuates (Turns): Once the sliders are clear, the hydraulic motor engages, rotating the threaded core to unscrew the cap.
Cylinder Actuates (Pushes): Finally, an ejection cylinder pushes the now-free cap out of the mold.
All Systems Reset: Everything returns to the start position for the next cycle.
Other common products that require this synergy include:
Automotive knobs with threads and side clips
Industrial pipe fittings with multiple ports and threads
Complex toy parts and consumer goods
The choice between a cylinder and a motor—or the decision to use both—comes down to the geometry of the plastic part you need to produce.
Need a push or a pull? Choose a Hydraulic Cylinder.
Need a turn or a spin? Choose a Hydraulic Motor.
Need both a pull and a spin? You need both.
By harnessing the linear force of cylinders and the rotary power of motors, mold designers can unlock new levels of complexity, efficiency, and automation in plastic injection molding. This powerful push-and-turn partnership is at the heart of manufacturing the sophisticated plastic products we use every day.
