How to Optimize Injection Molding Cycle Time for Higher Efficiency and Lower Costs

What Is Injection Molding Cycle Time?

The injection molding cycle consists of several stages:

1. Clamping – Mold closes

2. Injection – Molten plastic is injected

3. Holding/Pressure – Maintains pressure to prevent shrinkage

4. Cooling – Part solidifies (typically the longest phase)

5. Mold Opening

6. Ejection & Part Removal

7. Auxiliary Time – Robot movement or manual handling

Among these, cooling time usually accounts for 50–70% of the total cycle. Optimizing this phase offers the greatest potential for improvement.

Key Factors Affecting Cycle Time

1. Part Design

• Thicker walls require longer cooling.

• Complex geometries increase filling and packing time.

• Uniform wall thickness helps balance cooling and reduce warpage.

2. Mold Design

• Cooling System: Efficient, well-placed cooling channels (especially conformal cooling) can significantly reduce cooling time.

• Gate & Runner Design: Hot runner systems eliminate runner regrind and reduce cycle vs. cold runners.

• Ejection System: Smooth ejection prevents delays and part damage.

3. Material Selection

• PP and PE cool faster than PC or PA (Nylon).

• High-viscosity materials need higher injection pressure and longer fill time.

• Use materials with good flowability for complex parts.

4. Processing Parameters

• Melt Temperature: Too high increases cooling time; too low causes short shots.

• Mold Temperature: Lower mold temps speed up cooling but may affect surface finish.

• Holding Time & Pressure: Must be optimized to avoid sink marks without overpacking.

5. Machine & Automation

• High-speed injection machines reduce fill time.

• Robotic part removal cuts auxiliary time by 2–5 seconds per cycle.

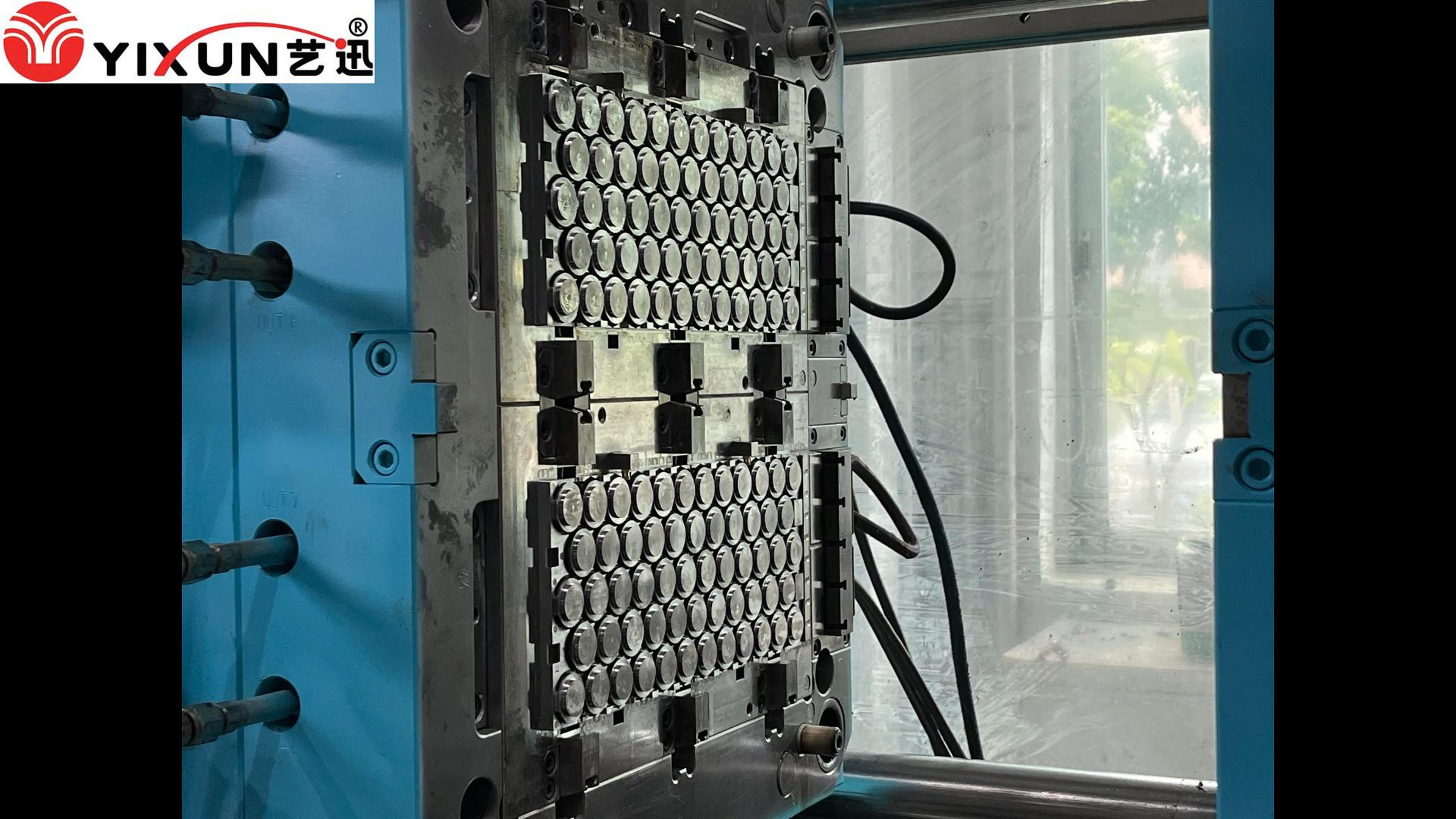

• Multi-cavity molds increase output per cycle.

Proven Strategies to Reduce Cycle Time

✅ Optimize Cooling Channels
Use conformal cooling or high-conductivity inserts (e.g., beryllium copper) in hot spots.

✅ Switch to Hot Runner Systems
Eliminate runner regrind and reduce cycle time by 10–20%.

✅ Use Automation
Robots ensure consistent part removal and allow 24/7 operation.

✅ Conduct Mold Flow Analysis
Simulate filling, cooling, and warpage to identify bottlenecks before production.

✅ Regular Mold Maintenance
Clean cooling lines and check for wear to maintain consistent performance.

Real-World Example

A client producing an ABS automotive housing had a cycle time of 45 seconds. By:

• Redesigning cooling channels

• Switching to a hot runner system

• Optimizing holding pressure

We reduced the cycle to 36 seconds — a 20% improvement, increasing annual output by over 100,000 units without additional equipment.

Final Thoughts

Reducing injection molding cycle time is not just about speed—it’s about smart design, precise control, and continuous improvement. By focusing on cooling efficiency, mold design, and automation, manufacturers can achieve faster cycles, lower costs, and higher customer satisfaction.
