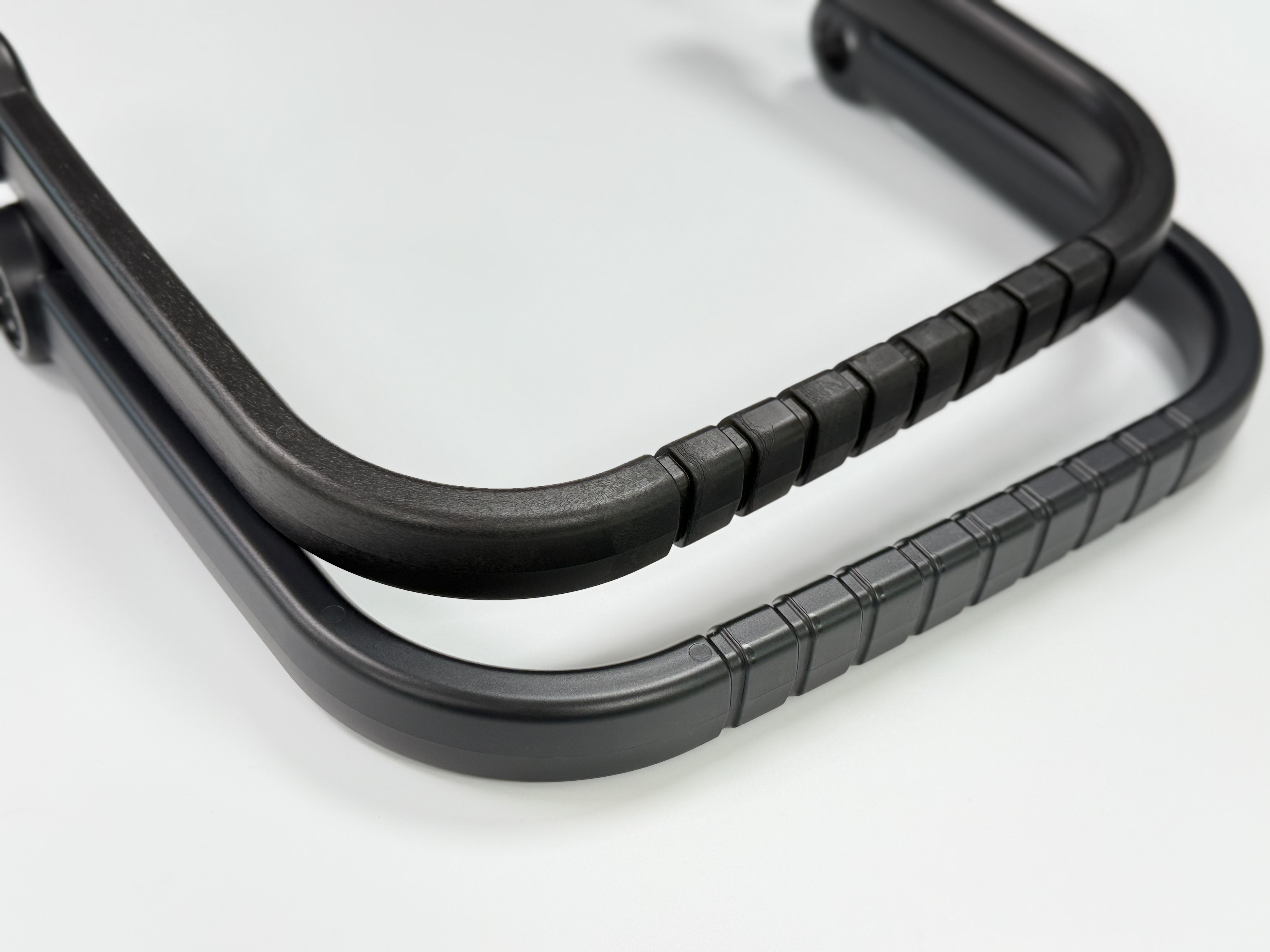

Gas-assisted injection molding (GAIM) is a transformative technology that enables the production of complex, lightweight plastic parts with superior surface finish and reduced warpage. However, the very mechanism that gives GAIM its advantages—the interaction between polymer melt and high-pressure gas—also introduces unique challenges. Defects like sink marks, gas blow-through, and fingering can plague production if the process is not meticulously controlled.
This guide breaks down the root causes of the most common GAIM defects and provides actionable solutions to achieve consistent, high-quality parts.
At its heart, GAIM is a precise spatiotemporal competition between polymer solidification and gas penetration. The inert gas (usually nitrogen) must displace the cooling melt in a controlled manner to compensate for volumetric shrinkage. When the balance between melt behavior, gas action, and part design is disrupted, defects occur.
The Problem: Visible depressions on the part surface, typically in thick sections like ribs or bosses.
Root Causes (Why it happens):
This is fundamentally a compensation failure. The gas pressure is insufficient to push molten material into areas shrinking during cooling. Specific causes include:
Low Gas Pressure/Short Gas Packing Time: The gas doesn't exert enough force for long enough to counteract volumetric shrinkage.
Late Gas Injection: The melt skin has already solidified too much, preventing effective packing.
Incorrect Short Shot Size: Too much melt injected leaves insufficient room for the gas to act effectively as a packing medium.
Local Overheating: Areas cooling much slower than surroundings can sink.
Solutions:
Optimize Gas Parameters: Increase gas hold pressure and prolong hold time. Fine-tune gas delay time.
Adjust Short Shot: Slightly decrease the melt injection volume (short shot percentage) to allow the gas a larger, more effective packing volume.
Improve Cooling: Ensure uniform mold cooling, especially around thick sections, to promote even solidification.
The Problem: Gas penetrates the entire part wall, creating a hole or a severely weakened area.
Root Causes:
This is a catastrophic loss of melt strength. The gas pressure overcomes the integrity of the cooling polymer skin.
Excessive Gas Pressure: The primary culprit—too much force applied too quickly.
Low Melt Temperature/Strength: The melt front cools and becomes too viscous, causing the gas to force its way through rather than flowing evenly. Weak material grades exacerbate this.
Poor Gas Channel Design: Channels placed too close to walls or in very thin sections create natural weak points.
Extreme Wall Thickness Variations: Gas will always seek the path of least resistance (the thickest, hottest section), which may be a direct path to the mold surface.
Solutions:
Reduce Gas Pressure: Immediately lower the primary gas injection pressure.
Increase Melt Temp/Injection Speed: Ensure the melt front is hot and fluid when the gas arrives.
Redesign Gas Channels: Reposition channels to run through the center of thick sections, ensuring uniform melt walls around them.
The Problem: Unstable, branch-like gas penetration patterns visible as streaks or shadows on the part surface.
Root Causes:
This is a viscosity instability. The gas-melt front becomes unstable, similar to a river delta forming.
Poor Melt Flow Front: Melt is too cold or injected too slowly when gas is introduced.
Gas Channel in Too Thin a Section: The gas enters a region where it cannot form a stable, coherent bubble.
Material with Unstable Viscosity: Some materials are more prone to this flow instability.
Solutions:
Increase Melt Temperature and Injection Speed: This is the most effective fix. A hotter, faster melt front stabilizes the gas penetration.
Widen Gas Channels or Reposition Them: Ensure channels are in areas thick enough to support stable bubble formation.
Switch Materials: If possible, use a material with more stable rheological properties for GAIM.
The Problem: The part twists, bends, or bows out of its intended shape after ejection.
Root Causes:
This is a stress imbalance caused by non-uniform cooling or non-uniform gas pressure distribution.
Non-Uniform Wall Thickness: Different cooling rates create internal stresses.
Poor Mold Cooling Layout: Temperature differences across the mold cause one side to shrink more than another.
Asymmetric Gas Penetration: Gas takes a one-sided path, packing one area more than another, creating differential shrinkage.
Solutions:
Design for Uniform Wall Thickness: This is the most important preventive step.
Balance Mold Cooling: Ensure cooling channels are symmetrical and provide even temperature control.
Balance Gas Injection: Use multiple gas injection points if necessary to ensure even gas penetration and packing pressure across the part.
The Problem: Voids inside the part or glossy streaks/blemishes on the surface.
Root Causes:
Gas Trapping: Gas is trapped in a blind pocket with no escape, often due to poor venting or an unbalanced fill pattern.
Surface Streaks: Usually caused by material degradation (overheating) or gas mixing with the melt front, often due to excessive gas pressure or contaminated gas (oil, moisture).
Solutions:
Improve Mold Venting: Add or clean vents at the end of fill and gas penetration paths. Proper vent depth is 0.01-0.03mm.
Purge Gas Lines: Ensure clean, dry nitrogen is used.
Lower Melt & Gas Temperature: Prevent material breakdown.
The Problem: Part dimensions vary from shot to shot.
Root Causes:
This is a process control issue. Any fluctuation in the melt-gas-process equilibrium affects the final part.
Inconsistent Short Shot Volume: Slight variations in the injected melt amount change the gas action space.
Fluctuating Gas Pressure/Timing: Inconsistent gas control from shot to shot.
Unstable Melt Viscosity: Often caused by inconsistent drying, regrind percentage, or barrel temperature.
Solutions:
Tighten Process Controls: Use machines with closed-loop control for injection and gas pressure.
Standardize Material Handling: Strict protocols for drying and regrind use.
Conduct a DOE: Design of Experiments can help find a robust, stable process window less sensitive to minor variations.
Design First: Prioritize uniform wall thickness and logical gas channel placement (simulate with CAE software like Moldflow).
Material Matters: Select resins with low shrinkage, good melt strength, and proven GAIM performance (e.g., specific grades of ABS, PC, PP).
Process Precision: Dial in the critical trio—melt front condition, gas switch-over point, and gas pressure profile.
Mold Excellence: Ensure robust cooling and ample, clean vents.
By understanding the why behind these defects, you can move beyond trial-and-error and implement targeted solutions. GAIM demands a systematic approach, but the rewards—stunning, cost-effective, high-performance parts—are well worth the effort.
