First, let's look at the techniques we use to alter the mold's surface:
Texturing (ETCHING / EDM): This is the most common method for achieving non-glossy, patterned finishes. We use photochemical etching or electrical discharge machining to corrode the steel surface. By controlling the process, we can create anything from a subtle grainy matte finish (e.g., VDI 27) to a pronounced leather pattern or geometric design. The plastic flows into these microscopic cavities, replicating the texture.
Polishing: The polar opposite of texturing. Through a meticulous, multi-step process using increasingly fine abrasives (from stones to diamond paste), we eliminate all tooling marks, creating a flawless, mirror-like surface. The higher the polish level (e.g., SPI A1), the higher the gloss on the final part. This is crucial for lenses, light guides, and high-end cosmetic surfaces.
Laser Engraving: A highly precise method where a laser ablates the mold steel. It's perfect for adding sharp serial numbers, barcodes, or intricate logos. We can also use it to create unique textures, like a velvety feel, by engraving a dense pattern of microscopic dots.
Coatings (PVD/CVD & Plating): Sometimes, we change the mold's surface properties to achieve a specific part finish. Applying a ultra-hard, low-friction DLC (Diamond-Like Carbon) or Chromium Nitride coating via PVD makes the mold super-slippery. This allows the plastic to flow easier and release better, which is essential for achieving a perfect high-gloss finish and reducing visible defects like flow lines.
This is where engineering meets art. You can't just randomly apply different finishes; the mold's structure dictates how we implement them.
a) The Power of Inserts:
The most powerful tool in our arsenal. Instead of treating the entire mold core/cavity as one piece, we design it with interchangeable inserts.
How it works: The region for a glossy logo or a specific texture is machined as a separate, precision-fitting block of steel (an insert).
Process: We can remove this insert and give it a different surface treatment—like a mirror polish—while the main mold body receives a matte texture.
Mold Analysis Insight: We must analyze the fit between the insert and the main mold body. A poor fit creates a parting line (witness line) on the part, which can be visually unacceptable. Finite Element Analysis (FEA) helps ensure the insert won't shift under high injection pressure. Cooling channels must also be designed around inserts to maintain uniform temperature.
b) Utilizing Slides and Lifters for Side Finishes:
What if a textured grip is needed on the side of a part with an undercut?
How it works: The side action is handled by a slide (driven by an angled pin) or a lifter.
Process: The surface of that slide or lifter is textured. As the mold opens, the slide retracts, allowing the textured part to be ejected.
Mold Analysis Insight: The textured surface on a moving component is prone to wear and abrasion. We must analyze the material selection (often a harder grade of steel) and apply wear-resistant coatings (like Chromium plating) to ensure the texture remains consistent over hundreds of thousands of cycles.
c) The Critical Role of Venting:
This is a make-or-break factor, especially for high-gloss finishes. Trapped air or gas can cause burn marks, dull spots, or short shots, completely ruining the surface quality.
Mold Analysis Insight: We perform mold filling simulations to identify potential air traps. Based on this, we strategically place:
Venting grooves: Tiny channels (0.02-0.03mm deep) at the parting line or around ejector pins that let air out but block plastic.
Porous steel inserts: Sintered metal blocks that act as excellent vents in deep, difficult-to-vent cavities. Proper venting analysis is non-negotiable for achieving perfect surface replication.
The mold is only half the story. The injection molding process must be tuned to match the mold design.
For High-Gloss: Requires high mold temperature and fast injection speed. The hot mold prevents the plastic from freezing too quickly, allowing it to replicate the polished surface perfectly.
For Matte Textures: A lower mold temperature is often sufficient and helps emphasize the matte effect.
Creating multiple surface finishes isn't a happy accident. It's the result of:
Strategic Design: Deciding which finishes go where during the product design phase.

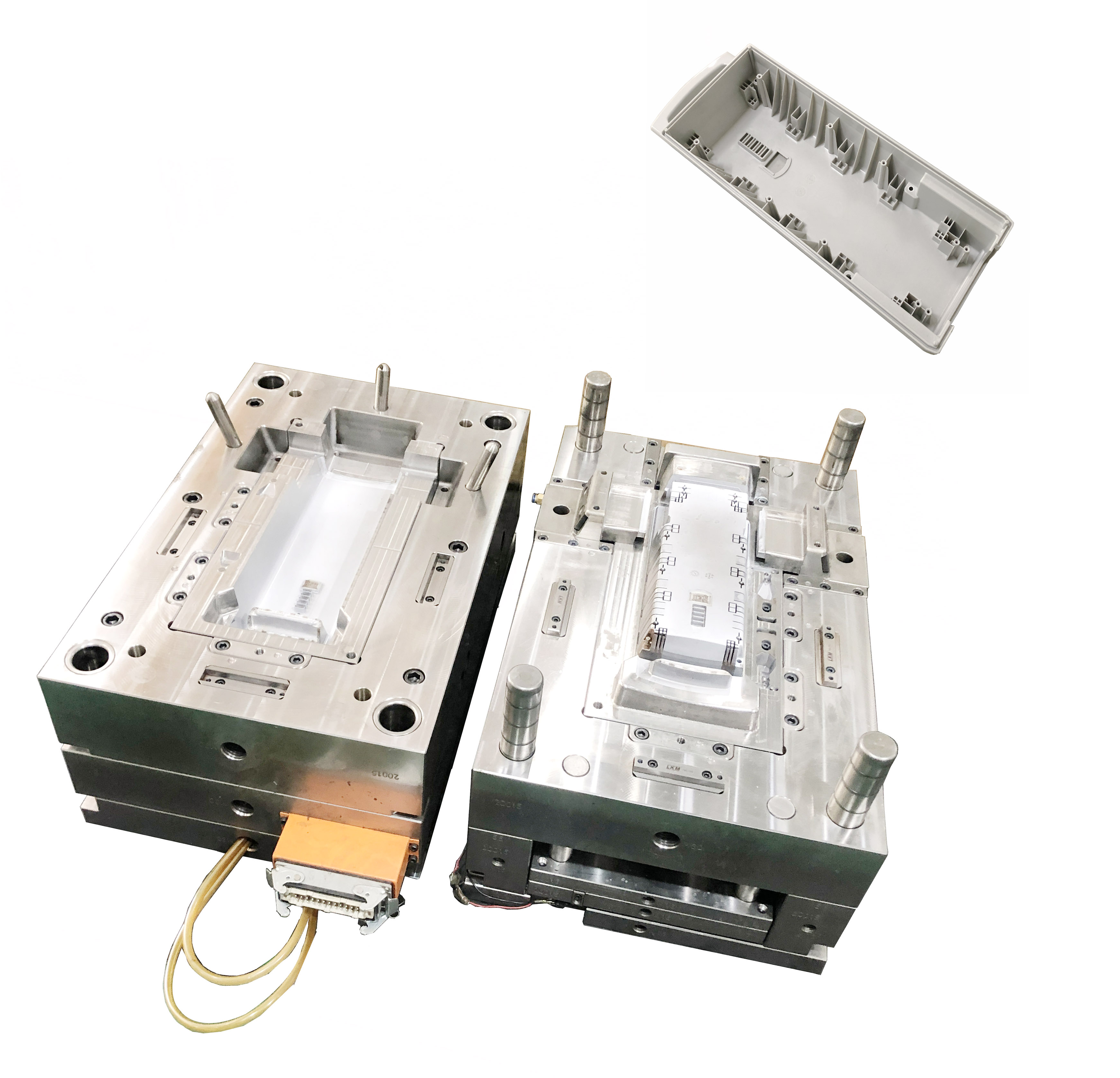

Sophisticated Mold Making: Using inserts, slides, and precise surface treatments on a single mold base.
Rigorous Mold Analysis: Simulating filling, cooling, and venting to ensure the mold functions flawlessly.
Precise Process Engineering: Dialing in the machine parameters to bring the design to life.
By mastering the interplay between mold structure and surface technology, we can create products that are not only functional but also a delight to touch and behold—all in a single, efficient manufacturing cycle. The mold, therefore, is not just a tool; it's the canvas upon which we paint a masterpiece of texture and light.
