Warpage in injection moulding is one of the most persistent challenges faced by manufacturers across automotive, medical, consumer electronics, and industrial plastics production. Even slight dimensional distortions can lead to assembly failures, sealing problems, poor aesthetics, and costly scrap rates. Unlike surface defects, warpage directly reflects internal stress imbalance and uneven shrinkage within a molded part. Reducing warpage is not the result of a single adjustment but the outcome of a highly controlled interaction between material selection, injection mould design, processing parameters, and cooling balance. This guide delivers a process-driven, engineering-focused roadmap to systematically reduce warpage in injection moulding with proven industrial strategies.
Warpage is fundamentally caused by non-uniform shrinkage inside a molded plastic part. As molten polymer cools and solidifies, different areas shrink at different rates. When these shrinkage forces are unbalanced, the part deforms.
In injection mould systems, warpage develops from four core imbalances: thermal gradients, pressure gradients, molecular orientation, and material shrinkage behavior. Each of these factors is directly influenced by how the injection mould is designed and how the process is controlled.
For example, thick sections cool slower than thin sections. If one side of a part cools faster, it solidifies earlier and resists contraction from slower-cooling regions, pulling the part out of shape. At the same time, inconsistent packing pressure across the cavity results in variable density zones that shrink differently after ejection.
Fiber-reinforced materials introduce another layer of complexity. Glass fibers orient along flow lines, increasing stiffness in one direction and causing anisotropic shrinkage—one of the most aggressive drivers of warpage.
The table below summarizes the primary root causes:
| Warpage Driver | Physical Mechanism | Typical Injection Mould Impact |
|---|---|---|
| Uneven cooling | Differential solidification | Bent edges, twisted frames |
| Non-uniform pressure | Density variation | Bowed surfaces |
| Fiber orientation | Directional shrinkage | Curling, torsion |
| Material shrink rate | Resin crystallization | Macro-scale deformation |
Understanding these mechanisms allows engineers to apply corrective actions with precision rather than relying on trial-and-error machine tuning.
Material choice is one of the most powerful levers for warpage control. Different polymers exhibit vastly different shrinkage behavior, crystalline structures, and thermal expansion coefficients. Selecting the correct resin for a specific geometry is often more effective than any downstream process fix.
Amorphous plastics such as ABS, PC, and PMMA generally exhibit lower and more uniform shrinkage compared to semi-crystalline polymers like PP, POM, Nylon, and PE. Semi-crystalline materials undergo phase change during cooling, which introduces unpredictable contraction patterns that significantly increase warpage risk.
Fiber reinforcement improves stiffness but increases anisotropic shrinkage. For example, glass-filled PP can shrink twice as much across the flow direction as along it. This means the injection mould gate position and flow pattern must be engineered specifically for reinforced materials.
Material batch consistency also matters. Variations in moisture content, melt flow index (MFI), or filler loading can change shrinkage behavior from shot to shot. Strict resin drying and material traceability reduce this variation at the source.
Key material selection guidelines include:
Prefer amorphous resins when dimensional stability is critical
Use mineral-filled plastics instead of glass-filled when isotropic shrinkage is required
Match resin shrink rate to part thickness gradients
Avoid mixing regrind ratios inconsistently
Material selection should always be evaluated alongside injection mould design rather than in isolation.
The injection mould itself is the structural foundation for warpage control. Poorly balanced moulds amplify minor process variations into large-scale deformation.
Wall thickness uniformity is the most critical design rule. Sections that differ by more than 30% thickness almost guarantee non-uniform cooling. Where thickness transitions cannot be avoided, gradual tapers should replace abrupt steps.
Gate design and location directly control flow paths, packing efficiency, and fiber orientation. Center gating promotes symmetrical shrinkage, while edge gating increases directional stress. Multiple gates must be balanced using flow analysis to avoid race tracking and pressure asymmetry.
Rib and boss structure requires special attention. Overly thick ribs anchor cooling stress and cause sink-induced warpage. Ideal rib thickness should remain between 50–70% of nominal wall thickness.
The following design factors have the strongest warpage influence:
| Injection Mould Feature | Warpage Risk if Poorly Designed |
|---|---|
| Wall thickness variation | High |
| Gate imbalance | High |
| Rib over-thickness | Medium-High |
| Sharp corners | Medium |
| Asymmetrical geometry | High |

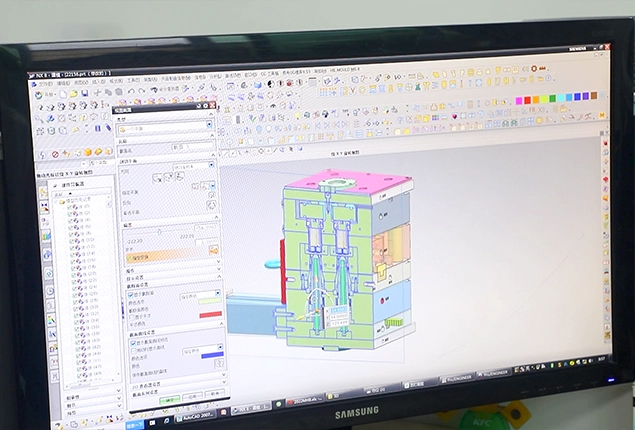

Modern injection mould design relies heavily on mold-flow simulation. Warpage prediction software models shrinkage, fiber orientation, and cooling efficiency before steel is cut. Incorporating simulation at the design stage prevents structural warpage problems that cannot be fixed by processing adjustments alone.
Even with a perfectly designed injection mould, incorrect processing parameters can generate severe warpage. The goal of process control is to maintain uniform material density, balanced cooling rates, and stable molecular orientation.
Melt temperature directly affects viscosity and packing behavior. Excessively high melt temperature increases shrinkage and residual stress, while low temperatures prevent proper cavity fill and lead to weak weld lines that distort during cooling.
Injection speed influences shear heat and fiber alignment. High speeds align polymer chains aggressively in the flow direction, amplifying directional shrinkage. Controlled velocity staging across fill phases reduces this risk.
Packing pressure and time are among the most critical warpage controls. Insufficient packing creates voids and low-density zones that shrink excessively after ejection. Over-packing, however, locks in stress that releases as delayed warpage.
Mould temperature governs surface solidification. Large temperature differences between cavity halves cause asymmetric cooling shrinkage and immediate part bending on ejection.
Practical process control strategies include:
Multi-stage velocity profiles
Dynamic packing pressure decay
Mould temperature uniformity control within ±2°C
Real-time cavity pressure monitoring
Process stability matters more than extreme parameter optimization. A slightly imperfect but repeatable setting produces less warpage than an aggressive setup prone to fluctuation.
Cooling time often consumes more than 60% of the injection moulding cycle, and it is the single most influential factor in warpage control. Unguided cooling design leads to thermal gradients that no processing setting can fully correct.
Cooling channels must follow the geometry of the part as closely as possible. Conformal cooling, manufactured through additive methods, dramatically improves temperature uniformity compared to straight-drilled channels. This results in synchronized solidification and reduced internal stress gradients.
Key cooling risks include:
Uneven channel spacing
Dead water zones
Scale buildup reducing heat transfer
Inadequate cooling near thick ribs and bosses
Balanced cooling is not about maximum cooling—it is about uniform cooling. Overcooling one region while another remains molten creates permanent distortion locked into the polymer matrix.
Advanced temperature control units with turbulent flow capacity and per-zone feedback dramatically reduce warpage in tight-tolerance applications such as medical housings and optical components.
Even with a fully optimized injection mould and stable process, certain materials and geometries still exhibit residual warpage after ejection. Post-moulding techniques serve as controlled stress-relief mechanisms.
Annealing is one of the most effective secondary warpage reduction methods. By heating the part below its glass transition temperature and holding it for a controlled duration, internal stresses relax without deforming the external geometry.
Fixture-based cooling holds the part in alignment immediately after ejection until thermal equilibrium is reached. This is especially effective for thin, flat panels and long structural frames.
Moisture conditioning is critical for hygroscopic materials such as Nylon. Absorbed moisture equalizes internal stress distribution and stabilizes final dimensions.
Secondary control does not replace proper mould and process design—but it can reduce scrap rates during product ramp-up and material transitions.
Warpage prevention is most effective when integrated into the quality system, not treated as a production firefighting issue. Predictive measurement and early detection allow engineers to intervene before large scrap volumes appear.
In-process monitoring using cavity pressure sensors and infrared mould temperature scanners provides real-time indicators of imbalance. Deviations from baseline curves predict dimensional drift well before visible part deformation.
Statistical process control (SPC) tracks critical variables such as part flatness, diagonal deformation, and thickness deviation. Trending analysis highlights tool wear, cooling channel blockage, and material inconsistencies.
Digital twin warpage simulation links real production data back to virtual models, allowing teams to test process corrections without interrupting manufacturing.
Warpage control becomes sustainable only when the injection mould process is treated as a closed-loop system rather than a fixed recipe.
Reducing warpage in injection moulding is the cumulative result of disciplined material selection, intelligent injection mould engineering, tightly controlled processing conditions, and thermally balanced cooling systems. There is no single parameter that eliminates warpage universally. Instead, manufacturers achieve long-term stability through system-wide optimization.
By combining predictive simulation, precision tooling, real-time monitoring, and post-mould stress control, warpage becomes a manageable engineering variable rather than an unpredictable defect. Companies that master these controls consistently deliver higher dimensional accuracy, lower scrap rates, and stronger brand reputation in high-tolerance plastic manufacturing.
Q1: Can warpage be completely eliminated in injection moulding?
Complete elimination is rarely possible, but systematic control through mould design, material optimization, and precise processing can reduce warpage to near-zero functional impact in most applications.
Q2: Which materials are most prone to warpage?
Semi-crystalline plastics such as PP, Nylon, and POM exhibit higher and less uniform shrinkage, making them more prone to warpage than amorphous materials like ABS or PC.
Q3: Is injection mould temperature more important than melt temperature?
Both are critical. Melt temperature influences internal stress formation, while mould temperature governs surface solidification and cooling balance. Warpage control requires coordinated optimization of both.
Q4: How effective is mold-flow simulation for warpage prediction?
Modern simulation tools achieve high predictive accuracy when material data and cooling layouts are properly modeled. They significantly reduce trial iterations during tool development.
Q5: Does faster cycle time increase warpage risk?
Yes. Aggressive cycle reduction often causes uneven solidification and insufficient stress relaxation, both of which increase warpage probability.
