Transitioning a validated medical device prototype to commercial scale carries notoriously high failure rates. 3D printed or machined models often prove baseline functionality flawlessly. However, they frequently mask severe manufacturability issues. Rushing straight into multi-cavity hard steel tooling without a bridging strategy invites disaster. You risk high scrap rates, outright FDA or CE compliance failures, and major tooling rework.
This article provides a sequential, evidence-based framework for scaling production. You will learn how to move from functional prototypes to high-volume manufacturing successfully. We focus on critical risk mitigation tactics and strategic vendor selection. By mastering these transitional steps, engineering teams can stabilize supply chains and protect their launch timelines.
File formats dictate readiness: Surface-level STL files from 3D printing must be rebuilt as solid CAD models (STEP/SLDPRT) before accurate tooling quotes can be generated.
"Bridge production" reduces risk: Utilizing aluminum soft tooling for pilot runs (thousands of units) validates design and compliance before committing to high-volume hard steel molds.
Material transition is critical: Specialized prototype resins must be swapped for standard, sterilization-compatible, medical-grade polymers to support long-term production stability.
Compliance is a continuous thread: Transitioning requires moving into ISO Class 7/8 cleanrooms and adhering to ISO 13485 and USP Class VI material standards from the First Article stage.
Engineering teams frequently celebrate a successful prototype phase prematurely. A physical model proves your concept works in human hands. It does not prove you can manufacture it consistently at scale. Bridging this gap requires understanding fundamental differences between prototyping technologies and mass production.
Additive manufacturing easily forgives aggressive design flaws. However, medical injection molding heavily punishes these exact same errors. For example, thick walls in a 3D-printed prototype work perfectly on the print bed. In contrast, those same thick walls cause uneven cooling during injection molding. This uneven thermal reduction creates severe "sink marks" and internal voids. You must uniform wall thicknesses throughout your design to ensure structural integrity.
Operational blind spots often halt procurement progress completely. Manufacturers cannot run Design for Manufacturability (DFM) analysis on standard STL files. They also cannot generate precise tooling quotes from them. STL files only represent interconnected surface triangles. They lack mathematical solid geometry data. Transitioning requires robust solid CAD files like STEP or SLDPRT. You must also supply a finalized Bill of Materials (BOM). Without solid geometry and a BOM, toolmakers cannot calculate CNC toolpaths.
Engineering teams typically assemble early iterations manually. Mass production relies entirely on automated or semi-automated assembly lines. Your design must account for robotic gripping. It must also support simplified joining methods. For instance, replacing tiny metal screws with ultrasonic welding joints streamlines the assembly process significantly. If your product ignores robotic assembly constraints, production efficiency and consistency will suffer.
You cannot scale production until you optimize your digital design for physical reality. This phase demands rigorous engineering discipline and a deep understanding of polymer behavior under high pressure.
You must optimize specific DFM criteria for reliable molding. Consider these foundational rules:
Draft Angles: Add appropriate draft angles to all vertical walls. We recommend at least 1 to 2 degrees. This ensures smooth part ejection without surface scuffing.
Gate Optimization: Optimize gate locations to push molten plastic evenly. Poor gate placement creates weak knit lines where material flows converge.
Shrinkage Rates: Calculate precise material shrinkage rates. Different medical polymers shrink differently as they cool. Factoring this into the mold design maintains strict medical-grade tolerances.
You cannot validate what you cannot measure. Design for Inspection mandates accessible critical features. Quality control teams use Coordinate Measuring Machines (CMM) for verification. If a complex geometry blocks the CMM probe, it fails the inspection standard. Incorporate clear measurement datums directly into your CAD model. This guarantees reproducible quality control checks during commercial production.
The First Article Inspection (FAI) serves as a vital checkpoint. Design Verification Testing (DVT) happens simultaneously. Here, inspectors measure the physical part against the precise engineering specification. Remember, toolmakers execute exactly to the CAD file provided. They do not guess or assume your design intent. If the CAD file contains errors, the steel mold will perfectly replicate those errors. This milestone determines if you proceed to clinical trials or return to design.

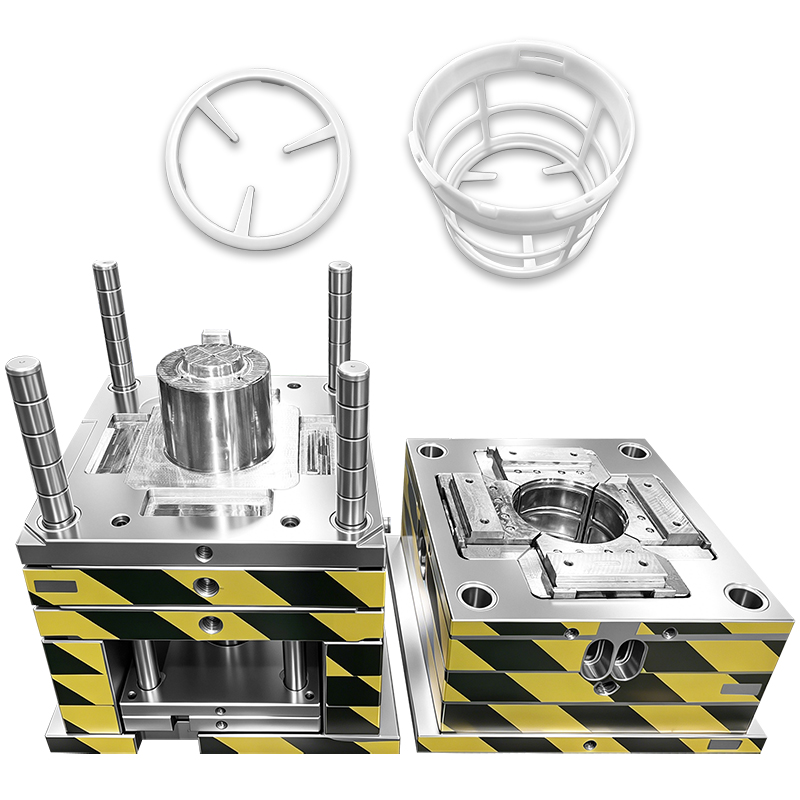

Moving from a 10-unit 3D printed prototype directly to a 100,000-unit hard steel mold is reckless. The validation risk is simply too high. You need an intermediate step to validate the manufacturing process itself.
Introduce low-volume "bridge production" into your timeline. This phase typically yields 1,000 to 5,000 units. It serves as an essential risk-mitigation step for healthcare plastic components. Bridge production validates your mold design, material choice, and assembly process before you move into full-scale production tooling.
Understanding the tooling transition prevents avoidable setbacks. Aluminum tools offer significantly faster lead times than hardened steel. They also require less upfront commitment. This approach provides production-grade parts for clinical trials quickly. You can verify process readiness before committing to high-volume multi-cavity molds.
The following chart illustrates the distinct phases of tooling transition:
Production Phase | Tooling Material | Expected Volume | Primary Purpose | Validation Risk |
|---|---|---|---|---|
Prototyping | None (3D Print/CNC) | 1 - 50 units | Form, fit, and basic function validation. | Low |
Bridge Production | Aluminum (Soft Tool) | 1,000 - 5,000 units | Process validation, FDA testing, clinical trials. | Medium |
Mass Production | Hardened Steel (P20/H13) | 100,000+ units | High-speed commercial scaling. | High |
Use this bridge phase to map out all secondary operations. Track the exact time required for cleaning, sterilization, and final assembly. Process mapping identifies hidden bottlenecks early. Fixing an assembly bottleneck during bridge production helps prevent major disruption during full-scale commercial manufacturing.
Scaling requires leaving behind exotic rapid-prototyping materials. You must align your material selection strictly with medical compliance standards and sterilization needs.
Engineers often use specialized photo-resins for early iterations. You must replace these with scalable, standard medical polymers. Common choices include Polypropylene (PP), Polycarbonate (PC), and Polyetheretherketone (PEEK). Standardized materials minimize supply chain disruption and improve long-term sourcing stability because suppliers stock them globally.
You must evaluate polymers based on end-use sterilization methods. Choosing the wrong material leads to catastrophic degradation. Consider these common methods when choosing your resin:
Autoclave (Steam): Requires high thermal resistance. Materials like PEEK or PC handle repeated steam cycles well.
Gamma Radiation: Excellent for single-use devices. However, gamma rays can cause yellowing or embrittlement in sensitive plastics like standard Teflon.
Ethylene Oxide (EO): A low-temperature gas process. It perfectly suits heat-sensitive polymers, though it requires longer off-gassing periods.
Production environments dictate product viability. Medical components require manufacturing inside certified ISO 7 or ISO 8 cleanrooms. These rooms control airborne particulates meticulously. The entire end-to-end process must align strictly with ISO 13485 quality management standards. Furthermore, software controls need FDA 21 CFR Part 11 compliance. Finally, your chosen raw materials must pass USP Class VI biological reactivity testing.
Your choice of manufacturing partner dictates your ultimate success. Beyond basic pricing, teams should pay close attention to process control, compliance capability, and communication efficiency.
Offshore tooling often presents attractive upfront options. However, practical risks require careful evaluation. Material traceability issues can trigger major compliance problems. Intellectual property vulnerability remains a constant threat. Language and time-zone barriers frequently cause engineering rework. Finally, freight disruptions and customs delays can affect product launch timelines.
Define strict criteria for a capable manufacturing partner. Look for comprehensive Contract Development and Manufacturing Organizations (CDMOs). The best partners offer robust end-to-end services. They provide in-house DFM software analysis. They manage internal tooling transfers seamlessly. They enforce strict design controls throughout the entire transition. Most importantly, demand demonstrable experience in high-compliance sectors like life sciences or surgical devices. A vendor without cleanroom experience can create serious project risk.
Successful commercialization requires far more than cutting a steel mold. It demands a rigorous approach to scale. You must embrace strict DFM principles early in the design phase. Leveraging bridge tooling validation protects your development process while proving your manufacturing concept. Furthermore, continuous adherence to regulatory compliance ensures your product actually reaches patients.
Next Steps: Stop quoting from surface-level STL files immediately. Direct your engineering and procurement teams to finalize robust STEP files and a comprehensive BOM. Next, engage a certified medical molding partner to perform an initial DFM analysis before you commit to mass production tooling.
A: STL files only map the exterior surface of a part using a mesh of triangles. They lack the solid geometric data required to calculate volume, mass, and internal structures. Toolmakers need solid CAD files (like STEP or SLDPRT) to run CNC toolpath programming and accurately estimate steel requirements.
A: Tooling requirements vary significantly based on part complexity, cavity count, material choice, and production scale. Low-volume bridge tools and high-volume hardened steel molds serve different validation and manufacturing purposes, so project requirements should be defined clearly before tooling decisions are made.
A: Engineering prototypes primarily test physical form and user function. They often use 3D printed resins. Production prototypes test the actual manufacturing process. They use the intended medical-grade polymer shot through an aluminum or soft mold to verify shrinkage, cycle times, and assembly steps.
A: You must select your sterilization method before finalizing your mold design. Different sterilization methods (like steam vs. gamma) dictate which plastic resin you must use. Changing materials after cutting the mold alters the shrinkage rate, which completely ruins the tool's dimensional accuracy.
