How To Make A Plastic Mould

Contents

• Introduction

• Understanding What a Plastic Mould Really Is

• Key Plastic Mould Making Methods Compared

• Step-by-Step Process to Make a Plastic Mould

• Choosing the Right Materials for Your Plastic Mould

• Plastic Mould Design Principles That Prevent Failure

• Common Plastic Mould Problems and How to Fix Them

• Cost, Time, and Skill Level Breakdown

• Conclusion

• FAQ

Introduction

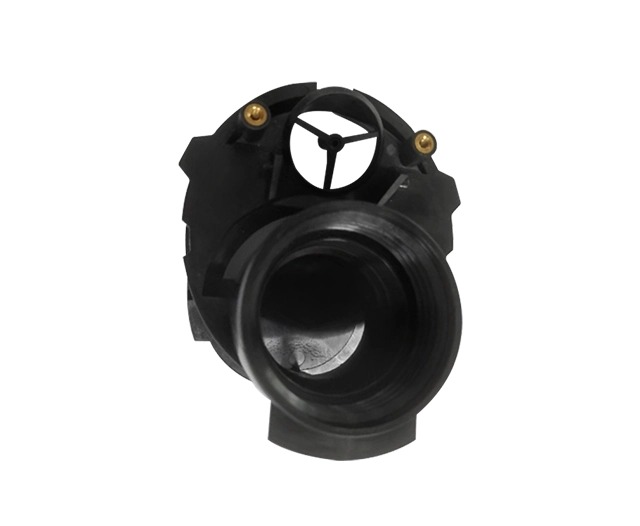

The ability to make a high-quality plastic mould determines the success of countless manufactured products, from medical components and electronic housings to packaging and automotive parts. A well-made plastic mould ensures dimensional accuracy, surface quality, repeatability, and production efficiency. Understanding how to make a plastic mould is no longer limited to large factories—advances in CNC machining, 3D printing, and rapid tooling now allow small workshops, startups, and even skilled individuals to enter plastic mould making with remarkable precision. This guide provides a complete, practical breakdown of the plastic mould creation process, from concept to production-ready tooling.

Understanding What a Plastic Mould Really Is

A plastic mould is a precisely engineered tool used to form molten plastic into a fixed shape under controlled conditions. It defines not only the geometry of a part but also its surface texture, strength, dimensional accuracy, and production efficiency. Unlike simple casting forms, a plastic mould must withstand repeated high-pressure, high-temperature cycles without warping or degrading.

At its core, a plastic mould consists of two main halves: the core and the cavity. When closed, these create the negative space that shapes the molten plastic. Additional systems—including runners, gates, cooling channels, ejector pins, and vents—control how the plastic enters, cools, and is released from the mould.

Plastic moulds are typically used in:

• Injection molding

• Compression molding

• Transfer molding

• Thermoforming

Each application imposes different mechanical stresses and design constraints, which directly affect how the mould must be constructed. A mould made for high-volume injection molding requires hardened steel and precise cooling channels, while a prototype plastic mould may work perfectly with aluminum or even reinforced resin.

The most important insight for beginners is this: a plastic mould is not just a shape—it is a controlled thermal and mechanical system. Every feature within the mould influences material flow, cooling time, surface quality, and production speed. Mastering plastic mould making begins with understanding this system-level behavior.

Key Plastic Mould Making Methods Compared

Different production goals require different approaches to making a plastic mould. Choosing the right method directly determines cost, durability, accuracy, and scalability.

Table 1: Comparison of Common Plastic Mould Making Methods

Method	Best Use Case	Pros	Cons
CNC Machining	Mass production	High precision, long lifespan	Expensive initial cost
3D Printed Moulds	Rapid prototyping	Low cost, fast turnaround	Limited durability
Silicone Casting	Low-volume testing	Fine detail, flexible	Not for mass production
EDM (Electrical Discharge Machining)	Complex geometries	Extreme accuracy	Slow, high cost

CNC-machined plastic moulds dominate industrial manufacturing because they provide unmatched strength and dimensional control. Aluminum moulds are widely used for mid-volume production because they machine faster and cost less than steel. Hardened steel moulds are necessary when production runs exceed hundreds of thousands of cycles.

3D-printed plastic moulds serve rapid prototyping exceptionally well. Although they degrade quickly under heat and pressure, they are perfect for testing part fit, material behavior, and early market samples with minimal investment.

Silicone and soft tooling methods work well for urethane casting and limited-run plastic parts. These methods cannot handle injection pressures but offer unmatched speed for validation.

Step-by-Step Process to Make a Plastic Mould

Making a plastic mould follows a structured engineering workflow. Skipping any phase typically results in defects, wasted material, or premature tool failure.

Step 1: Product Design and CAD Modeling

Every plastic mould starts with a 3D CAD model of the final product. This design must account for draft angles, wall thickness, undercuts, texture, and shrinkage. A typical draft angle of 1–3 degrees ensures the part can eject smoothly from the plastic mould without surface damage.

Wall thickness uniformity is critical. Thick sections cool more slowly and cause sink marks, while thin areas may fail to fill. Advanced simulation software like Moldflow allows engineers to visualize plastic flow, air traps, and cooling behavior before cutting into metal.

Step 2: Plastic Mould Design

The mould itself is then designed around the part model. This includes:

• Defining parting lines

• Selecting gate locations

• Creating runner systems

• Designing cooling channels

• Placing ejector pins

The cooling system often determines 60–70% of cycle time. Poor cooling design increases warping, internal stress, and production cost. A professional plastic mould design balances all these variables before manufacturing begins.

Step 3: Material Selection for the Mould

Tool steel (P20, H13, S136) is chosen for high-volume moulds due to wear resistance and thermal stability. Aluminum is selected for short production runs due to faster machining and low cost. The plastic mould must match both the plastic resin used and the expected production volume.

Step 4: Machining the Plastic Mould

CNC milling removes bulk material to form the cavity and core. EDM is then used for sharp corners or deep cavities impossible for conventional cutters. High-precision grinding ensures parting surfaces seal properly with no flash.

Step 5: Polishing and Surface Texturing

Surface finish directly affects part appearance and ejection behavior. Plastic mould surfaces may be:

• Mirror-polished for optical parts

• Chemically etched for leather textures

• Sandblasted for matte finishes

Step 6: Trial Molding and Refinement

The first test shots reveal real-world performance. Issues such as short shots, flashing, sink marks, or warpage are corrected through gate resizing, vent additions, or cooling modifications.

Only after successful validation is the plastic mould approved for mass production.

Choosing the Right Materials for Your Plastic Mould

Selecting the right mould material determines tool longevity, heat transfer efficiency, surface finish quality, and overall production economics.

Table 2: Plastic Mould Material Selection Guide

Mould Material	Durability	Machinability	Cooling Performance	Typical Use
P20 Steel	Medium	Good	Medium	General industrial moulds
H13 Steel	High	Moderate	Medium	High-volume injection
S136 Stainless	Very High	Moderate	Lower	Medical & food-grade
Aluminum 7075	Medium	Excellent	Excellent	Prototypes, short runs

Steel moulds resist abrasion from glass-filled plastics and provide the longest service life. Stainless steel moulds prevent corrosion when molding medical or food-contact components. Aluminum moulds deliver excellent thermal conductivity, reducing cycle times dramatically for prototyping.

The wrong material selection often leads to:

• Premature mould wear

• Poor surface finish

• Deformation under heat

• Excessive maintenance costs

A properly matched plastic mould material ensures both technical performance and economic efficiency.

Plastic Mould Design Principles That Prevent Failure

Good plastic mould design eliminates most manufacturing defects before they ever occur. These principles are non-negotiable in professional tooling.

Uniform Wall Thickness promotes even cooling and reduces internal stress. Sudden thickness changes create sink marks and weak zones.

Adequate Draft Angles guarantee smooth ejection. Without proper draft, parts scrape against the mould surface, leading to damage and production slowdowns.

Proper Gate Positioning ensures balanced plastic flow. Poor gate placement causes weld lines, trapped air, and uneven filling.

Efficient Venting allows air to escape during injection. Without venting, compressed air burns the plastic and creates voids.

Structural Reinforcement in large moulds prevents deflection during high clamping forces, preserving dimensional accuracy under heavy loads.

Professional plastic mould designers treat airflow, heat flow, and plastic flow as a single integrated system rather than separate problems.

Common Plastic Mould Problems and How to Fix Them

Even well-designed plastic moulds encounter problems over time. Recognizing and solving these issues quickly protects both the mould and the molded parts.

Flashing occurs when molten plastic leaks between mould parting surfaces. The fix involves tightening clamping pressure, resurfacing sealing areas, or reducing injection pressure.

Short Shots result from incomplete cavity filling. Increasing melt temperature, enlarging gate size, or improving venting resolves this issue.

Sink Marks form due to uneven cooling in thick sections. Redesigning wall thickness or adding local cooling channels reduces this defect.

Warping happens when parts cool unevenly. Optimized cooling channel placement and balanced filling minimize warpage.

Sticking Parts indicate insufficient draft, surface roughness, or excessive holding pressure. Polishing, redesigning drafts, or adjusting machine settings resolves the problem.

Each failure mode reflects specific interactions between the mould’s geometry, material choice, and processing conditions. Systematic diagnosis always outperforms trial-and-error adjustment.

Cost, Time, and Skill Level Breakdown

Understanding the real investment required to make a plastic mould helps avoid unrealistic expectations and budget overruns.

A small prototype plastic mould made from aluminum using CNC machining may cost between $500 and $3,000 and be completed within 1–2 weeks. A hardened steel production mould for mass manufacturing can range from $8,000 to over $100,000, depending on complexity, cavity count, and tolerance requirements.

Skill requirements span multiple disciplines:

• CAD design

• Mechanical engineering

• Thermal flow analysis

• CNC programming

• Polishing and finishing

While hobbyists can produce basic plastic moulds using desktop CNC or 3D printing, industrial-grade mould making remains a specialized profession requiring years of experience and precision machinery.

Conclusion

Learning how to make a plastic mould is the foundation of modern plastic manufacturing. A successful plastic mould integrates precise geometry, intelligent thermal management, durable materials, and efficient ejection systems into one unified tool. From prototype development to mass production, the same core principles govern mould performance: accurate design, proper material selection, clean machining, intelligent cooling, and controlled plastic flow. When these elements are engineered together, the plastic mould becomes a powerful asset that produces millions of consistent, high-quality parts with remarkable efficiency.

FAQ

Q1: How long does a plastic mould last?
A properly maintained steel plastic mould can last over one million cycles, while aluminum moulds typically last 10,000–100,000 cycles depending on use.

Q2: Can I make a plastic mould at home?
Simple plastic moulds can be made using 3D printing or silicone casting for low-pressure applications. Industrial injection moulds require professional equipment.

Q3: What software is used to design plastic moulds?
Common software includes SolidWorks, AutoCAD, Siemens NX, CATIA, and Moldflow for simulation.

Q4: What is the biggest mistake in plastic mould making?
Skipping flow simulation and ignoring cooling design cause most defects and production failures.

Q5: Is aluminum or steel better for a plastic mould?
Aluminum is faster and cheaper for short runs. Steel is stronger and more economical for long-term mass production.
