In modern manufacturing, over mold technology has become one of the most efficient ways to combine multiple materials into a single, high-performance product. Whether it is the soft grip on a power tool, the rubberized handle of a toothbrush, or the protective casing of a medical device, over molding plays a critical role in enhancing both functionality and aesthetics.
As industries like automotive, consumer electronics, and healthcare continue to push the boundaries of innovation, manufacturers are increasingly turning to over mold processes to achieve greater design flexibility, better product durability, and improved user experiences.

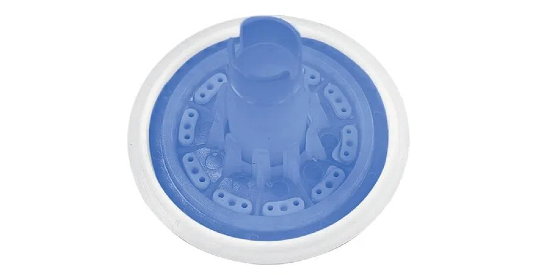

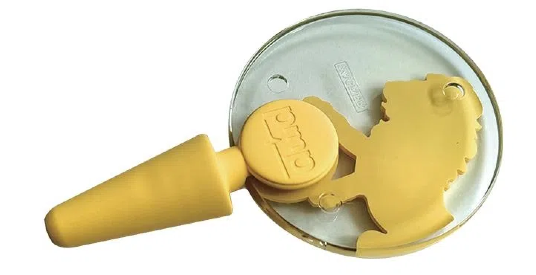

Over mold refers to a two-step injection molding process in which one material, usually a softer elastomer or thermoplastic, is molded over a base substrate. The substrate can be made of metal, plastic, or even previously molded components. This process allows manufacturers to bond two or more materials seamlessly, resulting in products with enhanced performance and comfort.
Unlike single-shot molding, over mold technology allows for dual-material construction. For example:
A rigid plastic base ensures durability.
A softer rubber layer provides grip, comfort, or sealing properties.
The over mold process has evolved significantly over the years, enabling complex product designs that are difficult or impossible to achieve with traditional molding.
The primary reason companies use over mold technology is to enhance product functionality. Adding a secondary material layer provides features such as:
Anti-slip surfaces (tool handles, sports gear)
Waterproof seals (medical devices, electronics)
Shock absorption (automotive parts, protective cases)
Consumers value products that are not only functional but also visually appealing. With over mold techniques, manufacturers can combine different textures, finishes, and colors to create unique, eye-catching designs.
Bonding two materials into a single piece eliminates the need for adhesives or assembly, which can wear out over time. Over molding ensures long-lasting adhesion and improved resistance to stress, wear, and environmental conditions.
Although the tooling for over mold projects may be more complex, the long-term savings are substantial. By reducing assembly steps and labor, manufacturers cut down production costs while maintaining product quality.
Designing for over mold processes requires more planning than standard injection molding. Engineers must address several important factors:
Material Compatibility
Ensure that the substrate and over mold materials adhere properly. Thermoplastic elastomers (TPEs) and thermoplastic polyurethanes (TPUs) are commonly used.
Use adhesion charts to determine which materials are chemically compatible.
Bonding Strength
Surface treatments such as roughening, priming, or plasma cleaning may be necessary to improve adhesion.
Mold Precision
High-precision molds ensure accurate placement of the over mold material and prevent flash or gaps.
Product Performance
The design must account for how the product will be used. For example, a medical grip may require biocompatible, non-slip materials, while an automotive part must withstand heat and vibration.
Cost and Efficiency
While over mold projects may require additional tooling investment, efficient mold design reduces cycle times and increases production yields.
The versatility of over mold makes it an attractive choice for multiple industries.
Steering wheel grips
Car key housings
Switches and control panels
Under-the-hood components requiring vibration resistance
Surgical tools with ergonomic grips
Medical tubing connectors
Protective casings for diagnostic equipment
Earbuds and headphone cables
Remote controls and game controllers
Protective phone cases
Power tool handles
Kitchen utensils
Sports equipment such as bike grips or tennis rackets
By applying over mold solutions to these areas, manufacturers deliver products that combine safety, durability, and comfort.
Choosing over mold technology over conventional molding brings several clear benefits:
Single-Piece Integration
Eliminates the need for secondary assembly, reducing the risk of loose or failing joints.
Improved Ergonomics
Products with soft-touch surfaces are easier and more comfortable to handle, enhancing user experience.
Design Flexibility
Allows manufacturers to combine multiple materials and colors in a single product.
Reduced Assembly Costs
Fewer steps in the production line mean lower labor costs and faster time-to-market.
Enhanced Product Performance
Better sealing, insulation, and resistance properties compared to single-material products.
Understanding how over mold works requires breaking the process into clear stages. While different manufacturers may use slightly different techniques, the workflow generally follows a similar sequence. Each stage plays a critical role in ensuring the success of the over molding process and the quality of the final product.
The process begins with creating the base component, commonly referred to as the substrate. This substrate may be made using injection molding, metal stamping, or machining, depending on the application. For example, in consumer electronics, the substrate is often a rigid plastic part, while in medical devices it may be a stainless-steel insert.
To achieve a strong and durable bond during over molding, the substrate must be properly prepared. This means it should be thoroughly cleaned and free from contaminants such as oil, grease, or dust. Any surface defect could compromise adhesion and weaken the final product. Some manufacturers also roughen or treat the substrate surface to increase bonding strength.
The next step is designing an over mold tool that ensures perfect alignment between the substrate and the secondary material. This stage is highly technical and requires precise engineering. Key considerations include:
Material compatibility: Ensuring the substrate and over mold materials bond chemically or mechanically.
Gate placement and flow control: Determining how molten material will fill the cavity without creating air traps or voids.
Shrinkage rates: Accounting for how materials contract as they cool.
Dimensional tolerances: Guaranteeing tight accuracy for high-performance applications.
Well-designed tooling is essential because it directly influences the bonding quality, product durability, and overall production efficiency.
Once the mold is ready, the substrate is carefully placed inside. Then, a secondary material—often a softer thermoplastic elastomer (TPE) or rubber—is injected over or around it. This is the core stage of how over molding works.
During this step, precise control of injection pressure, material temperature, and cycle timing is crucial. If parameters are not optimized, defects such as incomplete bonding, bubbles, or surface imperfections may occur. A successful secondary injection ensures that the substrate and the over molded layer fuse together into a single, seamless component.
After injection, the over molded part enters the cooling phase. Cooling allows the material to solidify and maintain its intended shape. Uniform cooling is especially important in over mold processes, as uneven temperatures can cause warping, internal stress, or weak adhesion points. Advanced cooling systems in molds help shorten cycle times while preserving dimensional stability.
Once cooled, the completed over mold product is ejected from the mold cavity. At this stage, the part may go through secondary finishing operations such as trimming excess flash, polishing surfaces, or adding coatings for appearance and protection. Quality inspections are also performed to ensure the part meets industry standards for performance, precision, and durability.
From toothbrushes and phone cases to automotive switches and surgical instruments, over mold technology shapes countless products we rely on every day. Its ability to combine multiple materials seamlessly delivers superior design flexibility, durability, and cost efficiency.
Understanding how over molding works explains why industries worldwide are adopting it as a standard. For companies aiming to improve product performance and market competitiveness, choosing the right partner is critical.
