How Can Industrial Plastic Parts Maintain Tight Tolerances?

Unlike metals, plastics present a unique engineering puzzle. They shrink, they warp, and they react heavily to everyday environmental fluctuations. Temperature shifts and ambient moisture easily alter their final dimensions. Managing these variables is not just a technical requirement. Improper tolerance management carries steep consequences for your business operations. You face costly mold reworks, high scrap rates, and frustrating assembly failures. Furthermore, compromised end-use performance ruins product reliability when parts do not fit perfectly.

So how do we solve this dimensional challenge? Engineering teams must carefully balance several critical factors. You can align material science, precise tooling, and smart manufacturing capabilities. This synergy helps achieve consistent dimensional stability across production runs. More importantly, you can reach this precision without over-specifying drawing requirements. Relaxing unnecessary constraints avoids driving up unit costs. In this guide, we will explore exactly how to maintain tight tolerances from the initial design phase through final production.

Key Takeaways

• Applying standard metal tolerances to plastics guarantees cost overruns; tolerances must account for specific polymer shrink rates and environmental behaviors.

• Material selection is the baseline: amorphous plastics (like ABS) inherently hold tighter tolerances than semi-crystalline plastics (like PP).

• Advanced process controls, such as conformal cooling and gas-assisted molding, are critical for mitigating warpage in complex geometries.

• Evaluating a manufacturing partner requires looking beyond their machinery to their DFM (Design for Manufacturability) processes and scientific molding data capabilities.

The Cost-Benefit Reality of Setting Plastic Tolerances

Many engineers mistakenly apply default drawing constraints to molded parts. Standard title blocks often specify rigid limits like +/- 0.001 inches. Such strict limits work beautifully for CNC machined metal components. However, they spell disaster for injection-molded plastics. Applying default metal constraints guarantees expensive tooling rework. You will ultimately reject perfectly functional parts. The danger lies in ignoring the fundamental physics of melting and cooling polymers.

We must define the difference between commercial standard and fine precision. Commercial standard tolerances suit most everyday enclosures and consumer goods. They accommodate natural polymer shrinkage comfortably. Manufacturers easily achieve these baselines using standard molding practices. Fine precision tolerances require aggressive process control and specialized tooling. You need them for medical devices, complex gears, or tight press-fit assemblies. Pursuing fine tolerances universally across all dimensions hurts your bottom line.

Therefore, analyzing the ROI of tolerance loosening becomes essential. Slightly relaxing non-critical dimensions yields massive production benefits. It reduces overall cycle times because parts require less stringent cooling phases. It dramatically lowers annoying reject rates during quality control. Furthermore, looser constraints extend your mold life significantly. Tooling experiences less wear from extreme packing pressures. You improve overall project ROI by letting plastic behave naturally wherever possible.

Material Selection: The Foundation of Dimensional Stability

Molecular structure dictates shrinkage predictability. Amorphous and semi-crystalline resins behave differently during the cooling phase. Amorphous plastics possess a random, entangled molecular structure. They shrink uniformly and predictably as they cool down. Semi-crystalline plastics have highly ordered, tightly packed molecular structures. They shrink significantly more and often warp unpredictably. Understanding this structural difference prevents design failures.

Consider stable examples in everyday production environments. Utilizing an ABS plastic injection mold process generally yields highly predictable, tight tolerances. ABS is an amorphous polymer. It features a low, uniform shrinkage rate across all axes. Engineers love it for complex, rigid housings. Polycarbonate (PC) offers similar dimensional stability for transparent or high-impact applications.

High-shrink challenges present a completely different reality. Contrast ABS behavior against semi-crystalline polymers. Applications like PP plastic sleeve molding demand much tighter process controls. Polypropylene (PP) exhibits high shrinkage rates. It remains highly susceptible to post-mold warping. You must implement specific mold compensations to hit dimensional targets consistently.

Additives and fillers change the tolerance equation further. Glass fibers or carbon fillers restrict natural polymer shrinkage. They drastically improve overall dimensional stability for demanding applications. However, they introduce anisotropic shrinkage risks. Anisotropic means the material shrinks differently in the flow direction versus the transverse direction. You must account for this directional behavior during tooling design.

Comparison of Base Polymer Structures

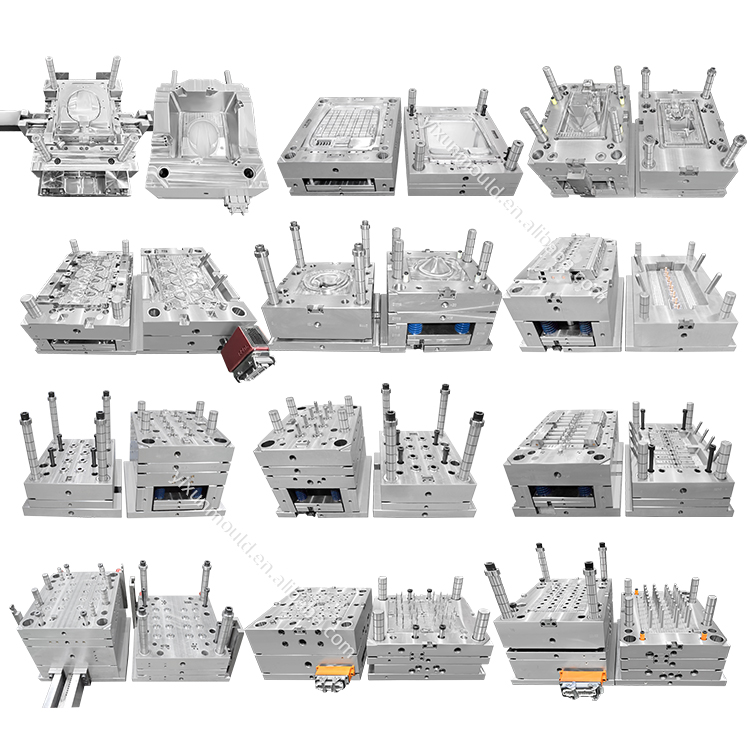

Process Control in Industrial Plastic Injection Molding

This phase is where polymer science meets modern manufacturing. Proper process control in industrial plastic injection molding separates good parts from scrap. We rely heavily on scientific molding principles. You must systematically decouple the molding process. This involves separating the fill, pack, and hold stages entirely. Decoupling ensures you achieve repeatable part dimensions every single cycle. The machine fills the cavity quickly based on speed. It then switches to pressure control for the packing phase. This scientific approach minimizes dimensional variation.

Mold design and thermal management play crucial roles here. Uniform mold temperature control prevents differential shrinkage. Differential shrinkage causes localized warping across the part surface. Engineers utilize advanced conformal cooling channels. Traditional straight drilled water lines often miss critical hot spots. Conformal channels follow the exact geometry of the part. They remove heat evenly and quickly. Consistent cooling equates to consistent dimensions.

Advanced tooling techniques solve stubborn dimensional issues perfectly. Thick geometries often suffer from internal voids or surface sink marks. We introduce gas assisted injection molding as a proven method for these challenges. This technique hollows out thick sections using pressurized nitrogen gas. It packs out the resin evenly against the cavity walls. Gas assist reduces internal stresses drastically. It prevents ugly sink marks. Sink marks destroy both dimensional accuracy and visual appeal.

Design for Manufacturability (DFM): Preventing Warpage at the CAD Stage

Achieving tight tolerances starts on the computer screen. A flawless mold cannot fix a fundamentally flawed part design. You must prioritize Design for Manufacturability early.

Uniform wall thickness remains the absolute golden rule of plastic design. Varying wall thicknesses lead directly to uneven cooling rates. Uneven cooling creates severe internal stress. This internal stress eventually causes severe part distortion after ejection. If a part must feature different thicknesses, transition between them gradually. Abrupt changes invite immediate warping.

Coring and ribbing provide excellent alternatives to thick sections. Solid blocks of plastic cool poorly and shrink unpredictably. Use evidence-based alternatives instead. Strategic ribs and gussets maintain structural integrity effectively. Ribbing keeps the overall material mass low. It ensures cooling rates remain consistent across the component. When designing ribs, keep their thickness to about 60% of the adjoining wall. This ratio prevents sink marks on the opposite cosmetic surface.

Draft angles and ejection mechanisms require careful planning. Proper draft prevents mechanical distortion during part ejection. Straight walls drag heavily against the mold steel. This friction warps the hot, pliable component as it leaves the tool. Add a minimum of one degree of draft per inch of depth. This ensures the component easily releases without bending.

Best Practices for Stable CAD Design

• Maintain Uniformity: Keep wall thicknesses consistent to promote even cooling.

• Radius Your Corners: Sharp interior corners concentrate stress. Add generous radii to allow smooth material flow.

• Size Ribs Correctly: Keep rib thickness below 60% of the nominal wall to avoid sink marks.

• Apply Generous Draft: Use appropriate draft angles on all vertical faces parallel to the mold opening direction.

• Balance the Layout: For multi-cavity tools, ensure runners are balanced so cavities fill simultaneously.

How to Evaluate and Shortlist a Molding Partner

Your manufacturing partner determines your ultimate success. You need a team who understands polymer behavior deeply. Look beyond their machine tonnage. Focus instead on their engineering workflows and quality assurance systems.

1. Evaluate DFM and Mold Flow Analysis Capabilities: A trustworthy partner challenges over-constrained drawings. They will not just blindly machine a tool. They provide detailed mold flow simulations upfront. These simulations predict shrinkage long before anyone cuts steel. They identify air traps, weld lines, and warpage risks early.

2. Inspect Metrology and QA Infrastructure: You cannot maintain tolerances if you cannot measure them accurately. Look for CMM (Coordinate Measuring Machine) capabilities. Ask about inline vision systems for real-time monitoring. Request their documented First Article Inspection (FAI) procedures. Transparency in quality assurance builds lasting trust.

3. Review Tooling Maintenance Protocols: Tight tolerances cannot survive inevitable tool wear. Molds degrade over thousands of high-pressure cycles. Establish what the vendor's preventative maintenance schedule looks like. This is especially vital for high-cavitation or high-volume production molds. A poorly maintained mold produces out-of-spec parts quickly.

4. Check Scientific Molding Expertise: Ensure they use decoupled molding techniques. Ask for process validation data. A good partner tracks pressure curves and cavity temperatures systematically.

Conclusion

Maintaining tight tolerances in plastics is never achieved by chance. It requires a calculated triad of material selection, robust DFM, and scientific process control. Treating plastics like metals during the design phase only leads to frustration. You must design specifically for the polymer's unique thermal behavior. Select amorphous resins for maximum stability whenever possible. If you must use high-shrink materials, leverage advanced techniques like conformal cooling or gas assist. Focus heavily on uniform wall thickness to prevent warping. Finally, involve an experienced manufacturing partner early in the prototyping phase. A comprehensive DFM and tolerance review locks in commercial viability. It ensures your parts assemble perfectly without destroying your production budget.

FAQ

Q: What is a standard tolerance for industrial plastic injection molding?

A: A realistic baseline for commercial molding is +/- 0.005 inches per inch. However, this varies heavily by resin type. Amorphous plastics like ABS hold tighter limits. Semi-crystalline plastics like Polypropylene require wider tolerances. Always consult specific material data sheets and industry standards like DIN 16742 for exact guidelines.

Q: Why is CNC machining often used for tighter plastic tolerances than molding?

A: CNC machining bypasses the extreme shrink and warp phases of melting plastics. Machining removes solid material at room temperature. This yields exceptional precision. However, CNC is not scalable for high-volume production. Injection molding sacrifices slight precision for massive scalability and low unit costs.

Q: How long does it take plastic parts to achieve final dimensional stability?

A: Plastic parts exhibit post-mold shrinkage. They do not reach final dimensions immediately upon ejection. Parts can continue to shrink for 24 to 48 hours as internal stresses relax. Furthermore, materials like Nylon absorb ambient moisture, which slightly expands their dimensions over several days.
