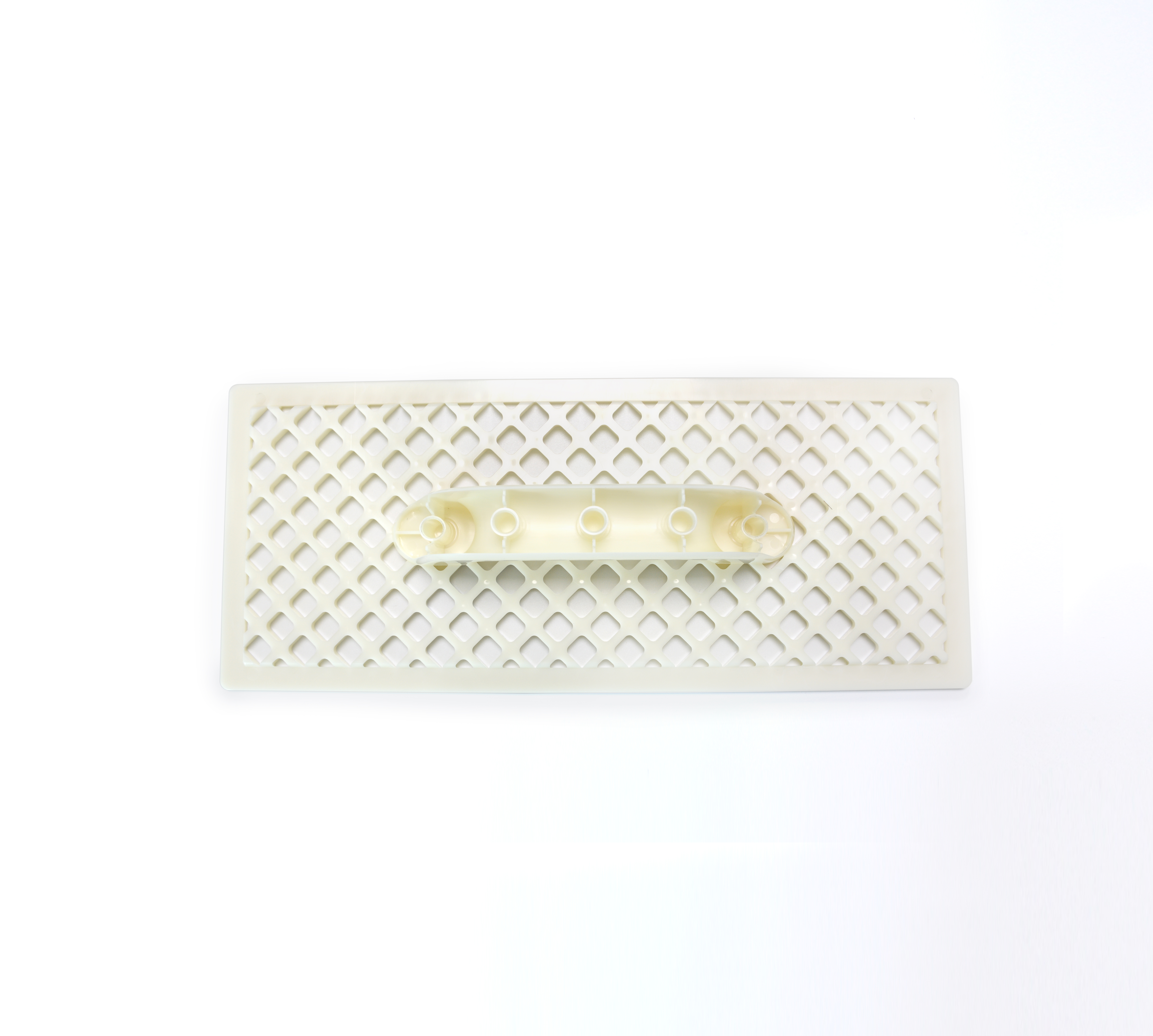

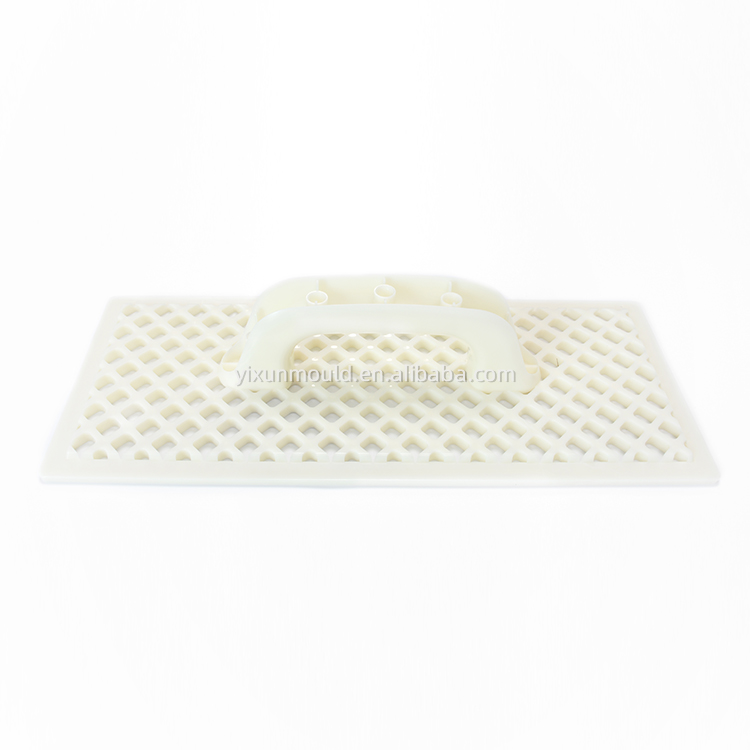

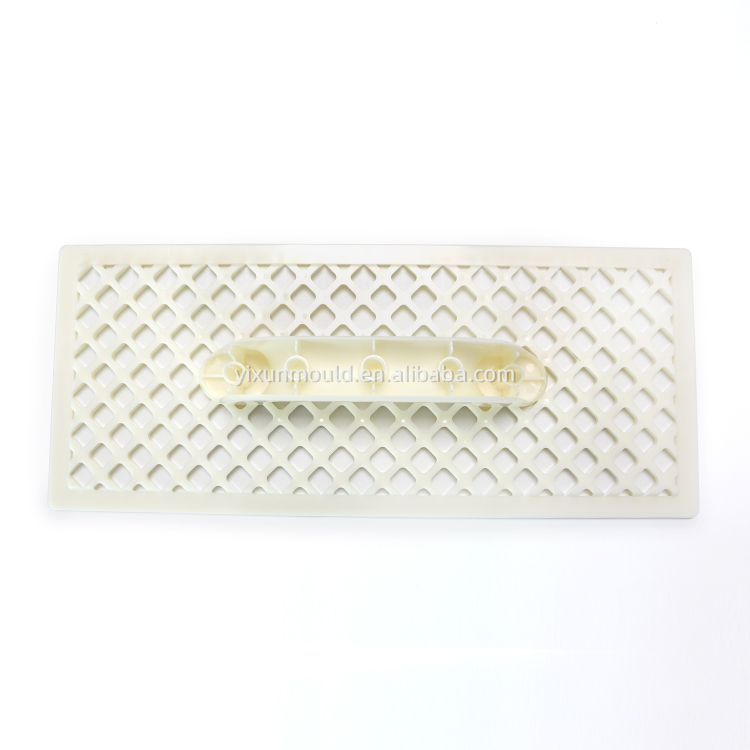

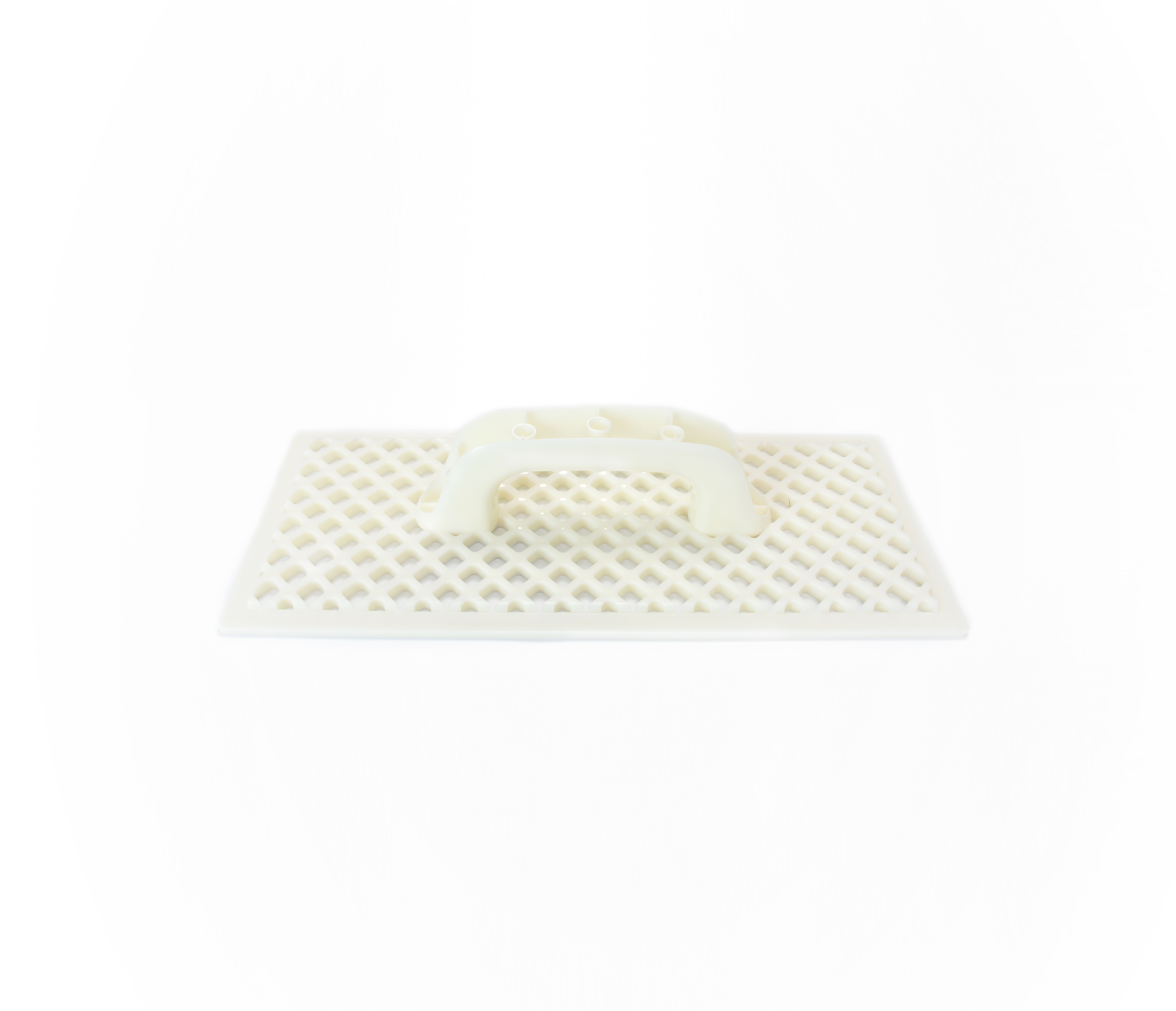

Engineering intricate plastic filtration components demands tooling that delivers uncompromising precision and enduring structural stability. This specialized injection mold is meticulously crafted to transform High Impact Polystyrene (HIPS) into flawless grid panels, ventilation covers, and heavy-duty industrial filters. The tactile smoothness of the fine-polished cavity and core ensures that every delicate lattice structure releases seamlessly during ejection. This frictionless release leaves behind crisp, flash-free edges that meet the most stringent quality control standards, eliminating the need for secondary trimming operations.
By utilizing vacuum heat-treated 1.2344 hot work tool steel, the foundational integrity of the mold resists the intense thermal cycling of continuous high-volume manufacturing. This exceptional metallurgical strength prevents heat checking, surface degradation, and dimensional drift over hundreds of thousands of cycles. Furthermore, the integration of an advanced hot runner system fundamentally transforms the production economics. It maintains a highly consistent melt temperature throughout the injection phase, ensuring the rigid HIPS material flows evenly into every micro-channel without premature freezing. This sophisticated thermal control eliminates the material waste traditionally associated with cold runners, significantly reduces cycle times, and yields structurally sound, warp-free filter components that elevate the performance and reliability of your final assemblies.
Parameter | Specification |
|---|---|
Product Name | Plastic Filter Parts Injection Mold |
Mold Configuration | 1×1 Single-Cavity |
Molding Mode | Injection Mould |
Runner System | Hot Runner System |
Molding Material | HIPS (High Impact Polystyrene) |
Cavity & Core Steel | 1.2344 (H13) Hot Work Tool Steel |
Hardness | HRC 48–52 (Vacuum Heat-Treated) |
Surface Finish | Fine Polishing |
Application | Plastic filter parts, vent covers, grid panels, and industrial filter components |
Mold Life | 100,000 - 500,000 Shots |
Lead Time | 25-45 Days |
Quality Certification | ISO9001 / CE |
Producing geometrically complex ventilation and filtration components requires tooling that anticipates and neutralizes common molding defects. This system is engineered from the ground up to maximize output consistency while minimizing operational overhead, ensuring your production lines operate at peak efficiency without unexpected downtime.
Waste-Free Injection Dynamics: The integrated hot runner architecture maintains optimal polymer flow temperatures, completely eradicating cold sprue waste and drastically lowering your raw material expenditures per batch.
Accelerated Cycle Times: By removing the necessity to cool and mechanically eject a bulky cold runner system, the mold cycles significantly faster, multiplying your daily output capacity and reducing machine hours.
Flawless Grid Release: The mirror-like fine polishing across all contact surfaces guarantees that intricate lattice geometries eject smoothly, preventing pin marks, drag lines, or structural fractures on delicate mesh walls.
Extreme Thermal Resilience: Vacuum heat treatment elevates the core and cavity steel to HRC48-52, providing exceptional resistance against abrasive wear and thermal fatigue during continuous, round-the-clock operation.
Warp-Free Flatness Control: Meticulously balanced cooling channels and single-cavity pressure distribution ensure that large, flat panels cure uniformly, eliminating sink marks and dimensional distortion that plague inferior molds.
To fully understand the value and capability of this injection molding system, it is essential to examine the specific engineering dimensions that contribute to its superior performance. Each aspect of the design has been optimized to solve the unique challenges of molding high-impact polystyrene into complex filtration geometries.
Forged from premium 1.2344 (H13) hot work tool steel, this tooling solution undergoes rigorous vacuum heat treatment to achieve a robust HRC48-52 hardness rating. This exceptional metallurgical profile delivers superior wear resistance, toughness, and thermal stability. It actively resists heat checking and deformation under extreme temperatures, guaranteeing an extended operational lifespan of up to 500,000 shots, even under the most demanding continuous production schedules.
Equipped with a highly efficient hot runner system, this unit is purpose-built for high-capacity manufacturing operations. It completely eliminates cold runner scrap, driving down HIPS material costs and minimizing defect rates associated with regrind material. Furthermore, bypassing the cooling phase for large cold runners dramatically shortens the overall molding cycle, unlocking unprecedented production efficiency and significantly lowering the cost per manufactured part.
Both the cavity and core undergo an exhaustive fine polishing process, drastically reducing the friction coefficient across all critical surfaces. This vital enhancement prevents complex grid structures from sticking, scratching, or developing flash during the mechanical ejection phase. The result is a pristine, flawless edge on every single filter hole, alongside simplified daily maintenance and a reduced risk of cross-contamination between production runs.
Utilizing a scientifically optimized 1×1 single-cavity layout, the design achieves perfect equilibrium in melt flow, injection pressure, and thermal cooling. This balanced architecture effectively neutralizes short shots in microscopic grid sections and prevents warpage in expansive flat panels. It ensures that every filter component maintains absolute precision in hole alignment, spacing, and overall structural integrity.
Tailored specifically for the unique physical and thermal properties of High Impact Polystyrene (HIPS), this tooling resolves the shrinkage and warpage issues typically associated with large flat plastic components. The synergy of the hot runner delivery system and the ultra-smooth surface finish yields structurally robust, defect-free filter meshes with zero flow lines, splay marks, or surface blemishes.
Engineered exclusively for the creation of high-grade plastic filtration components, this system is highly sought after for HVAC networks, household appliances, automotive ventilation panels, and heavy-duty industrial equipment. It consistently meets the rigorous demands of large-scale procurement professionals who require unwavering batch-to-batch consistency and strict adherence to global ISO9001 and CE industrial standards.
Securing a reliable manufacturing partner is crucial for maintaining your supply chain integrity and product quality. As an experienced supplier of precision injection tooling, we focus on delivering engineering excellence that directly impacts your operational bottom line. Our approach goes beyond simple metal fabrication; we provide a comprehensive production solution designed to optimize your manufacturing capabilities and reduce overhead.
Uncompromising Quality Control: Every tooling unit undergoes rigorous dimensional auditing and physical trial runs before dispatch, ensuring it strictly meets ISO9001 and CE certification standards.
Predictable Lead Times: With a streamlined engineering and CNC machining workflow, we guarantee delivery within a strict 25 to 45-day window, keeping your project launches precisely on schedule.
Long-Term Reliability: Engineered for absolute longevity, our systems are rated for 100,000 to 500,000 shots, providing a highly favorable return on your capital tooling investment.
Expert Technical Consultation: Our engineering team collaborates directly with your production managers to fine-tune cooling layouts and injection parameters, ensuring seamless integration into your existing facility.
We understand that integrating new precision tooling into your production line requires careful consideration and technical clarity. Below are detailed answers to common engineering inquiries regarding our high-performance filtration molding systems.
1.2344 steel offers an exceptional balance of high-temperature toughness and wear resistance. When vacuum heat-treated to HRC48-52, it withstands the continuous thermal shock of rapid injection cycles without developing micro-cracks. This ensures the intricate grid details and sharp edges remain razor-sharp over hundreds of thousands of cycles, preventing flash and maintaining part quality.
High Impact Polystyrene requires precise temperature management to prevent polymer degradation and maintain its structural impact resistance. The hot runner system keeps the HIPS melt at an exact, uniform temperature right up to the gate. This prevents flow marks, reduces internal stress, and ensures the complex lattice structure fills completely before the material begins to freeze.
Yes. Warpage in flat panels is typically caused by uneven cooling rates and internal material stress. Our 1x1 single-cavity design features a highly optimized, conformal cooling channel layout that extracts heat uniformly across the entire surface area. This balanced thermal management locks in dimensional flatness during the curing phase, resulting in perfectly straight panels.
The fine polishing significantly reduces polymer adhesion, making routine maintenance straightforward and efficient. We recommend using non-abrasive mold cleaners and soft-cloth wiping to remove any outgassing residue. Regular inspection of the hot runner tips and proper lubrication of the ejector pins will ensure the continuous, flawless release of the delicate mesh components.
Absolutely. The quoted lead time covers the entire manufacturing lifecycle from final design approval and CNC machining to heat treatment, assembly, and initial T1 trials. We provide comprehensive trial samples and detailed inspection reports to verify dimensional accuracy and part quality before the final tooling shipment is authorized.
