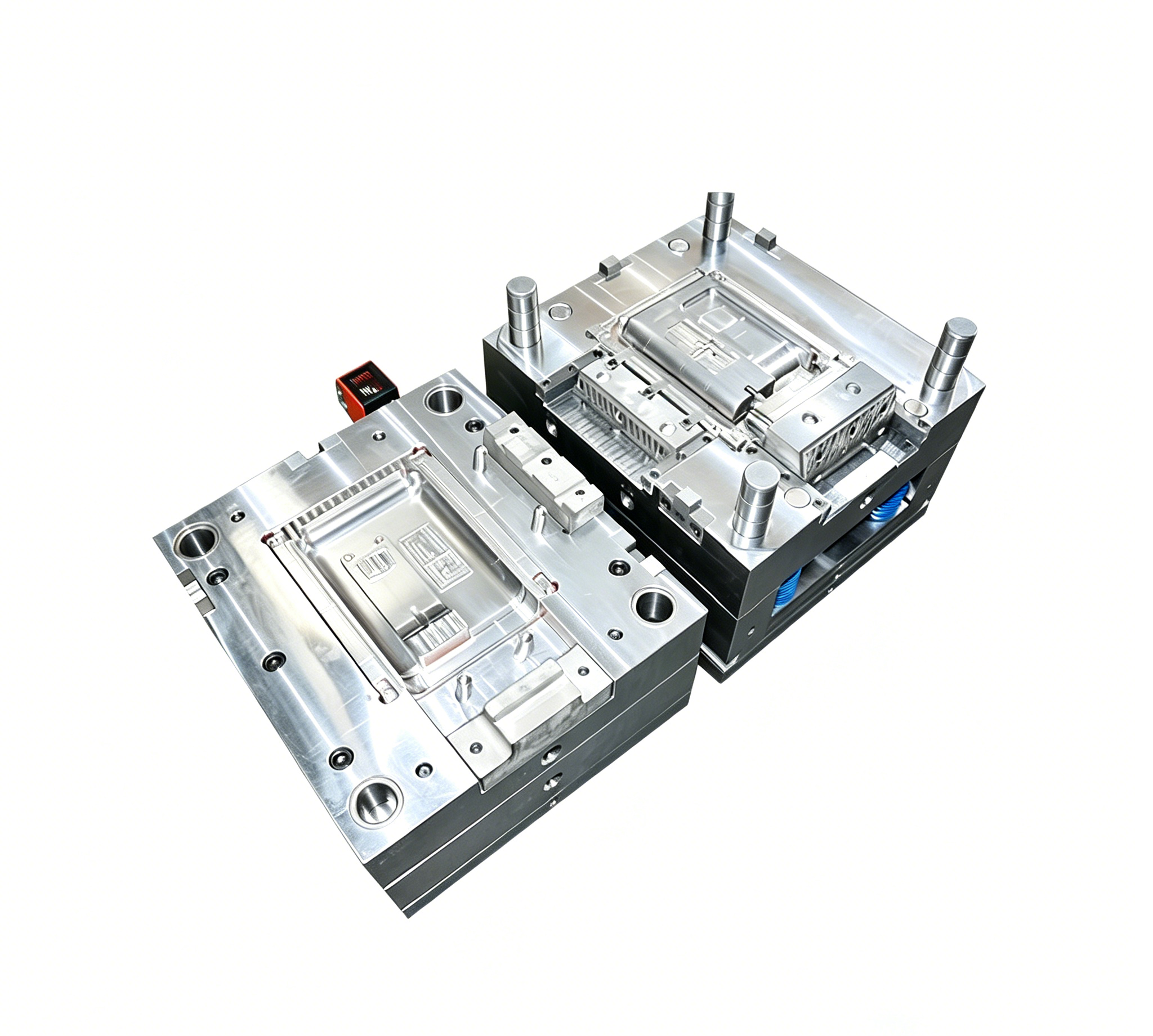

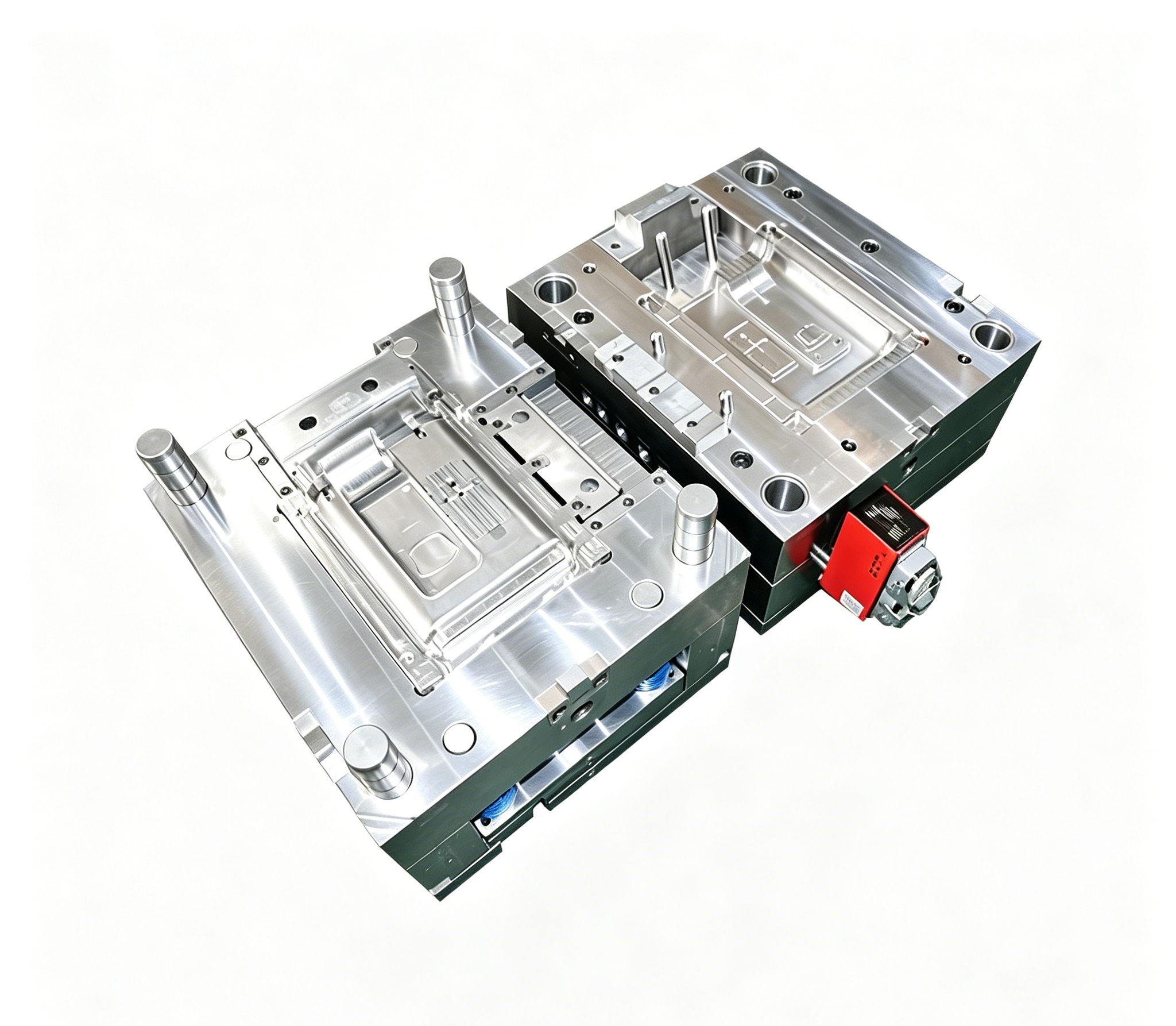

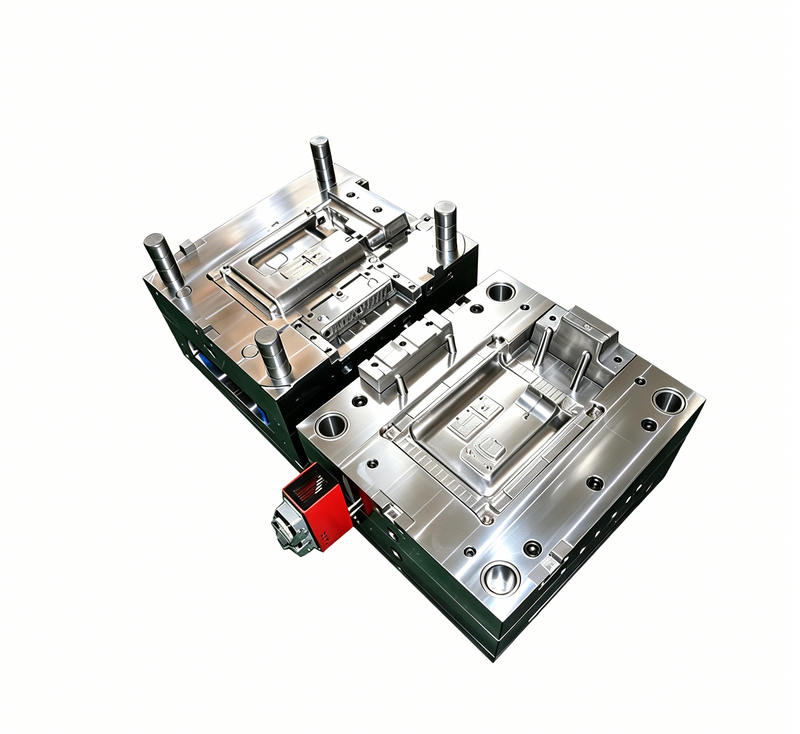

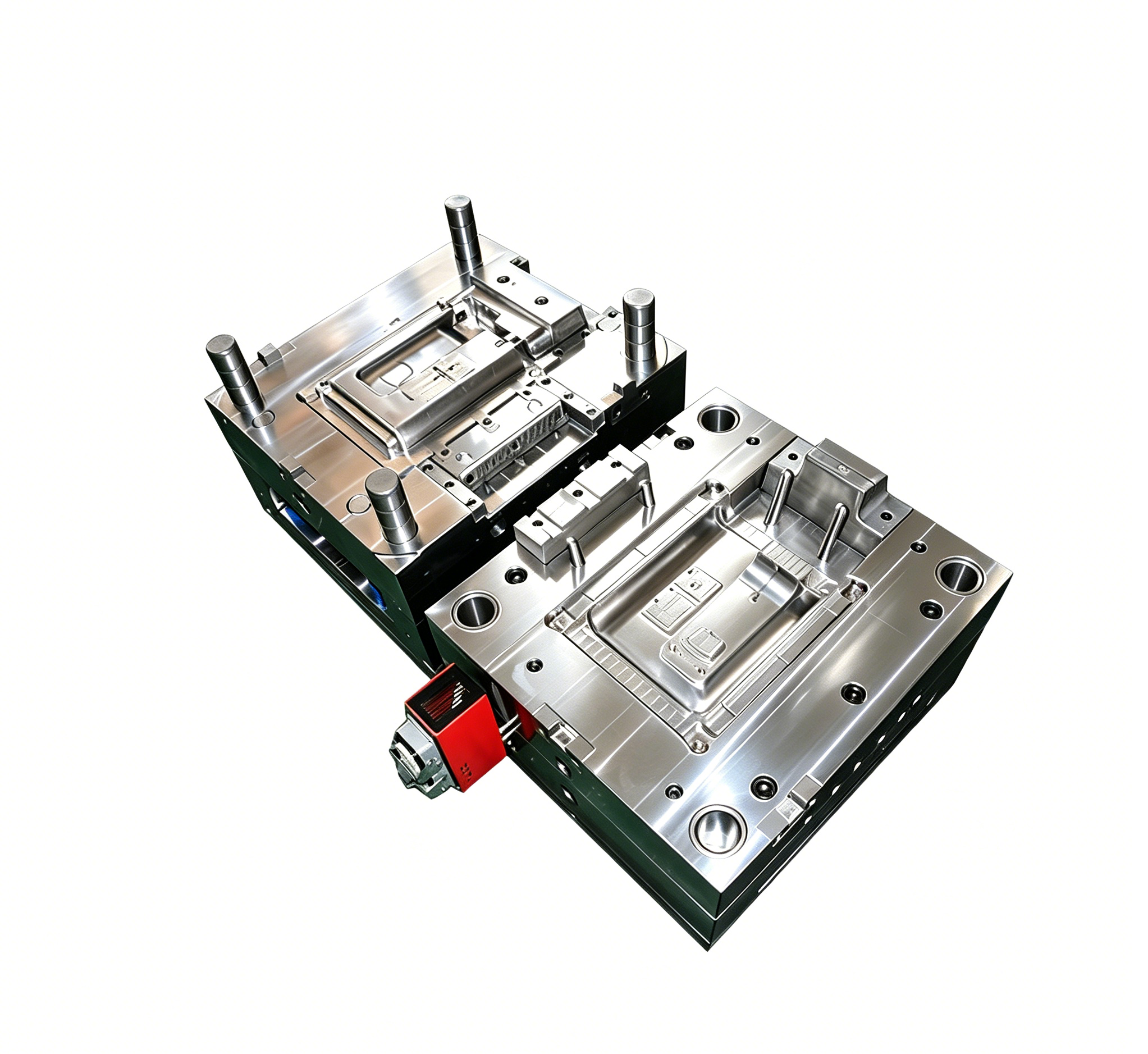

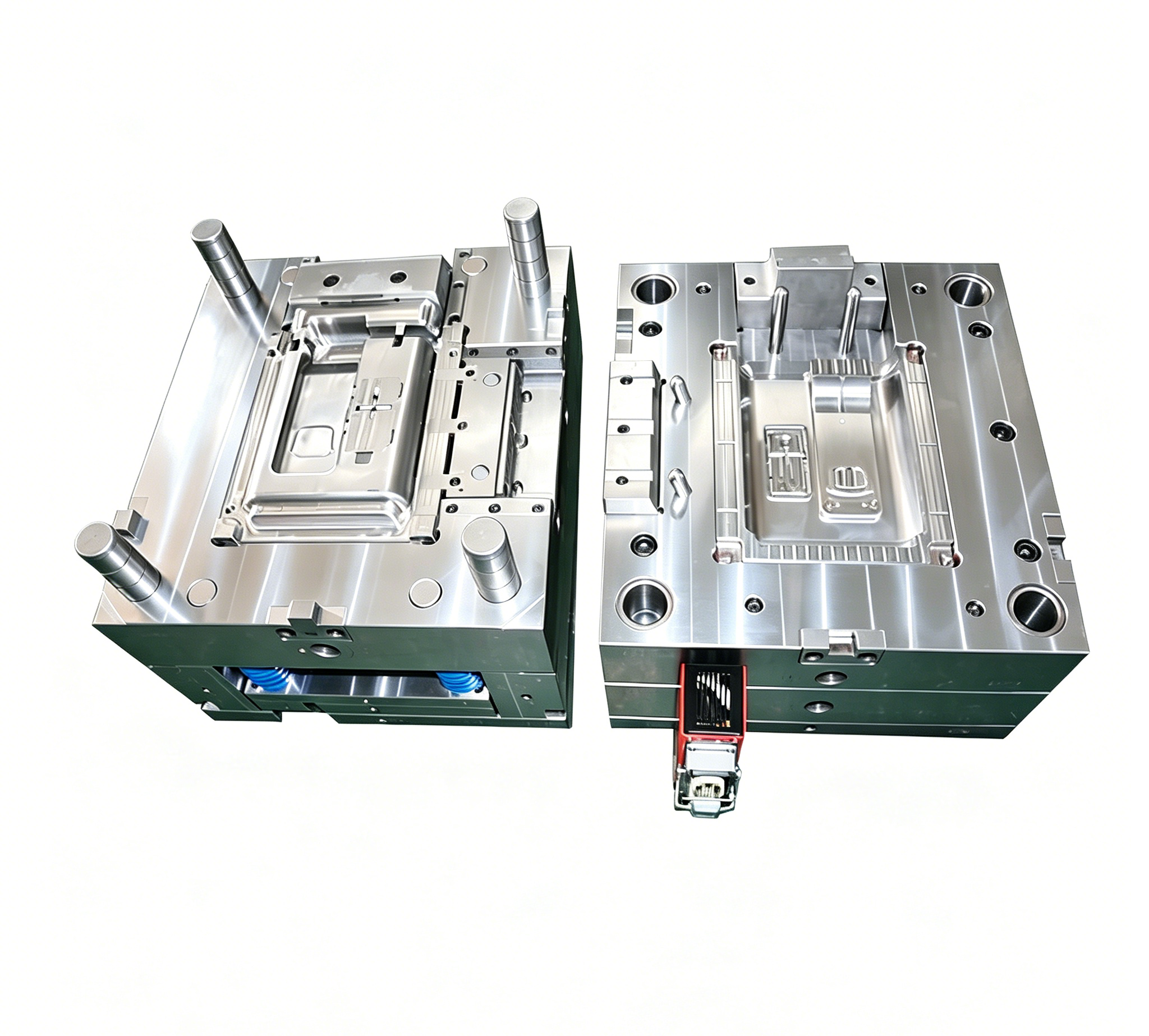

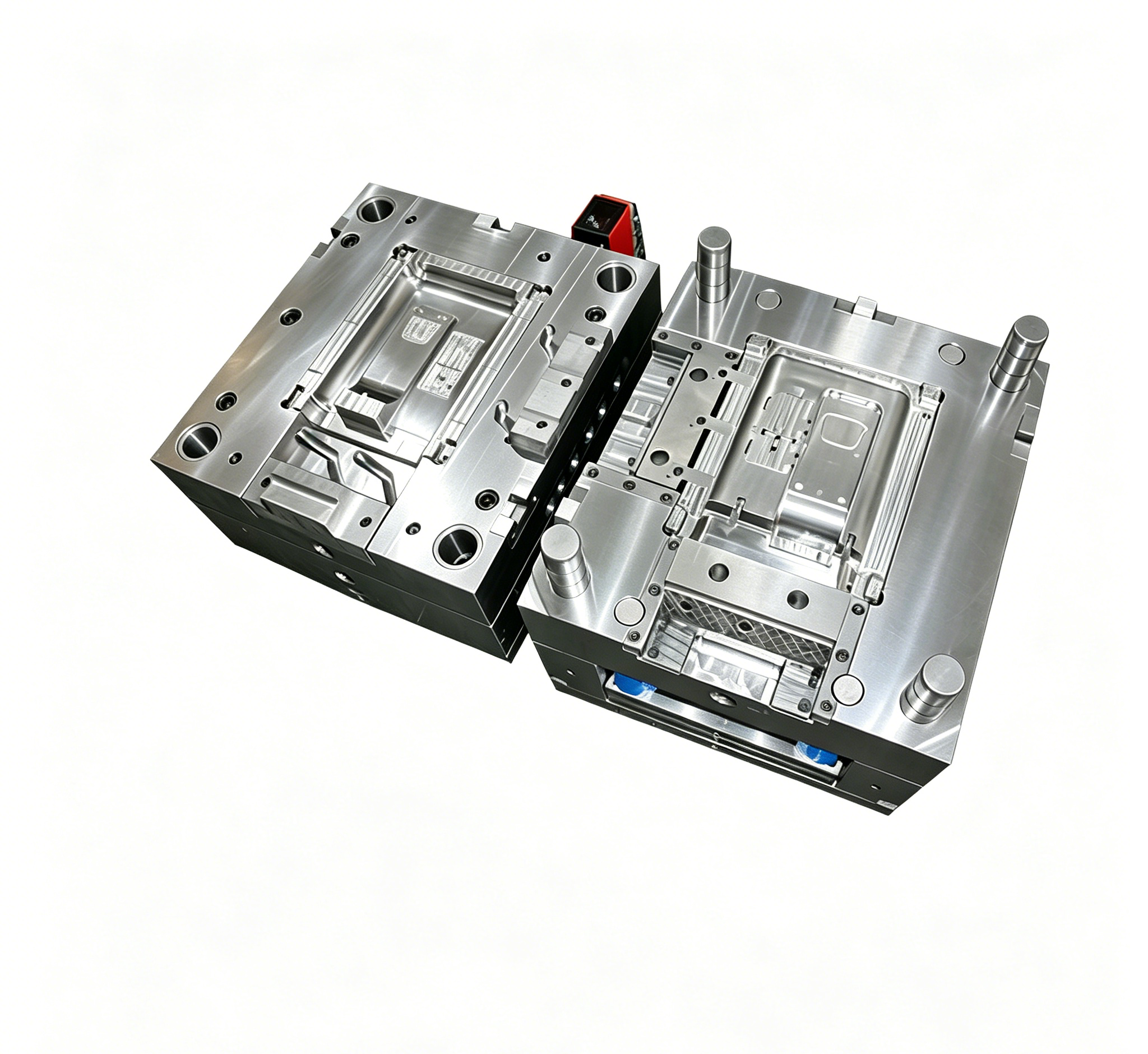

High-Quality Texture Molding Single Center Nozzle To Side Gate S136H Steel ABS Cover Mold

High-Quality Texture Molding Single Center Nozzle To Side Gate S136H Steel ABS Cover Mold

This is a precision injection mold specially manufactured for ABS plastic cover parts. Adopting S136H anti-rust mold steel, single center nozzle with side gate design and professional texture molding technology, the mold delivers products with exquisite surface texture, stable dimensions and flawless appearance. It is widely used for electronic housings, equipment covers, appliance casings and other appearance-focused plastic components, suitable for long-term continuous mass production.

Quantity:
Availability:





Inquire Add to Basket

Model:
21198
Brand:
YIXUN mold
Code:
8480419090

Product Description

Product Overview

This is a precision injection mold specially manufactured for ABS plastic cover parts. Adopting S136H anti-rust mold steel, single center nozzle with side gate design and professional texture molding technology, the mold delivers products with exquisite surface texture, stable dimensions and flawless appearance. It is widely used for electronic housings, equipment covers, appliance casings and other appearance-focused plastic components, suitable for long-term continuous mass production.

Key Features

✅ Premium S136H Mold Steel

Core and cavity adopt imported S136H stainless steel, featuring excellent corrosion resistance, high polish performance and uniform hardness. Effectively prevent rust during long production runs, extend mold service life and keep stable part quality.

✅ Single Center Nozzle + Side Gate Design

Optimized gating structure with central main nozzle and side gate. Smooth plastic filling, no flow mark on visible surface, no flash or material overflow. Perfectly protect the appearance of cover parts.

✅ Professional Texture Molding Capability

Supports customized surface texture, grain and matte finish. Uniform texture distribution, clear pattern and consistent visual effect, upgrading product grade and anti-slip performance.

✅ Stable Molding for ABS Material

Fully optimized flow channel, cooling system and mold temperature for ABS. Low shrinkage, no sink mark, no warpage, ensuring high dimensional accuracy of finished covers.

✅ Reliable Cooling & Ejection System

Reasonably arranged conformal cooling channels realize fast and even heat dissipation, shorten cycle time. Standard pin ejection ensures smooth part demolding without scratch or deformation.

✅ Strict Appearance & Dimensional Control

High-precision machining and assembly, tight tolerance control. All finished ABS covers meet high-standard appearance requirements for commercial and industrial use.

Technical Specifications

Item	Details
Mold Name	Texture Molding ABS Cover Injection Mold
Mold Steel	S136H Stainless Steel
Steel Hardness	HRC 48-52 after heat treatment
Gating System	Single Center Nozzle + Side Gate
Molding Material	ABS
Surface Treatment	Custom Texture / Matte / High Polish
Cavity Design	Custom single / multiple cavities
Cooling System	Conformal circulating cooling channels
Ejection System	Pin Ejection
Mold Life	800,000 – 1,200,000 shots
Main Application	Plastic covers, housings & casings

Application Range

The ABS covers produced by this mold are widely applied in various fields:

Electronic device outer covers and protective housings
Home appliance panels and shell components
Industrial equipment enclosures and decorative covers
Office equipment and daily plastic appearance parts
Consumer electronic product casings with texture surface requirements

Why Choose This Mold

Superior Surface Effect: S136H steel plus professional texture processing creates uniform, delicate surface patterns, greatly improving product competitiveness.
Excellent Anti-Rust Performance: S136H material adapts to long-term workshop production, reduces maintenance frequency and mold failure risks.
Reasonable Gating Layout: Side gate avoids gate traces on visible areas, fully satisfying high appearance standards of cover parts.
High Production Efficiency: Optimized cooling structure accelerates molding cycle, increasing daily output and cutting production cost.
Full Customization: We support custom cavity number, texture style, product size and mold structure according to your drawings or samples.

FAQ

Q: Is S136H suitable for long-term ABS production?

A: Absolutely. S136H features great anti-corrosion and wear resistance, ideal for continuous production of ABS and other common plastics.

Q: Can you customize different texture styles?

A: Yes. We provide various texture, grain and matte finishes as per your design requirements.

Q: Will the side gate leave obvious marks on products?

A: No. The side gate is designed on non-visible areas, with fine gate cutting for clean and neat edges.

Q: What is the standard mold lead time?

A: Normally 5–8 weeks, subject to cavity quantity and texture complexity.

Q: Do you provide mold trial and samples?

A: Yes. We will conduct multiple mold trials and deliver qualified samples for your confirmation before delivery.
