| Quantity: | |
|---|---|
YIXUN mold
8480419090
Material (PP - Polypropylene):
Transparency: Requires high-precision molds to produce a crystal-clear part. Any surface defect on the mold will be visible.
Food Grade: The mold steel itself must be corrosion-resistant and non-porous to prevent bacterial growth and contamination. It must not impart any odor or substance to the plastic.
Shrinkage & Warpage: PP has specific shrinkage rates (typically ~1.5-2.5%). The mold must be designed to compensate for this to ensure the lid fits the cup perfectly and sits flat.

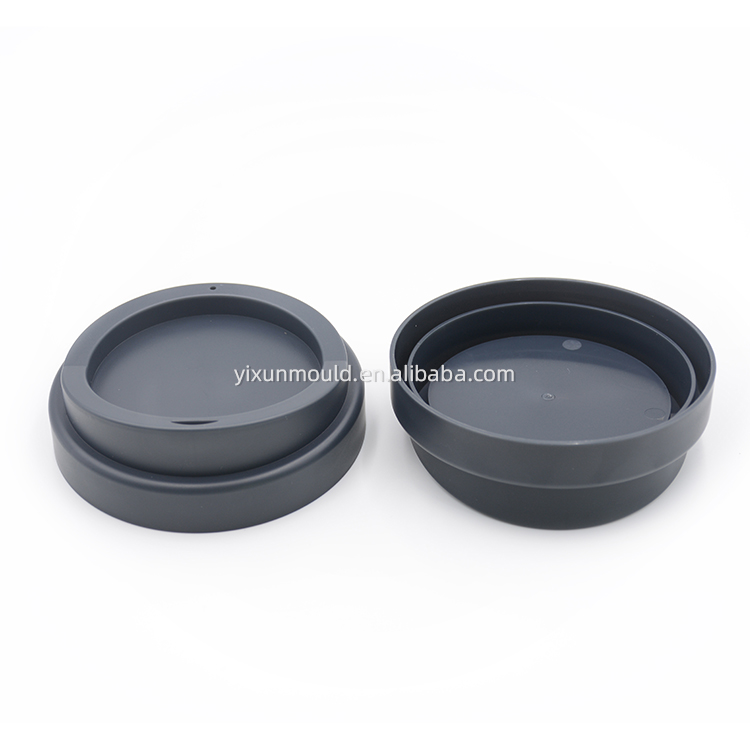

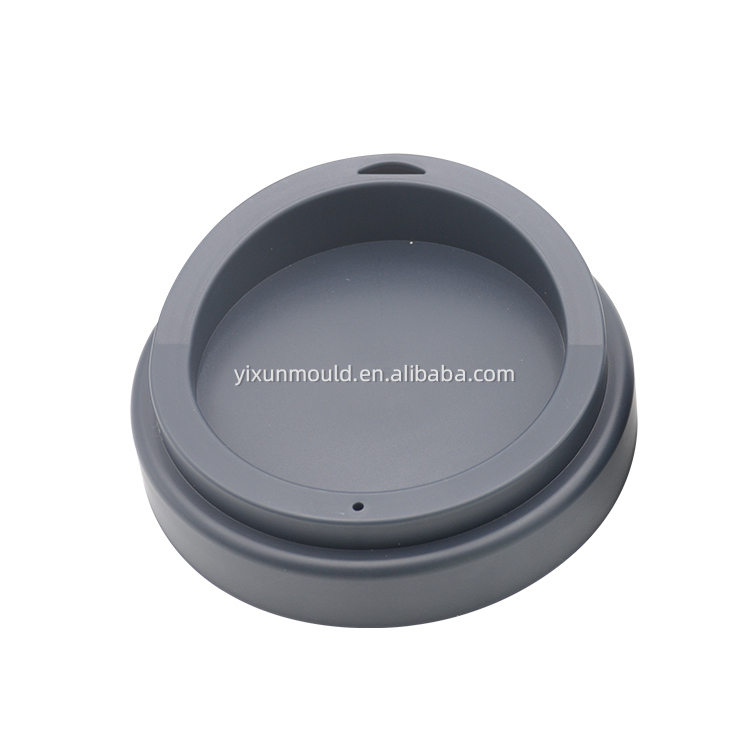

Functionality of the Lid:
Drink-Through Opening: Often includes a hinged or snap-open tab. This requires intricate mold features like hinge mechanisms or living hinges in the plastic design.
Sealing Lip: Must form a precise, consistent sealing surface to prevent leaks.
Vent Hole: For pressure equalization. Needs a small, perfectly formed pin.
Stackability/Rim: Design for easy stacking of lids, requiring precise draft angles.
| Aspect | Why It's Important for Your Coffee Lid Mold |
|---|---|
| Mold Steel | High Polishability, Corrosion Resistance. Must use premium steels like Stavax (SS-420), Mirror-Polished Stainless Steel, or NAK80. Hardened for long life. |
| Surface Finish | Optical Grade Polish (SPI A-1 / #3000+ grit diamond polish) is essential for glass-like clarity. Any texture (e.g., VDI 18-24) must be intentionally added for grip and must be uniform. |
| Cooling System | Efficient, balanced cooling channels are critical. They ensure fast, uniform cooling to minimize cycle time, prevent sink marks, and reduce warpage that can affect seal. |
| Venting | Precision venting at the end of fill and in deep ribs is needed to avoid burn marks (which ruin clarity) and ensure complete filling. |
| Ejection System | Pin ejection must be carefully placed on non-critical surfaces (e.g., the rim's underside) to avoid witness marks on the visible top surface. Stripper plate ejection is sometimes used for better distribution. |
| Gating | Hot Runner System is almost mandatory for high-volume production. It ensures clean, automatic degating with no vestige. Valve gates are preferred for controlling flow into the critical sealing areas. A cold sprue gate is less ideal for clarity and automation. |
| Tolerances | Extremely tight tolerances (±0.02mm or better) on sealing surfaces and hinge areas to ensure consistent performance and leak-proof seal. |
| Mold Flow Analysis | Absolutely essential. Software simulation (e.g., Moldflow) is used before machining to predict fill patterns, weld lines, air traps, shrinkage, and warpage. This optimizes gate location, cooling, and venting. |
Design & Engineering: 3D modeling and Mold Flow Analysis.
Material Selection: Procurement of premium mold steel blocks.
CNC Machining: High-speed CNC for roughing and semi-finishing the mold cavities and cores.
Heat Treatment: Hardening of critical components to increase wear resistance.
Precision Finishing: CNC milling, EDM (Electrical Discharge Machining) for fine details.
Polishing & Texturing: Manual or automated polishing to a mirror finish. Any grip texture is applied via photo-etching or laser texturing.

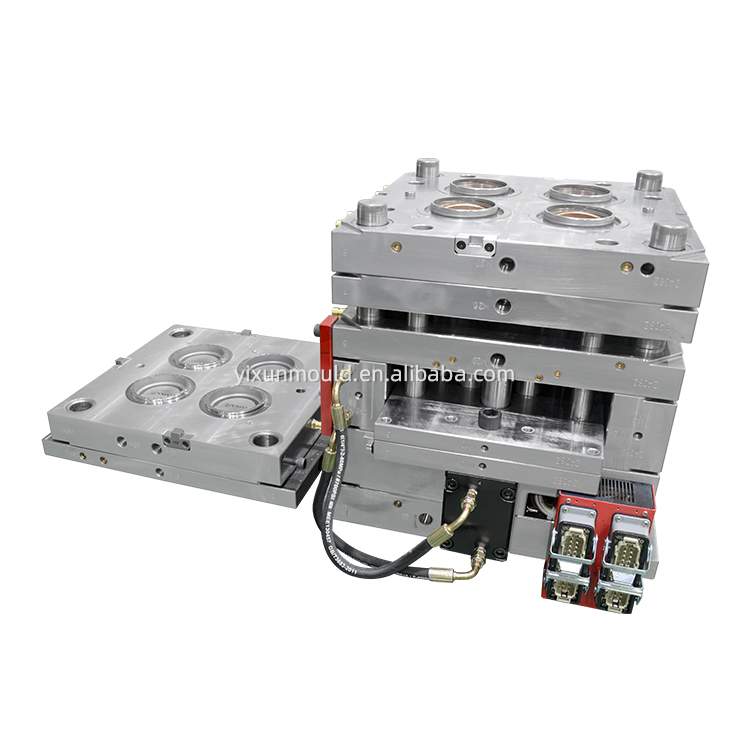

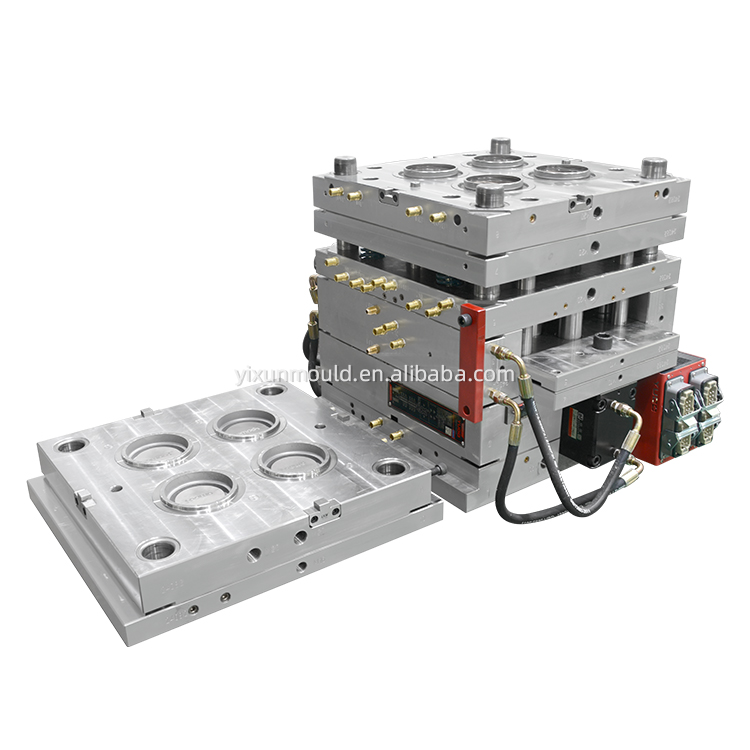

Assembly & Fitting: Assembling the core, cavity, ejector system, hot runner, and cooling lines.
Trial & Sampling (T1): Testing the mold on an injection molding machine. Adjustments are made for fit, function, and clarity.
Final Approval & Delivery: After samples pass all quality checks (dimensions, fit, clarity, food contact tests).
When looking for a mold maker, ask these specific questions:
"Can you show me examples of transparent PP or PET food-grade molds you've built?" (Ask for close-up photos of the molded parts).
"What grade of steel do you recommend, and what polish level (SPI standard) do you guarantee?"
"Do you perform Mold Flow Analysis as part of your standard quotation?"
"What type of hot runner system (e.g., HASCO, YUDO, DME) do you use?" (Brand name systems are more reliable).
"What is your process for ensuring the lid meets food-grade manufacturing standards (cleanroom assembly, etc.)?"
"What is the expected mold life (in shots) for this application?" (For a high-quality mold, 1+ million shots is standard).
Complexity: Hinges, undercuts, sliders increase cost.
Cavitation: Number of cavities (e.g., 1+1, 2+2, 4+4, 8+8). Higher cavitation increases mold cost but lowers per-part cost.
Steel Quality & Polish: Mirror polish is labor-intensive.
Hot Runner System: A significant portion of the total cost, but essential for quality.
Supplier Location: Molds from Germany, Japan, or the USA are typically higher cost than those from Taiwan (known for excellent value) or mainland China. Ensure the supplier has proven experience with food-grade molds.
For a High Quality Plastic Molding Transparent PP Food Grade Coffee Lid Mold, you should invest in:
Steel: Stavax or equivalent mirror-polish stainless steel.
System: A valve-gated hot runner system.
Process: A supplier that provides and validates Mold Flow Analysis.
Focus: Prioritize clarity and sealing performance in the design.
This upfront investment in a superior mold will pay off through faster production cycles, lower scrap rates, consistent high-quality lids, and a longer mold life.
