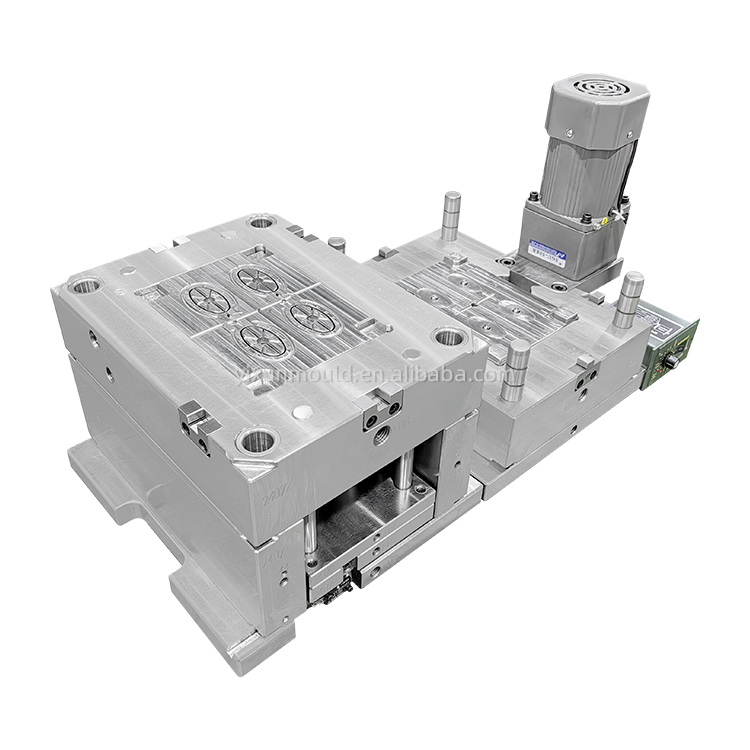

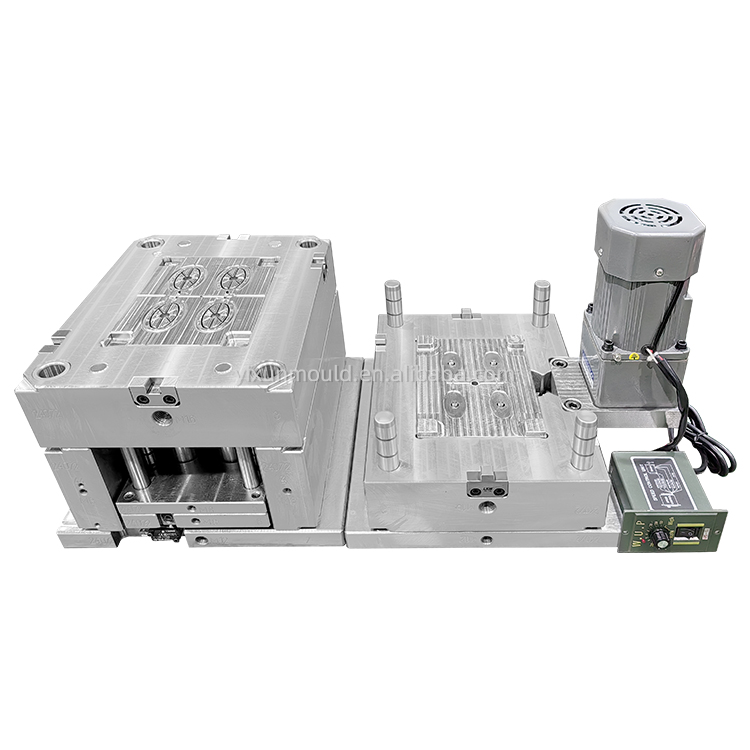

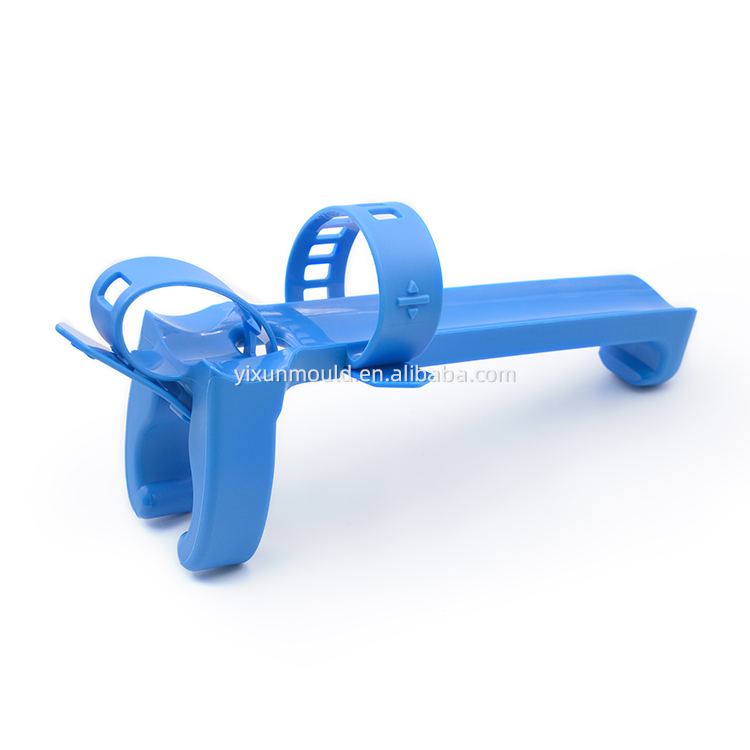

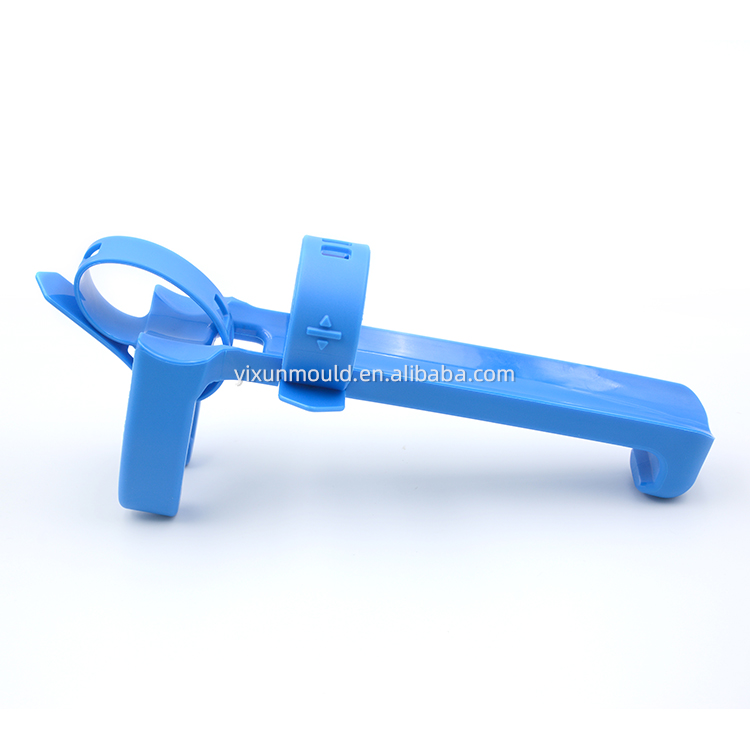

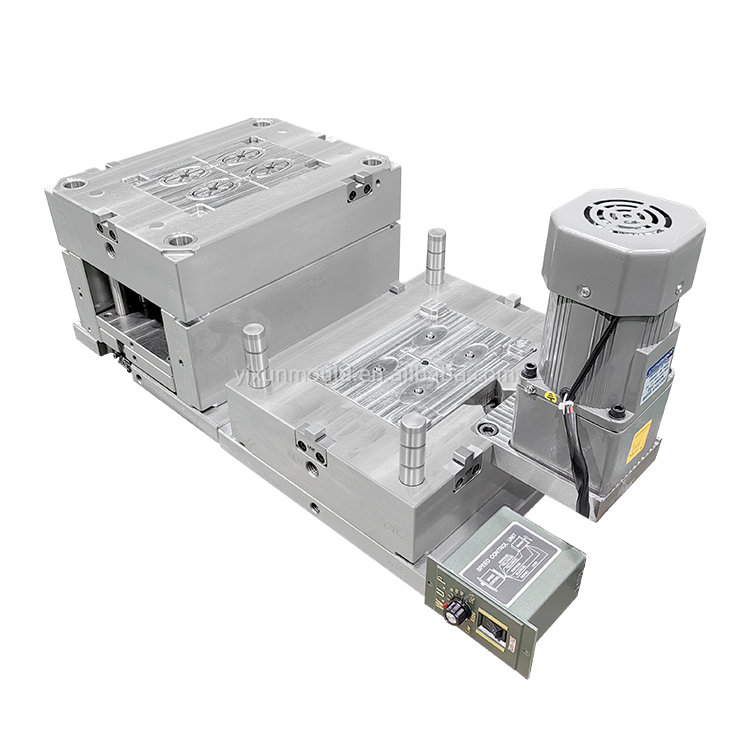

Key Mold Design Considerations for Medical Injection-Molded Handles
Mold Steel: Use corrosion-resistant, high-hardness steels (e.g., S136, H13) to withstand repeated sterilization (EtO/gamma) and prevent material contamination. S136’s low carbon content ensures no metal leaching into the plastic, critical for biocompatibility.
Surface Finish: Mirror-polished cavities (Ra ≤ 0.02μm) eliminate micro-roughness that traps bacteria. For TPE-overmolded handles (soft grip + rigid base), the mold must integrate dual-material gating systems to bond the two materials securely.
Material Flow Optimization: For PP (low melt viscosity), design wide, short runners to reduce shear stress—this prevents material degradation and maintains biocompatibility.
Ergonomic Cavity Geometry:
Match the mold cavity to 95th-percentile hand dimensions (per ISO 11226) to ensure a comfortable, non-fatiguing grip.
Incorporate rounded edges (radius ≥ 1mm) in the mold to eliminate sharp corners—this prevents skin irritation and bacterial buildup (no crevices for contaminants).
Reinforced Ribs & Load-Bearing Zones:
Add mold-integrated ribs (thickness 0.5–0.8× handle wall thickness) to critical areas (e.g., where the handle attaches to instruments). This boosts structural strength without increasing weight (handles typically weigh 20–50g for portability).
Use finite element analysis (FEA) to validate rib placement—ensuring the handle can withstand 50+ N of force (typical clinical operational load) without deformation.
Seamless, One-Piece Molding:
Avoid multi-part assemblies (e.g., glued grips) by molding the handle as a single piece. The mold should integrate all features (grip, attachment clips, ventilation slots) in one cycle to eliminate gaps where bacteria can accumulate.
Ventilation Slot Precision:
For handles with ventilation slots (to reduce weight/stress), the mold uses slide mechanisms to form these features. Ensure slot width (≥2mm) and rounded edges to allow easy cleaning (per AAMI ST79 sterilization guidelines).
No Undercuts (Where Possible):
Minimize undercuts (which require complex mold slides) to simplify cleaning. If undercuts are necessary (e.g., for instrument clips), design self-ejecting slides that leave no residual plastic flash.
Gating Strategy:
Use edge gating (placed at non-grip areas) to avoid visible gate marks on the handle’s contact surfaces. For large handles, use multiple gates (balanced flow) to prevent weld lines (which reduce structural strength).
For TPE-overmolded handles, use sequential valve gating to inject the rigid base first, then the TPE grip—this ensures a strong bond between materials.
Uniform Cooling Systems:
Implement conformal cooling channels (3D-printed to follow the handle’s curved shape) to maintain mold temperature uniformity (±2°C). This prevents warpage (common in PP handles) and ensures consistent wall thickness (±0.05mm).
Extend cooling time (25–35s) for thicker handle sections (e.g., grip areas) to eliminate internal stress—this prevents cracking after repeated sterilization.
Tolerance Control:
Maintain dimensional tolerances of ±0.05mm for attachment features (e.g., clips, threaded ports) to ensure compatibility with standard medical instruments (per ISO 80601).
Use cavity sensors in the mold to detect under-filling or flash in real time—this reduces scrap rates and ensures every handle meets specs.
Mold Validation:
Conduct 10,000-cycle mold trials to verify durability (no cavity wear) and part consistency. Post-trial, inspect handles via CMM (Coordinate Measuring Machine) to confirm all dimensions align with CAD designs.
