High-precision plastic injection molding is the backbone of modern manufacturing. It allows us to create intricate parts with tolerances as tight as 2 to 5 microns. Whether it is a life-saving medical grade device or a microscopic electronic component, the margin for error is effectively zero. Achieving this level of accuracy requires more than just a standard machine; it demands a sophisticated precision plastic mould and a deep understanding of material science.
In this guide, we break down the seven essential things you must know about high-precision molding. We will explore how a custom approach to tool design, the use of multi-cavity systems, and rigorous process control combine to deliver world-class results. If you are looking to scale production while maintaining absolute consistency, these "7 Things to Know" will serve as your strategic roadmap.
When we talk about high precision, we are talking about dimensions that stay consistent across millions of cycles. A precision plastic mould must be engineered to withstand immense pressure without deforming. Unlike general-purpose molds, these tools are often crafted from premium hardened steel (like H13 or S136) to ensure the parting lines remain crisp and the dimensions stay true.
In a standard molding project, a tolerance of ± 0.1mm might be acceptable. However, for a high-performance electronic component, we often operate in the ± 0.01mm or even ± 0.005mm range. To achieve this, the precision plastic mould must account for the specific shrink rate of the resin used. Even a 0.1% deviation in material cooling can pull a part out of spec, making the initial design phase the most critical step in the entire lifecycle.
High-precision tools require advanced cooling channels. We often use conformal cooling, where the water lines follow the exact contour of the part. This ensures even heat dissipation, preventing "warp" or "sink marks" that would ruin a custom part's geometry. By maintaining a stable temperature within the precision plastic mould, we ensure that the first part of the day is identical to the last part of the night.
The "plastic" in injection molding isn't a single substance; it is a complex cocktail of polymers, fillers, and additives. For high-precision work, the material's flow characteristics (Melt Flow Index) and thermal stability are paramount. You cannot achieve medical grade results with a material that behaves inconsistently.
We frequently utilize high-performance resins such as PEEK, PPS, or LCP for precision tasks. These materials offer high structural strength and low thermal expansion. When paired with a precision plastic mould, they produce parts that can replace metal components in aerospace or automotive applications.
For precision plastic mould success, you must use virgin resins. Recycled materials often have inconsistent molecular weights, which causes unpredictable shrinkage. If the material shrinks differently in each cycle, the high-precision tolerances are lost. For high-stakes industries like healthcare, using a certified medical grade resin ensures that the part is safe, bio-compatible, and dimensionally stable.
If you need to produce millions of parts, a single-cavity mold is too slow. However, moving to a multi-cavity precision plastic mould introduces a new challenge: ensuring every single cavity produces an identical part. This is where the "art" of high-precision molding meets "science."
In a multi-cavity setup, the flow of plastic must be perfectly balanced. If one cavity fills faster than another, the parts will have different weights and dimensions. We use "hot runner" systems with individual temperature controls for each nozzle to manage this. This allows us to fine-tune the pressure in every corner of the precision plastic mould, ensuring that whether you have 4, 16, or 64 cavities, the output is uniform.
The "gate" is where the plastic enters the cavity. In a multi-cavity precision plastic mould, gate placement is everything. We often use "valve gates" which can be timed to open and close with millisecond precision. This prevents "stringing" and ensures that the cosmetic finish of an electronic component or medical grade housing is flawless.
Building a multi-cavity precision plastic mould is a significant upfront investment. However, the cost per part drops dramatically as volume increases. The key is to ensure the toolmaker has the capability to maintain high precision across the entire plate. A poorly made multi-cavity tool will result in high scrap rates, which quickly erases any savings from faster cycle times.
For certain high-precision parts, the environment where they are molded is as important as the machine itself. A single speck of dust can ruin a medical grade valve or interfere with the conductivity of a delicate electronic component.
Precision molding facilities often operate under ISO Class 7 or 8 cleanroom standards. This means the air is filtered, and humidity is strictly controlled. In these environments, the precision plastic mould is protected from contaminants that could cause surface defects.
To maintain high precision and cleanliness, we use robotic arms to remove parts from the precision plastic mould. This prevents human contact, which could introduce oils or skin cells. For custom projects requiring secondary operations like assembly or ultrasonic welding, doing so within the cleanroom ensures the entire production chain meets the highest quality benchmarks.
A modern high-precision injection molding machine is essentially a high-speed computer that happens to melt plastic. It monitors hundreds of data points in real-time to ensure the precision plastic mould performs exactly as intended.
We use "Scientific Molding" to establish a robust process. This involves recording the exact pressure, temperature, and speed of every shot. If the sensor detects a 0.1% change in pressure, the system can automatically flag that specific part as suspect. This level of control is what allows us to guarantee the integrity of every custom part.

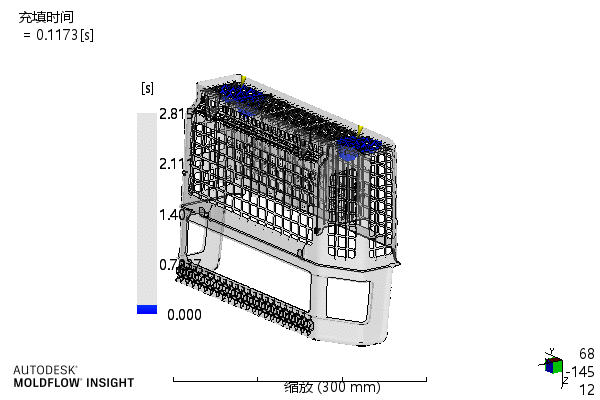

Before we even cut steel for a precision plastic mould, we run "Moldflow" simulations. These digital tools predict how the plastic will flow, where air might get trapped, and where the part might warp. By solving these problems in a virtual environment, we reduce the number of physical "trials," saving time and ensuring the final tool is a High-quality asset from day one.
You cannot claim "high precision" if you cannot measure it. Specialized metrology equipment is required to verify that the parts coming out of the precision plastic mould meet the client's specifications.
Standard calipers aren't enough for an electronic component with micron-level features. We use:
CMM (Coordinate Measuring Machines): These use a physical probe to map the 3D coordinates of a part.
Optical Vision Systems: These use high-resolution cameras and lasers to measure parts without touching them, which is vital for soft or delicate custom parts.
X-Ray / CT Scanning: For complex medical grade devices with internal channels, CT scanning allows us to inspect the inside of the part without destroying it.
One of the biggest hurdles in manufacturing is the "gap" between a working prototype and mass production. A custom prototype might work perfectly, but scaling that to a multi-cavity precision plastic mould requires a different engineering mindset.
Sometimes, we use "bridge tooling"—a temporary precision plastic mould made of aluminum or soft steel. This allows us to produce several thousand parts to test the market and the assembly process before committing to a million-cycle production tool.
The "Secret Sauce" of high-precision success is DFM. By involving the mold designer early in the product development stage, we can suggest small changes—like adding a 1-degree draft or thickening a wall—that make the precision plastic mould much more reliable. This collaborative approach ensures that the final custom product is not only high-precision but also cost-effective to produce at scale.
High-precision injection molding is a symphony of engineering, material science, and data-driven process control. Whether you are developing a revolutionary medical grade tool or the next generation of electronic component technology, knowing these seven factors is vital. A High-quality precision plastic mould is the foundation of your product's success. By prioritizing tight tolerances, material purity, and advanced metrology, you ensure that every part you produce is a testament to quality and reliability.
Q1: What is the average lifespan of a precision plastic mould?A: A high-end precision plastic mould made from hardened steel can last for 1 million cycles or more with proper maintenance. For high-volume multi-cavity tools, this longevity is essential for ROI.
Q2: Why is precision molding more expensive than standard molding?A: The costs come from the ultra-accurate CNC machining required to build the precision plastic mould, the high-grade materials used, and the slower, more controlled production cycles needed to maintain tolerances.
Q3: Can any plastic be used for high-precision parts?A: No. Some plastics have high shrink rates or poor thermal stability. For custom precision parts, we typically recommend engineering-grade resins that offer predictable behavior during the cooling process.
