High-Precision Manufacturing: Produced with CNC-machined molds to ensure tight dimensional tolerances (±0.05mm), guaranteeing seamless fit and alignment during assembly.
Premium Material: Crafted from impact-resistant, flame-retardant engineering plastic, offering excellent chemical resistance, UV stability, and a long service life in demanding environments.
Surface Finish: Uniform matte red finish minimizes glare, enhances scratch resistance, and provides a professional aesthetic suitable for front-of-house applications.

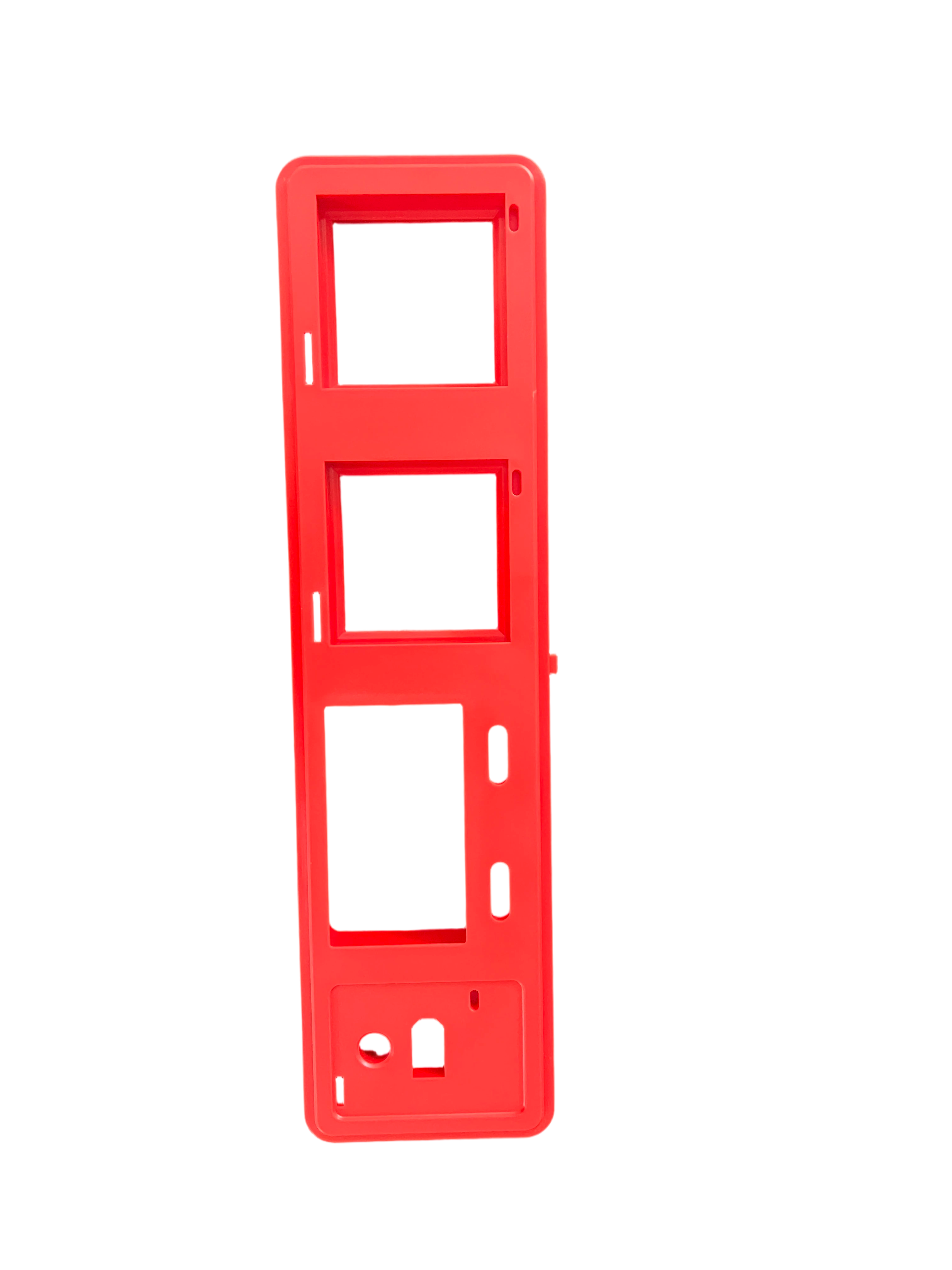

Top Panel (Interface Housing): Features three precision-cut square windows of varying sizes, specifically designed for embedded displays, touch panels, and button modules. Integrated mounting bosses and snap-fit tabs ensure secure component fixation.

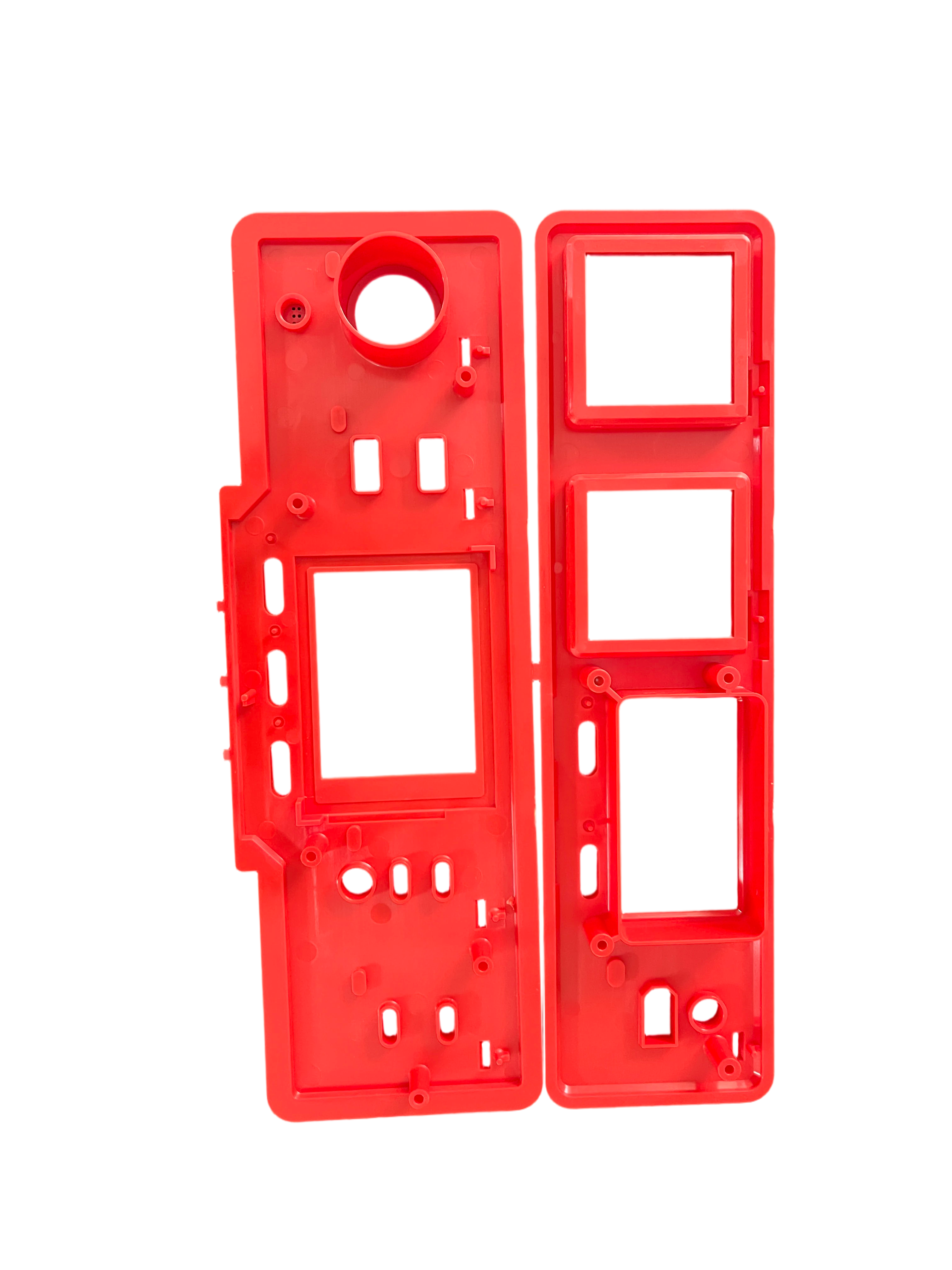

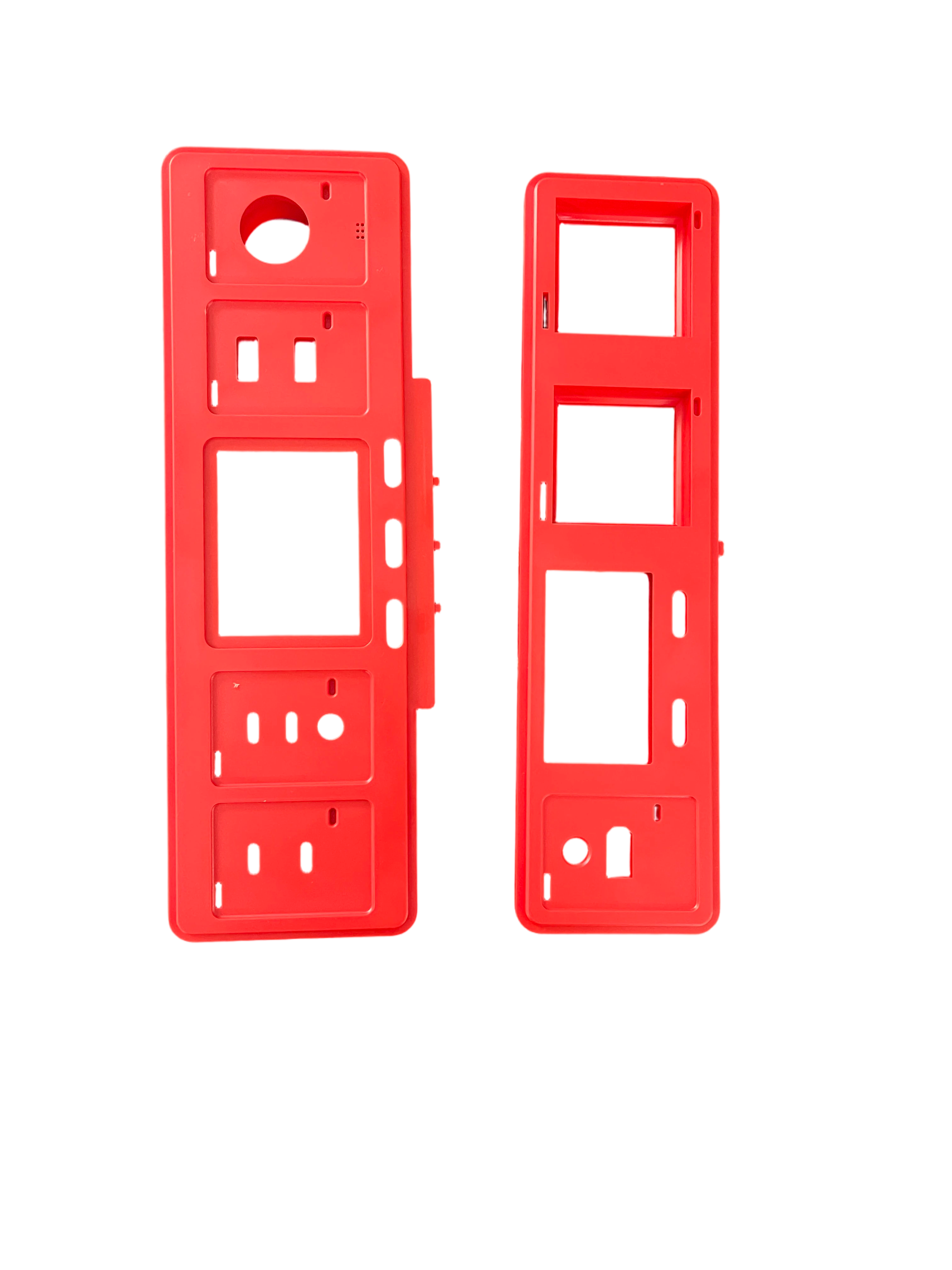

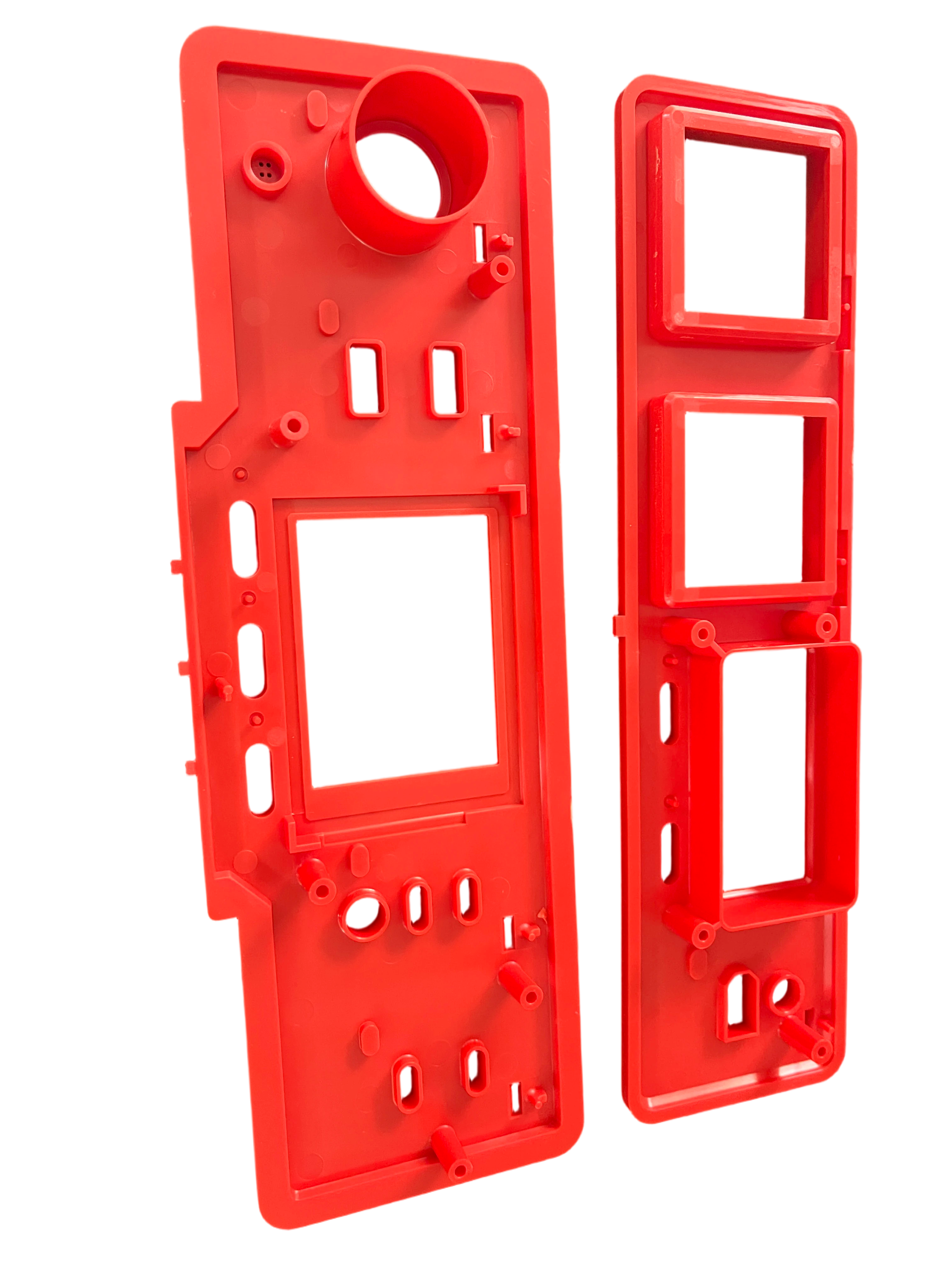

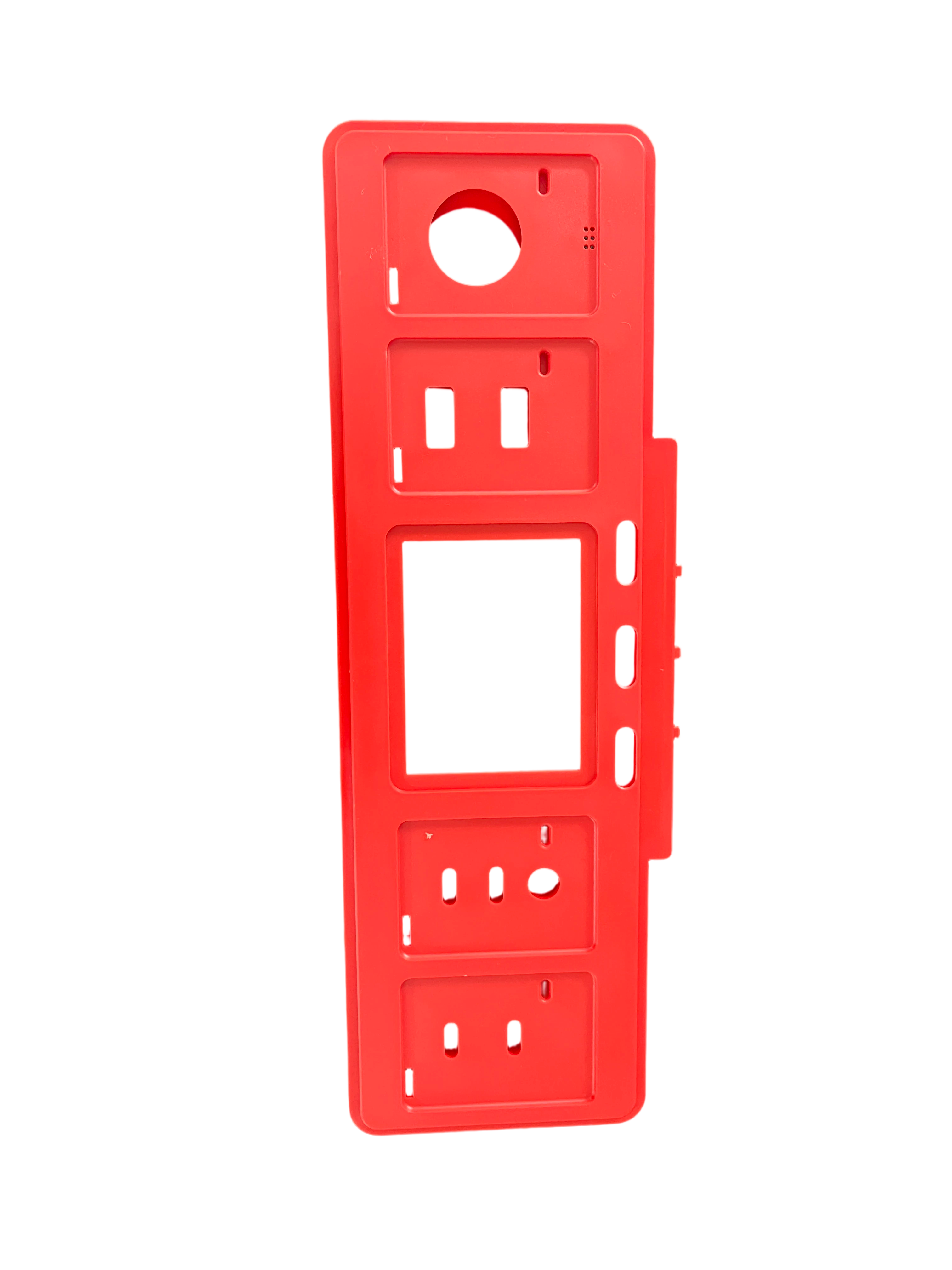

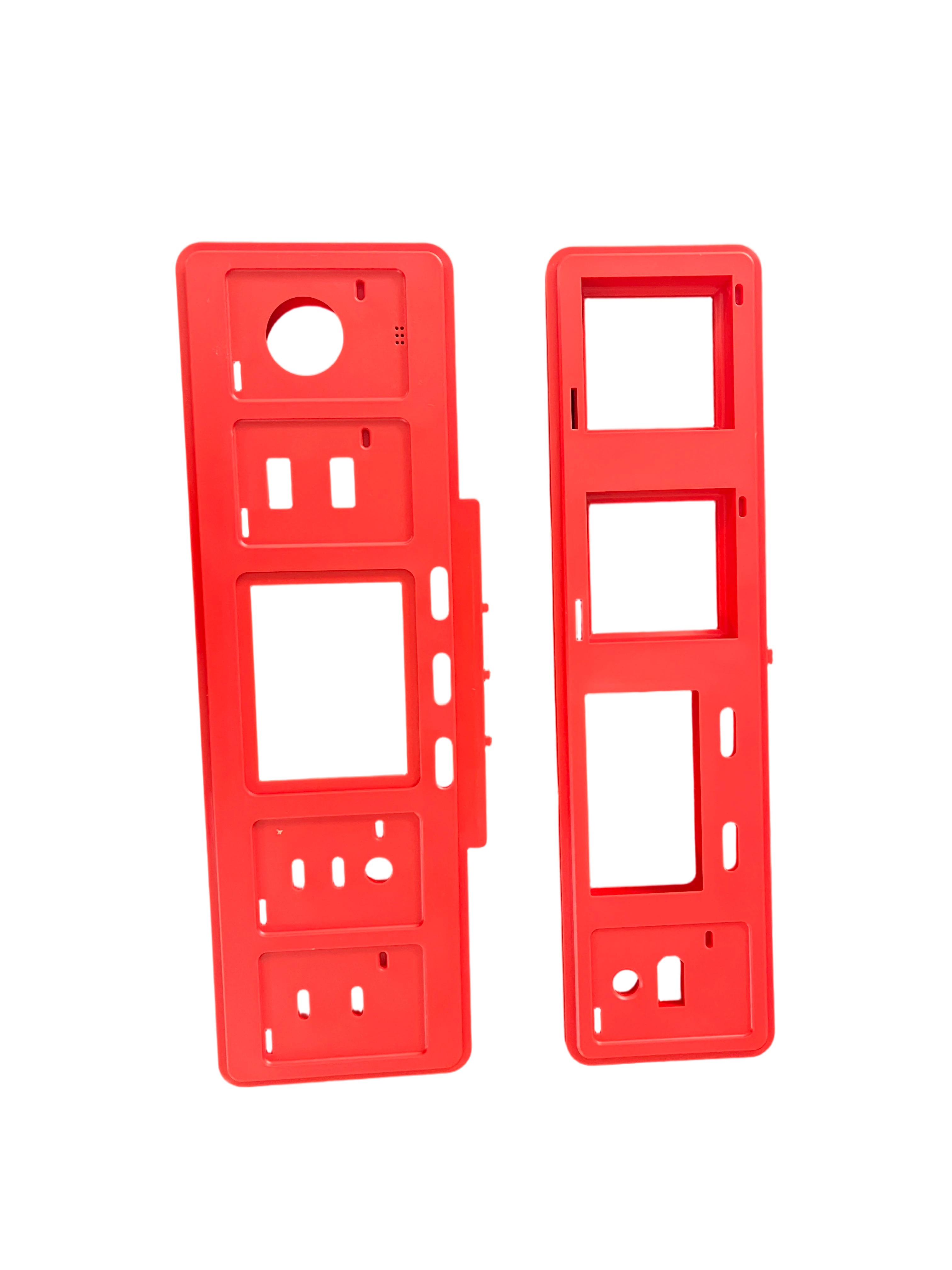

Bottom Panel (Main Housing): Includes a large central display cutout, a prominent circular stepped port for sensors, speakers, or knobs, and an array of auxiliary holes for indicator lights, microphones, and cable management. Strategically placed screw bosses and alignment pins enable robust, error-free assembly with the top panel and internal PCBs.
Streamlined Integration: Consolidates display, control, and interface functions into a single two-piece set, reducing the total number of components and simplifying the bill of materials.
Automation-Ready: Standardized mounting points and alignment features are optimized for automated assembly lines, significantly reducing production time and minimizing human error.
Structural Rigidity: Reinforced ribs and optimized wall thickness provide exceptional structural stability without unnecessary weight, achieving an optimal strength-to-weight ratio.
| Parameter | Details |
|---|---|
| Material | ABS / PC-ABS (Customizable) |
| Color | Matte Red (Customizable) |
| Process | High-Precision Injection Molding |
| Dimensional Tolerance | ±0.05mm |
| Operating Temperature | -20°C ~ 80°C |
| Flammability Rating | UL94 V-0 (Optional) |
| Certification | RoHS, REACH, ISO 9001 |
Industrial Control: Human-machine interfaces (HMI), PLC control panels, and process monitoring equipment.
Smart Home: Central control hubs, security systems, and intelligent thermostats.
Medical Devices: Patient monitoring equipment and portable diagnostic tools.
Automotive: Custom aftermarket control modules and infotainment systems.
Full Customization: We offer tailored mold design, material selection, and feature integration to meet your unique project specifications.
Quality Assurance: Rigorous in-process inspection and final product testing ensure compliance with international standards and zero-defect performance.
Global Supply Chain: Efficient production and logistics capabilities support large-scale orders with reliable on-time delivery.
Technical Support: Our experienced engineering team provides end-to-end support, from initial design consultation to post-production optimization.
