PA66+GF30 Construction: 30% glass fiber reinforced polyamide 66, ideal for injection molding, provides exceptional tensile strength, heat resistance (up to 120°C), and chemical resistance to oils, fuels, and industrial fluids.
Consistent Quality: Injection molding ensures uniform material distribution and mechanical properties across every part, with no weak points from manual assembly.
Long Service Life: Resists fatigue, impact, and UV degradation, making it ideal for under-hood automotive and heavy-duty industrial use.
Flame Retardant Option: Available with UL94 V-0 flame retardant rating for safety-critical applications.

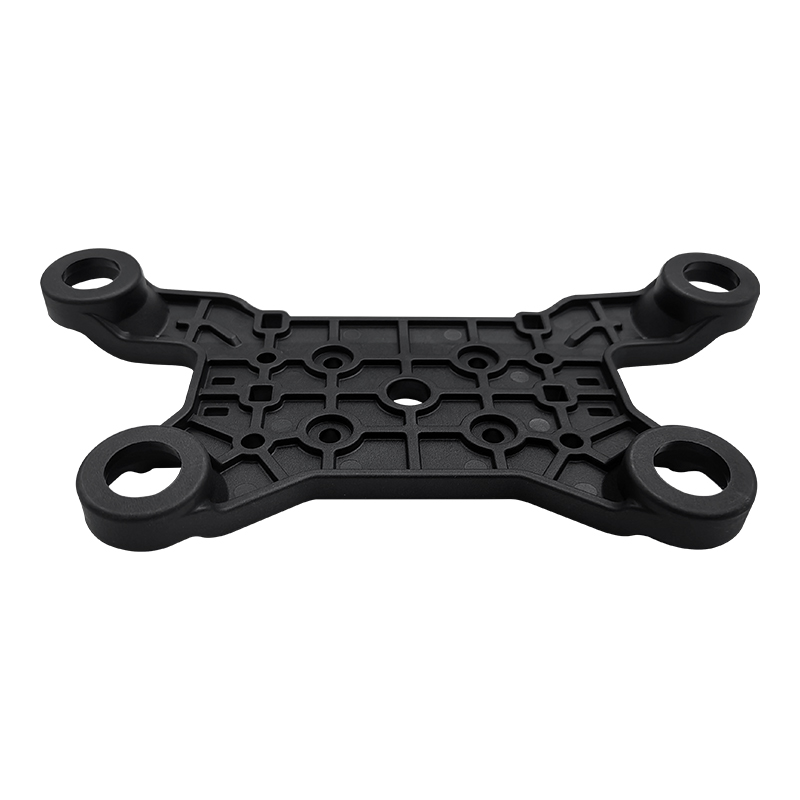

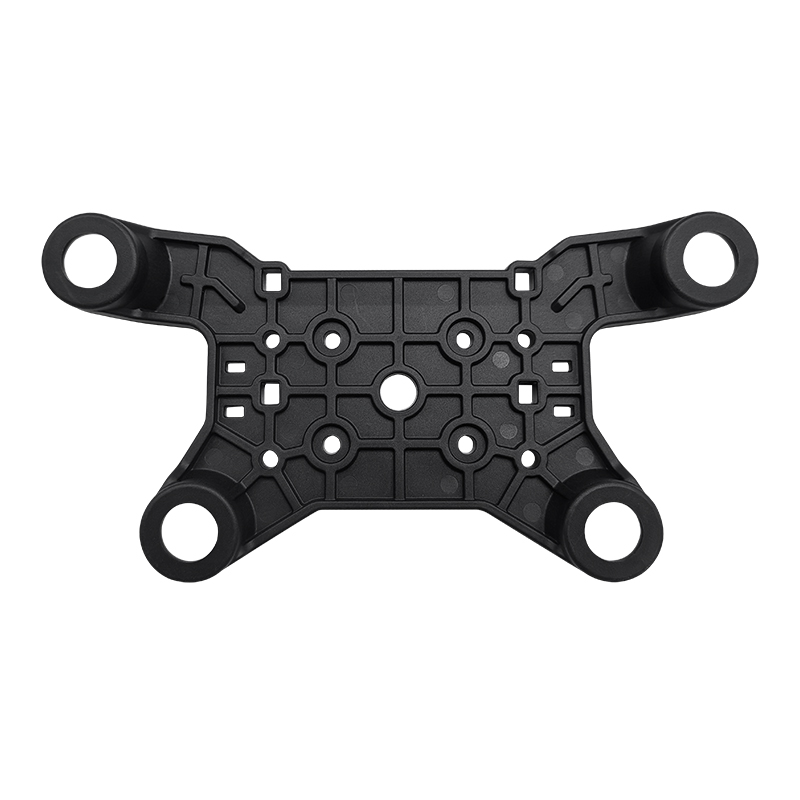

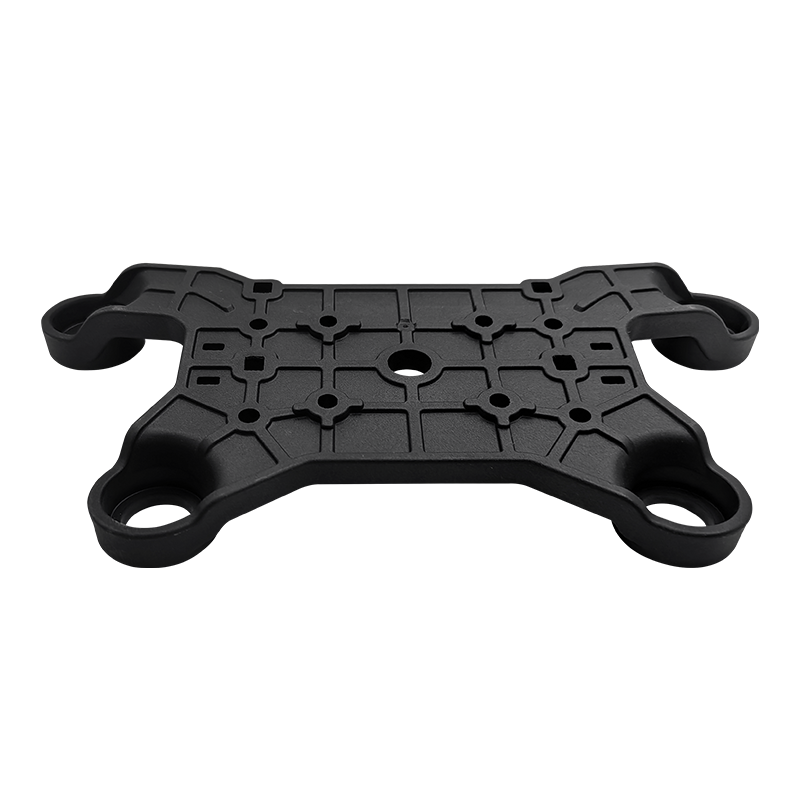

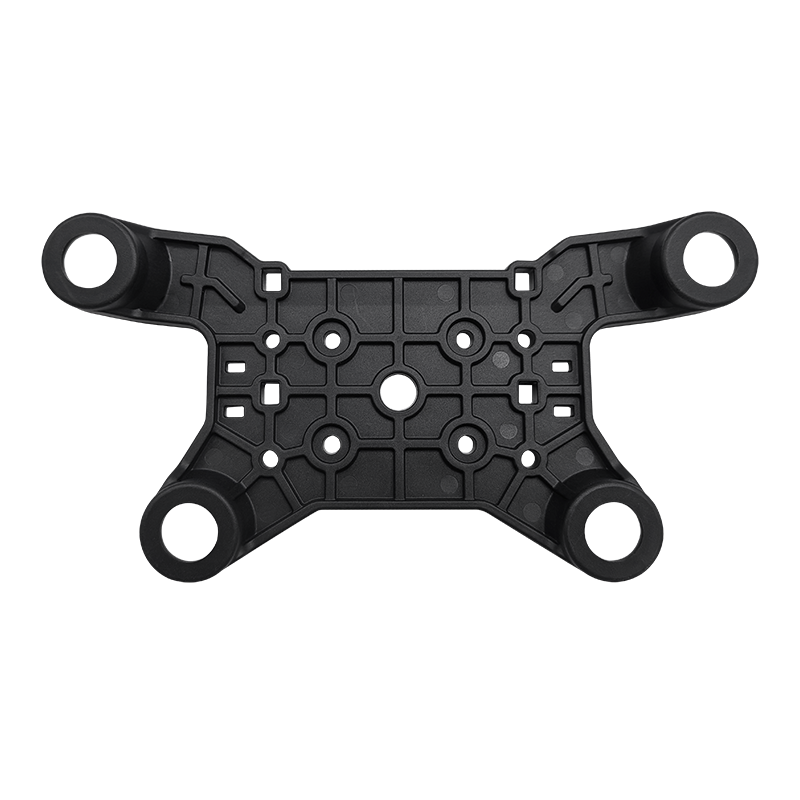

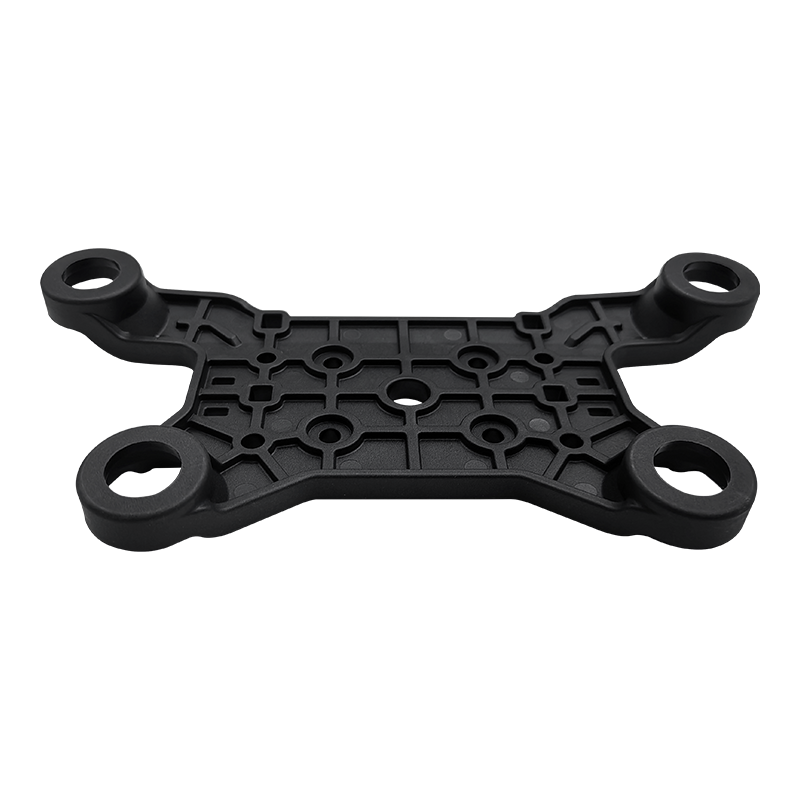

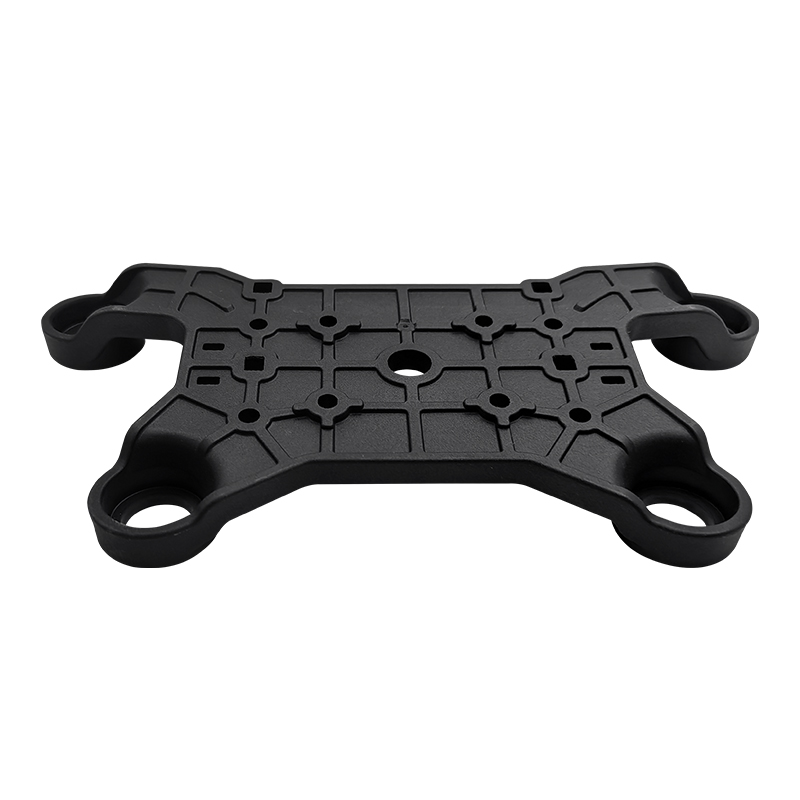

Reinforced Grid Ribs: Uniformly distributed ribbing, designed for efficient mold filling, maximizes rigidity while minimizing weight, preventing warping and ensuring dimensional stability under load.
Multi-Point Mounting:
4 large corner holes (Φ12mm) for robust chassis/body attachment.
8 precision-drilled small holes (Φ4mm) and 4 square slots for component-level positioning.
Central alignment hole (Φ8mm) for fast, accurate assembly.
Draft Angles & Undercut Design: All features are optimized for injection molding, with proper draft angles to ensure easy demolding and no damage to part surfaces.
Symmetrical Geometry: Compact design fits tight spaces while maintaining load-bearing capacity, with balanced flow paths for consistent molding.
High-Precision Injection Molds: Produced using CNC-machined injection molds with tight tolerances (±0.05mm) for consistent fit and interchangeability across all parts.
Fully Automated Production: Injection molding enables high-volume, repeatable production with minimal defects, reducing labor costs and ensuring 100% dimensional inspection for critical features.
Efficient Material Utilization: Minimal material waste due to precise cavity filling, with runners and sprues recyclable for sustainable manufacturing.
Customizable: Injection molding allows for easy customization of materials (PBT, PP+GF), colors, and hole configurations to match specific application requirements, with low tooling modification costs.
| Parameter | Value |
|---|---|
| Material | PA66+GF30 (standard) |
| Dimensions | 120mm (L) × 70mm (W) × 10mm (H) |
| Mounting Holes | 4×Φ12mm, 8×Φ4mm, 1×Φ8mm, 4×Square Slots |
| Weight | 28g |
| Heat Resistance | -40°C to 120°C |
| Tensile Strength | 150 MPa |
| Flexural Modulus | 6500 MPa |
| Color | Black (standard, customizable) |
| Tolerance | ±0.05mm (critical features) |
| Production Process | Precision Injection Molding |
ECU mounting brackets
Sensor holders (temperature, pressure, speed)
Headlight assembly supports
Interior component mounting bases
Industrial control module brackets
Sensor and actuator mounting plates
Robotics component fixtures
Electrical cabinet mounting frames
Packaging: Anti-static bags + corrugated cartons (bulk packaging available for large orders).
Lead Time: 15–25 days for mold fabrication + initial production; 7–10 days for reorders.
Shipping: Express (DHL/UPS/FedEx) or sea freight options available.
DFM (Design for Manufacturing) analysis to optimize your part for injection molding.
Mold design, fabrication, and validation (single-cavity to multi-cavity molds).
Material selection guidance (PA66, PBT, PP, PC, etc.).
Prototyping and small-batch testing.
High-volume production with automated quality control.
