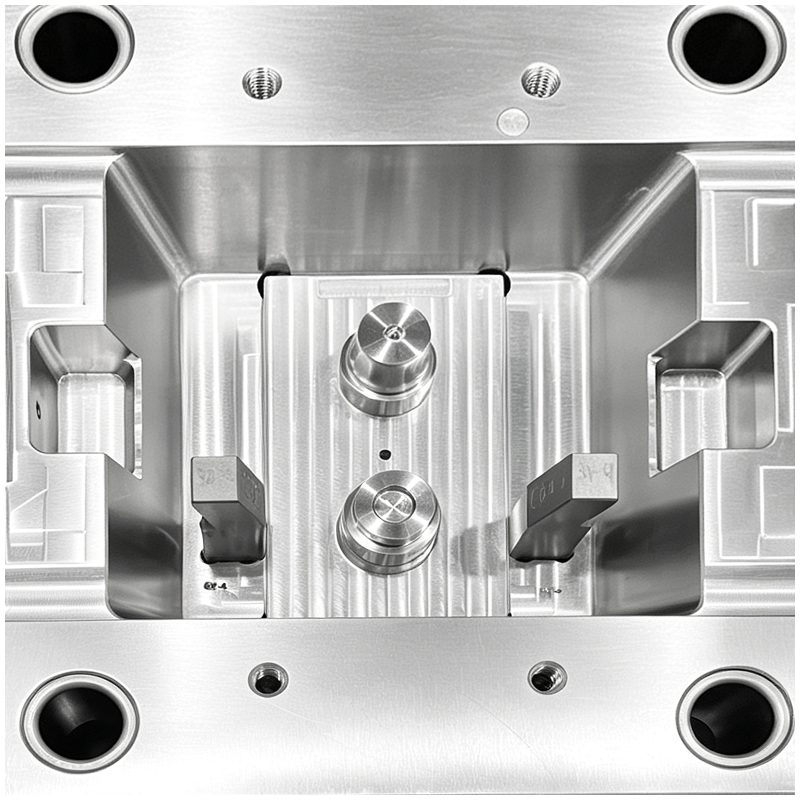

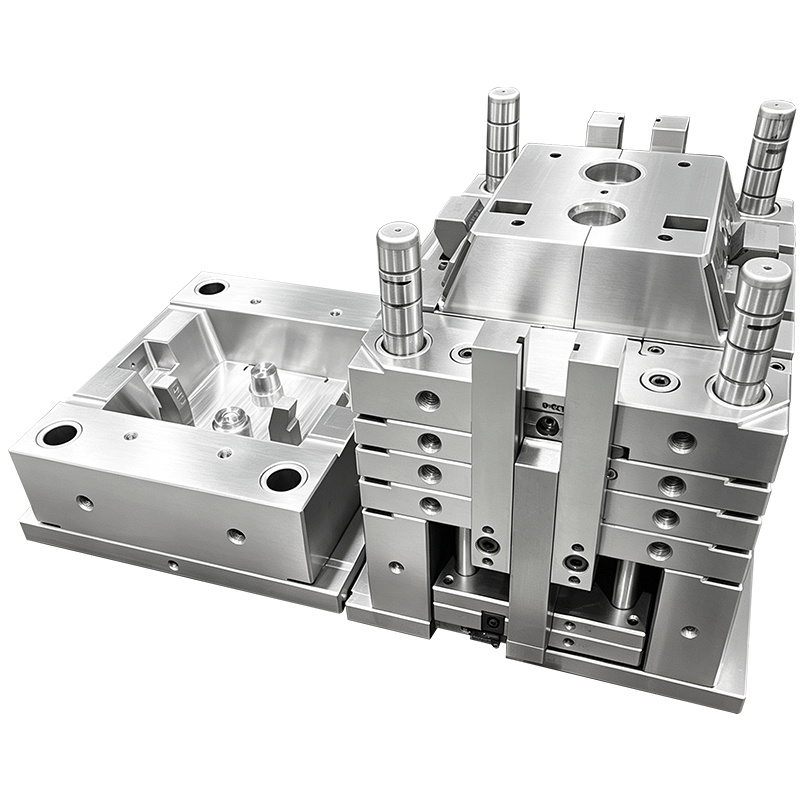

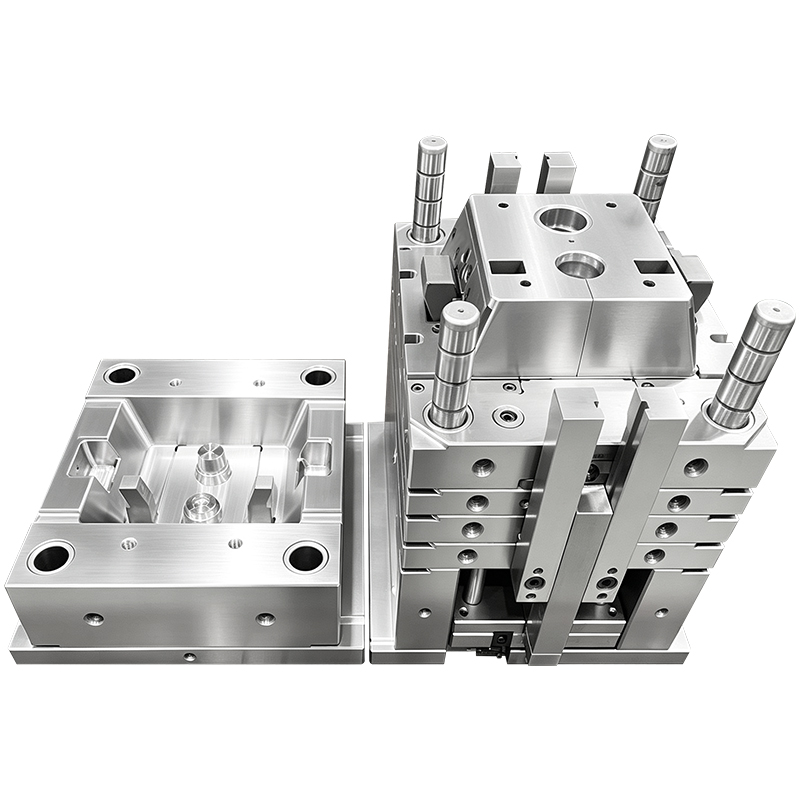

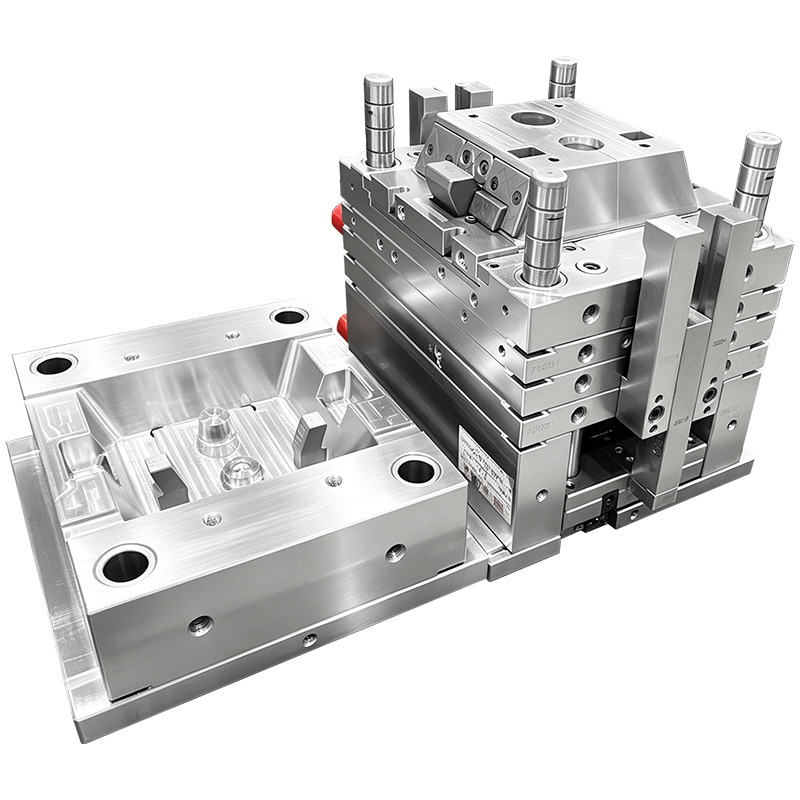

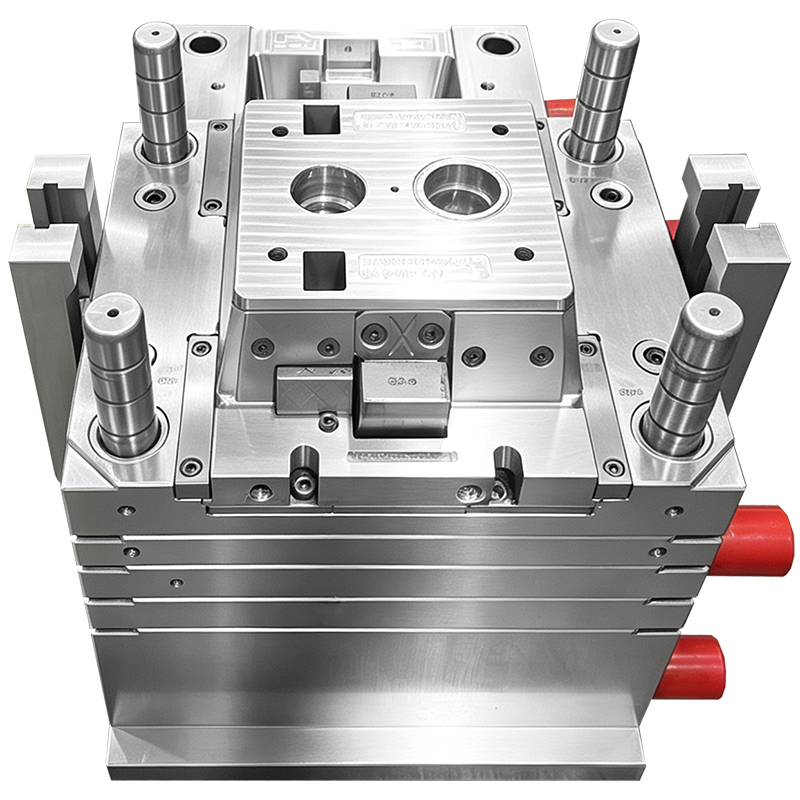

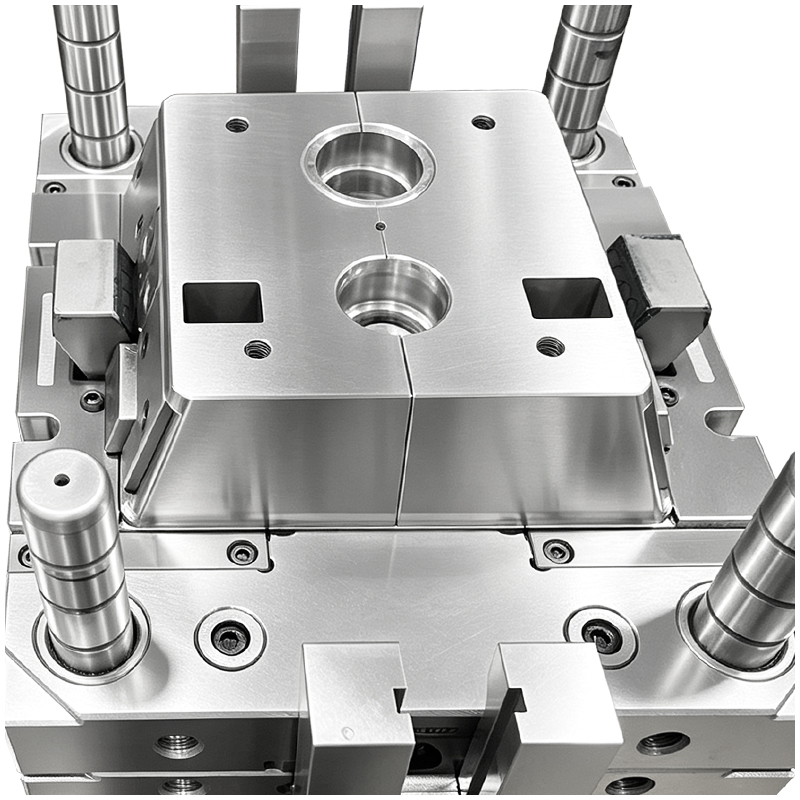

This custom injection mold is designed for manufacturing a 2-piece plastic connector set. The molded parts adopt FDA-grade white ABS POLYLAC PA-757F material, which meets food contact requirements. It features a 1+1 cavity design, one mold produces two different connector components simultaneously to boost production efficiency. We use large sprue submarine gate for gating, paired with XPM pre-hardened mold steel (HRC37-43). The mold surface finish follows SPI standard: SPI C2 for cavity side and SPI B2 for core side, delivering stable surface quality for mass production.
Product Name: Plastic Connector (KNIE1 R1024080 & KNIE2 R1024081)
Resin Material: FDA Grade White ABS, POLYLAC PA-757F
Cavity: 1+1 Cavity
Shrinkage Rate: 1.005
Gating Type: Large Sprue Submarine Gate
Cavity Steel: XPM, HRC37-43, SPI C2 finish
Core Steel: XPM, HRC37-43, SPI B2 finish
✅ Food Safe Material Compliance: End product made from FDA approved ABS PA-757F, suitable for food-contact applications. ✅ Dual Component Mold: 1+1 cavity design, one mold makes two matching connector parts at once, saving mold cost and shortening cycle time. ✅ Reliable Pre-hardened Mold Steel: XPM steel offers good polishability and stable hardness, long service life for continuous high-volume production. ✅ Optimized Submarine Gate: Automatic gate break after ejection, reducing secondary trimming work and improving production automation. ✅ Controlled Surface Texture: Standard SPI surface finish, consistent part appearance with tight dimensional tolerance. ✅ Strict Quality Control: Full mold flow analysis before tooling, precise CNC machining and mold testing to guarantee stable mass production.
We provide full custom injection mold service from DFM review, mold flow simulation, mold manufacturing, trial sample delivery to after-sales mold maintenance. Custom size, texture and material options are available according to your 2D/3D drawings.
