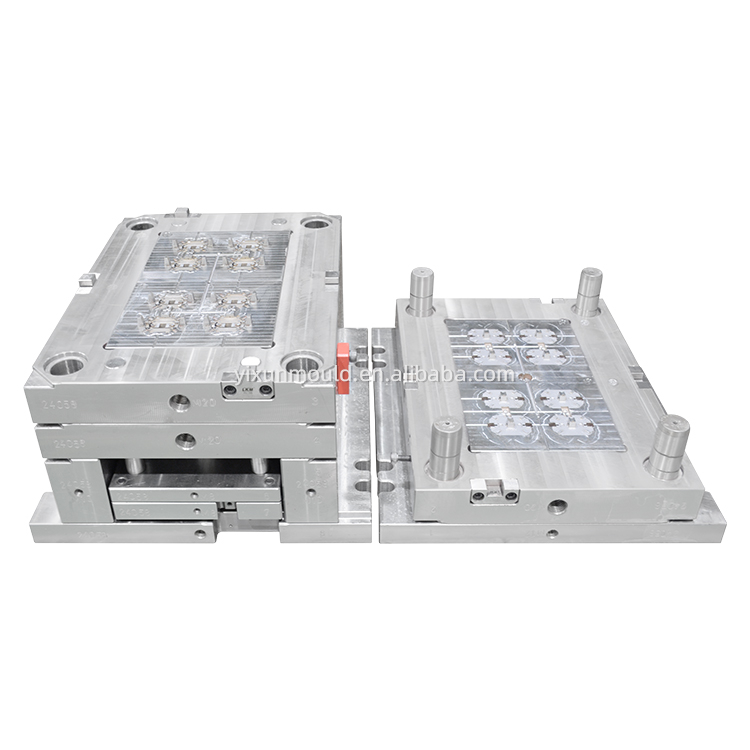

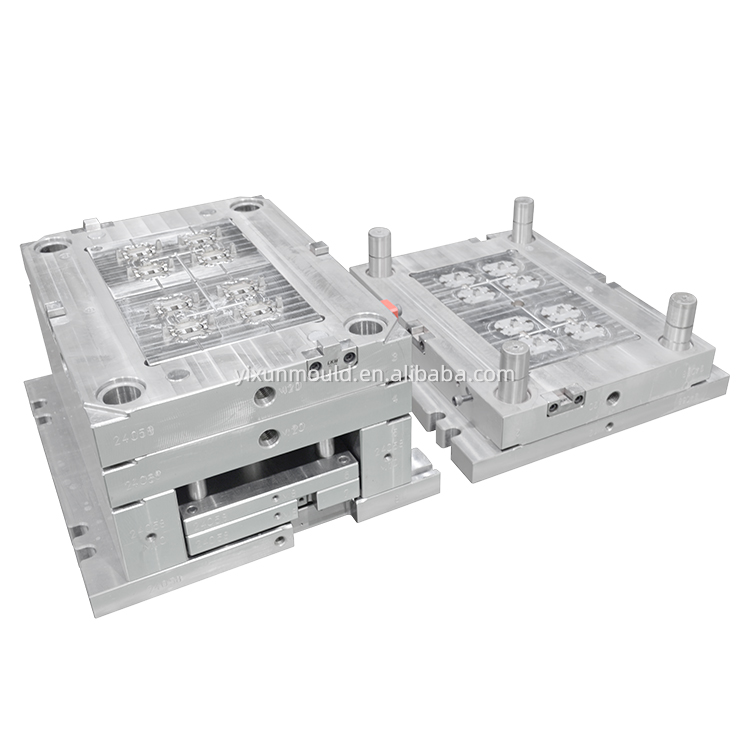

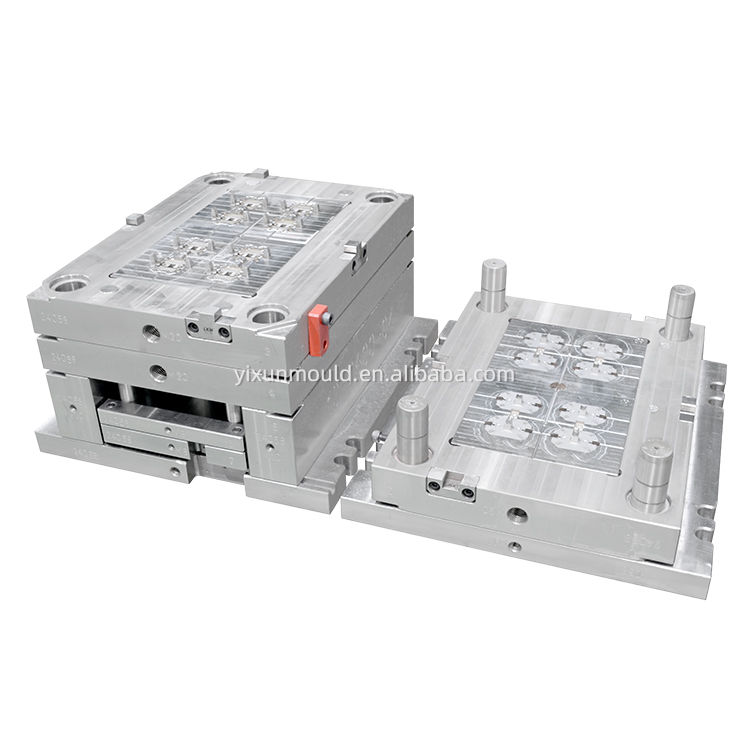

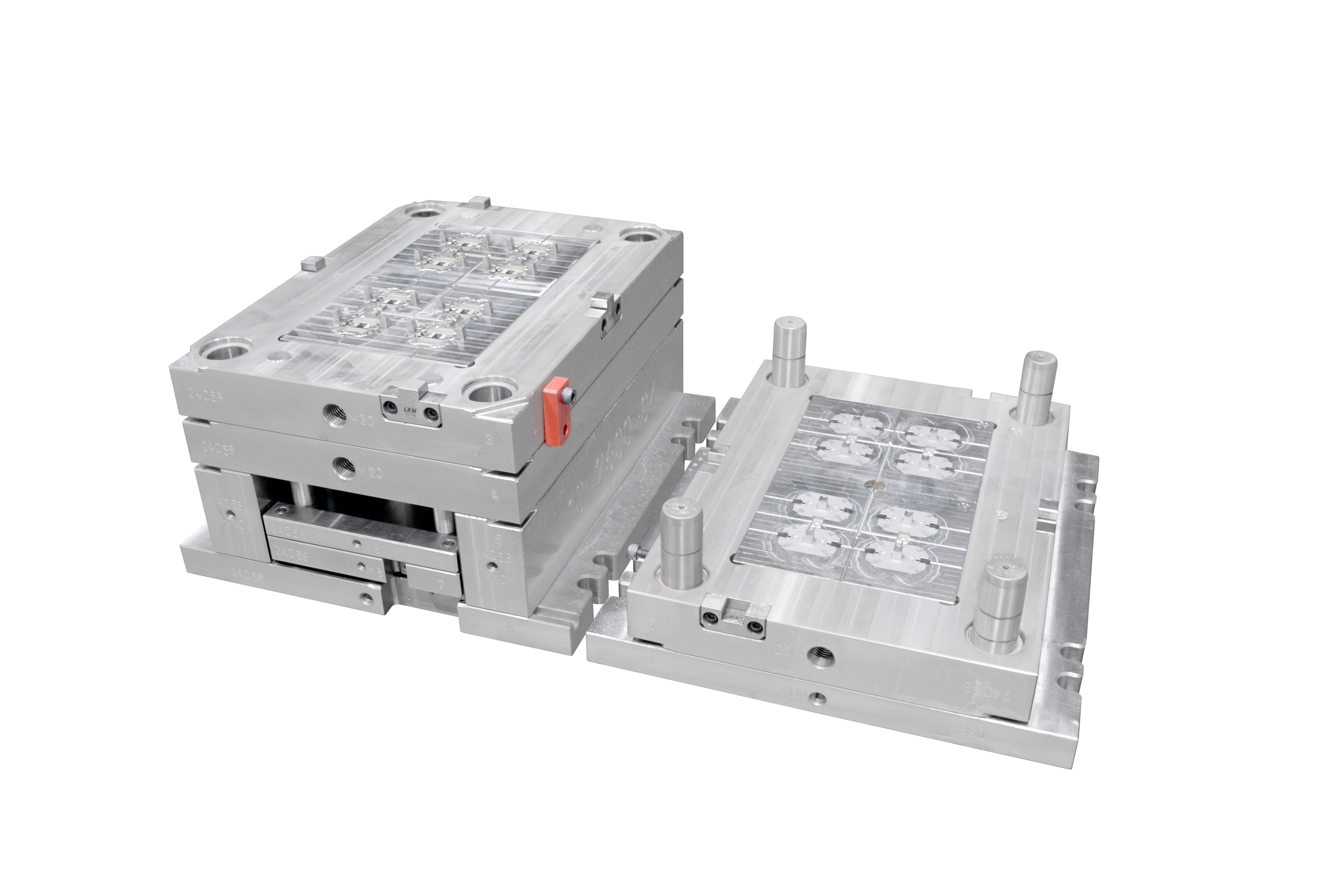

This is a custom high-precision TPE 30 silicone overmold injection mold developed for mass production of overmolded plastic parts. Adopting single cavity (1×1) design with sub gate system, the mold is made of reliable S50C mold steel with fully polished core and cavity surfaces. It delivers stable molding performance, excellent part surface finish and long service life for your TPE overmolding projects.
| Item | Details |
|---|---|
| Mold Name | TPE 30 Silicone Overmold Injection Mold |
| Mold Type | Overmolding / Insert Overmold |
| Cavity | 1×1 Single Cavity |
| Raw Material of Product | TPE 30 |
| Gating System | Sub Gate |
| Cavity Steel (Front Mold) | S50C, Polished |
| Core Steel (Back Mold) | S50C, Polished |
| Mold Feature | High glossy polished surface, stable melt flow, low defect rate |
| Application | Custom TPE overmolded plastic components |
✅ High Precision ToolingStrict mold tolerance control, fine polishing on both core and cavity, ensures your TPE overmolded parts achieve consistent and beautiful appearance.
✅ Durable S50C Mold SteelS50C carbon steel with good machinability and proper hardness, well suited for medium-volume mass production, extends mold working life and reduces maintenance cost.
✅ Optimized Sub Gate DesignProfessional sub gate runner layout helps smooth TPE filling, reduces air trap, sink mark and flashing problems, improves product yield.
✅ Complete Mold Service SupportWe provide full service from DFM analysis, mold flow simulation, T1 trial test, sample confirmation to mold mass production support. Free mold maintenance is available only if the mold remains in our factory. Once the mold is transferred to other manufacturers, free maintenance service will no longer be provided.
✅ Fast T1 Delivery & Reliable After-salesWe arrange reasonable mold making schedule to meet your project timeline. Our engineering team supports technical communication during the whole mold development process.
This TPE overmold is widely used for customized soft-touch overmolded parts for consumer electronics, household appliances, protective frames, sealing components and other plastic overmolding projects.
DFM & Mold Flow analysis before mold machining
Custom mold design according to your 3D drawings or samples
T1 trial injection & sample submission for your approval
Mold fine-tuning to fix molding defects
On-site mass production support at our workshop
Professional technical consultation for overmolding solution
Q: Can you customize overmold according to my 3D file?A: Yes. We accept custom mold development based on your STEP/IGS 3D drawings. Our engineers will do DFM review before starting mold work.
Q: What if I move the mold to another factory later?A: Free mold maintenance is only offered when the mold stays at our factory. No free maintenance service will be available after mold transfer to third-party plant.
Q: What material options for overmolding can you support?A: We support TPE, TPU, silicone and other soft materials for overmold tooling, matched with different substrate plastics.
