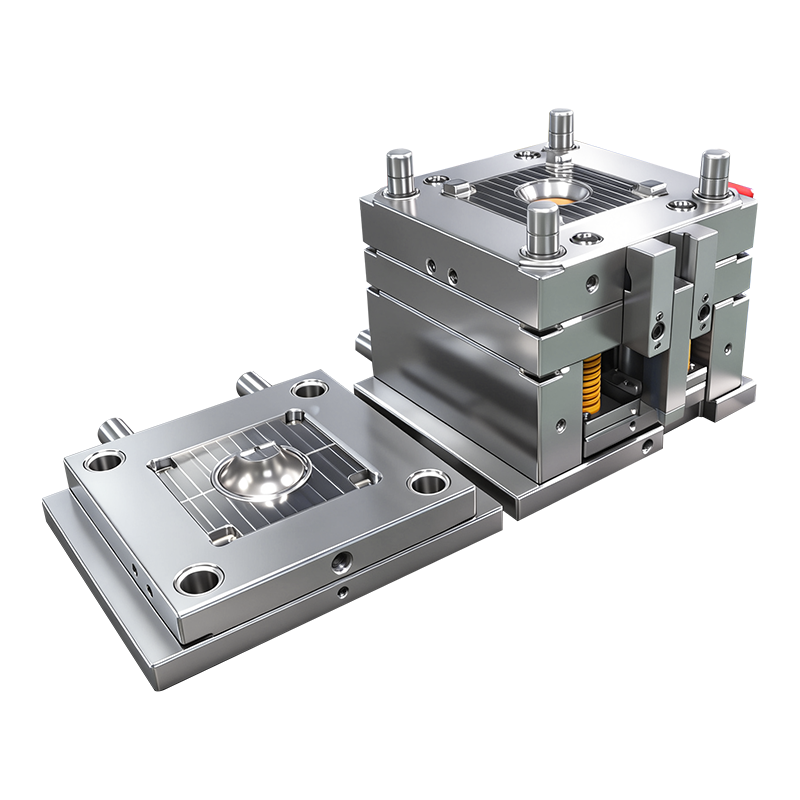

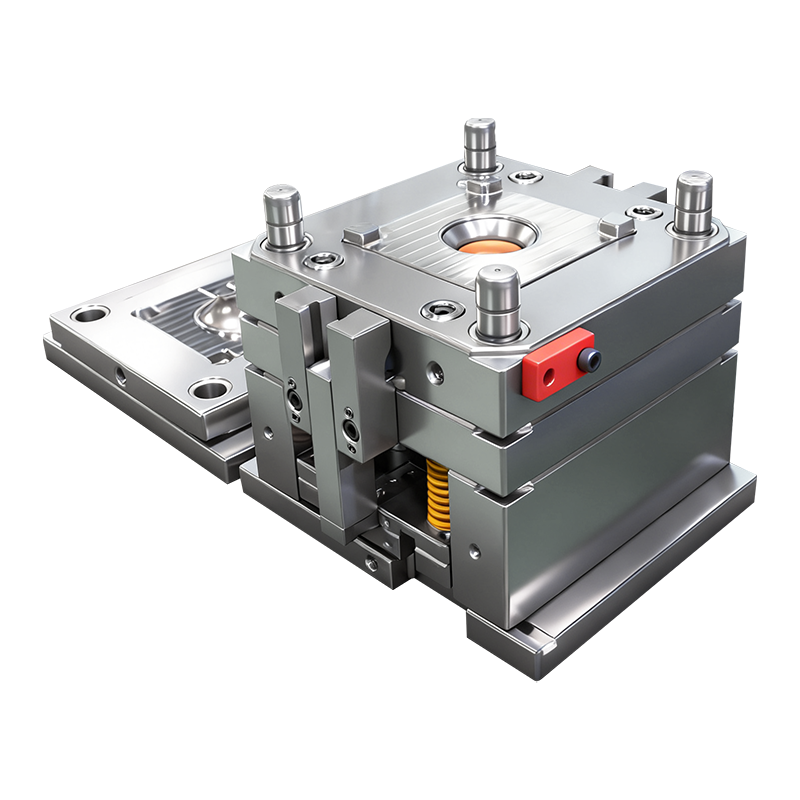

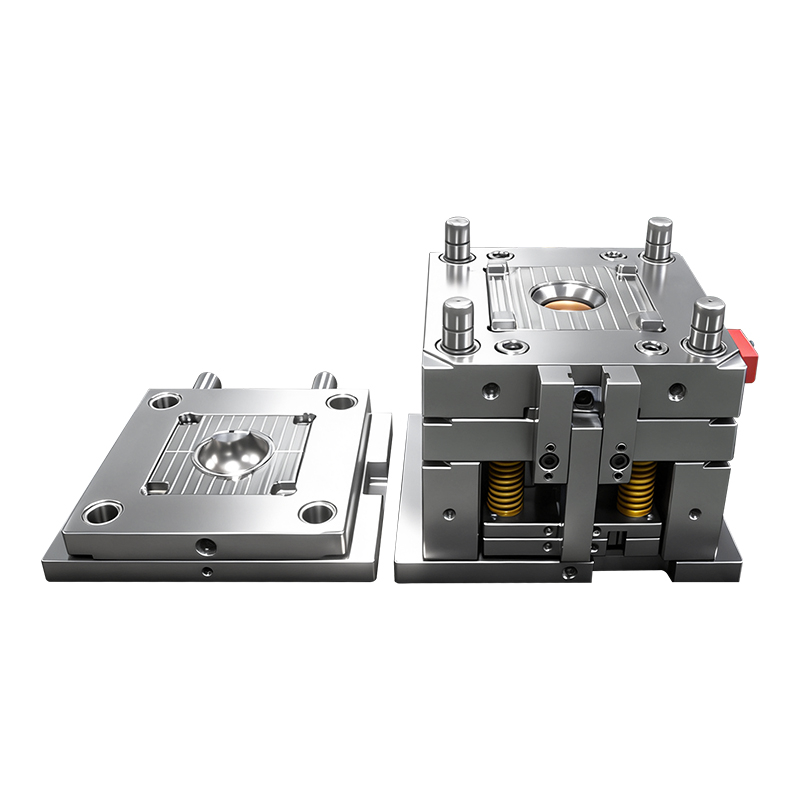

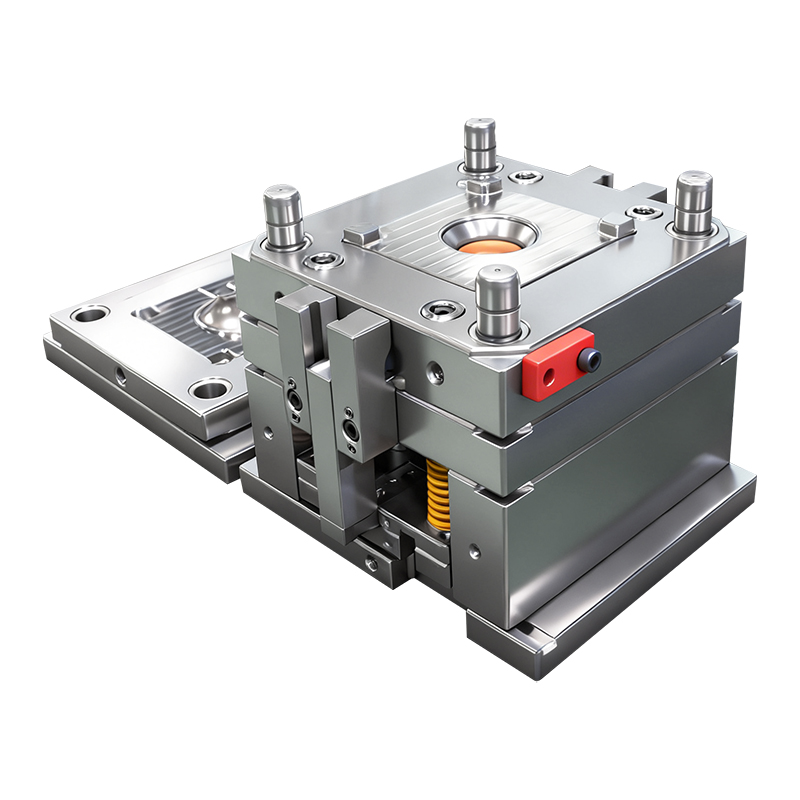

High Precision 1*1 Cavity PC XPM HRC37-43 Mold Steel Embossing Logo VDI27 Finish Plastic Reflector Injection Mould

This is a high-precision 1×1 cavity custom injection mould dedicated to PC plastic reflector parts. Built with premium XPM mould steel (HRC37-43), custom embossed logo, and VDI27 textured finish, it delivers outstanding dimensional accuracy, sharp logo details, and consistent matte surface quality—ideal for high-end lighting, automotive, and electronic reflector applications.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • 24162

  • YIXUN mold

  • 8480419090

Product Overview

This is a high-precision 1×1 cavity custom injection mould dedicated to PC plastic reflector parts. Built with premium XPM mould steel (HRC37-43), custom embossed logo, and VDI27 textured finish, it delivers outstanding dimensional accuracy, sharp logo details, and consistent matte surface quality—ideal for high-end lighting, automotive, and electronic reflector applications.

Key Features

✅ High Precision 1×1 Cavity Design
Single-cavity configuration focuses on ultra-high precision and surface perfection, perfect for small-to-medium batch production of high-quality reflectors. Balanced runner and optimized cooling system ensure uniform shrinkage, tight tolerances, zero warpage, and defect-free surfaces.
✅ Premium XPM Mould Steel (HRC37-43)
Constructed from high-performance XPM pre-hardened mould steel with hardness HRC37-43, offering excellent hardness, wear resistance, and structural stability. Ensures long service life (≥500,000 cycles), minimal deformation, and consistent performance for mass production.
✅ PC Material Compatibility
Engineered specifically for PC (Polycarbonate) resin—including transparent, impact-modified, and flame-retardant grades. Optimized gating and venting prevent weld lines, air traps, and stress marks, maintaining the reflector’s optical clarity and structural integrity.
✅ Embossed Logo + VDI27 Finish
Cavities feature precision embossed logo (sharp, durable, long-lasting) and uniform VDI27 matte texture. The finish hides minor surface imperfections, enhances light diffusion performance, and delivers a premium, professional appearance for reflector parts.
✅ Reflector-Optimized Mould Structure
Reinforced mould plates, high-precision guide pillars, and smooth ejection system ensure clean, scratch-free demolding. Optimized venting eliminates burn marks and air bubbles on thin reflector edges, preserving optical quality.

Technical Specifications

Parameter Details
Mould Type High Precision Custom Injection Mould
Cavity Configuration 1×1 Cavity
Compatible Material PC (Polycarbonate)
Mould Steel XPM, Hardness HRC37-43
Cavity Finish VDI27 Texture + Custom Embossed Logo
Mould Life ≥500,000 cycles (with proper maintenance)
Part Application LED lighting reflectors, automotive lamp reflectors, electronic device reflectors, home appliance light components
Cooling System Optimized internal cooling channels for uniform temperature control

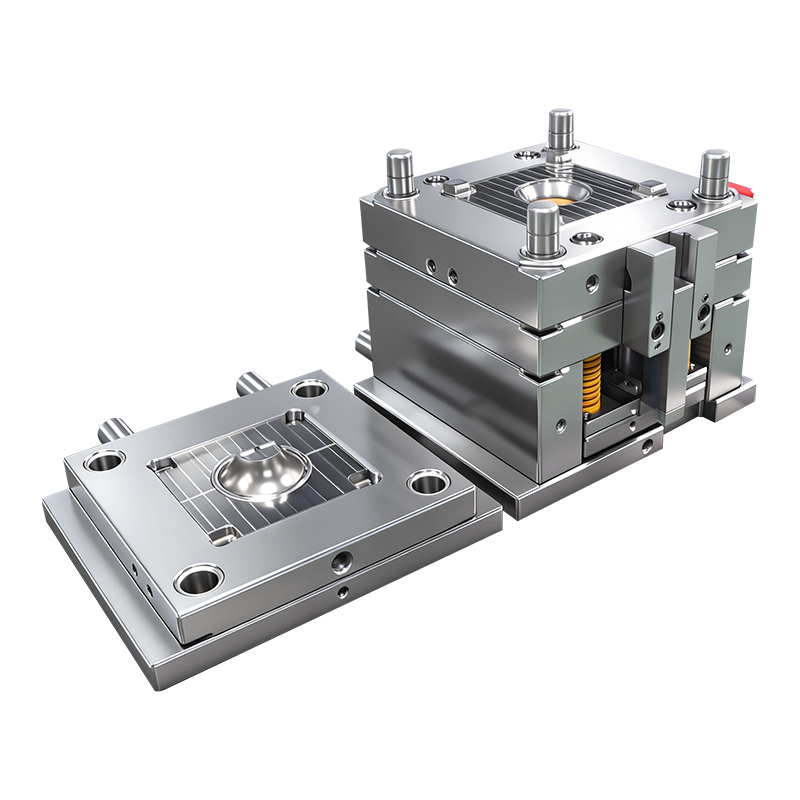

XPM HRC37-43 Mold Steel Embossing Logo VDI27 Finish mould


Application Scenarios

  • LED ceiling light / downlight reflectors

  • Automotive headlight, taillight, and fog lamp reflectors

  • Electronic device backlight reflectors

  • Home appliance (refrigerator, range hood) light reflectors

  • Industrial lighting and commercial lighting reflector parts

Why Choose This Mould

  • Ultra-high precision: 1×1 cavity ensures consistent quality for premium reflectors

  • Durable XPM steel: Long life, stable dimensions, low maintenance

  • Professional finish: Embossed logo + VDI27 texture for brand value and optical performance

  • PC-optimized design: Minimizes defects, preserves reflector clarity

  • Full customization: Logo, size, texture, and design tailored to your exact requirements
