26060
YIXUN mold
8480419090

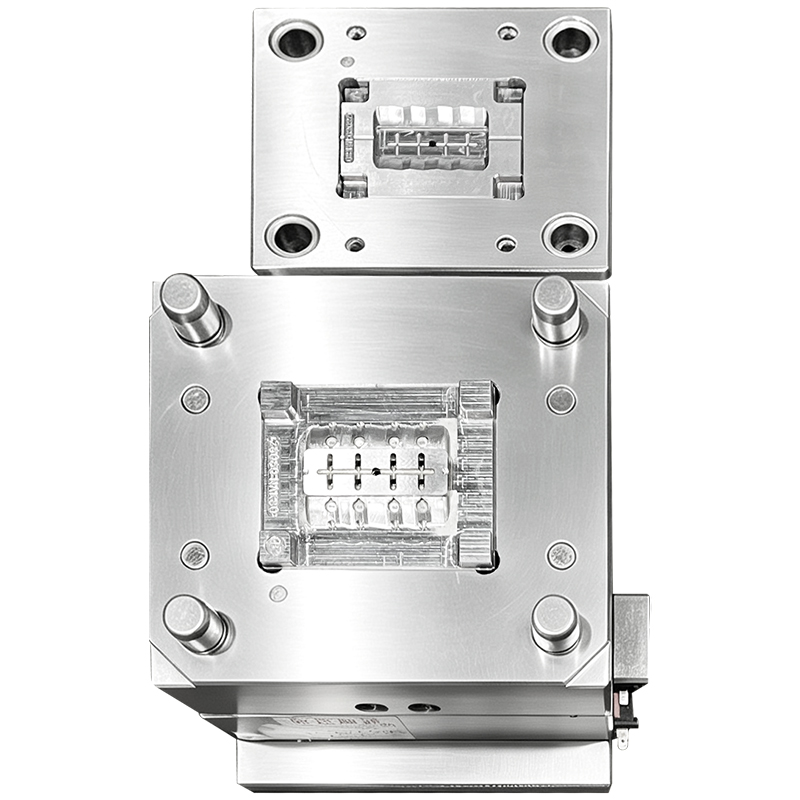

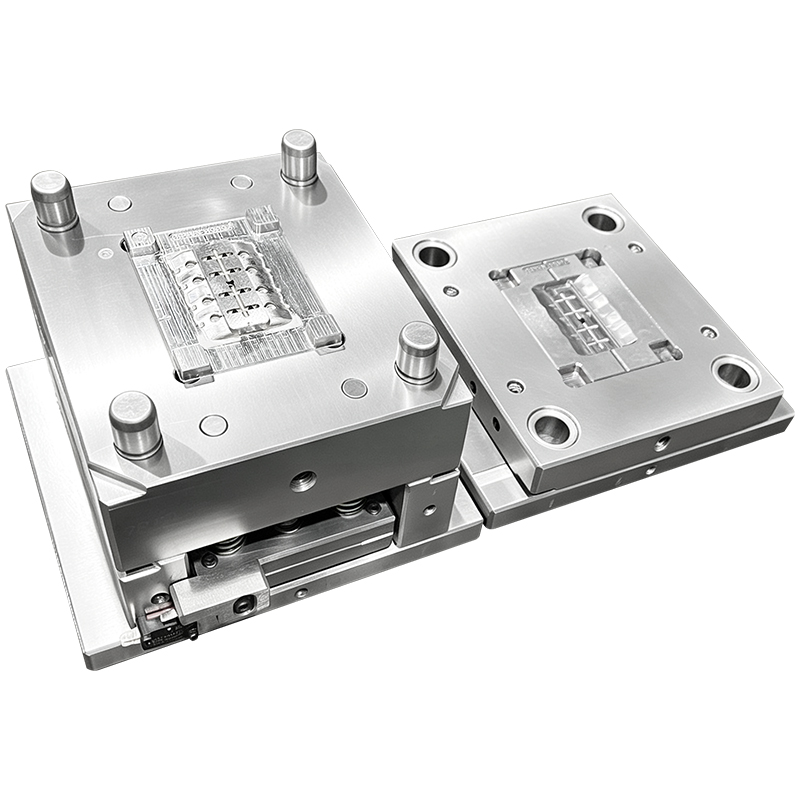

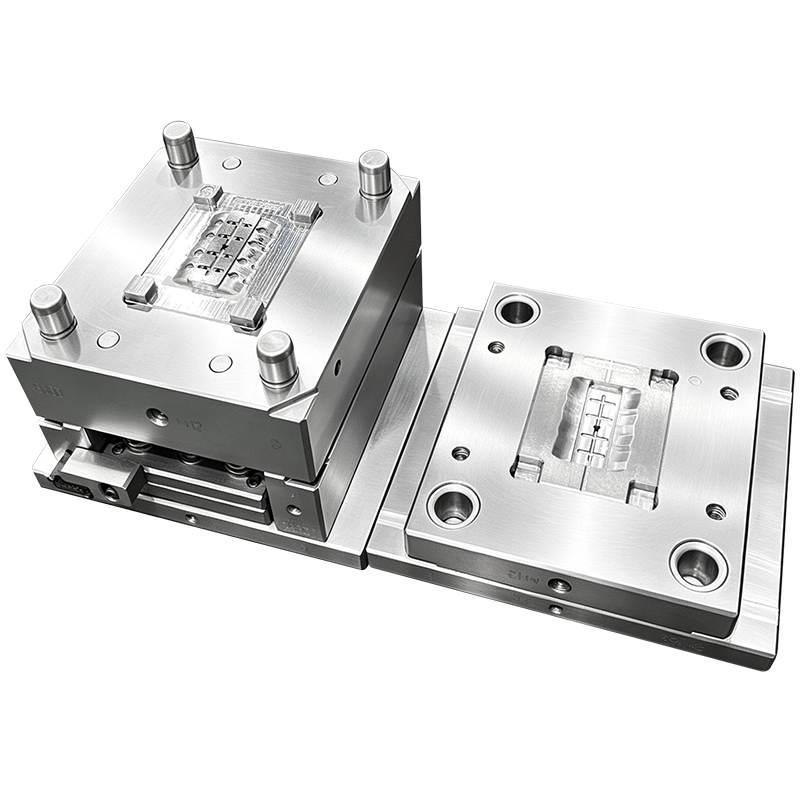

This high‑volume custom injection mold is designed for Housing Screw Cover, a soft‑touch TPE plastic cap used to conceal and protect assembly screws. Built in 1×8 multi‑cavity layout, this injection mold delivers outstanding output capacity for mass‑production. Using TF4FMS blue TPE material, this injection mold adopts submarine gate structure and premium NAK80 mold steel, ensuring flawless surface quality and stable repeatability for soft elastic TPE parts.
| Item | Specification |
|---|---|
| Mold Name | Injection Mold for Housing Screw Cover |
| Part Material | TPE TF4FMS, Blue color |
| Cavity | 1×8 (8 cavities) |
| Shrinkage Rate | 1.016 (1.6% for TPE material) |
| Gate Type | Large runner submarine gate |
| Cavity Steel | NAK80, HRC37‑43 |
| Core Steel | NAK80, HRC37‑43 |
| Remark | UDI 16 |

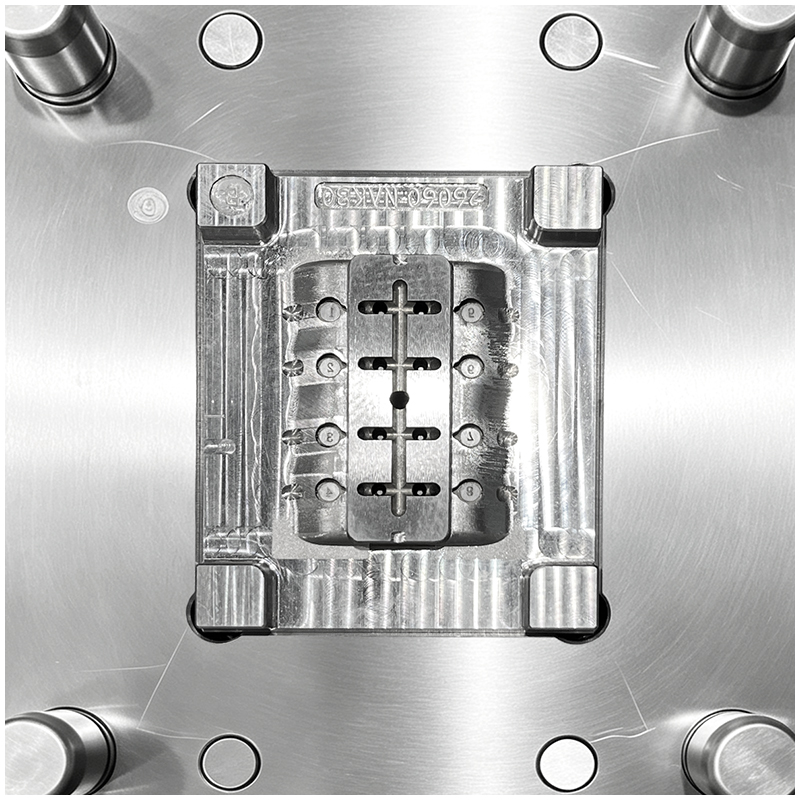

✅ High‑Volume 8‑Cavity LayoutThis injection mold features 8‑cavity design to maximize output, greatly lower per‑unit cost for large‑batch orders. Balanced runner system guarantees consistent filling for every single TPE screw cover.
✅ Premium NAK80 Mirror Polish SteelBoth core and cavity apply NAK80 pre‑hardened steel HRC37‑43. Excellent polishing performance achieves smooth blemish‑free surface for soft TPE parts, long mold service life for continuous production.

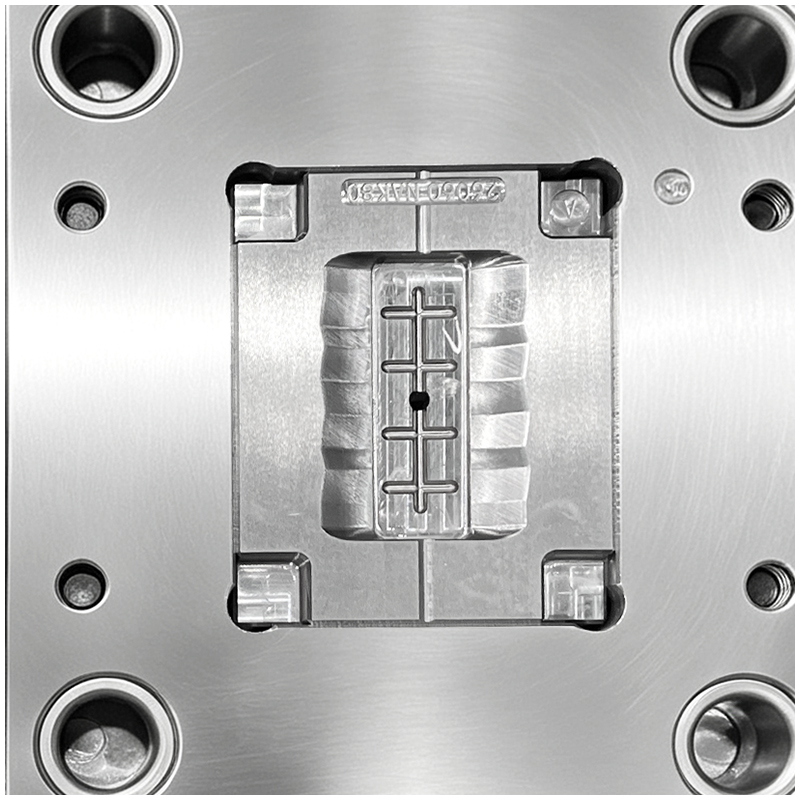

✅ Submarine Gate for Soft TPE PartsSubmerged submarine gate enables automatic gate break‑off after molding. Minimal gate vestige on finished screw cover, reduces manual trimming work and improves production efficiency.
✅ Precise Shrinkage Compensation for TPEMold dimension compensated strictly with 1.6% shrinkage rate special for TPE material. Effectively prevents warpage, size deviation of flexible soft‑touch housing screw cover.
✅ Complete Custom Injection Mold ServiceWe support custom development according to your 3D files, including mold‑flow analysis, mold design, multiple mold trials, sample validation, mold modification and long‑term maintenance. We also provide mass injection molding outsourcing service.
This TPE housing screw cover works as decorative & protective cap to hide exposed screws, widely used for household appliances, equipment housings, furniture and electronic assemblies, requiring soft‑touch finish and neat appearance.
Mold‑flow simulation before manufacturing
Custom injection mold design & fabrication
Multi‑round mold trial and sample confirmation
Mold repair, modification and lifetime maintenance support
Mass‑production injection molding available
