YIXUN mold
8480419090
Engineered for durability, ventilation, and versatility, our plastic injection-molded grid tray is a go-to tool for food service, medical labs, and industrial workflows. Its precision-molded design balances structural strength with functional airflow, making it ideal for drying, organizing, and transporting items.
Material: Food-grade/industrial-grade PP (polypropylene)
Food-Grade PP: resistant to water, oil, and mild detergents.
Industrial-Grade PP: Impact-resistant, temperature-stable (–20°C to 80°C), suitable for heavy loads.
Core Features:

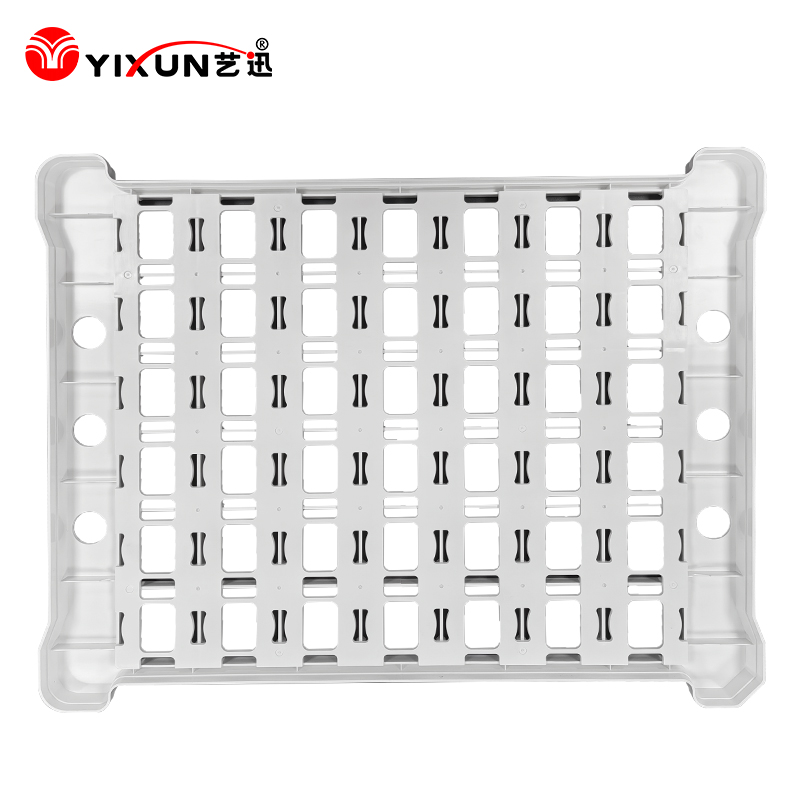

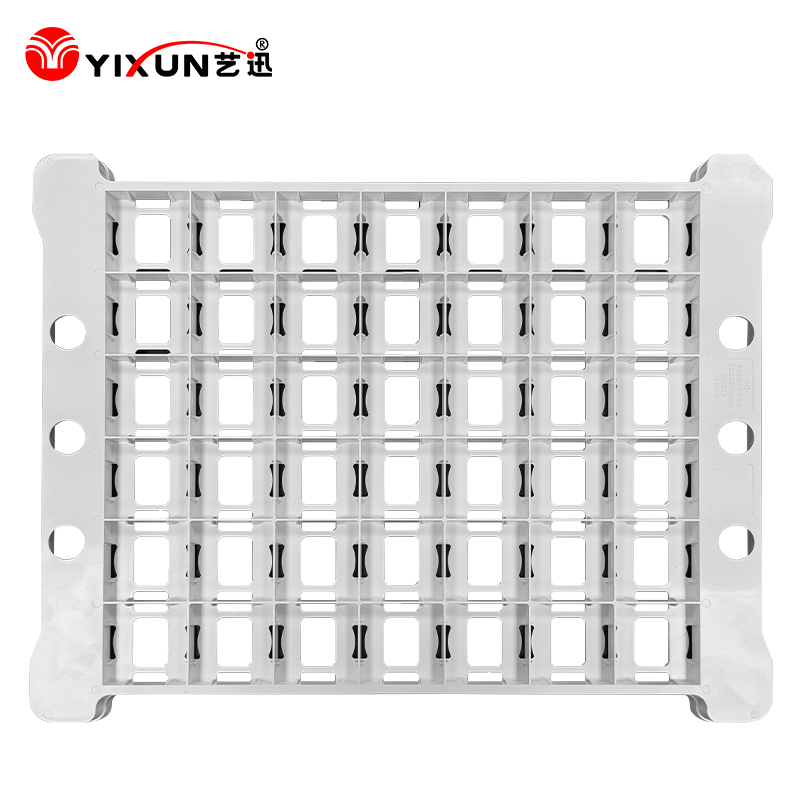

Ventilated Grid Design: Dense cross-shaped & slotted openings (5–10mm gaps) for maximum airflow/drainage (reduces moisture buildup by 80% vs. solid trays).
Reinforced Structure: Edge ribs + corner support feet boost load capacity (up to 15kg per tray) and enable stable stacking (up to 8 layers).
Multi-Purpose Details: Corner positioning holes (for stacking alignment) and smooth edges (to avoid scratches on items).
Standard Sizes: 400×300mm, 500×400mm (custom dimensions available).

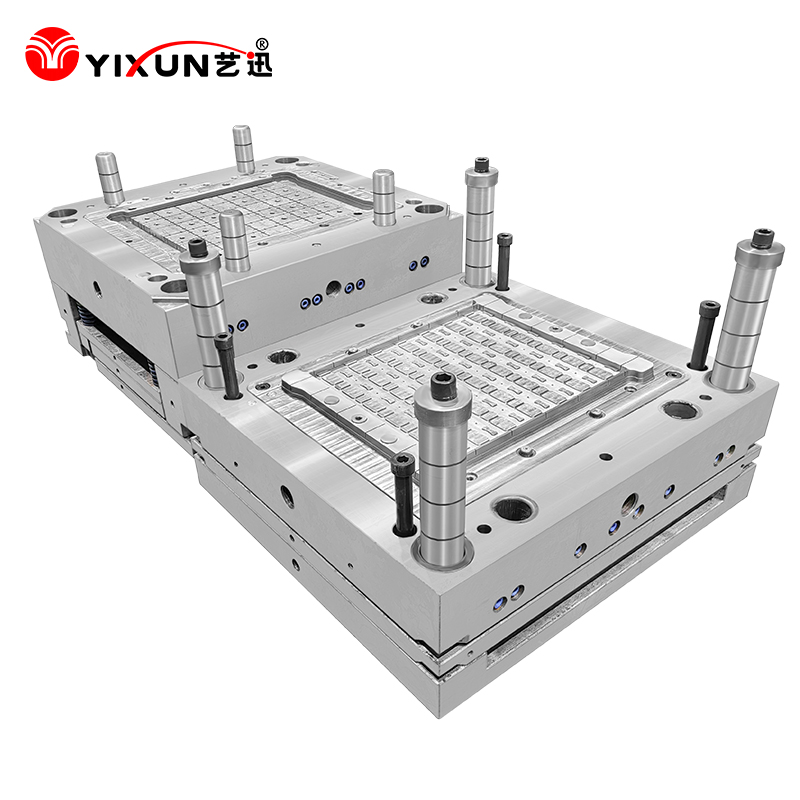

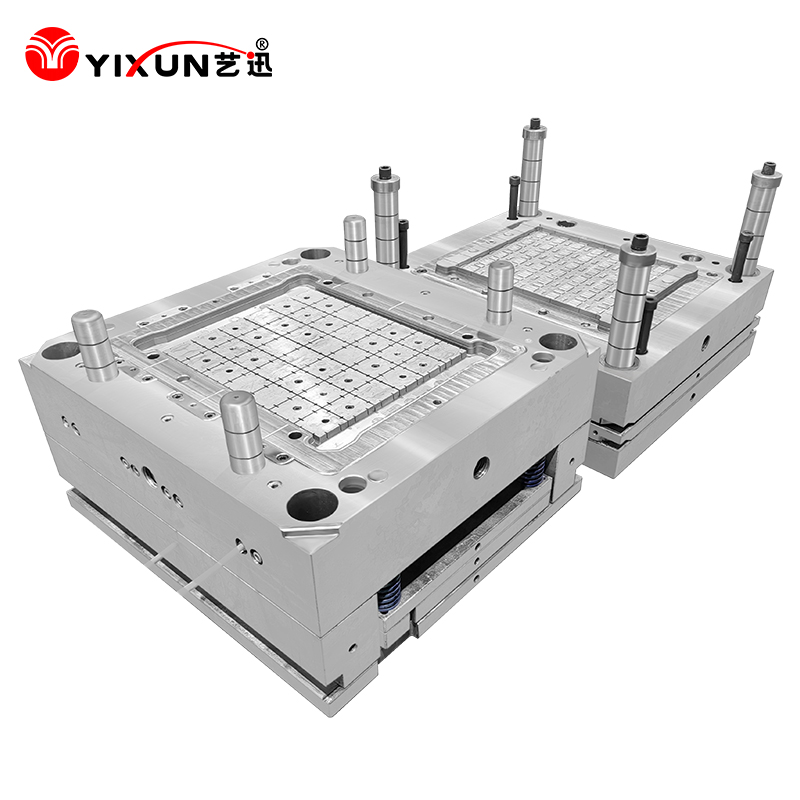

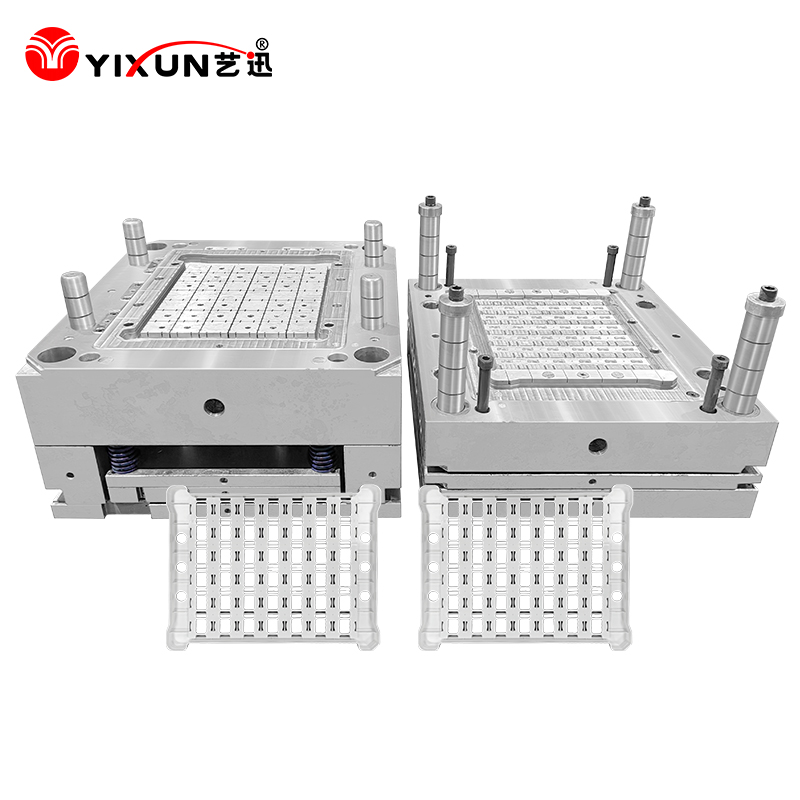

Uniform Grid Cavities: 5-axis CNC-machined mold cores (tolerance ±0.1mm) ensure consistent opening size across the tray—critical for even airflow.
Undercut & Rib Integration: Slide mechanisms form the grid’s cross-shaped supports and edge ribs without compromising demolding efficiency.
Wear-Resistant Mold Steel: S136 tool steel (HRC 50–52) with anti-corrosion coating ensures 1 million+ production cycles (low maintenance costs).
| Parameter | Specification | Purpose |
|---|---|---|
| Melt Temperature | 180–200°C | Ensures smooth flow into dense grid cavities (no voids or flow marks). |
| Mold Temperature | 50–60°C | Reduces internal stress to prevent tray warpage (maintains stacking fit). |
| Injection Pressure | 800–1000 bar | Fills thin rib sections (2–3mm thick) for structural strength. |
| Cooling Time | 40–50s | Fully cures the grid to avoid deformation during demolding. |
Superior Ventilation: Grid design speeds up drying (e.g.lab instruments) and prevents mold/germ buildup.
Heavy-Duty Performance: Reinforced structure supports 15kg loads—ideal for industrial part transport or bulk food storage.
Hygienic & Easy to Clean: Smooth PP surface + open grid design allow quick washing (compatible with commercial dishwashers).
Stackable & Space-Saving: Corner positioning holes enable stable stacking (saves 70% storage space vs. unstackable trays).
Food Service: Dish drying rack, produce storage tray, or catering ingredient organizer.
Medical & Lab: Instrument drying after sterilization, sample tube storage (ventilated to prevent condensation).
Industrial: Electronic component drying, small part circulation (avoids scratches via open grid), or workshop tool organization.
Grid Size: Adjust opening gaps (3–15mm) for specific items (e.g., smaller gaps for tiny parts, larger gaps for bulky tools).
Branding: Molded logos or part numbers (for inventory tracking).
Color & Material: Tinted PP (for color-coded organization) or anti-static PP (for electronic component handling).
Special Features: Add drainage holes (for liquid-heavy items) or handle cutouts (for easy carrying).
Durability Testing: Drop-tested from 1.5m (no cracking) and load-tested to 20kg (no deformation).
Traceability: Each batch includes COA (Certificate of Analysis) for material compliance.
