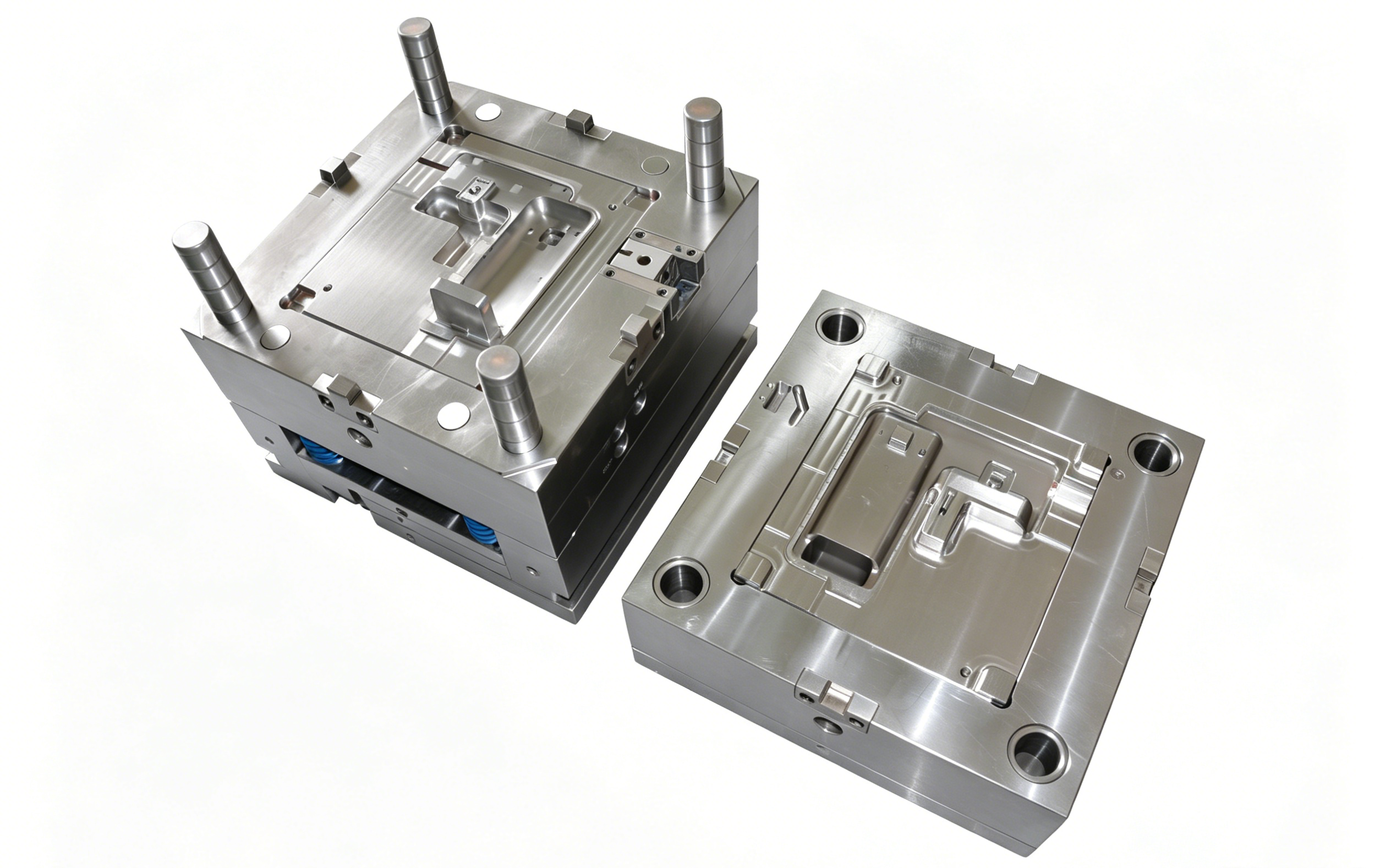

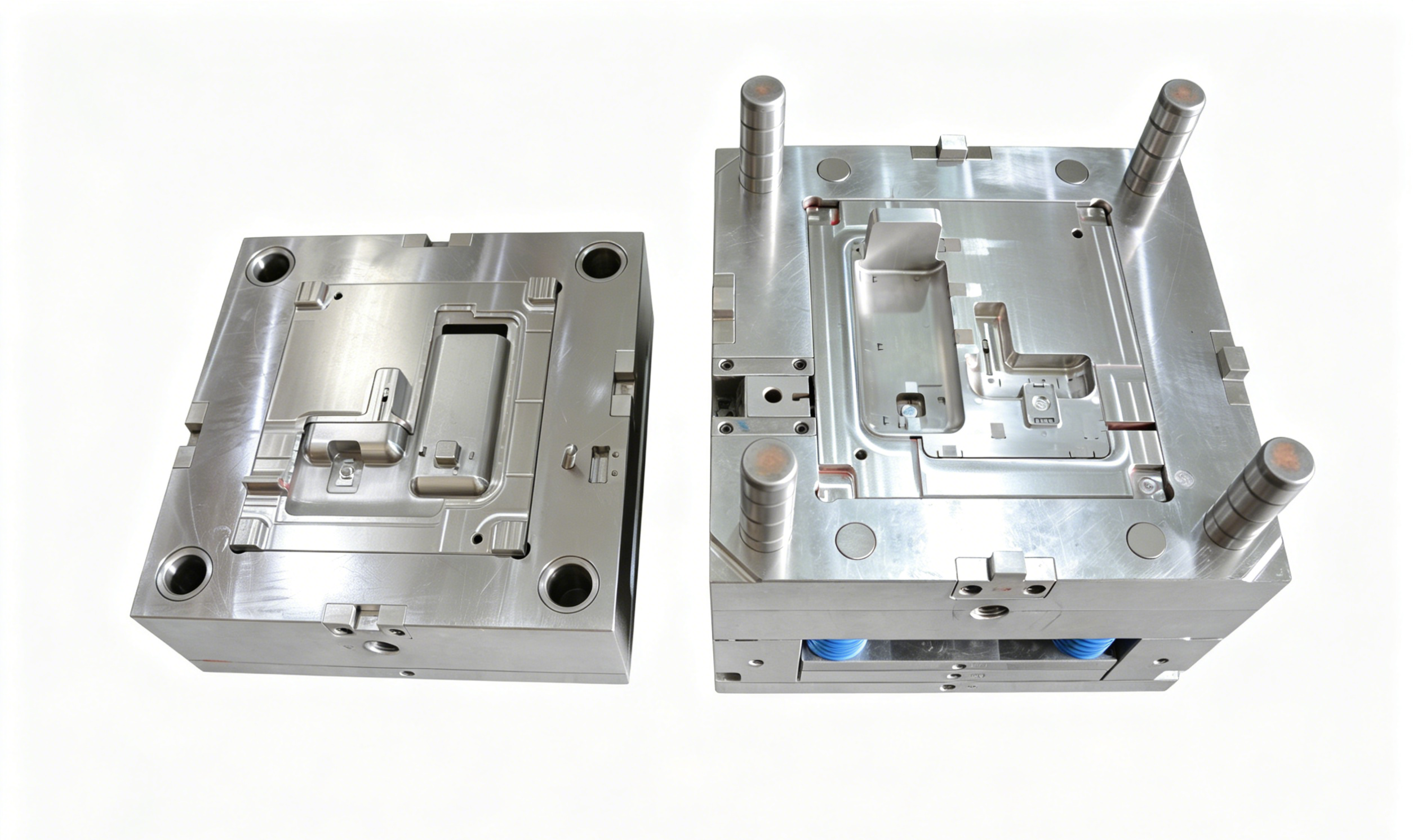

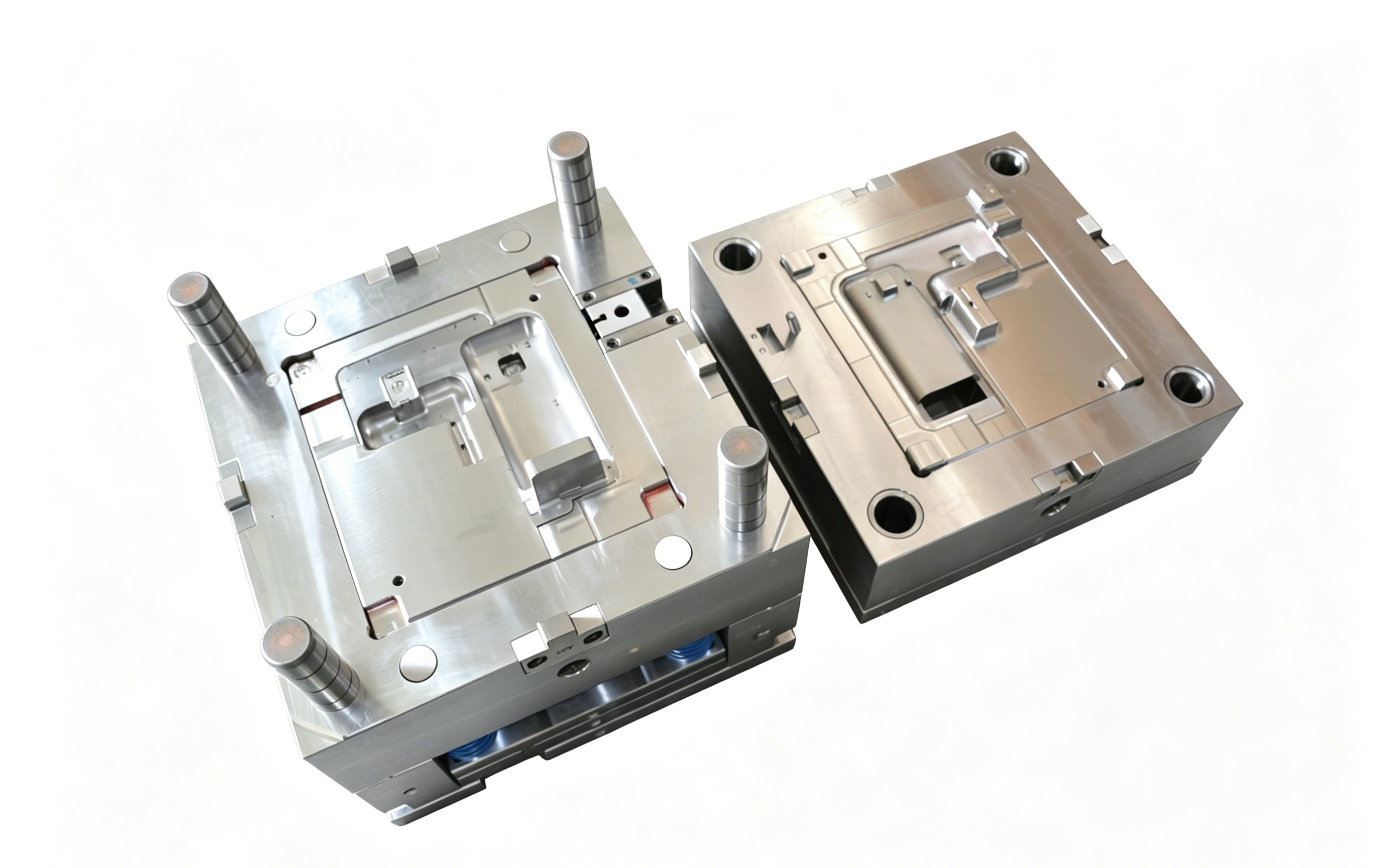

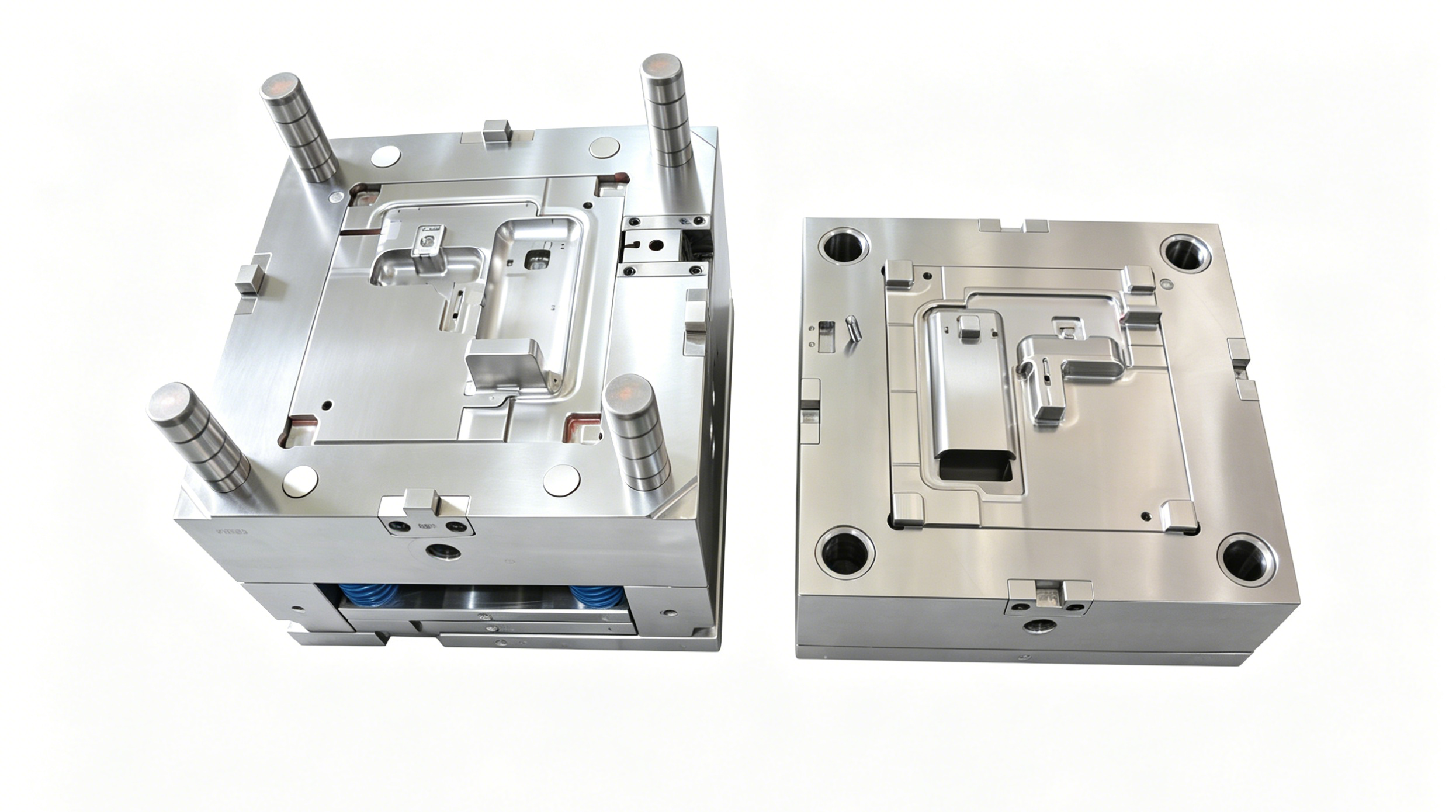

Full Customization Plastic Large Sprue Side Injection S136H Mold Steel ABS Household Equipment Front Panel Mold

This fully customized injection mold is engineered exclusively for manufacturing ABS front panels of household equipment. Built with premium S136H stainless steel and adopting large sprue plus side injection structure, the mold ensures smooth plastic filling, stable molding and outstanding surface quality. It is professionally designed for large-sized flat panel parts, delivering dimensionally accurate, burr-free finished products, and perfectly fits mass production of various home appliance front panels.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • 21199

  • YIXUN mold

  • 8480419090

Product Overview

This fully customized injection mold is engineered exclusively for manufacturing ABS front panels of household equipment. Built with premium S136H stainless steel and adopting large sprue plus side injection structure, the mold ensures smooth plastic filling, stable molding and outstanding surface quality. It is professionally designed for large-sized flat panel parts, delivering dimensionally accurate, burr-free finished products, and perfectly fits mass production of various home appliance front panels.

Key Features

✅ Full Customization Support
We provide one-stop customized service based on your drawings, samples and functional demands, including panel size, shape, hole positions, surface finish and mold structure. All designs are tailored to match your actual production requirements.
✅ Premium S136H Mold Steel
Cavity and core adopt high-quality S136H stainless steel with heat treatment to HRC 48-52. It boasts excellent anti-rust, anti-corrosion and high polishing performance, long service life and stable performance for long-run continuous production.
✅ Large Sprue & Side Injection Design
Equipped with large sprue for sufficient material feeding. Side injection layout avoids obvious gate marks on the main surface of front panels, effectively eliminating flow lines, air pockets and poor filling defects on large flat parts.
✅ Optimized for ABS Molding
The runner, cooling and mold temperature system are all optimized for ABS material. Low shrinkage rate, no sink marks, warpage or deformation, keeping flatness and precision of large household equipment panels.
✅ Reliable Cooling & Ejection System
Dense and conformal cooling channels ensure uniform heat dissipation across the whole panel, shorten molding cycle and boost efficiency. Reasonably arranged ejection pins realize smooth demolding without scratching or distorting the panel surface.
✅ High Standard Surface & Dimensional Control
Precision CNC machining and fine assembly guarantee tight tolerance. The finished panels feature smooth surface, neat edges and consistent flatness, meeting strict appearance and assembly standards for home appliances.

Household Equipment Front Panel Mold



Technical Specifications

Item Details
Mold Name ABS Household Equipment Front Panel Injection Mold
Custom Service Full customization (size, structure, surface, cavities)
Mold Steel S136H Stainless Steel
Hardness HRC 48 - 52 after heat treatment
Feeding System Large Sprue + Side Injection
Molding Material ABS
Surface Treatment High polish / Matte / Texture (customizable)
Applicable Product Household Equipment Front Panel
Cooling System Conformal circulating cooling channels
Ejection System Multi-point pin ejection
Mold Life 800,000 – 1,200,000 shots

Application Scope

This mold is widely used to produce front panels for a full range of household equipment:

  • Refrigerator, washing machine and dryer control panels

  • Air conditioner indoor & outdoor unit front panels

  • Microwave, oven and kitchen appliance face plates

  • Water heater, air purifier and small home equipment panels

  • Other large flat decorative & functional panels for home use

Why Choose This Mold

  1. Professional for Large Flat Panels: Large sprue and side injection solve common filling and appearance problems of big plastic panels.

  2. Durable S136H Steel: Strong anti-rust and wear resistance, lower maintenance cost for long-term production.

  3. 100% Customized Solution: Flexible design to realize all your requirements on product structure and mold configuration.

  4. Stable Molding Quality: Effectively control warpage and flatness, ensure easy assembly of finished panels.

  5. Cost-Efficient Production: Optimized structure shortens cycle time, improves output and reduces overall production cost.

FAQ

Q: Can you make the mold according to my 3D drawings?
A: Yes. We accept 3D files, 2D drawings or physical samples to carry out full customization.
Q: Is side injection suitable for large ABS panels?
A: Definitely. Side injection keeps the main surface intact, and the large sprue ensures full and uniform material filling for large parts.
Q: What surface finishes can you offer for the panel?
A: We support high gloss polish, matte finish and various custom textures as you request.
Q: How long is the delivery lead time?
A: Standard lead time is 6–9 weeks, depending on panel size, structure complexity and customization demands.
Q: Will the large panel get warped easily after molding?
A: No. We adopt optimized cooling layout and process parameters to strictly control shrinkage and warpage of large flat parts.
