Navigating the world of manufacturing? You’ve likely heard about Silicone Molding, 3D Printed Molds, and traditional Injection Molds. While they all create the "mold" that shapes your final product, they serve vastly different purposes. Let's break down each method, explore their strengths, and see how they work together in a modern product development cycle.
Also known as Room Temperature Vulcanization (RTV) molding, it’s a low-cost, rapid method for creating small batches of plastic or resin parts.
How It Works:
A precise master pattern (often 3D printed) is created.
Liquid silicone is poured over it and cured, forming a flexible mold.
The silicone mold is cut open, the master is removed, and you’re left with a cavity.
Two-part polyurethane resin is poured into this cavity to create replicas.
Key Takeaway: It’s the fastest and cheapest way to go from a single prototype to 10-100 high-quality, detailed copies. Perfect for prototyping, design verification, and ultra-short runs.
Despite their differences, these three methods share a core goal:
They are tools designed to reproduce a part's shape repeatedly.
They start with a 3D digital model.
They bridge the gap between design and physical parts, especially during product development.
| Feature | Silicone Molding (RTV) | 3D Printed Molds | Injection Molds (Traditional) |
|---|---|---|---|
| Mold Nature | Flexible & Temporary | Rigid & Directly Printed | Rigid & Permanent |
| Mold Material | Silicone Rubber | Resin, Metal, Engineering Plastics | Tool Steel (P20, H13), Aluminum |
| Fabrication | Manual Casting & Curing | Additive Manufacturing (Layer-by-Layer) | Subtractive (CNC, EDM) |
| Tooling Cost | Very Low ($) | Low - Medium ($$) | Very High ($$$$) |
| Lead Time | Hours - Days | Hours - Days | Weeks - Months |
| Mold Life | Very Short (10-100 parts) | Short - Medium (10s-1000s) | Very Long (100,000s+) |
| Materials | Limited (Urethane Resins) | Limited but Growing | Virtually All Thermoplastics |
| Part Quality | Good detail, may have bubbles | Good, may have layer lines | Excellent (High Precision) |
| Production Rate | Slow (Manual) | Medium (Can be automated) | Very High (Fully Automated) |
| Best For | Concept Models, <100 parts | Functional Testing, Short Runs, Complex Cooling | Mass Production |
In today's agile development, these technologies are complementary, not competitive. Here’s a typical journey from idea to market:
Phase 1: Concept & Fit Check
“Does the shape look and feel right?”
Tool Used: Direct 3D Printing of prototypes.
Why: Instant feedback on design form and assembly.
Phase 2: Functional Testing & Pre-Launch
“Does it work with the right material? Can we get 50 units for a pilot?”
Tool Used: Silicone Molding from a 3D printed master.
Why: Get functional, material-like parts in small quantities at minimal cost.
OR: Use 3D Printed Mold Inserts in a standard frame for short injection molding runs. This is where 3D printing shines—it can create molds with conformal cooling channels that follow the part's shape, drastically reducing cycle time and improving part quality.
Phase 3: Market Testing & Bridge Production
*“We need 500-5,000 units for a soft launch.”*
Tool Used: Rapid Tooling—this could be 3D printed metal molds or machined aluminum molds.
Why: Balances cost, speed, and part quality for pre-series production.
Phase 4: Full-Scale Manufacturing
“Our design is final. We need millions of parts.”

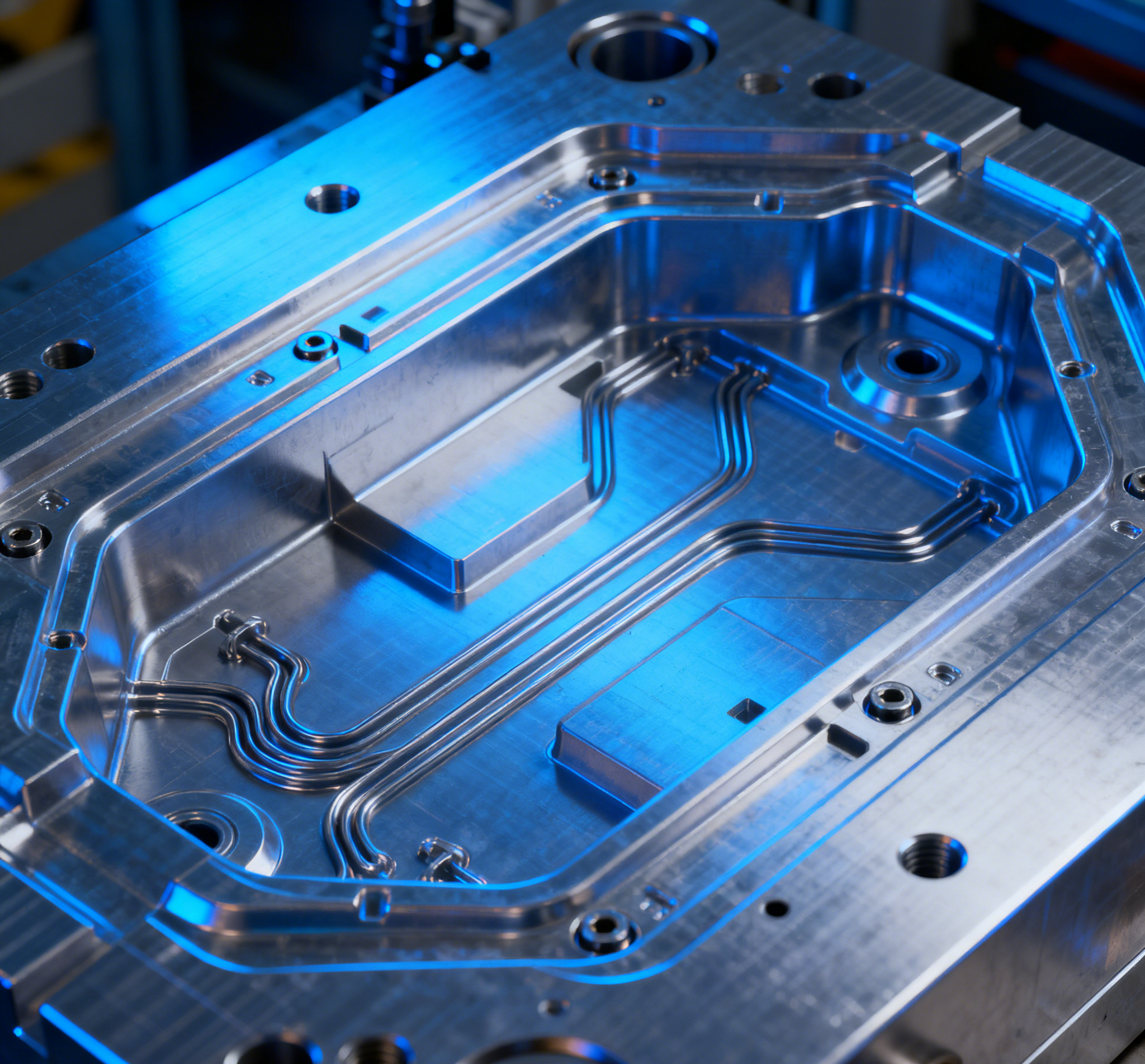

Tool Used: Hardened Steel Injection Molds.
Why: For unmatched durability, part quality, and the lowest cost-per-part at high volumes.
Don’t think of these as competing options. Think of them as a powerful toolkit:
Silicone Molding is your rapid prototyping workhorse—incredibly fast and cheap for tiny batches.
3D Printed Molds are the agile bridge—enabling complex geometries (like conformal cooling) and short runs that were previously impossible.
Traditional Injection Molds are the industrial backbone—unbeatable for high-volume, high-quality, and cost-effective manufacturing.
The smartest strategy? Use them in sequence. Leverage the speed of silicone and 3D printing to iterate and de-risk your design, then invest in hardened steel tooling with confidence for mass production.
By understanding the unique role of each method, you can optimize your timeline, budget, and path from a brilliant idea to a successful product on the shelf.
