YIXUN mold
8480419090
Dimensional Accuracy: Molds engineered with ±0.005mm tolerance to ensure airtight, leak-free fits (critical for respiratory device safety).

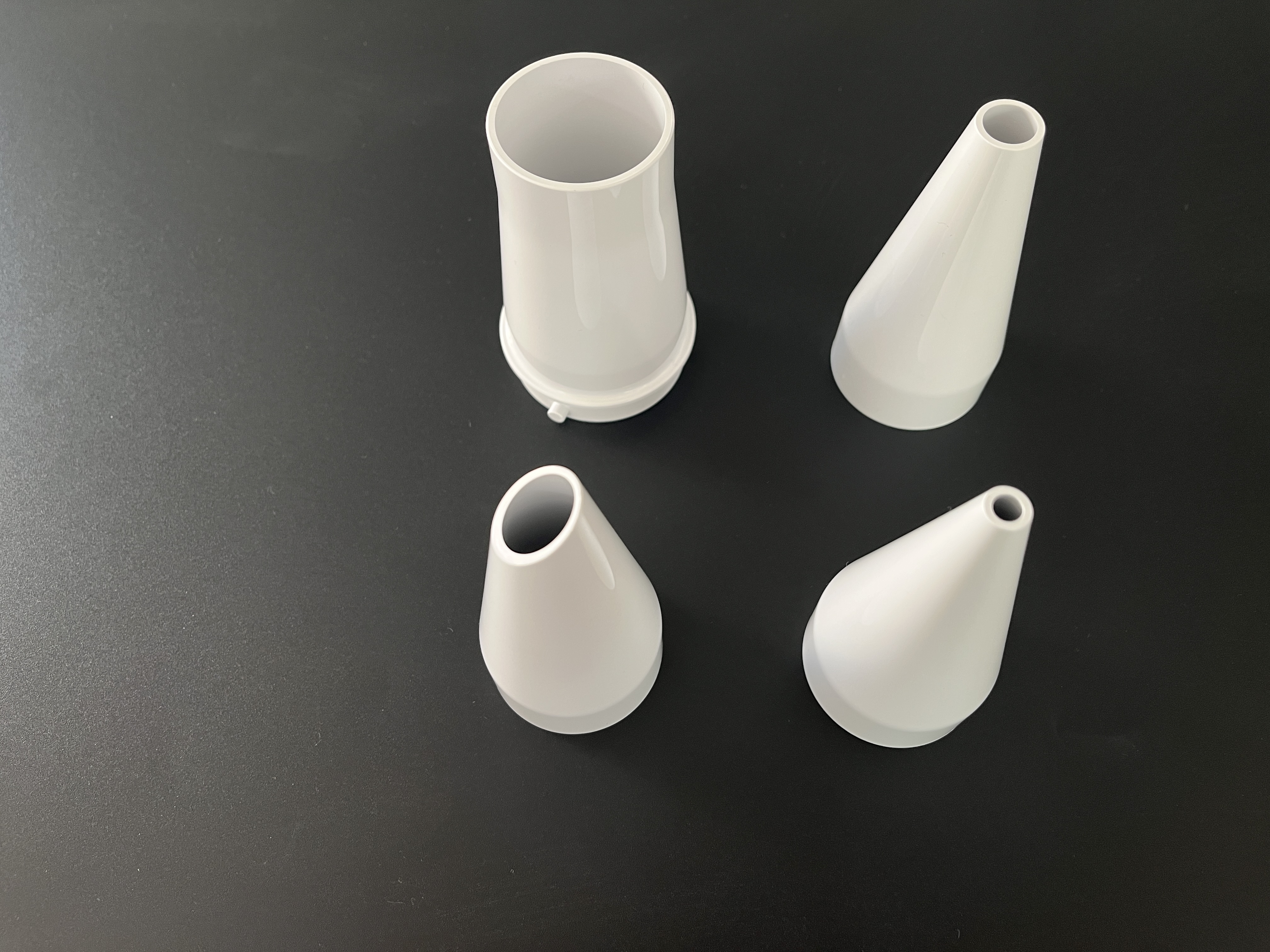

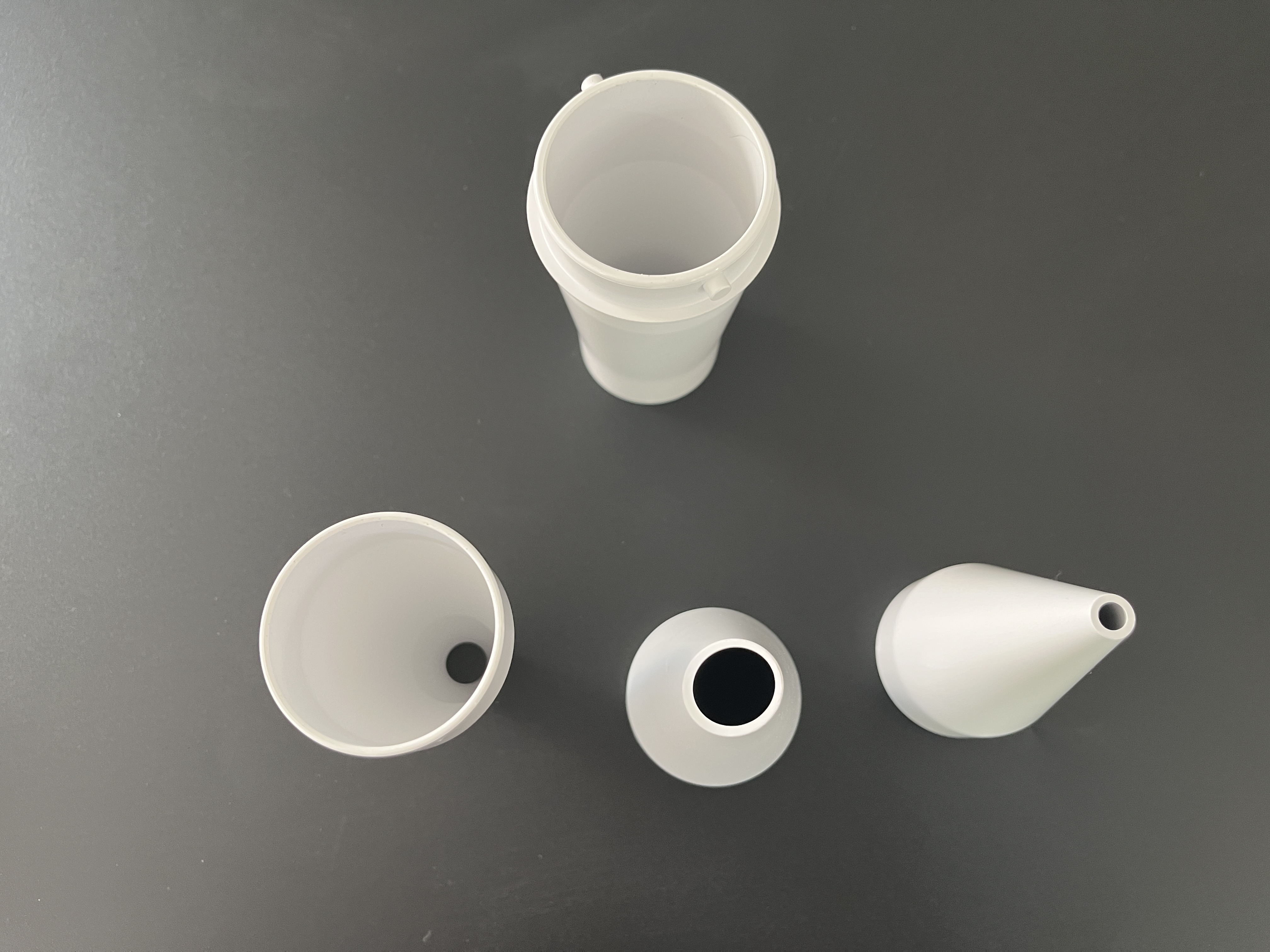

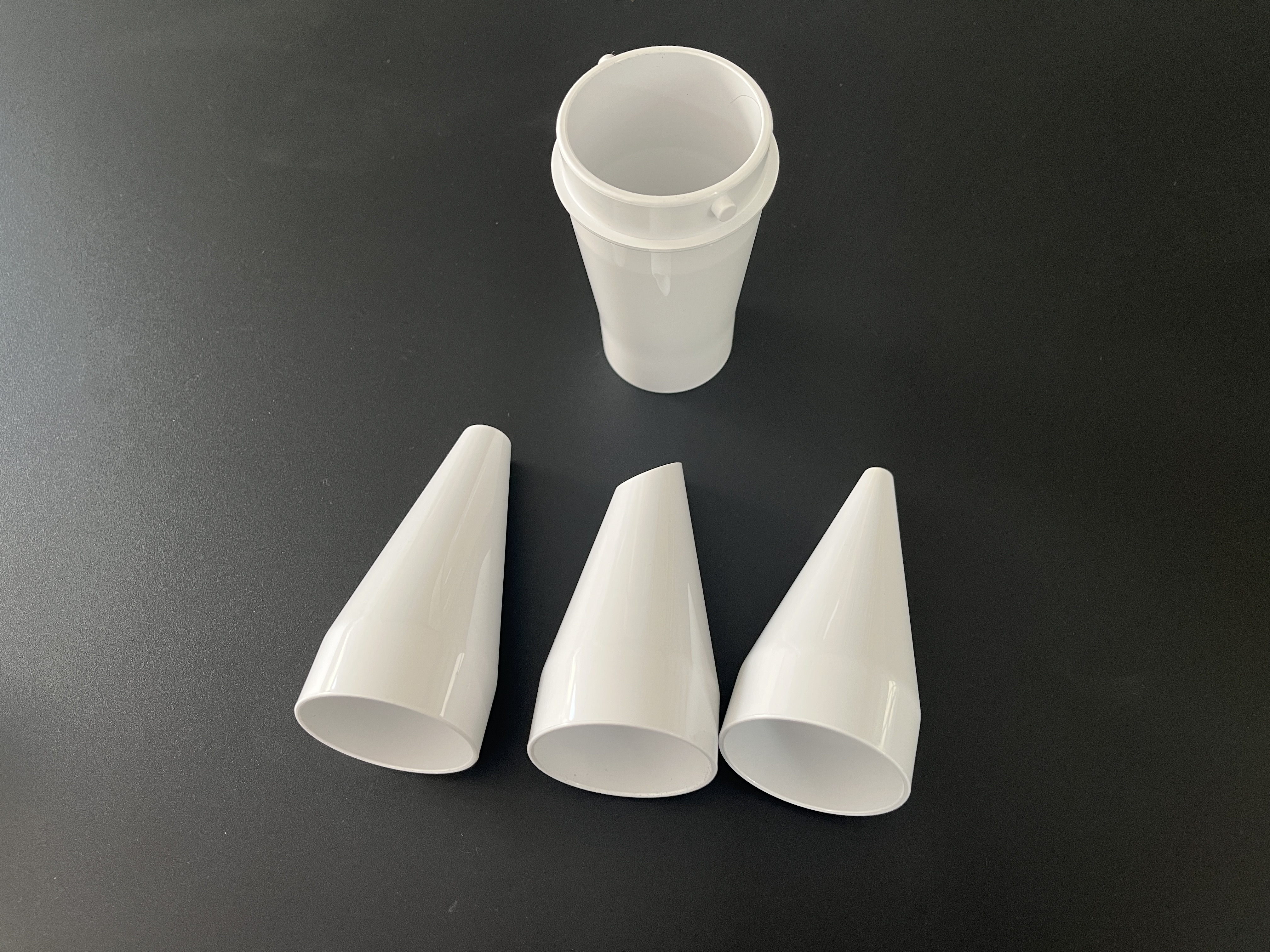

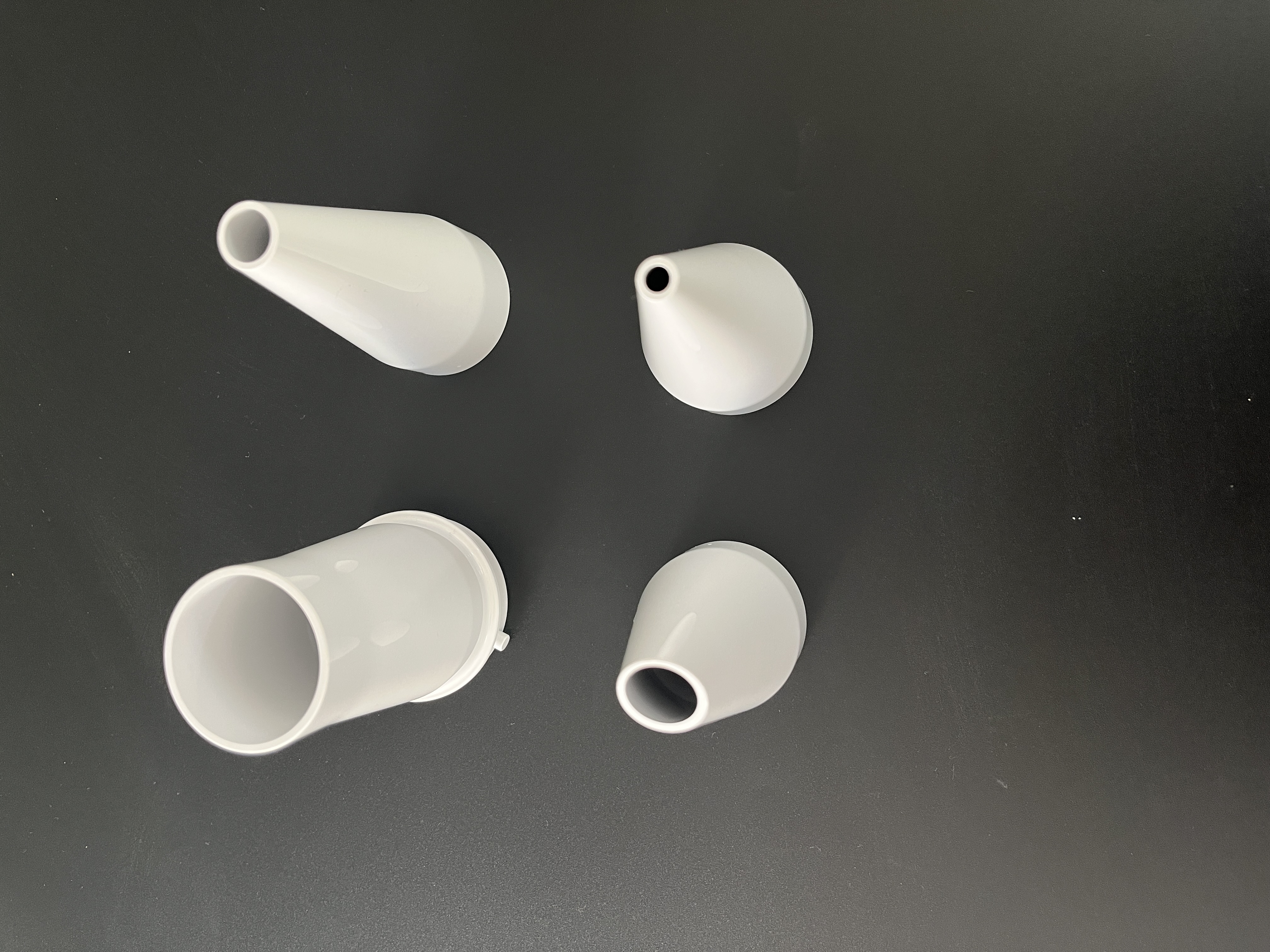

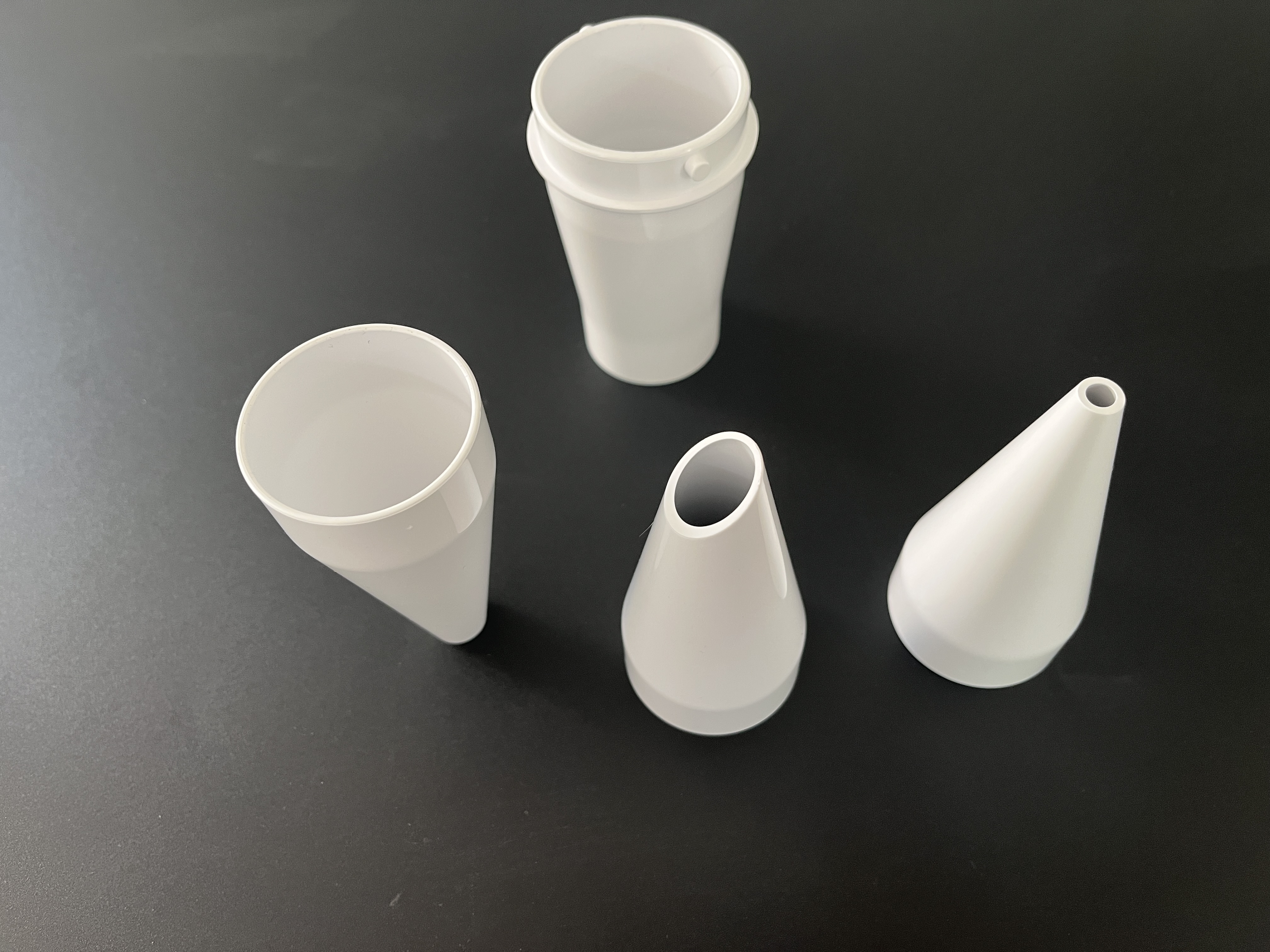

Complex Geometry Compatibility: Handles the tapered, multi-sized port structures of respiratory connectors (including seal rings, snap-fit joints, and flow channels).
Mold Material: Medical-grade tool steel (S136) with corrosion resistance—supports 1-2 million injection cycles for high-volume production.
Material Compatibility: Molds optimized for biocompatible plastics (medical PP, PVC, or silicone-blended resins) that meet:
FDA 21 CFR Part 177 (food/medical contact safety);
ISO 10993 (biocompatibility);
ISO 13485 (medical device quality management).
Sterilization Compatibility: Molds produce connectors that withstand autoclaving, ethylene oxide (EtO), or gamma radiation sterilization.
Leak-Proof Design: Molded seal structures (integrated into the connector) eliminate air leakage—essential for respiratory support equipment.
Smooth Surface Finish: SPI A1-A2 polished molds produce connectors with non-porous, easy-to-clean surfaces (reduces bacterial buildup).
Consistent Quality: Uniform wall thickness (1.2-1.5mm) prevents deformation during use or sterilization.
Size & Shape: Adjust port diameters, taper angles, or connector lengths (compatible with standard respiratory device interfaces).
Feature Integration: Add ribs (for grip), locking tabs (for secure connections), or flow-limiting channels.
Color & Finish: Mold for opaque white (standard) or custom medical-grade colors; matte/gloss finishes available.
DFM Analysis: Review your connector design to optimize moldability (e.g., draft angles, wall thickness).
Tooling Design: 3D CAD modeling of molds (including cooling channels, ejection systems, and gating).
Precision Machining: CNC, EDM, and wire-cutting (Dongguan-based advanced equipment) for tight-tolerance mold components.
Testing & Validation: Test injections with medical-grade resin to verify fit, seal, and surface quality before mass production.
Medical Expertise: 10+ years of experience in molding respiratory, surgical, and diagnostic device components.
Quality Assurance: 100% in-line inspection (dimensional testing, leak-proof validation) for every mold.
Turnkey Support: From mold design to mass injection production (we offer integrated mold+production services for medical connectors).
