First, let's look at the techniques we use to create different surfaces on the mold itself.
Texturing (Chemical Etching or EDM): This is the go-to method for non-glossy, patterned finishes. We use photochemical processes or electrical discharge machining to corrode the steel surface. This allows us to create everything from a subtle grainy matte finish (e.g., VDI 27) to a pronounced leather pattern or geometric design.
Polishing: The antithesis of texturing. Through a meticulous, multi-step process using abrasives (from stones to diamond paste), we eliminate all tooling marks to create a flawless, mirror-like surface. The SPI (Society of the Plastics Industry) standard defines polish levels from A-1 (perfect mirror) to D-3 (uniform matte). A high SPI-A1 polish is crucial for lenses and high-gloss cosmetic surfaces.
Laser Engraving: A highly precise method where a laser ablates the mold steel. It's perfect for adding sharp serial numbers, barcodes, or intricate logos. It can also create unique textures, like a velvety feel, by engraving a dense pattern of microscopic dots.
Coatings (PVD/CVD & Plating): Sometimes, we change the mold's surface properties to achieve a specific part finish. Applying an ultra-hard, low-friction DLC (Diamond-Like Carbon) or Chromium Nitride coating via PVD makes the mold surface incredibly slippery. This facilitates easier plastic flow and better release, which is essential for achieving a perfect high-gloss finish free of defects.

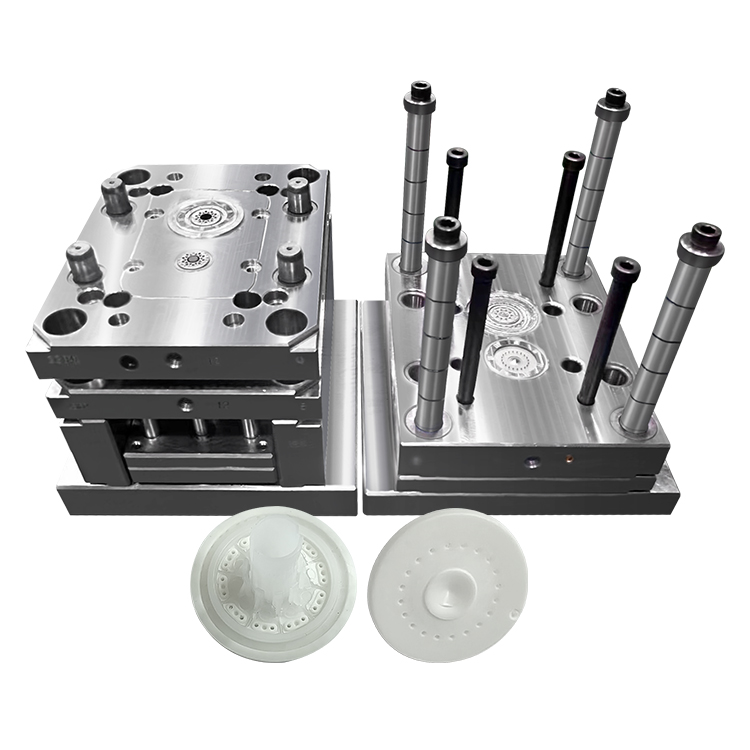

This is where engineering meets artistry. You cannot randomly apply different finishes; the mold's structure dictates how we implement them.
a) The Power of Inserts:
This is our most powerful tool. Instead of treating the entire mold core or cavity as one piece, we design it with interchangeable inserts.
How it works: The region for a glossy logo or a specific texture is machined as a separate, precision-fitting block of steel (an insert).
Process: We remove this insert and give it a different surface treatment—like a mirror polish—while the main mold body receives a matte texture.
Mold Analysis Insight: Critical analysis of the fit between the insert and the main mold body is essential. A poor fit creates a visible parting line (witness line) on the part, ruining the aesthetic. We use analysis to ensure the insert won't shift under high injection pressure (clamp force analysis) and that cooling channels are designed around it to maintain uniform temperature (cooling analysis).
b) Utilizing Slides and Lifters for Side Finishes:
How do you texture the side of a part with an undercut?
How it works: The side action is handled by a slide (driven by an angled pin) or a lifter.
Process: The surface of that slide or lifter is textured. As the mold opens, the slide retracts, allowing the textured part to be ejected.
Mold Analysis Insight: The textured surface on a moving component is prone to wear and abrasion. Analysis dictates we must select harder steel grades and apply wear-resistant coatings (like Chromium plating) to ensure the texture remains consistent over hundreds of thousands of cycles (durability analysis).
c) The Unsung Hero: Venting Analysis
This is a make-or-break factor, especially for high-gloss finishes. Trapped air or gas can cause burn marks, dull spots, or short shots, completely ruining the surface quality.
Mold Analysis Insight: We perform mold filling simulations to identify potential air traps. Based on this, we strategically place:
Venting grooves: Tiny channels (0.02-0.03mm deep) at the parting line or around ejector pins that let air out but block plastic.
Porous steel inserts: Sintered metal blocks that act as excellent vents in deep, difficult-to-vent cavities. Proper venting analysis is non-negotiable for achieving perfect surface replication.
The mold is only half the story. The injection molding process must be tuned to match the mold design.
For High-Gloss: Requires high mold temperature and fast injection speed. The hot mold prevents the plastic from freezing too quickly, allowing it to replicate the polished surface perfectly.
For Matte Textures: A lower mold temperature is often sufficient and helps emphasize the matte effect by causing the plastic to skin over faster.
Creating multiple surface finishes in a single mold isn't an accident. It's the result of:
Strategic Design: Deciding which finishes go where during the product design phase.
Sophisticated Mold Making: Using inserts, slides, and precise surface treatments on a single mold base.
Rigorous Mold Analysis: Simulating filling, cooling, venting, and structural integrity to ensure the mold functions flawlessly.
Precise Process Engineering: Dialing in the machine parameters to bring the design to life.
By mastering the interplay between mold structure and surface technology, we create products that are not only functional but also a delight to touch and behold—all in a single, efficient manufacturing cycle. The mold, therefore, is not just a tool; it's the canvas upon which we paint a masterpiece of texture and light.
