Embracing the Future:the Recycled Materials in Injection Molding

Why Use Recycled Materials?

The benefits are compelling:

• Cost Reduction: Recycled plastic granules are often less expensive than virgin materials.

• Environmental Credentials: It reduces reliance on fossil fuels, lowers carbon footprint, and diverts waste from landfills and oceans.

• Brand Enhancement: Consumers and B2B clients increasingly favor environmentally responsible brands.

• Regulatory Compliance: Many governments are introducing mandates for recycled content in products.

The Core Challenge: It's a Team Effort Between Material and Mold

Recycled materials, whether post-industrial or post-consumer, are not "new." They have a history. This history means they often have:

• Reduced Mechanical Properties: Molecular degradation can lead to lower impact strength and ductility.

• Inconsistent Melt Flow: Viscosity can vary batch-to-batch.

• Contaminants: Microscopic impurities, moisture, or even remnants of other materials can be present.

• Thermal Instability: They can be more sensitive to heat during processing.

These material characteristics don't exist in a vacuum; they directly challenge the injection mold. A mold designed for predictable virgin resin will struggle with the variability of recycled content.

How the Injection Mold Must Adapt

To successfully process recycled materials, the mold must evolve from a passive tool into an active partner. Here’s how:

1. Combatting Wear and Tear:

• Challenge: Abrasive contaminants in recycled flakes accelerate wear on mold surfaces, gates, and runners.

• Mold Solution: Specify wear-resistant steel grades (e.g., H13 with a high chromium content) and apply surface hardening treatments like Nitriding or PVD coatings. This extends mold life significantly.

2. Facilitating Improved Flow:

• Challenge: Poorer flow can lead to short shots or high, damaging injection pressures.

• Mold Solution:

• Enlarge runners and gates to reduce flow resistance.

• Opt for hot runner systems to maintain optimal melt temperature.

• Use fan or tab gates instead of small pinpoint gates to ensure smooth filling.

3. Managing Volatiles and Gasses:

• Challenge: Recycled material can release volatile organic compounds or moisture vapor when heated, causing splay (silver streaks) or burning.

• Mold Solution: Implement robust venting. This includes adding well-placed venting channels (0.02-0.04mm deep) and using sintered porous steel vents in hard-to-reach areas to allow gases to escape.

4. Ensuring Consistent Cooling:

• Challenge: Thermal instability can lead to uneven cooling, resulting in warpage, sinks, and internal stresses.

• Mold Solution: Design a high-efficiency, balanced cooling circuit. Uniform heat extraction is critical for stabilizing the process and achieving consistent part quality with sensitive recycled resins.

5. Masking Aesthetic Flaws:

• Challenge: Inconsistent color and material composition can cause visible flow lines and gloss variations.

• Mold Solution: Apply a textured (ETL) finish to the mold cavity. A texture effectively disguises flow lines and color inconsistencies, turning a potential reject into an acceptable-quality part.

Case in Point: A Quick Example

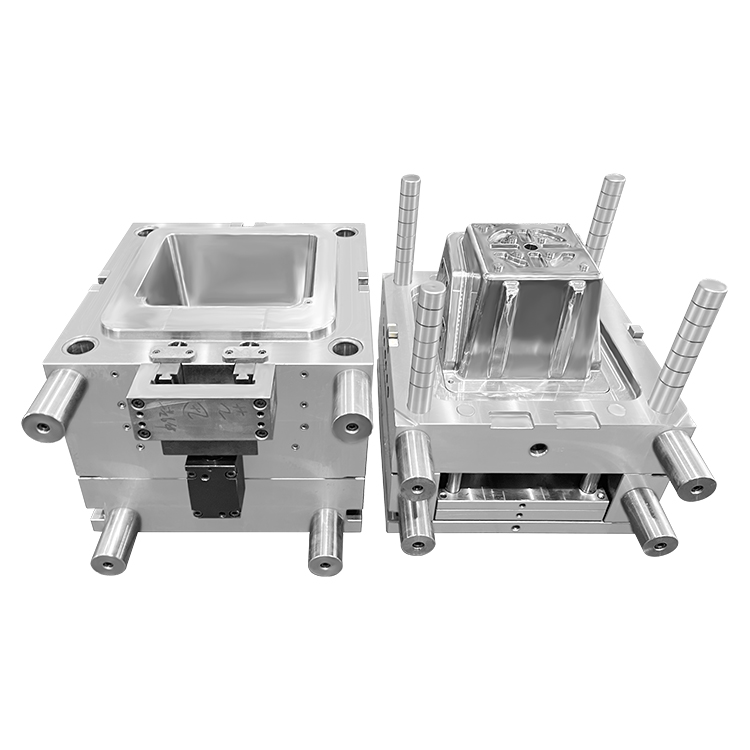

Imagine manufacturing a garden furniture bin from 100% post-consumer HDPE.

• Material: Thick, viscous, and variable.

• Mold Adaptations:

1. Large, full-round runners and a submarine gate for easy flow and automatic degating.

2. Extra venting at the end-of-fill to prevent diesel burning on the large surface.

3. A heavy-duty texture on all visible surfaces to hide imperfections and give a consistent, high-quality feel.

4. Nitrided steel to withstand the abrasive nature of the material over thousands of cycles.

Conclusion: A Symbiotic Relationship for a Sustainable Future

Using recycled materials in injection molding is not a trend; it's the future. Success hinges on recognizing that the mold is not just a tool, but a critical enabler. By designing and maintaining our molds with the unique character of recycled plastics in mind—prioritizing durability, flow, and venting—we can overcome the technical hurdles.

This synergy between intelligent mold design and advanced material science is the key to unlocking the full potential of a circular plastic economy, allowing us to create high-quality products responsibly without compromising on performance.
