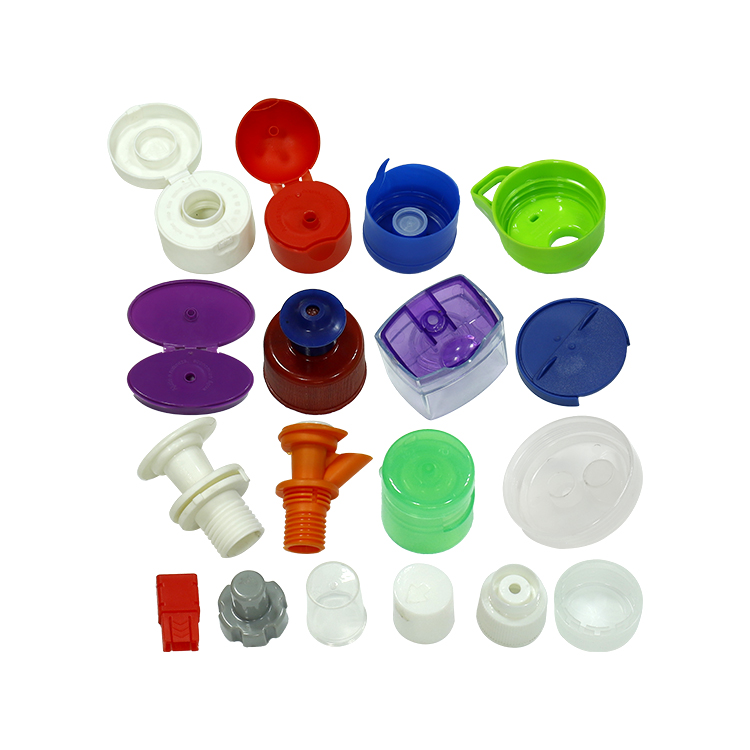

The Art of Injection-Molded Flip-Top Caps: Design, Durability, and Versatility for Packaging
Cost Efficiency: High-volume production (100,000+ units per mold) drives down unit costs.
Durability: Integrated hinges (no weak glue points) withstand 10,000+ openings without breaking.
Seal Consistency: Precision-molded seals ensure uniform leak protection across every cap.
Mold Hinge Geometry: Use a living hinge (a thin, flexible section of plastic, 0.2–0.4mm thick) molded directly into the cap. The mold’s cavity for the hinge is precision-machined to ensure uniform thickness—too thin, and it breaks; too thick, and it won’t fold smoothly.
Material Matching: For living hinges, PP (polypropylene) is the gold standard—it’s flexible, fatigue-resistant, and compatible with injection molding. The mold’s temperature (40–60°C) is calibrated to PP’s properties to avoid hinge brittleness.
Seal Boss/Bead: A raised “bead” or “boss” is molded into the cap’s interior, designed to press against the container’s rim. The mold’s cavity for this bead has a tolerance of ±0.02mm to guarantee a consistent, airtight seal (critical for liquids or perishables).
Interlocking Features: For secure closure, molds can add snap-fit tabs (on the cap) that lock into grooves (on the container). The mold’s slide mechanisms form these tabs without creating undercuts that complicate demolding.
Easy-Grip Textures: Subtle ribs or dimples molded into the cap’s sides (via the mold’s cavity texture) improve grip—especially important for wet or slippery hands.
Low-Force Opening: The mold’s hinge angle (typically 180°) and thickness are optimized so the cap pops open with minimal force (but stays closed when jostled).
Food & Beverage: PP flip-top caps for spice jars (dust-proof) or honey dispensers (leak-proof)—molded to meet FDA food-contact standards.
Cosmetics & Skincare: ABS/PP hybrid caps for lotion bottles—matte or glossy finishes (achieved via mold surface polishing) align with brand aesthetics.
Household & Industrial: Heavy-duty PP caps for cleaning products—molded with reinforced hinges to withstand frequent use.
Pharmaceuticals: Child-resistant flip-top caps (molded with dual-action locks) for medicine bottles—mold design ensures compliance with FDA child-safety standards.
Hinge Fatigue: If hinges break early, the mold’s hinge thickness may be off. Adjusting the cavity to 0.3mm (standard for PP) and extending cooling time (25–30s) reduces stress on the hinge.
Seal Leaks: Inconsistent bead thickness (from poor mold cooling) causes leaks. Adding conformal cooling channels (3D-printed to follow the cap’s shape) ensures uniform temperature and bead size.
Demolding Issues: Undercuts (from snap tabs) can trap caps in the mold. Using slider mechanisms (integrated into the mold) allows easy removal without damaging the cap.
Recycled Materials: Molds are now optimized for recycled PP (rPP), with adjusted melt temperatures to handle reprocessed plastic without compromising hinge strength.
Lightweighting: Thinner (but still durable) cap walls (molded via high-pressure injection) reduce plastic use by 15–20%—good for the planet and brand sustainability claims.
