一. What is the difference for double color/Two color and 2k injection overmolding
Double color /Two-color injection molding in a narrow sense refers to the use of a double two-color injection molding machine to inject two different plastics into components on the same machine. The most common one is a rotary type machine.
2k injection overmolding haven't high requirements for injection molding machine equipment, and the production efficiency is low. It is basically only suitable for molding of soft and hard plastic materials that do not require a high degree.
The double color/Two-color has good scope of application, good product quality, and high production efficiency, which is the current trend.
if you need inquiry, pls contact us email joyce@yixunmold.com

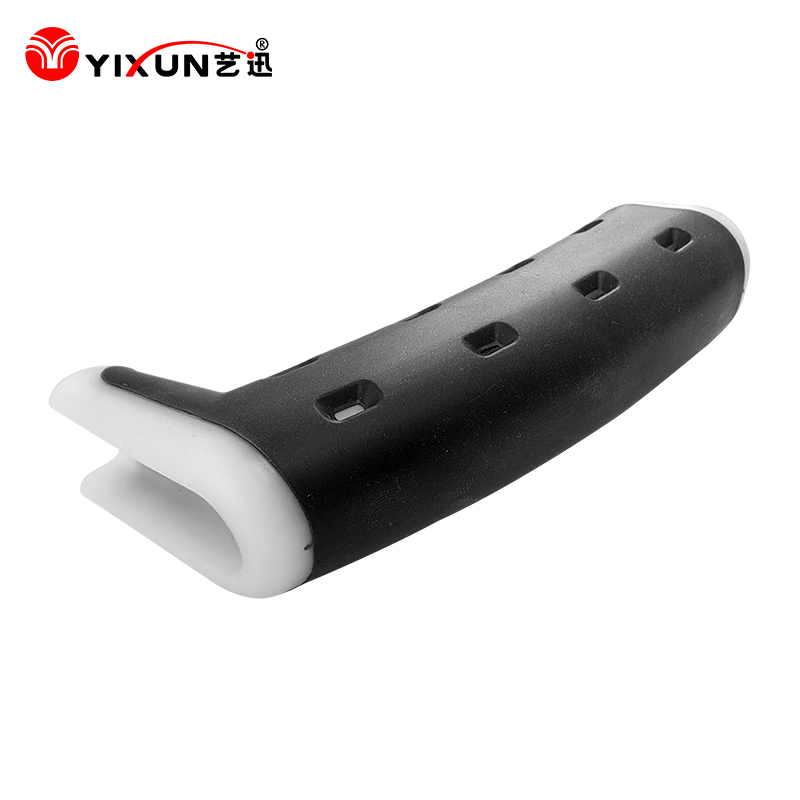

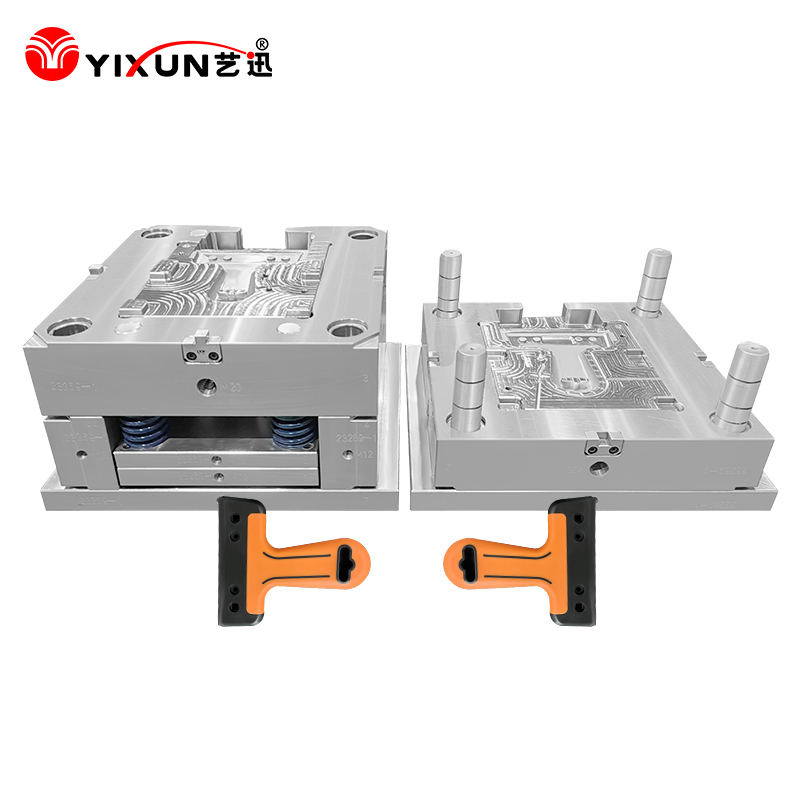

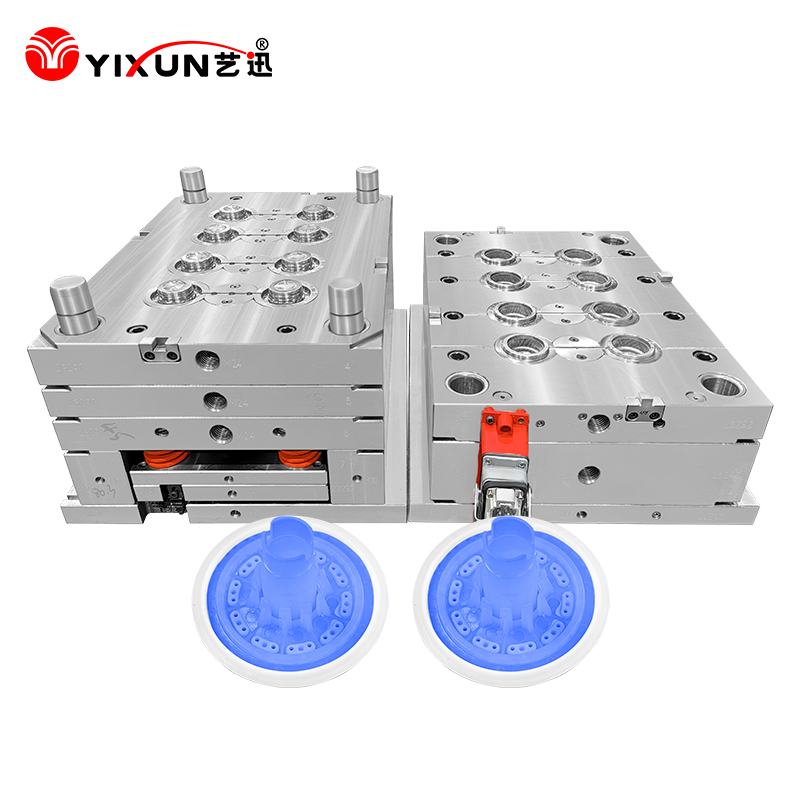

二. double color /two color injection mold and injection molding parts

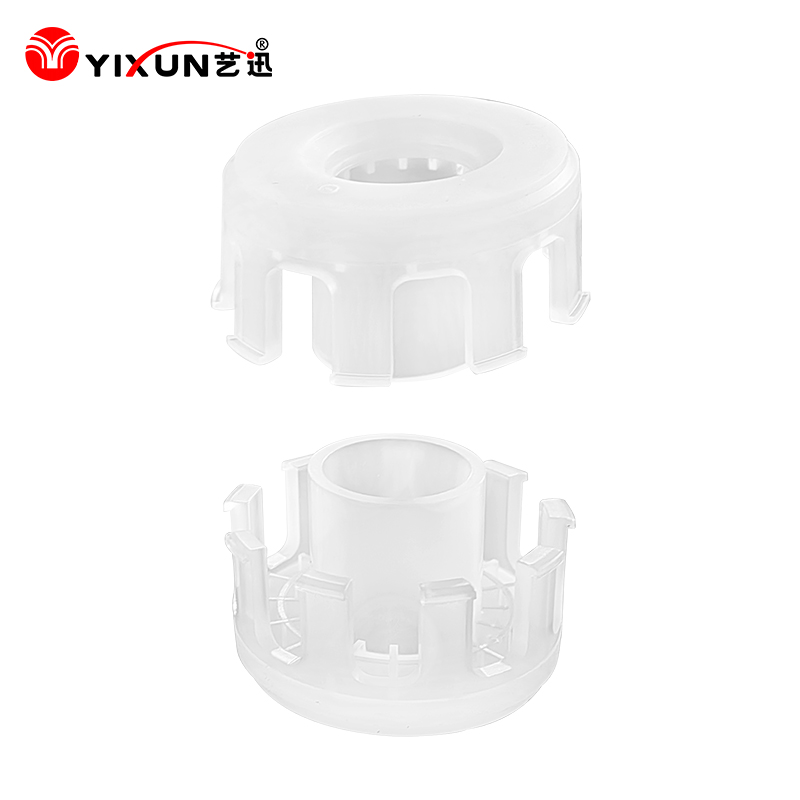

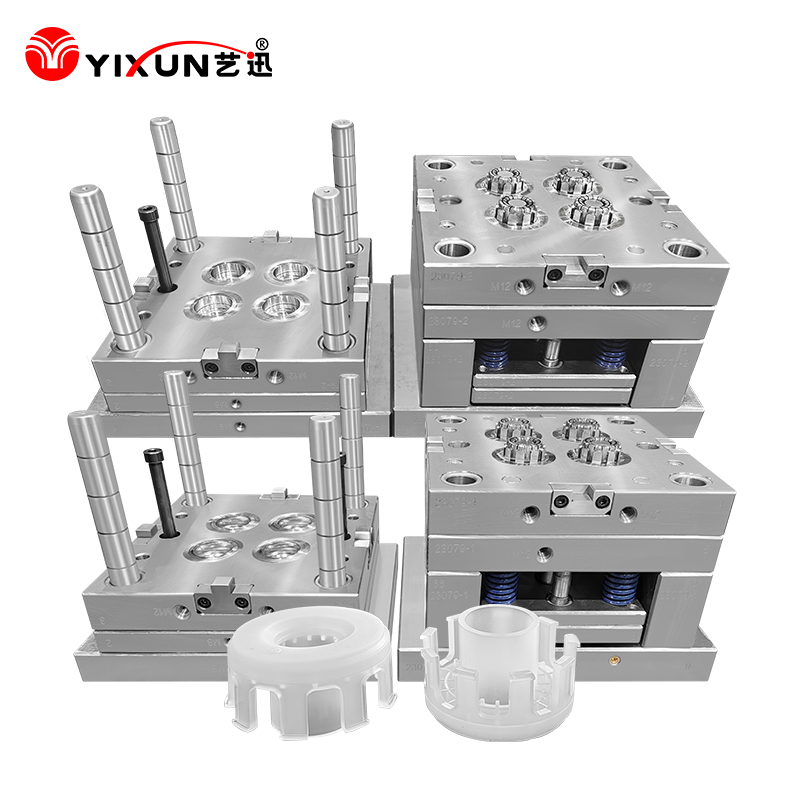

三. 2k overmold and overmolding parts
四. What is the two-color injection molding process?
Double color injection molding is the process for item molding with two diverse materials and colors, utilizing concurrent molding forms within the same infusion machine to yield a single unit.
The double color machine has presently broad utilization for electronic parts, electric apparatuses, therapeutic parts, domestic machines, toys, and nearly all zones of plastic items.
Center stack revolving double shot into hot double color molding strategy seen in later a long time, contrasting from common two-color rotatory infusion molding.
五. the material for double color injection molding
The first shot should be hardest of the two.
If straightforward and dark material are utilized, infuse the straightforward fabric first.
In common, to begin with, infuse the fabric with a higher molding temperature.
六 .For the shape and inserting design:
Ensure the form is rotatable through 1800
Any embeds ought to be symmetrical
The thrust bar plate and ejector stick ought to be kept steady with a return spring to maintain a strategic distance from harm amid the turn of the mold.
The cooling framework must be able to do adequately for primary and secondary shots.
七. The Advantages of two-shot injection molding
Double color /Two-shot injection molding is cost-effective
Double color injection molding don't need 2 injection molding machines ,just 1 machine.
The two-step process needs only one machine cycle, rotating the initial mold out of the way and putting the secondary mold around the product so that the second, compatible thermoplastic can be inserted into the second mold. Because the technique uses only one cycle instead of separate machine cycles, it costs less for any production run and requires fewer employees to make the finished product while delivering more items per run. It also ensures a strong bond between the materials without the need for further assembly down the line.
八. structure form for double color injection mold
Structure of Double color/two-color mold is closely related to double color /two-color injection molding machine. There are seven categories of double color/ two-color machines, but two categories are commonly used. Correspondingly, there are two types of two-color injection molds, namely Asian two-color molds and European double color/two-color molds. double color/Two-color injection molding machines in Taiwan and Japan have two parallel injection systems. In European double color/two-color injection molding machine, one barrel is horizontal and one barrel is vertical, and there is only one double color/ two-color mold. But principle is basically similar. Shape of upper and lower rows of front mold is different, rear mold rotates 180 degrees to form front mold once and twice.
If you want inquiry ,pls contact us joyce@yixunmold.com
