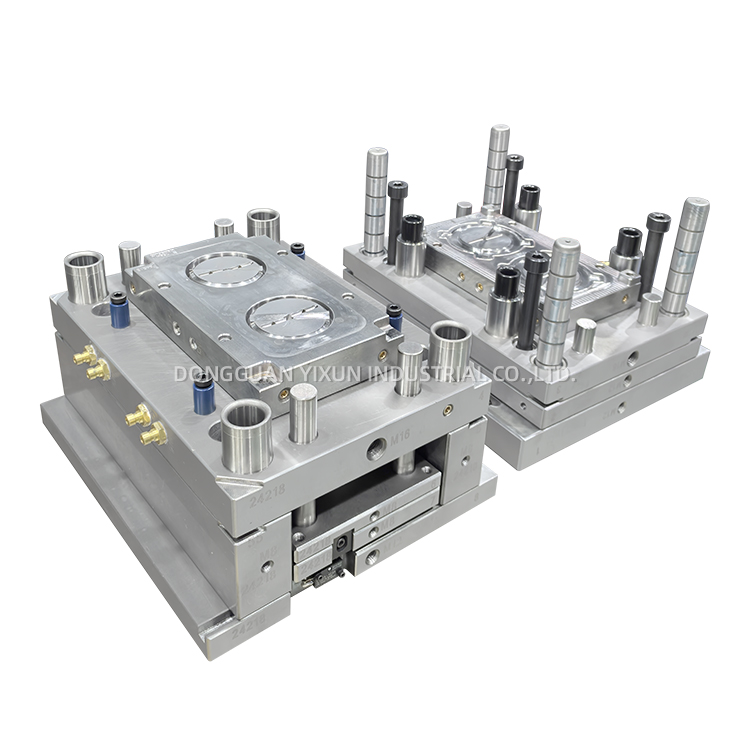

First, let's define the enemy: the undercut. An undercut is any protrusion or depression in a part that prevents its direct removal from the mold in the main opening (or core-pulling) direction.
Imagine trying to remove a square shape from a round hole—it won't work. In plastic parts, undercuts are common as side holes, internal hooks, or external latches. To solve this, we need movement that isn't just straight up and down.
A slider is a mechanism that moves horizontally (or at a slight angle) to disengage from an undercut before the main mold opens.
How it Works:
The most common drive method is using an angled pin (or cam pin). As the two halves of the mold begin to open, the fixed angled pin slides through a bushing in the slider, forcing it to move sideways on its guide rails. This lateral motion pulls the slider core out of the undercut. Once clear, the mold can open fully, and the part can be ejected normally.
Key Features:
Driven by: The mold's opening action.
Movement: Primarily horizontal.
Strength: High. They are robust and can form large or deep undercuts.
Location: Typically used for external or side-wall undercuts.
Real-World Example: The side grip of a power tool, the USB port on a computer case, or the latch on a toolbox.
A lifter is a more elegant solution for internal undercuts. It cleverly combines the ejection action with the undercut release in one move.
How it Works:
A lifter is mounted on the ejector plate. When the injection machine's push rods advance, the entire ejector plate moves forward. The lifter, which sits at an angle inside a guide block or a machined slot in the core, is forced to follow this path. This results in a combined motion: it moves upward and outward simultaneously. This outward movement pulls it away from the internal undercut as it pushes the part off the core.
Key Features:
Driven by: The ejection system.
Movement: A diagonal composite motion (up + out).
Strength: Moderate. The angled pin can be a weak point, so it's best for smaller internal undercuts.
Location: Almost exclusively for internal undercuts.
Real-World Example: The internal retaining clips inside a phone case, the latch mechanism inside a food container lid, or internal screw bosses with undercuts.
| Feature | Slider | Lifter |
|---|---|---|
| Driving Force | Mold Opening | Ejection System |
| Motion Direction | Horizontal / Lateral | Diagonal (Vertical + Lateral) |
| Ideal For | External Undercuts | Internal Undercuts |
| Complexity & Cost | Higher (more components) | Lower (simpler design) |
| Strength | High | Moderate |
As a mold designer, selecting the right mechanism is critical. Here’s the thought process:
Location of the Undercut: This is the primary factor. Is it on the outside or the inside?
Depth of the Undercut: Sliders handle deeper undercuts better due to their robust construction.
Parting Line and Aesthetics: Sliders can leave visible witness lines on the exterior of the part. Lifters keep their action hidden inside.
Mold Space and Cost: Sliders require more space on the mold exterior, potentially increasing mold size and cost. Lifters operate within the existing ejector plate footprint.
In the world of injection molding, sliders and lifters are the master keys that unlock complex part designs. They transform a simple two-plate mold into a sophisticated, multi-action system.
To put it simply:
Use a slider to pull a core from the side.
Use a lifter to push and angle out from the inside.
Understanding these mechanisms is not just for mold designers. For product developers and engineers, designing with these in mind from the start—considering draft angles, undercut depth, and tooling access—can lead to parts that are not only functional but also easier and cheaper to manufacture. It's where smart product design and masterful mold engineering meet.
