| Quantity: | |
|---|---|
24059
YIXUN mold
3926909090

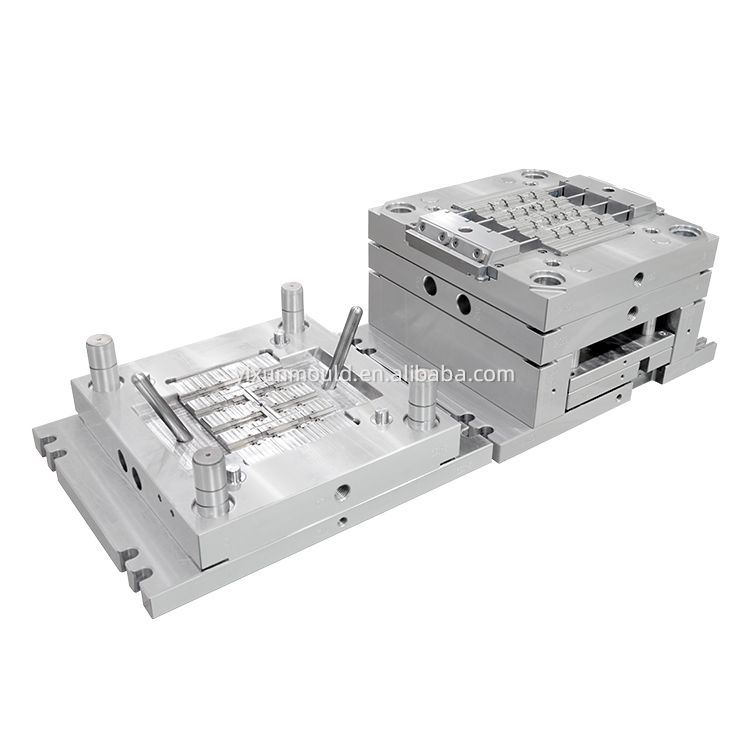

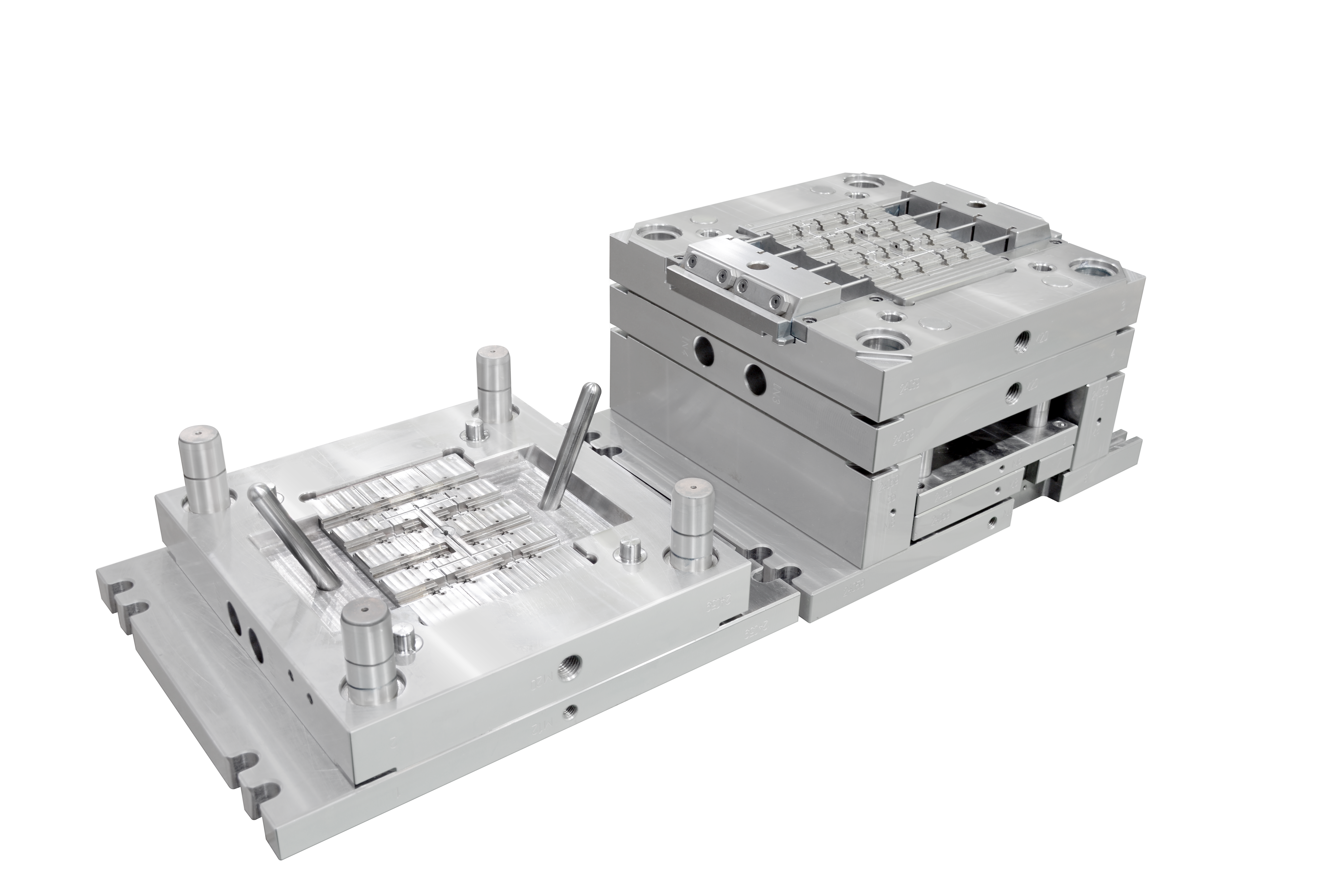

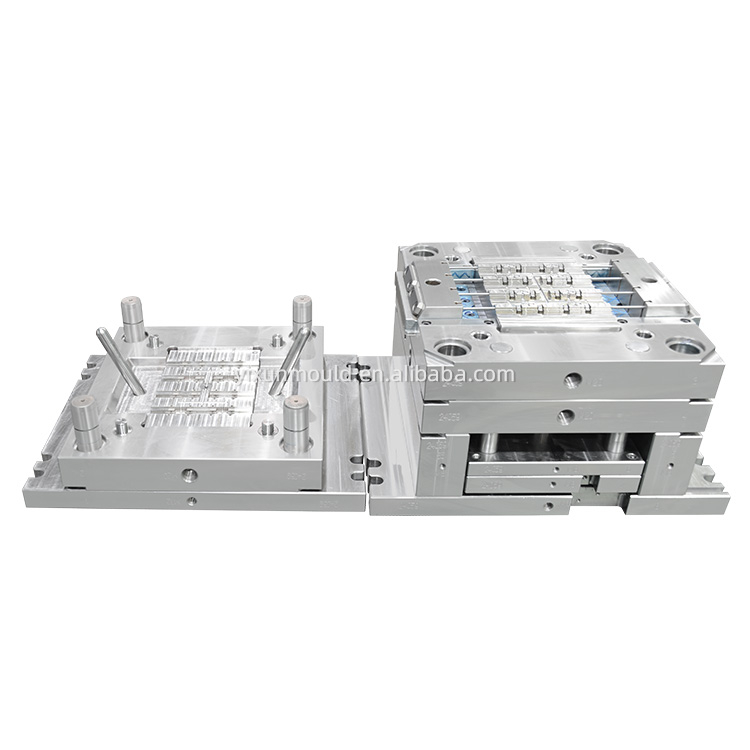

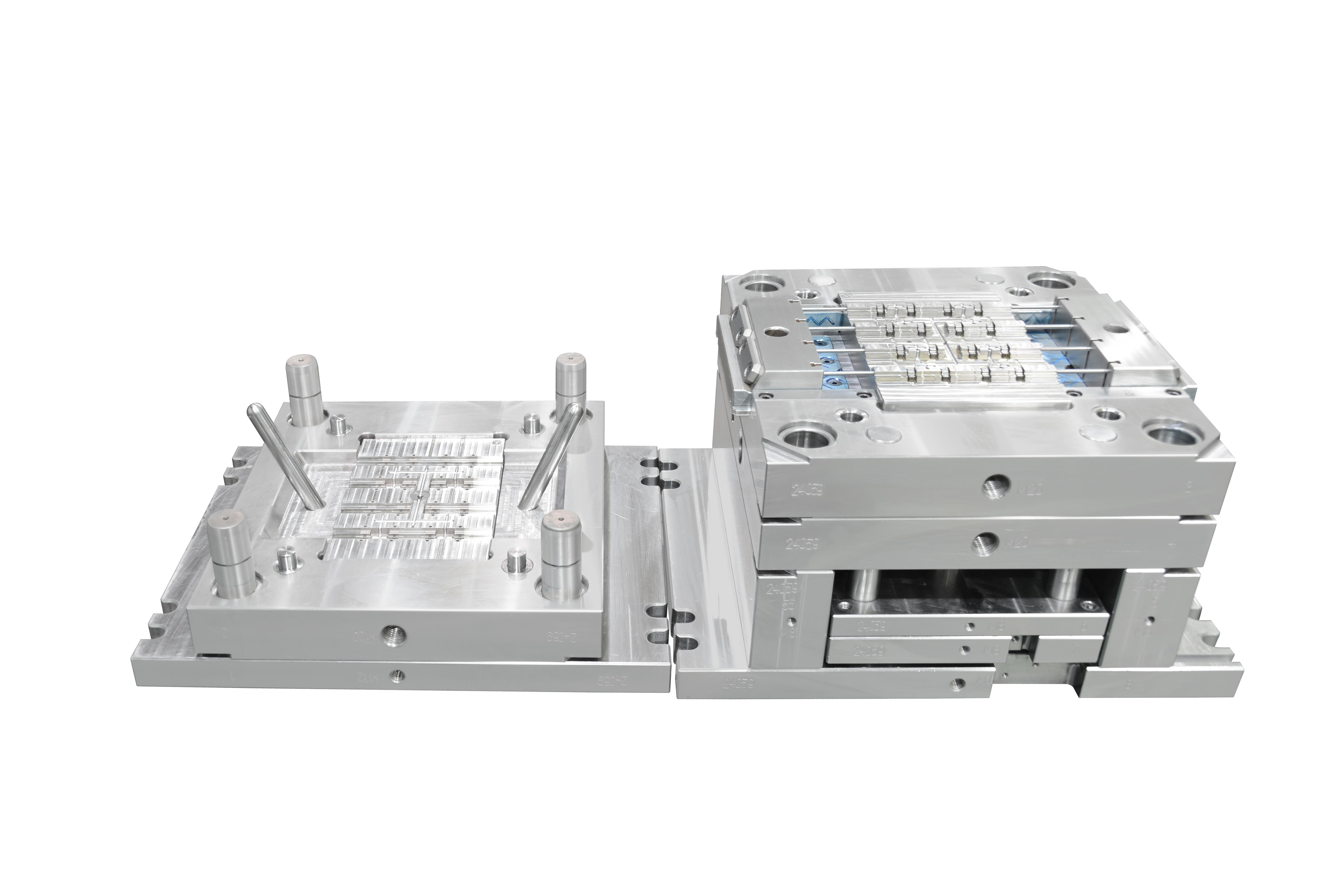

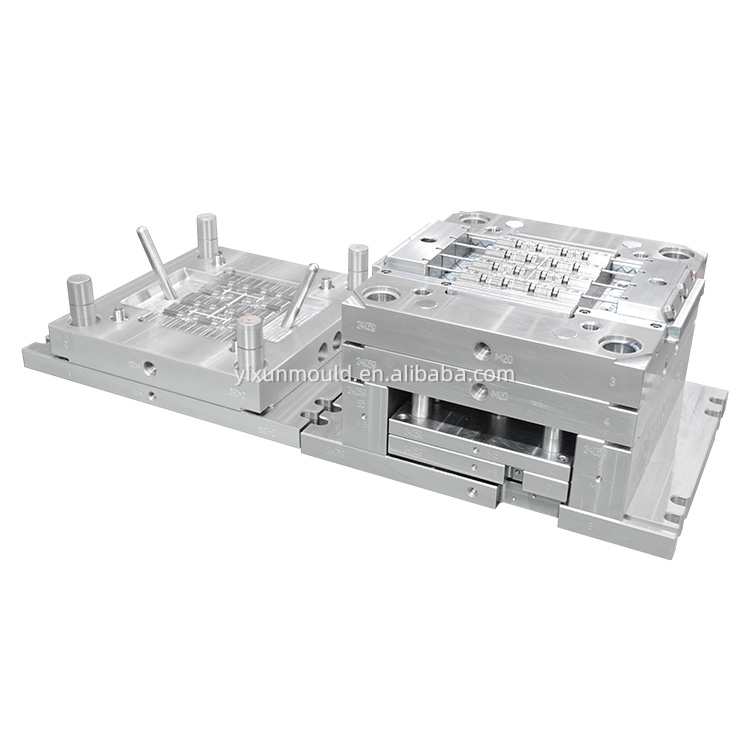

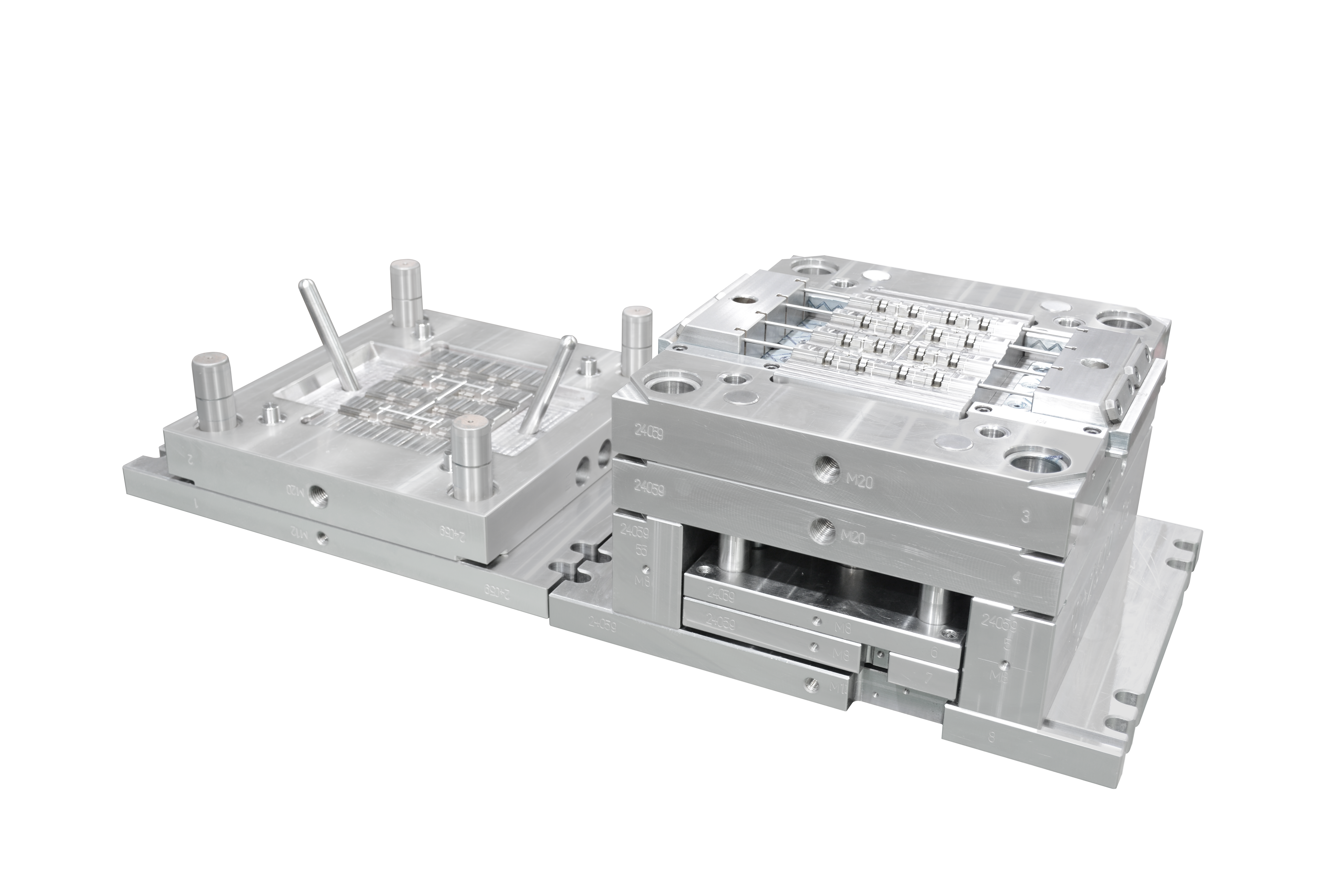

This custom high-precision TPE 30 overmold injection mold is specially built for soft-touch overmolded plastic parts. Designed as single cavity (1×1) with sub gate gating system, both cavity and core adopt S50C mold steel with fine polishing treatment. Our overmold tooling ensures stable plastic filling, beautiful surface finish and consistent product quality for your mass production. It is a reliable tool for insert overmolding projects with TPE soft material.
| Item | Description |
|---|---|
| Mold Name | TPE 30 Silicone Overmold Injection Mold |
| Mold Type | Overmolding / Insert Overmold Tool |
| Cavity | 1×1 Single Cavity |
| Product Material | TPE 30 |
| Gating System | Sub Gate |
| Front Mold (Cavity) | S50C, Highly Polished |
| Back Mold (Core) | S50C, Highly Polished |
| Mold Feature | Fine polished surface, smooth melt flow, low flashing & low defect rate |
| Suitable Application | Consumer electronics protective frame, sealing parts, soft-touch housing components |
✅ High Precision Tooling & Fine Surface FinishWe carry out strict tolerance control for every mold component. Full polishing on core and cavity delivers excellent glossy appearance for your TPE overmolded parts, meeting high cosmetic requirements.
✅ Durable S50C Mold Steel for Mass ProductionS50C carbon steel features great machinability and balanced hardness. It is cost-effective and long-lasting for medium-volume continuous production, helping you reduce mold repair & replacement costs.
✅ Optimized Sub Gate Runner DesignProfessional sub gate layout enables smooth TPE melt filling. It effectively minimizes common molding issues such as air traps, sink marks and flash, greatly improving production yield.
✅ Full-Service Mold DevelopmentOur team provides complete engineering support: DFM analysis, mold flow simulation, 3D mold design, T1 trial molding, sample adjustment and mass production guidance.
✅ Clear Mold Maintenance TermsFree mold maintenance service is available if the mold remains in our factory. Once the mold is transferred to another manufacturer, free maintenance will no longer be provided.
This TPE overmold is widely applied to custom soft-touch overmolded components, including consumer electronics protective frames, sealing gaskets, household appliance parts and other overmolding assemblies.
DFM & Mold Flow simulation after receiving your final 3D drawings
Custom mold structure design & material selection
CNC machining, EDM, polishing & mold assembly
T1 trial injection and sample submission for customer confirmation
Mold revision to fix molding defects
Mass production support at our workshop
Q: Can you make the overmold based on my STEP / IGS 3D drawing?A: Yes. We accept custom mold development according to your 3D files. Our engineers will perform DFM review before machining starts.
Q: What soft materials can your overmold support?A: We support TPE, TPU, Silicone and other flexible elastomers for insert overmolding, matched with various rigid substrate plastics.
Q: What about mold maintenance after mold completion?A: Free maintenance is only provided when the mold stays in our factory. No free maintenance service is available after mold transfer to third-party factory.
Q: How long will the mold lead time be?A: Mold lead time starts counting once the final drawing is fully confirmed. We will provide a detailed project schedule after drawing approval.
