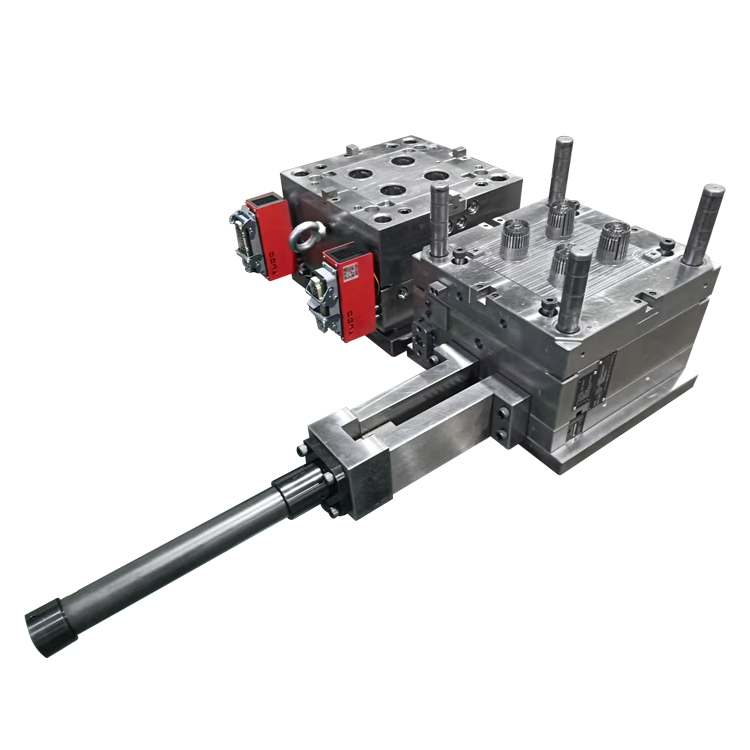

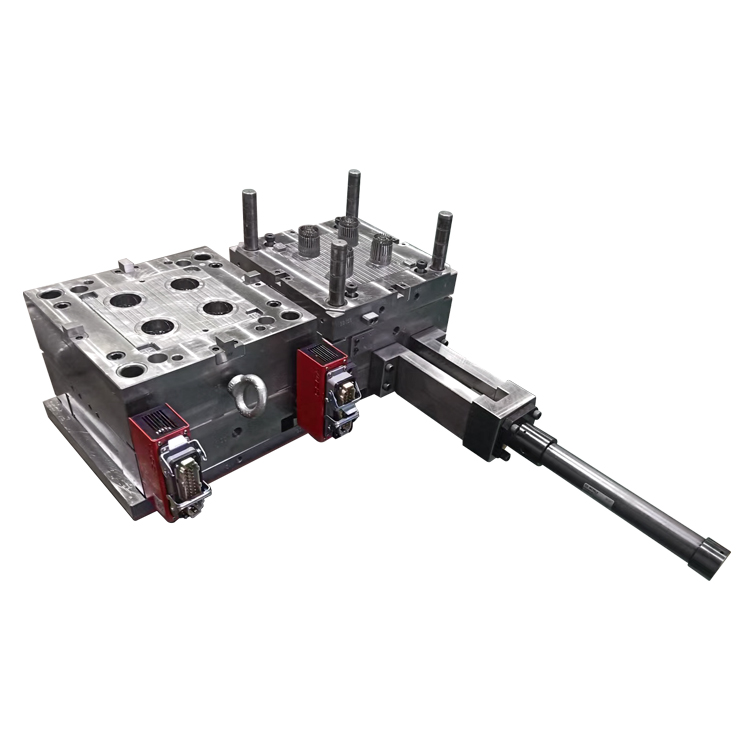

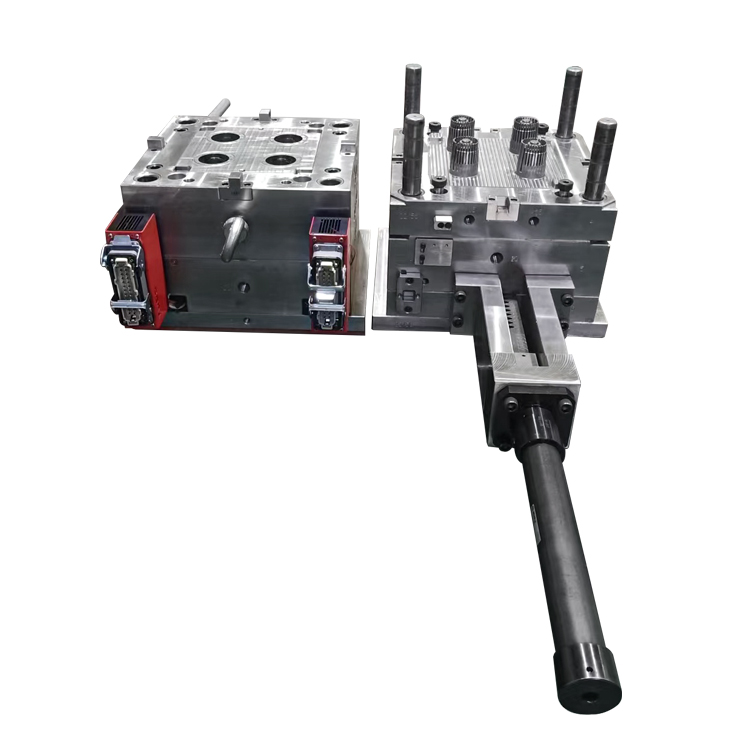

Custom Plastic 1*4 Cavity ABS Cavity Hot Runner Injection Plastic Mold NAK80 Mold Steel Plastic Filter Thread Parts Mould

2. Product Specification

• Mold Name: Plastic Filter Thread Parts Injection Mold

• Cavity Number: 1×4 Cavity (1 mold 4 parts)

• Mold Steel: NAK80 Pre-hardened Mirror Mold Steel

• Applicable Plastic Material: ABS

• Runner System: Full Hot Runner System, no material waste

• Mold Hardness: HRC 38-42

• Surface Treatment: High mirror polishing, smooth texture

• Mold Life: 500,000+ shots

• Molding Feature: One-time forming with thread structure, no secondary processing

• Application Products: Plastic filter accessories, threaded filter parts, home appliance filter components

3. Core Advantages

• High Precision Thread Molding: The mold adopts professional thread demolding structure to ensure precise thread size, tight assembly tolerance and stable product consistency, effectively avoiding thread slipping and mismatch problems.

• Premium NAK80 Mold Steel: NAK80 steel features high hardness, good wear resistance, excellent polishing performance and strong corrosion resistance. It supports long-term high-frequency mass production and keeps stable mold accuracy without easy deformation.

• Hot Runner System Design: Adopting advanced hot runner feeding technology, the plastic melt is evenly filled, the product has no welding lines, no material head waste, material utilization rate is greatly improved, and the production cycle is shorter.

• 1×4 Multi-cavity High Efficiency: Four-cavity balanced layout ensures consistent filling and cooling of each cavity. The output is greatly increased, which is very suitable for large-volume mass production orders.

• Stable Molding Quality: Optimized cooling water channel design ensures uniform cooling, effectively reduces product shrinkage, warpage and bubble defects, and improves the finished product qualification rate.

• Easy Maintenance & Long Service Life: Standard mold structure, reasonable parting design, convenient disassembly and maintenance, lower later production cost.

4. Application Range

5. Our Service Advantage

• Custom mold design according to customer 2D/3D drawings or samples

• Professional mold flow analysis before production to avoid molding risk

• Strict quality inspection for mold size, hardness and surface finish

• Provide free mold testing and sample confirmation

• Long-term after-sales support and mold maintenance service

• Fast delivery, stable quality and competitive factory price
