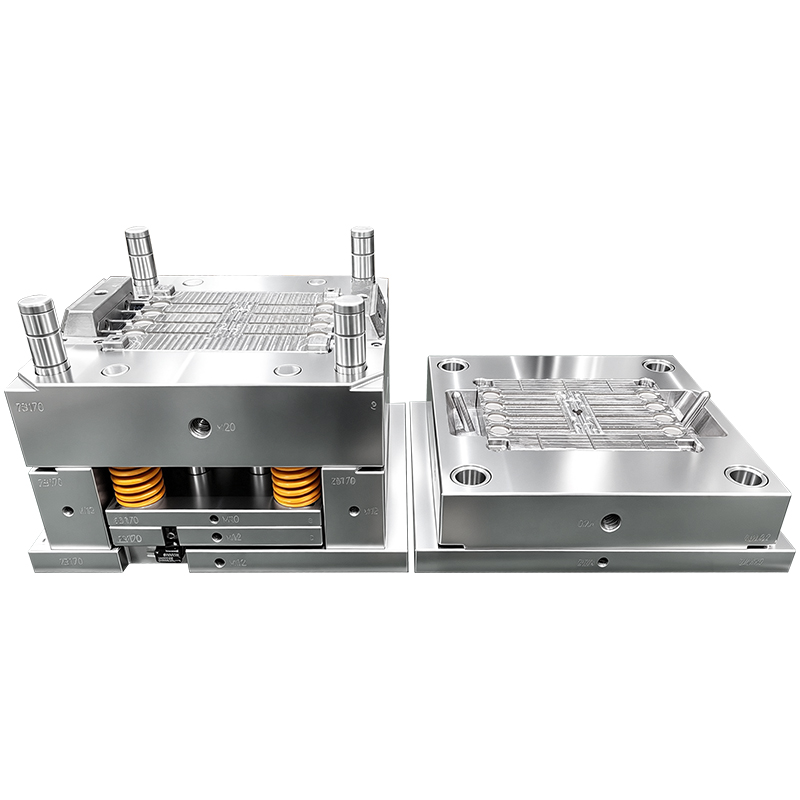

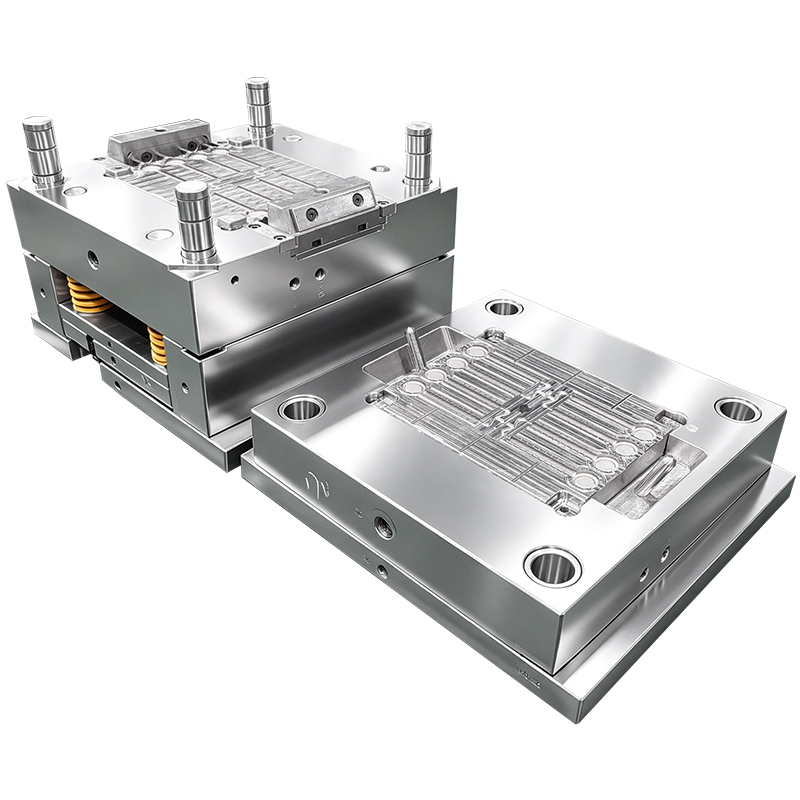

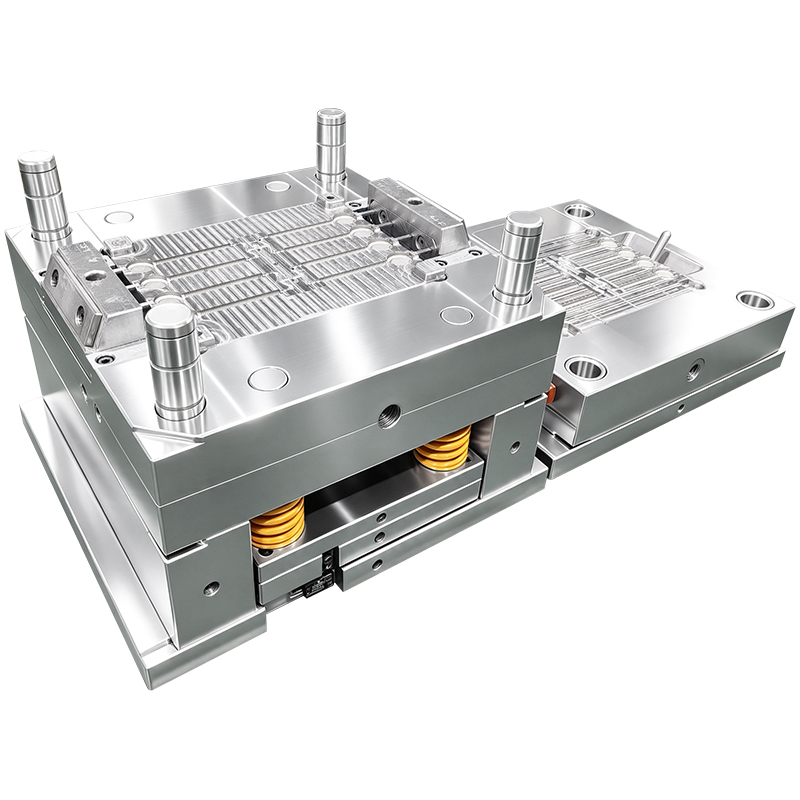

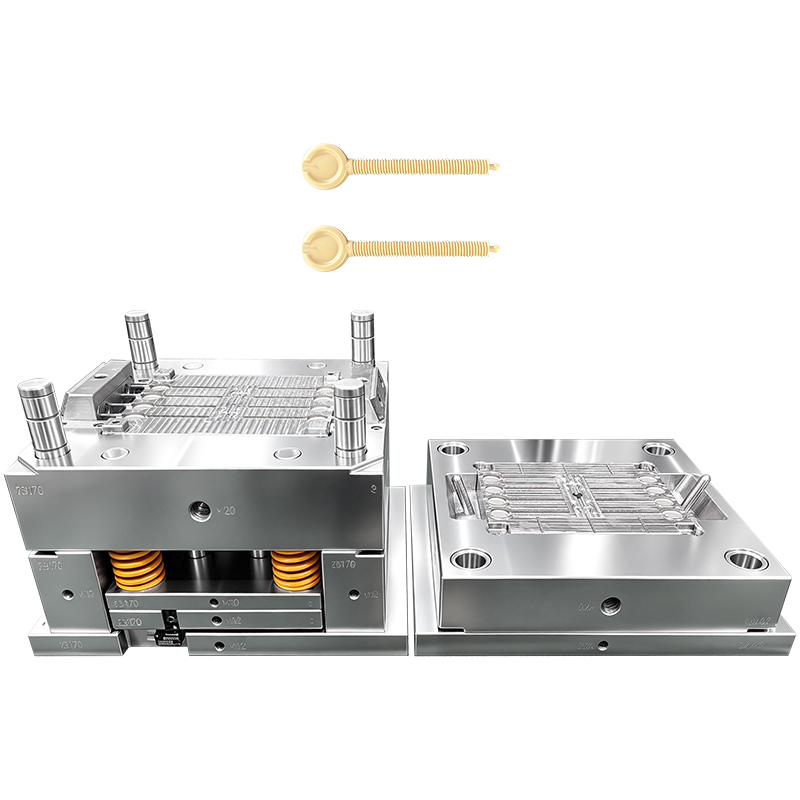

This custom plastic injection mold is specially manufactured for PP medical piston handle. It adopts 1×8 multi-cavity design with large runner side gating system. Mold steel 1.2344 (HRC48-52) provides outstanding heat resistance and long mold service life. Front mold fine polishing & back mold texturing to meet strict medical appearance and assembly requirements. With shrinkage rate 1.016 optimized for PP material, this injection mould delivers consistent dimension and low defect rate during continuous high-volume production.
✅ 1×8 Multi-cavity Layout: 8 parts per shot, greatly boost output and reduce unit cost for mass medical consumable production. ✅ Optimized Side Gating System: Large runner side gating ensures balanced plastic filling, smooth ejection, minimal marks on product surface. ✅ Premium 1.2344 Hot Work Steel: HRC48-52 hardness, excellent thermal fatigue resistance, long mold life for continuous injection cycles. ✅ Custom Surface Finish: Front mold fine polishing; rear mold texturing, satisfy both cosmetic and functional requirements of piston handle. ✅ PP Material Optimized: Shrinkage rate set as 1.016, precise dimension control for medical piston handle. ✅ Strict Quality Control: DFM & Moldflow analysis before machining, CNC / EDM / Wire cut processing, full mold test & sample delivery. ✅ Medical Part Specialized: Mold structure optimized for medical disposable plastic parts, stable molding performance.
| Item | Details |
|---|---|
| Mold Name | PP Piston Handle Injection Mold |

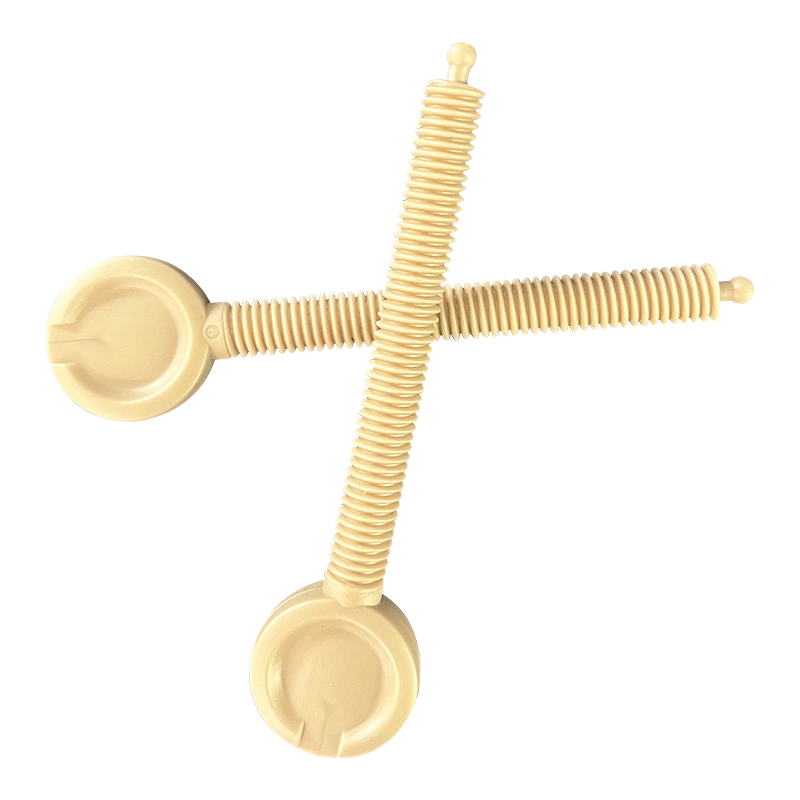

| Product Name | Piston Handle |
| Product Material | PP (Polypropylene) |
| Cavity | 1×8 Cavity |
| Shrinkage Rate | 1.016 |
| Gating Type | Large runner side gating |
| Front Mold Steel | 1.2344, HRC48-52, fine polishing |
| Back Mold Steel | 1.2344, HRC48-52, texturing |
| Processing Technology | CNC machining, EDM, wire cutting, polishing, texture etching |
| Application | Medical disposable piston handle, medical plastic consumables |
| Mold Life | Millions of shots, depends on production running condition |
| Tolerance | ±0.01~0.02mm |
We are an experienced manufacturer focusing on custom medical plastic injection molds. We provide one-stop full service: DFM analysis, mold flow simulation, mold design & fabrication, mold trial, sample testing, after-sales mold maintenance. Our engineering team optimizes mold cooling and ejection structure to shorten cycle time and lower your production cost. Custom development available based on your 2D/3D drawings or physical samples.
