Product Overview
This is a high-precision custom 2-cavity injection mold specially developed for UV-resistant ABS outdoor housing parts. Adopting advanced 3-plate pin point gate structure and high-hardness 1.2344 (H13) mold steel, the mold achieves ultra-small gate marks, stable molding quality, excellent weather resistance adaptability, and long service life. It is the ideal mold solution for outdoor electronic covers, equipment housings, and weather-resistant plastic components.
Mold Basic Specifications
| Item | Specification |
| Product Name | Outdoor UV-proof ABS Housing Mold |
| Plastic Material | ABS with UV Protection / Weather-Resistant ABS |
| Cavity Number | 2 Cavities (1×2 Layout) |
| Shrinkage Rate | 0.5% (1.005) |
| Gating System | Pin Point Gate / 3-Plate Mold (Fine Nozzle) |
| Mold Steel Material | 1.2344 / H13, HRC 48-52 |
| Application | Outdoor equipment housing, weather-resistant plastic cover, outdoor structural parts |
Core Product Advantages
✅ Premium 1.2344 Hot Work Mold SteelAdopts imported 1.2344 (H13) hot work steel with HRC 48-52 high hardness. It features outstanding wear resistance, thermal stability and anti-fatigue performance, effectively resisting corrosion and aging caused by UV-modified ABS. Suitable for long-term mass production with low failure rate and long mold lifespan.
✅ 3-Plate Pin Point Gate for Perfect AppearanceProfessional three-plate mold structure with tiny pin-point gate. The gate automatically breaks during ejection, no manual cutting required. Almost no gate trace on the product surface, ensuring smooth and flawless appearance for high-standard outdoor housing products.
✅ Professional Molding Design for UV-Resistant ABSUV-added ABS is easy to produce silver lines, bubbles and unstable filling. We optimize mold flow path, venting system and cooling balance specifically for UV ABS material. Effectively eliminates common defects and ensures stable outdoor anti-aging performance of finished parts.
✅ High Precision Dimension ControlStrict 0.5% shrinkage rate reservation, high-precision CNC and EDM processing, precise cavity matching. The finished housing parts feature stable size tolerance, good assembly performance and no deformation.
✅ Efficient Cooling & Exhaust SystemUniform circulating water channel design shortens cooling cycle and improves production efficiency. Reasonable venting slots thoroughly exhaust trapped gas, avoiding burning marks, material degradation and surface defects.

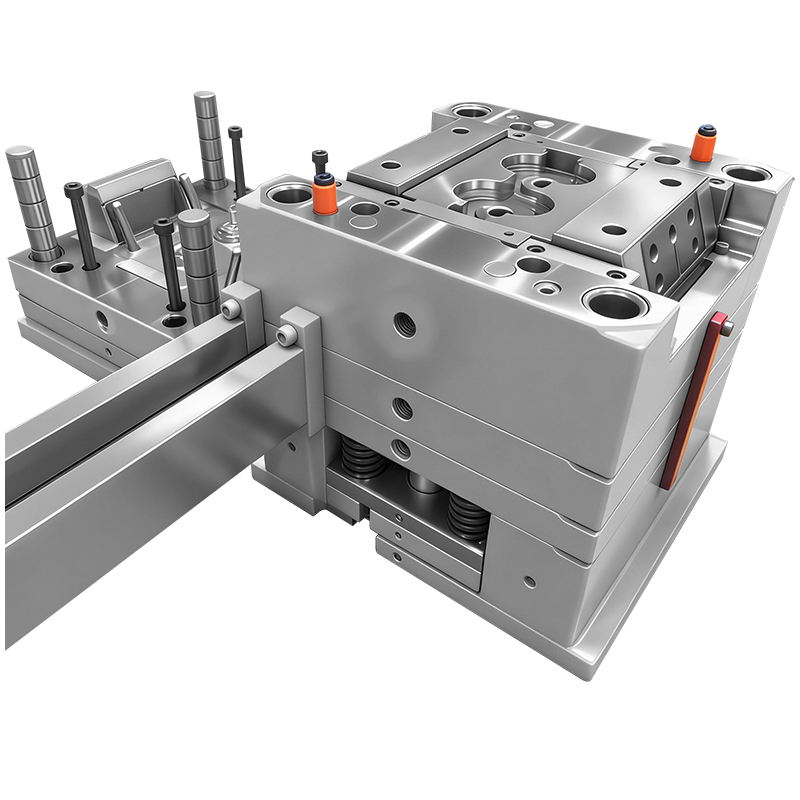

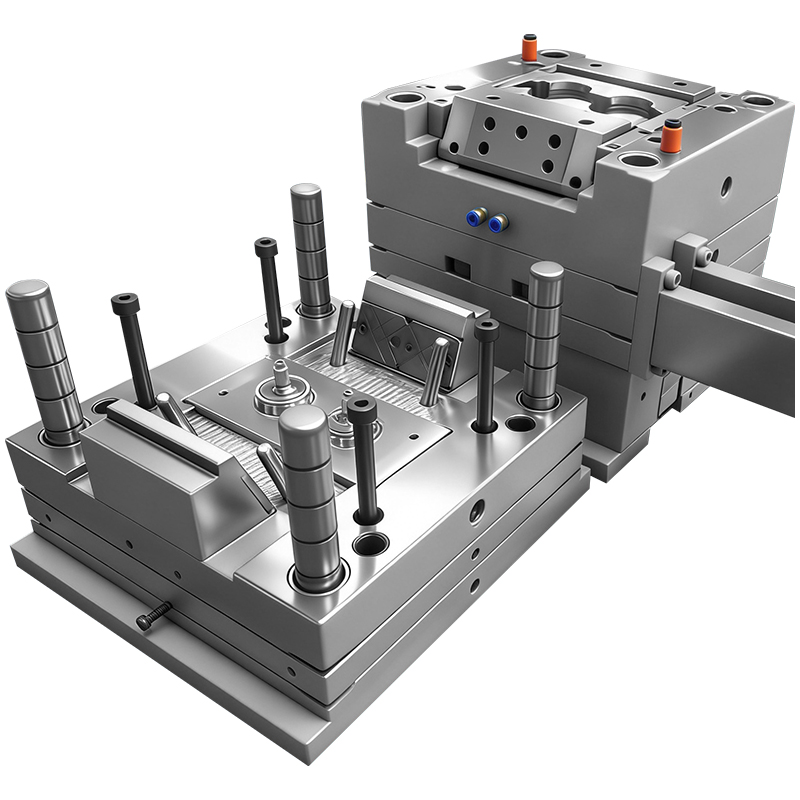

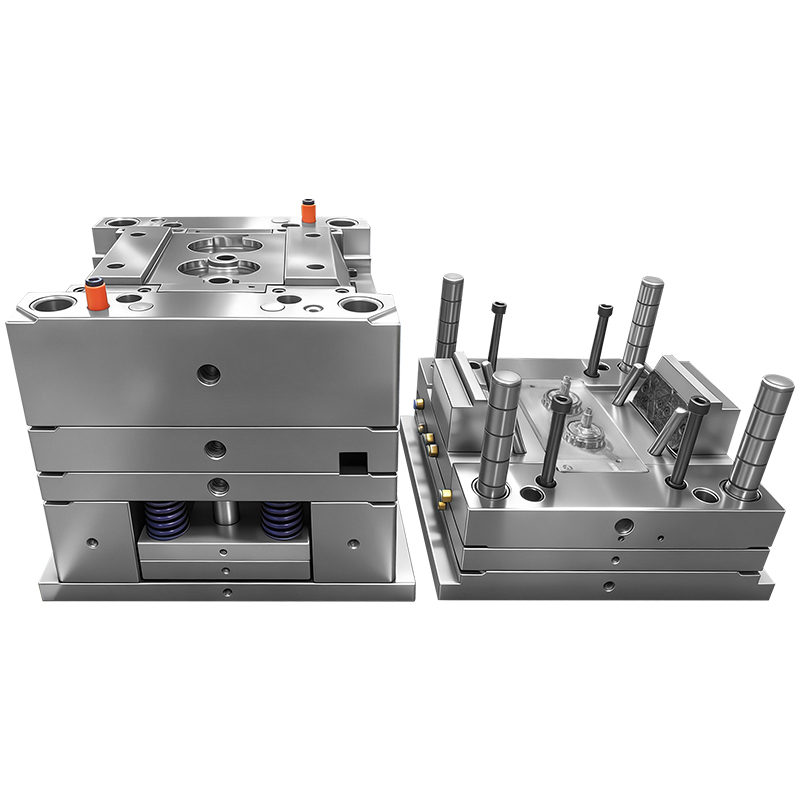

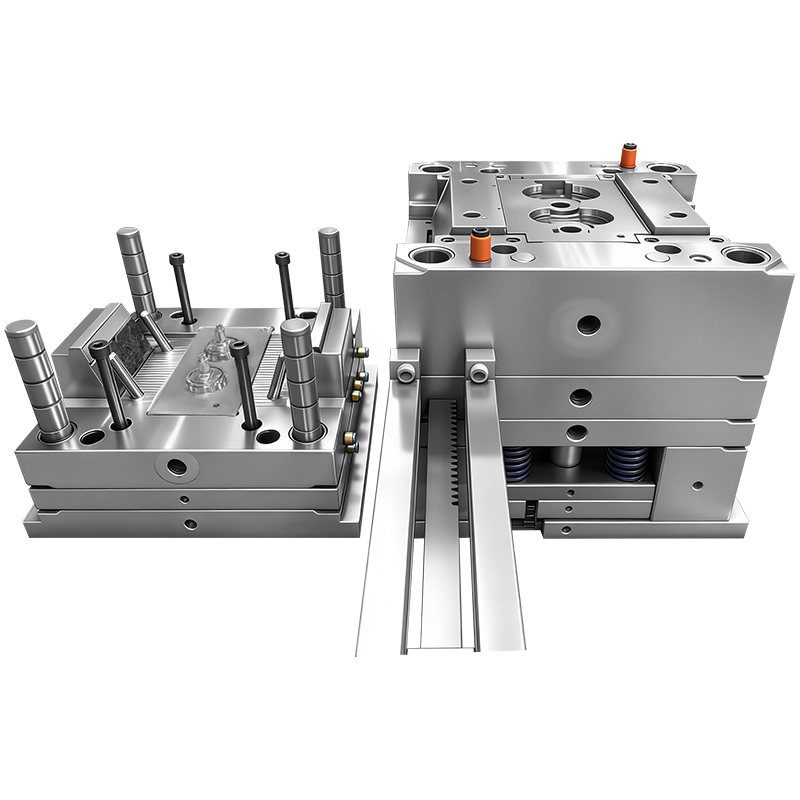

![High Precision 2 Cavity ABS Injection Mold]( "High Precision 2 Cavity ABS Injection Mold")
Production & Service Process
We provide one-stop custom mold service from DFM analysis, mold flow simulation, precision machining, mold trial, sample confirmation to final mold delivery and after-sales maintenance. Every mold is strictly inspected through multiple quality procedures to ensure stable mass production for customers.
Application Scope
Widely used in outdoor electronic housings, outdoor equipment covers, landscape facility parts, weather-resistant structural plastic parts and other UV-proof plastic product fields.
FAQ
Q1: Why choose 1.2344 steel for UV ABS mold?A1: 1.2344 steel has high hardness, strong wear resistance and good thermal stability, which can perfectly adapt to UV-modified ABS material and avoid mold corrosion and short service life during long-term production.
Q2: What are the advantages of 3-plate pin point gate?A2: It realizes automatic gate separation, no manual trimming, ultra-small surface trace, greatly improves product appearance and production efficiency.
Q3: Can you customize according to customer drawings?A3: Yes, we support fully customized mold design and manufacturing according to customers’ 2D/3D drawings, samples and technical requirements.
