YIXUN mold
8480419090

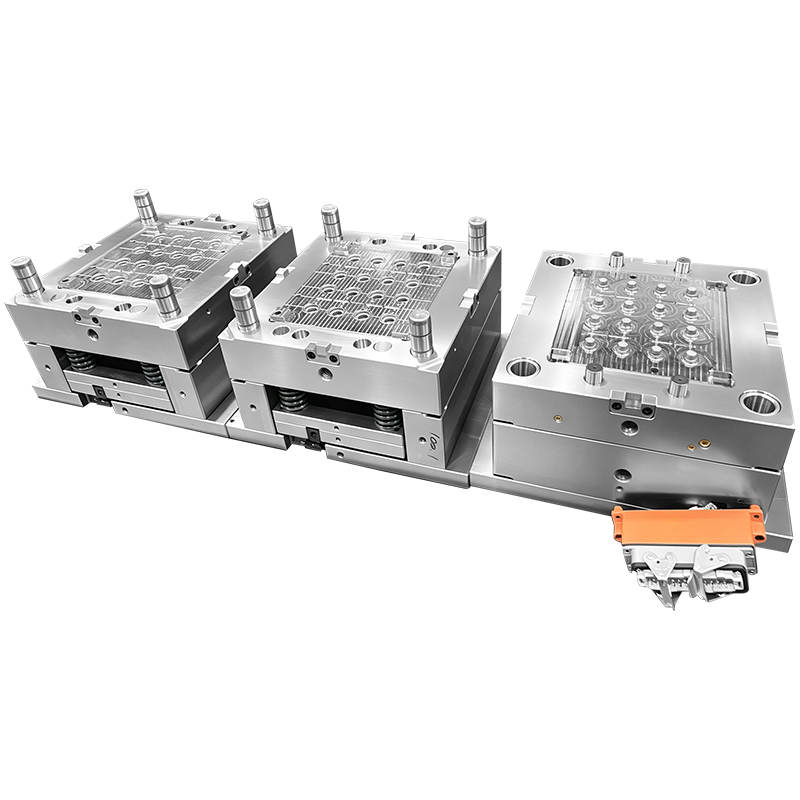

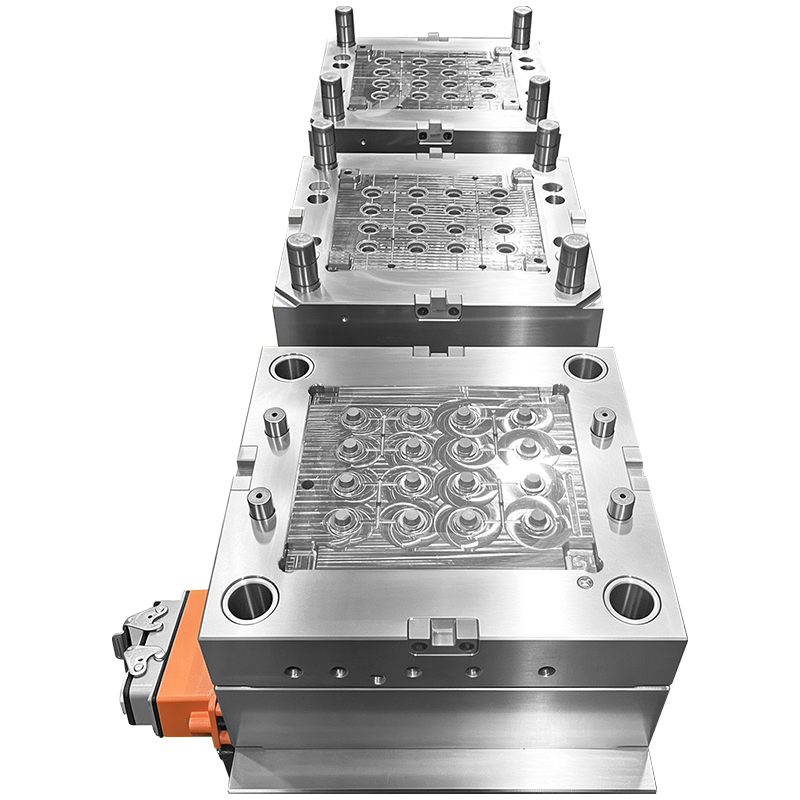

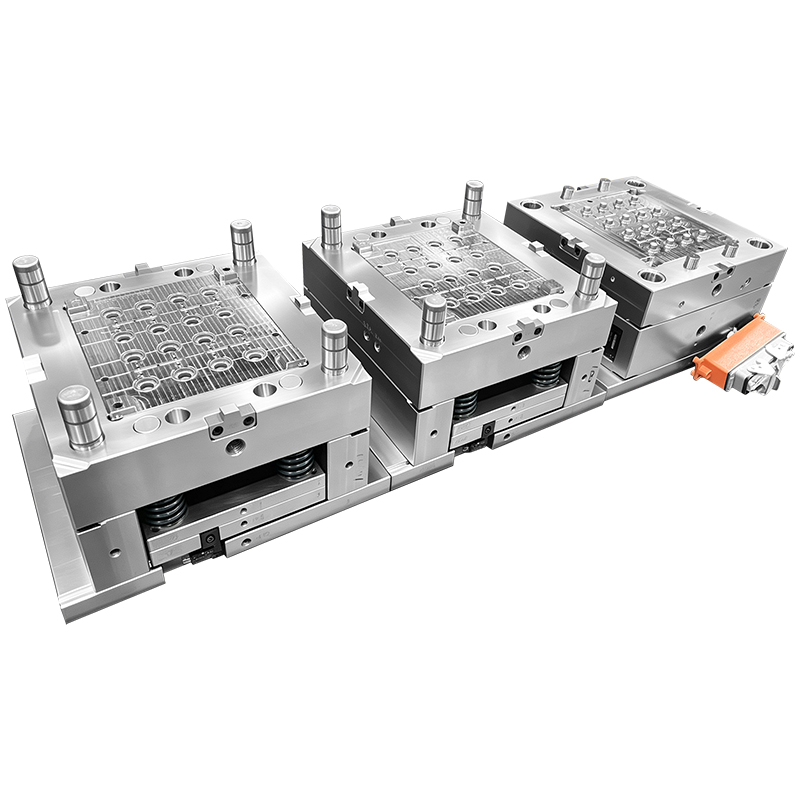

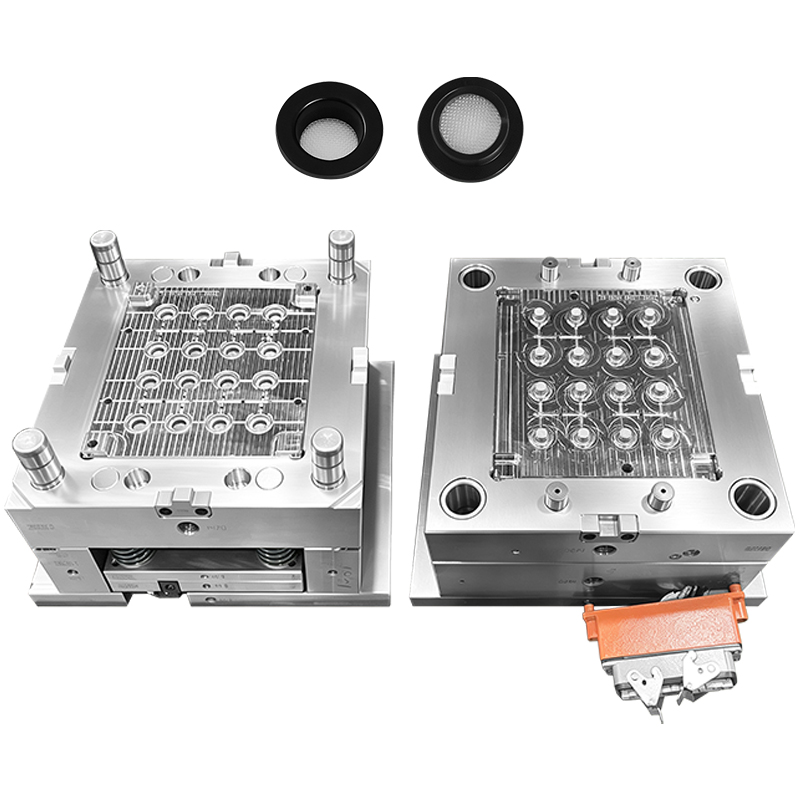

This high-precision multi-cavity injection mold is customized for producing plastic filter caps, widely applied in water purifiers, air filters, shower filters and medical micro-filter components. Adopting a 4×4 16-cavity balanced layout plus full hot runner system, the mold delivers consistent product dimension and surface quality for mass continuous production.
Item | Detailed Parameter |
|---|---|
Mold Name | Plastic Filter Mesh Cover Injection Mold |
Cavity Number | 16 cavities (4 rows × 4 columns) |
Runner Type | Full hot runner system with independent gate per cavity |
Standard Mold Base | S50C steel mold base, precision guide pin & guide sleeve |
Cavity & Core Material | P20 / 718H pre-hardened mold steel, optional S136 for corrosion resistance |
Surface Treatment | Mirror polishing + EDM textured mesh pattern |
Cooling System | Uniform circulating water channels around each cavity for fast cooling |
Ejector System | Spring automatic ejection structure, compatible with full-automatic injection machines |
Applicable Plastic | PP, ABS, PP+filter masterbatch, black modified engineering plastic |
Mold Service Life | 500,000 – 1,000,000 shots |
Matching Machine | Standard horizontal injection molding machine |
High-efficiency 16-cavity design
One single injection cycle produces 16 finished filter caps, greatly reducing unit production cost and boosting daily output for large-batch orders.
Full hot runner structure
No cold runner waste, raw material saving up to 15%–20%. Independent temperature control for each gate eliminates uneven filling, no weld lines or silver streaks on the mesh surface.
Precision mesh texture molding
The fine filter grid on product is processed by high-precision EDM spark erosion. The mold cavity is mirror polished to ensure smooth product outer sealing ring without burrs.
Balanced cooling layout
Dense circulating water channels wrap each cavity to shorten cooling time, shorten molding cycle and stabilize product shrinkage tolerance.
Durable & stable structure
Hardened guide pins and accurate locking positioning structure prevent mold deviation during long-term high-speed production. The built-in spring ejection realizes automatic product demolding without manual operation.

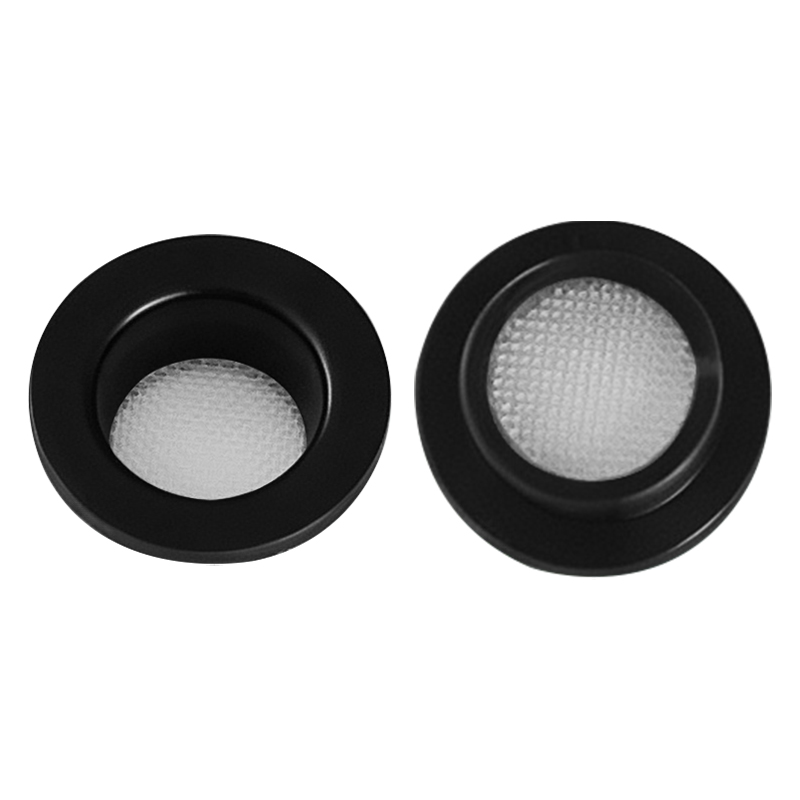

The filter caps molded by this equipment are widely used in multiple industries:
Household water purifier pre-filter housing
Air purifier internal filter support ring
Sanitary shower, small water pump filter accessories
Medical miniature liquid filter parts
Small household appliance water & air filtration components
We support full one-stop customized mold service:
Custom cavity quantity: 4/8/16/32 cavities available according to your output demand
Material upgrade: Corrosion-resistant S136 steel for medical-grade plastic molding
Hot runner brand optional: Domestic high-performance hot runner or international famous brand hot runner system
Modify product size, mesh density and sealing ring structure based on your 2D/3D drawings
Provide mold test sample delivery, on-site mold trial and after-sales maintenance guidance
A: Yes. The mold cavity can match black PP/ABS modified plastic. We adjust hot runner temperature parameters to avoid color unevenness.
A: Standard 16-cavity hot runner filter mold lead time is 25–35 working days after confirming your 3D drawing.
A: We provide free mold trial samples, detailed operation manual, remote technical guidance, and one-year warranty for core mold components.
A: The mold base follows international standard size, which fits most common horizontal injection molding brands. We can adjust mold dimensions as per your machine model.
