Common Mold Processing Machines And Their Differences

1. CNC Milling Machines

• Function: Used for cutting and shaping molds from metal or plastic blocks.

• Advantages:

• High precision and repeatability

• Suitable for complex 3D geometries

• Works with various materials (steel, aluminum, graphite)

• Limitations: Slower for large-scale production compared to EDM or laser cutting.

2. Electrical Discharge Machining (EDM)

• Types:

• Wire EDM: Uses a thin wire to cut conductive materials with high precision.

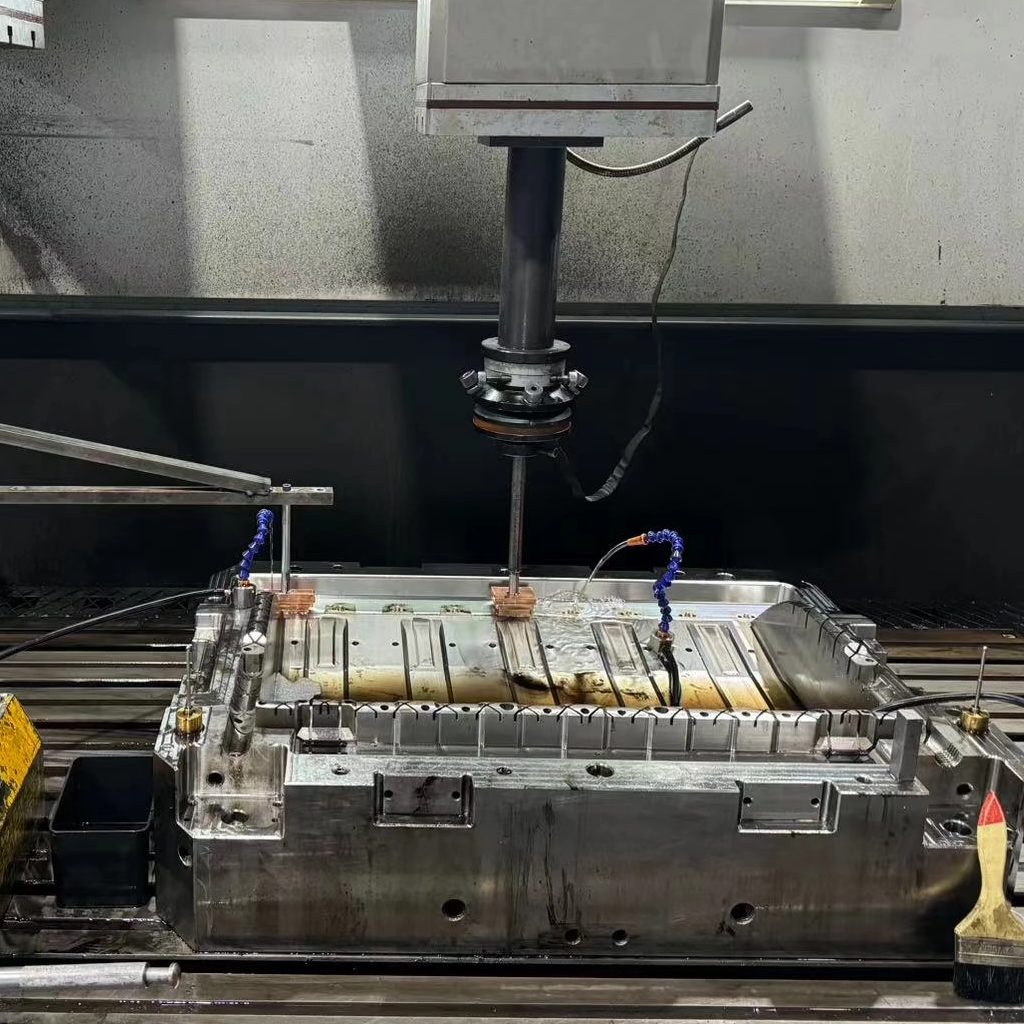

• Sinker EDM (Ram EDM): Uses an electrode to create cavities or intricate shapes.

• Advantages:

• Can machine hardened metals without tool wear

• Excellent for fine details and deep cavities

• Limitations: Slower than milling, requires conductive materials.

3. Lathe Machines (CNC Turning)

• Function: Primarily used for cylindrical or rotational mold components.

• Advantages:

• Fast production of symmetrical parts

• Good surface finish

• Limitations: Limited to rotational parts, not suitable for complex 3D molds.

4. Grinding Machines

• Function: Used for finishing molds to achieve ultra-smooth surfaces.

• Types:

• Surface grinding (flat surfaces)

• Cylindrical grinding (round parts)

• Advantages:

• Extremely high precision (micron-level accuracy)

• Improves mold lifespan by reducing friction

• Limitations: Only for final finishing, not for rough shaping.

5. Laser Cutting Machines

• Function: Used for cutting or engraving mold components, especially for prototypes.

• Advantages:

• No physical tool contact (reduces wear)

• Fast and precise for thin materials

• Limitations: Not ideal for thick metal molds, mostly used for softer materials.

6. 5-Axis CNC Machines

• Function: Advanced milling with multi-directional cutting ability.

• Advantages:

• Can machine complex shapes in a single setup

• Reduces production time

• Limitations: Higher cost and requires skilled operators.

Key Differences Summary

Conclusion

Choosing the right mold processing machine depends on factors like material hardness, required precision, production speed, and cost. CNC milling and EDM are most common for high-precision molds, while grinding ensures a perfect finish. For mass production, 5-axis CNC or high-speed milling may be preferred.
