Choosing The Right Gate Type in Injection Molding: A Practical Guide

What is a Gate in Injection Molding?

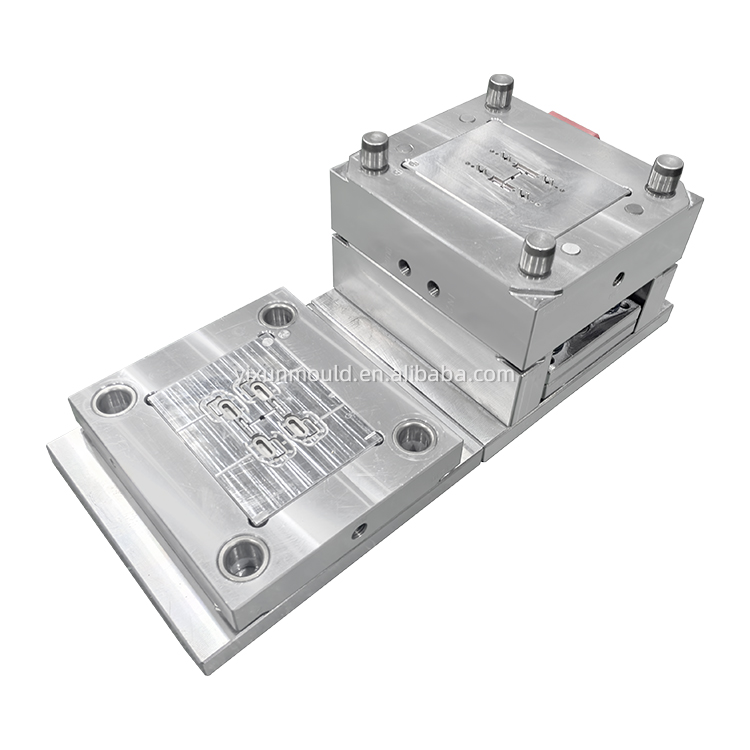

The gate is the final entry point where molten plastic enters the mold cavity. It controls:
✔ Flow rate – Prevents jetting or incomplete filling.
✔ Pressure transfer – Ensures proper packing to avoid sink marks.
✔ Part separation – Determines how the part detaches from the runner.
✔ Aesthetic & structural quality – Affects weld lines, stress points, and surface finish.

A poorly designed gate can lead to defects like flow marks, weak weld lines, or excessive trimming work.

Common Gate Types & Their Applications

1. Direct Gate (Sprue Gate)

• Design: Large opening directly into the part.

• Pros: Low pressure loss, good for thick parts.

• Cons: Leaves a visible mark, requires manual trimming.

• Best for: Thick-walled parts (e.g., buckets, containers) made of PP, ABS, or PE.

2. Edge Gate (Side Gate)

• Design: Rectangular gate at the parting line.

• Pros: Simple, adjustable, cost-effective.

• Cons: May cause weld lines.

• Best for: Flat parts (e.g., electronic housings, lids).

3. Pinpoint Gate (Point Gate)

• Design: Small-diameter gate (0.5–1.5mm), auto-breaks.

• Pros: Minimal marks, good for automation.

• Cons: Requires a 3-plate mold (higher cost).

• Best for: High-precision parts (e.g., medical devices, transparent lenses).

4. Submarine Gate (Tunnel Gate)

• Design: Angled gate that auto-severs during ejection.

• Pros: No visible gate mark, no trimming needed.

• Cons: Higher mold complexity.

• Best for: Hidden gates (e.g., automotive interiors, consumer goods).

5. Fan Gate

• Design: Wide, thin gate to distribute flow evenly.

• Pros: Reduces stress and jetting.

• Cons: Difficult to trim.

• Best for: Wide, thin-walled parts (e.g., panels, covers).

6. Hot Runner Gate

• Design: Heated nozzle keeps plastic molten, no cold runner.

• Pros: No waste, faster cycles, best for high-volume production.

• Cons: Expensive, complex maintenance.

• Best for: Mass production (e.g., bottle caps, medical parts).

How to Choose the Right Gate?

Consider these factors:
Part design – Does it need a hidden gate? Is it thick or thin-walled?
Material – High-flow materials (e.g., PP) suit larger gates; brittle materials (e.g., PC) need low-stress gates.
Aesthetics – If surface finish is critical, use pinpoint or submarine gates.
Production volume – Hot runners save material for large batches.
Mold cost – 3-plate molds (for pinpoint gates) are more expensive than 2-plate molds.

Final Tips

✔ Use Moldflow simulation to test gate placement and avoid defects.
✔ For transparent parts, prioritize gates with minimal marks (e.g., pinpoint or hot runner).
✔ If automation is key, choose auto-cutting gates (submarine or pinpoint).

By selecting the right gate, you can improve part quality, reduce waste, and lower production costs.
