Material: High-performance engineering plastic (PA66/PPO blend) for excellent heat resistance, chemical resistance, and durability.

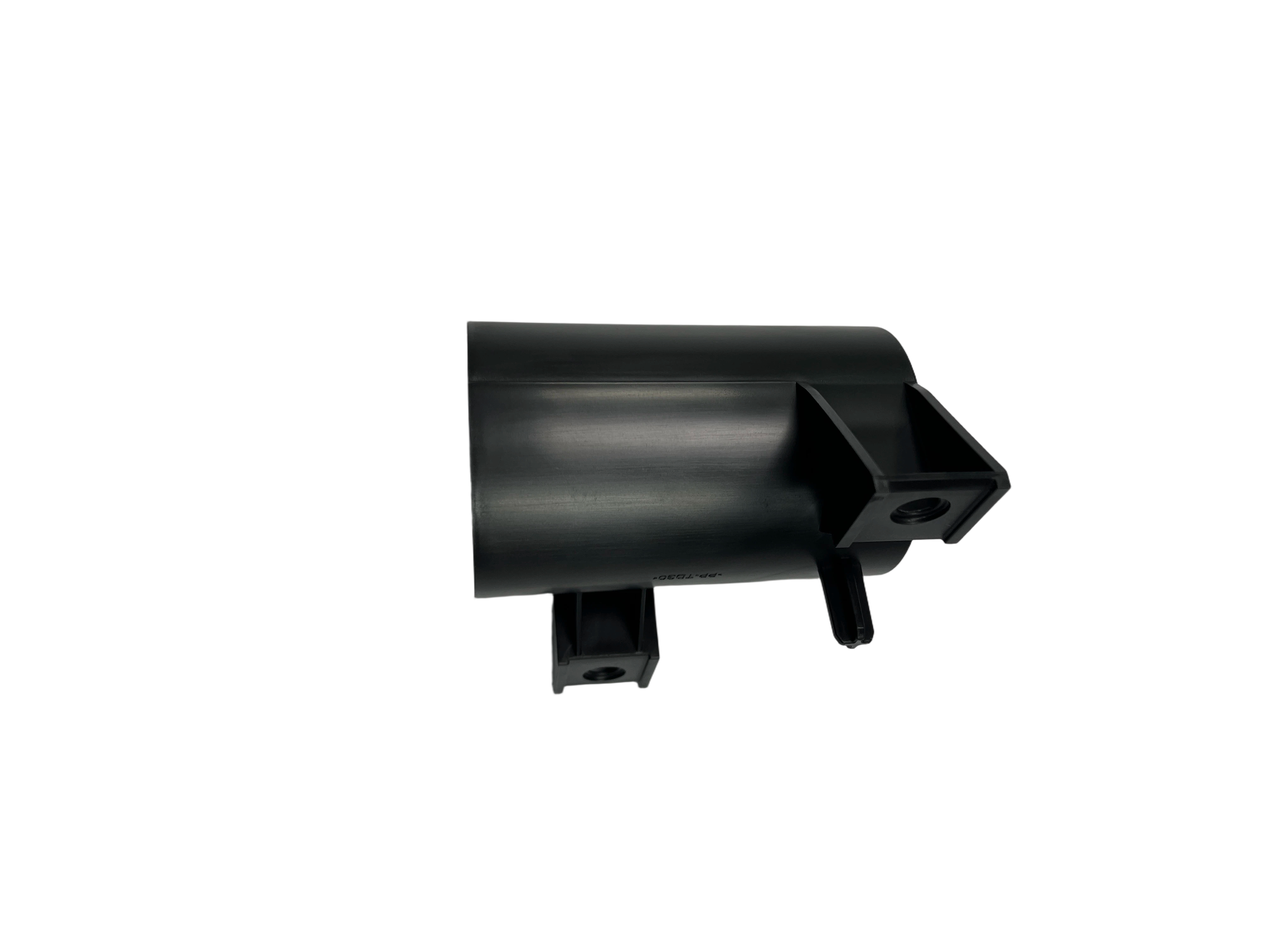

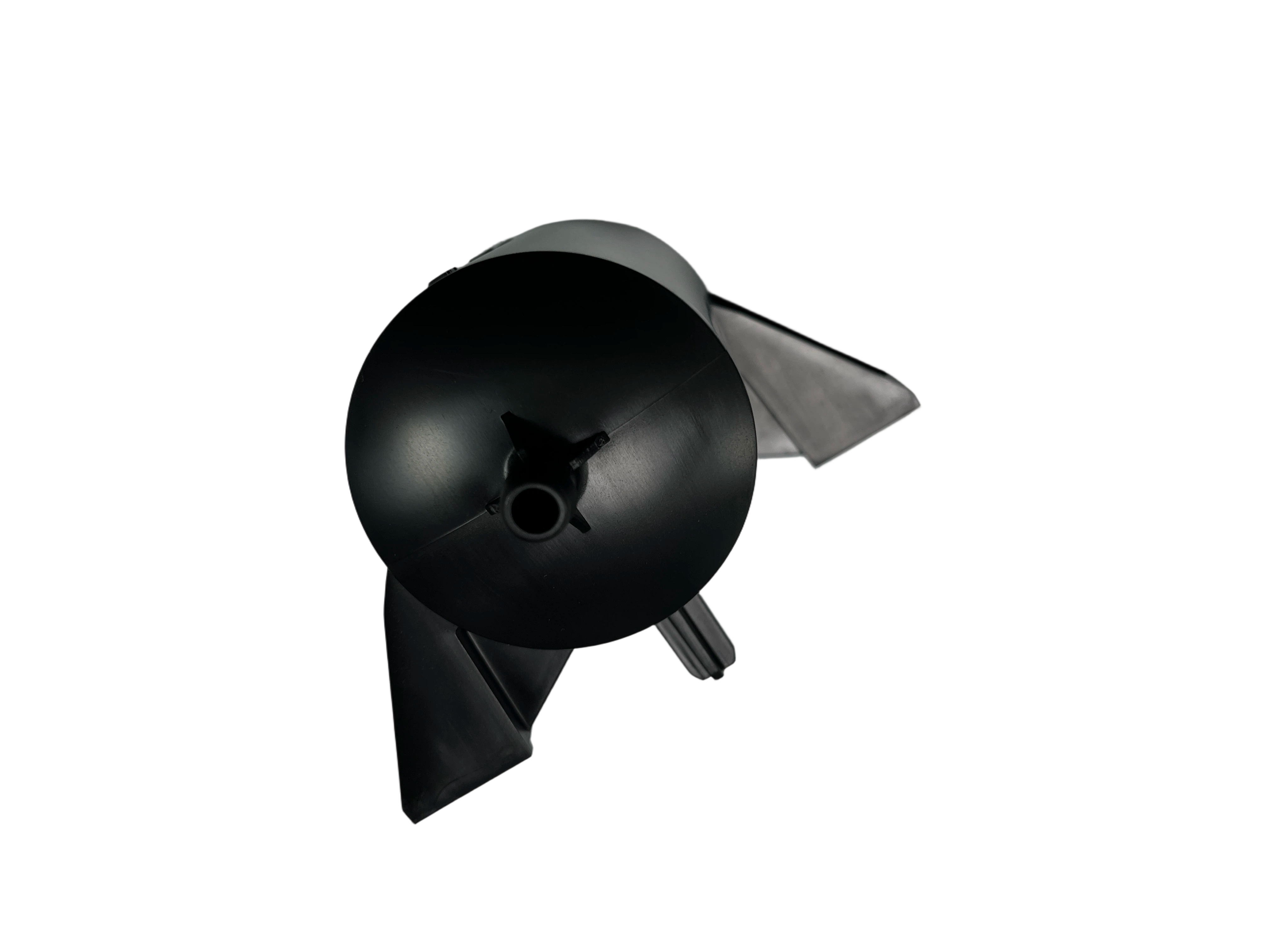

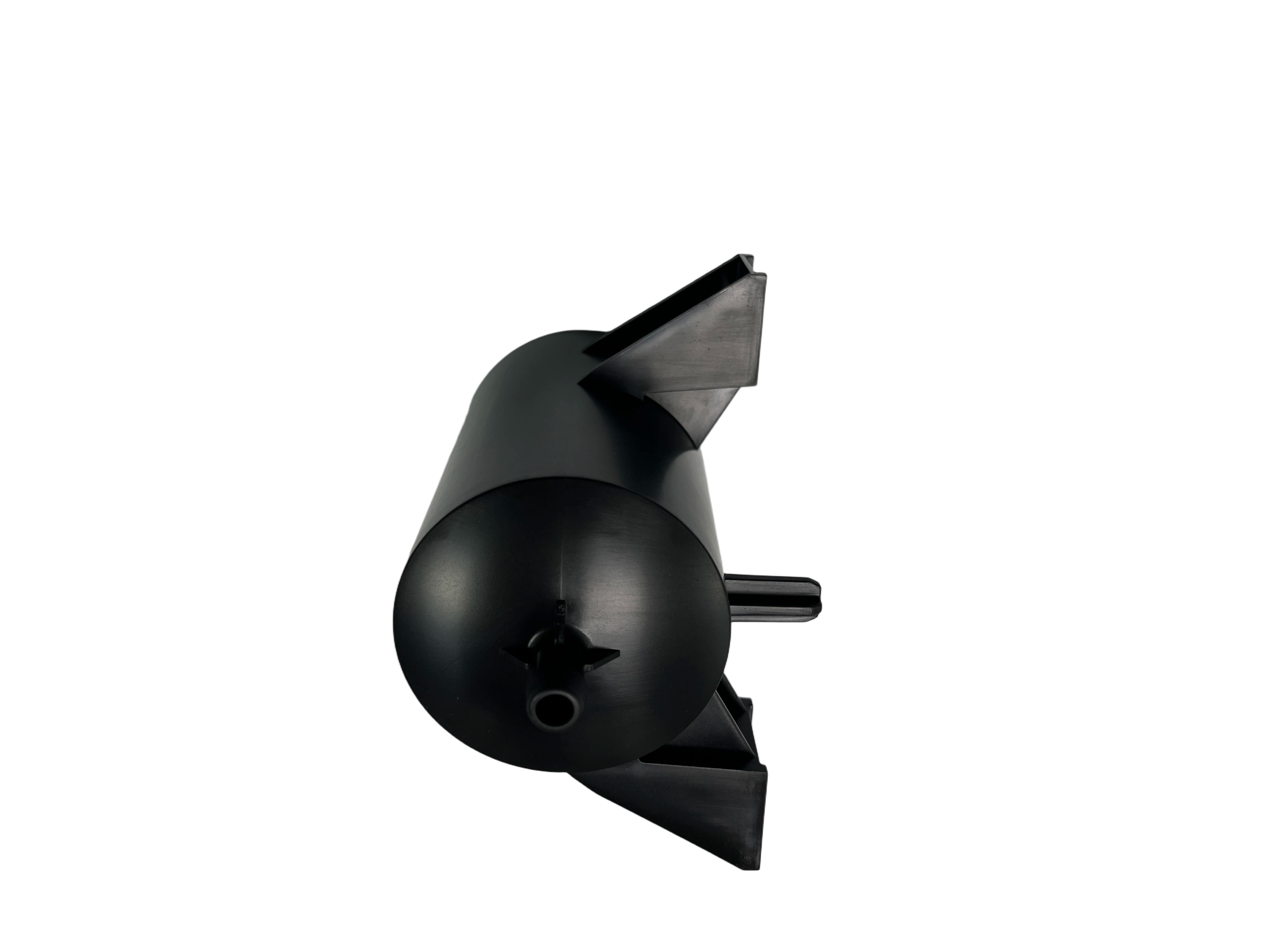

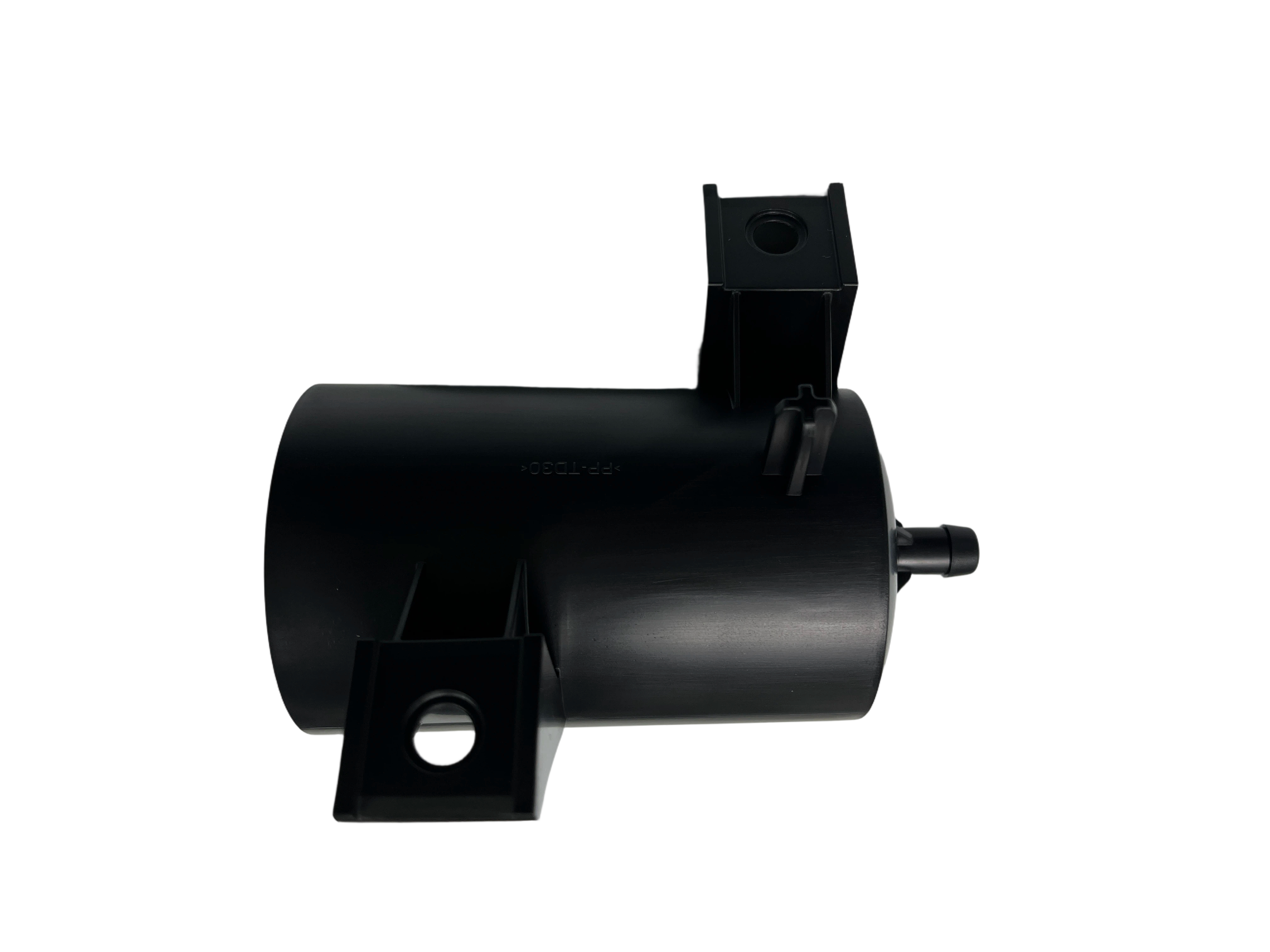

Structure: Cylindrical main body with two mounting wings for secure installation; top barbed port for quick hose connection; built-in one-way valve mechanism.

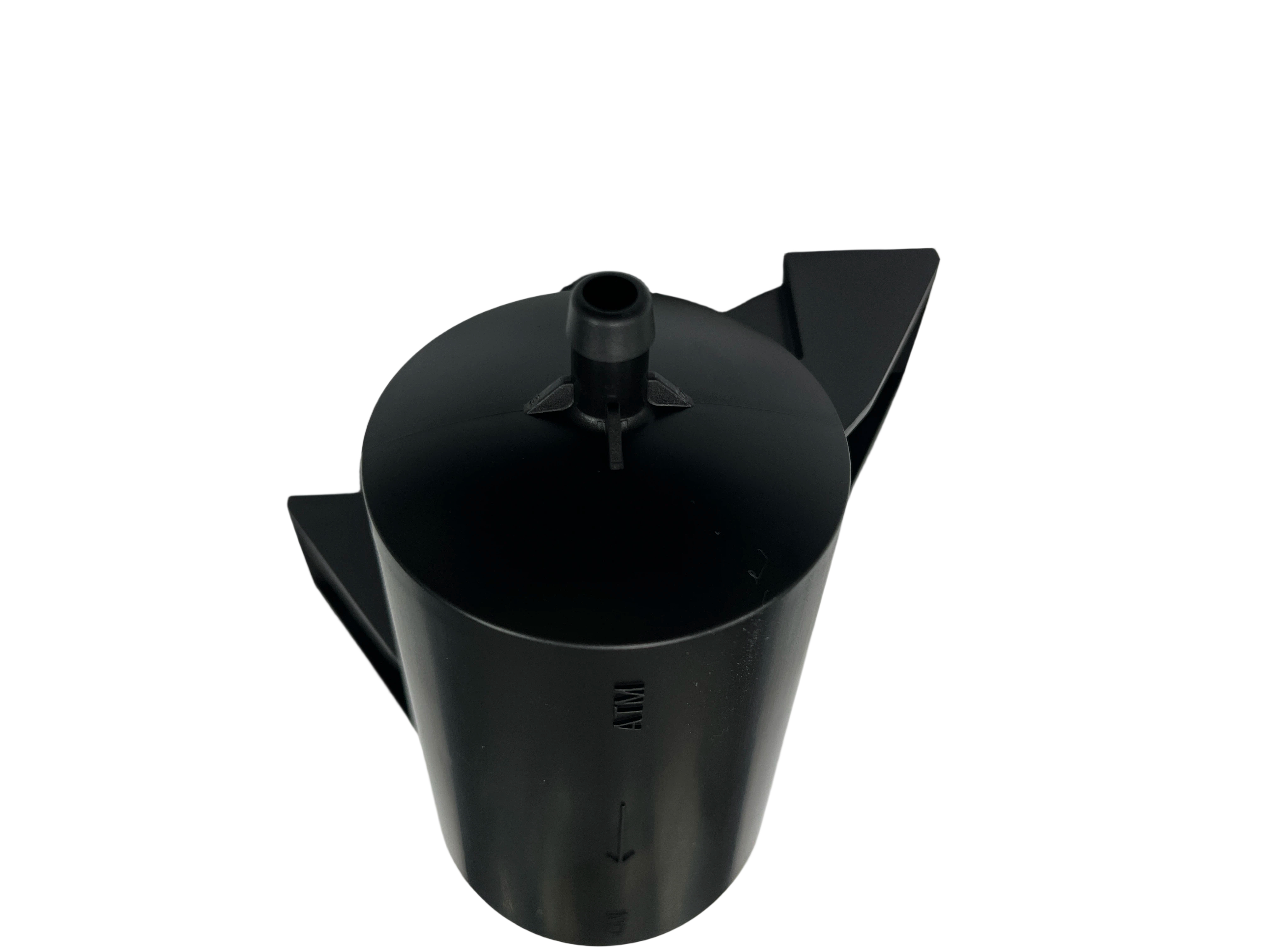

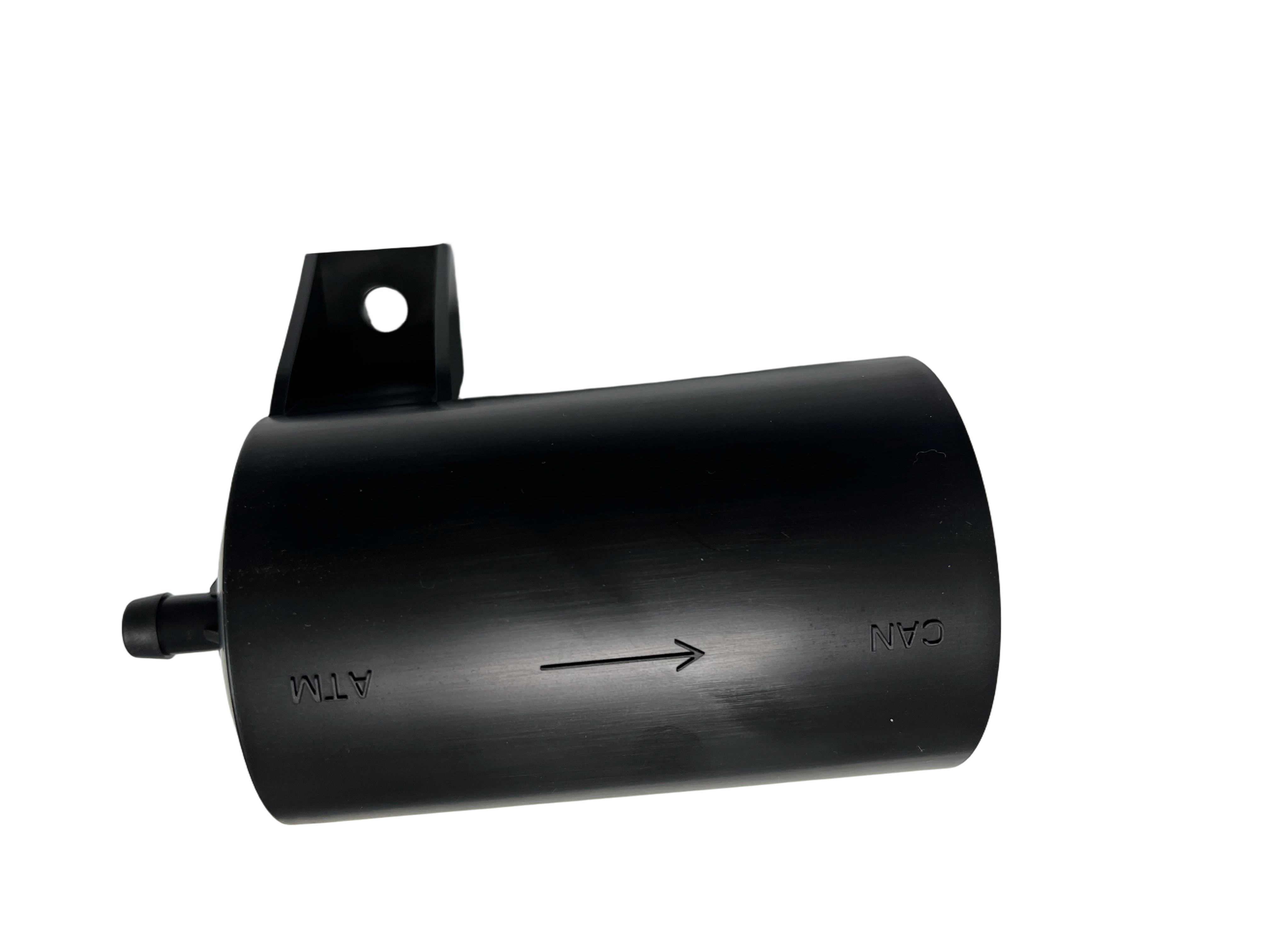

Markings: Embossed "ATM" (Air Tight Mechanism) and downward arrow to indicate the approved flow direction (top to bottom), ensuring correct installation.
Surface Finish: Matte black finish for anti-glare and wear resistance, suitable for harsh under-hood environments.
| Advantage | Details |
|---|---|
| Precision One-Way Flow Control | Ensures unidirectional fluid/air flow, preventing backflow and maintaining system pressure stability. |
| Durable Engineering Plastic | Resists high temperatures, automotive fluids (oil, fuel, coolant), and vibration, extending service life. |
| Easy Installation | Integrated mounting tabs and barbed hose port allow for quick, tool-free connection to hoses and vehicle frames. |
| Cost-Effective OEM Solution | Injection-molded design enables mass production with consistent quality, reducing manufacturing costs for automotive clients. |
| Compact & Lightweight | Small footprint and low weight optimize vehicle fuel efficiency and simplify integration into tight engine bays. |
| Parameter | Specification |
|---|---|
| Product Name | Automotive Plastic Check Valve / Air Reservoir |
| Material | PA66 (reinforced with glass fiber, optional) / PPO / PP |
| Color | Matte black (customizable) |
| Flow Direction | Top inlet → Bottom outlet (indicated by downward arrow) |
| Operating Temperature | -40°C to 120°C |
| Pressure Rating | Up to 2.5 bar (customizable for higher pressure applications) |
| Port Size | Standard 8mm/10mm barbed port (customizable) |
| Mounting Type | Two integrated plastic mounting wings with screw holes |
| Mold Cavity | 1-cavity / 2-cavity injection mold (OEM configurable) |
| Certification | ISO 9001, IATF 16949 (automotive grade) |
Windshield Washer Systems: Prevents washer fluid from flowing back into the reservoir, ensuring consistent spray pressure.
Engine Ventilation Systems: Manages crankcase ventilation and prevents oil vapor backflow.
Brake System Components: Acts as an air reservoir or check valve for pneumatic brake systems (commercial vehicles).
HVAC Systems: Controls air flow in vehicle heating and cooling systems.
Fuel System Components: Assists in vapor recovery and prevents fuel backflow.
Custom Design: Modify dimensions, port sizes, mounting tabs, or internal valve mechanisms based on your 2D/3D drawings or samples.
Material Selection: Choose from PA66, PPO, PP, or other engineering plastics to meet temperature, chemical resistance, and cost targets.
Branding & Markings: Customize embossed logos, part numbers, or flow direction indicators.
Mold Manufacturing: In-house mold design and production, with options for single or multi-cavity molds to optimize production efficiency.
Quality Assurance: Full inspection and testing (leakage, pressure, durability) to meet IATF 16949 automotive standards.
