Anti-slip Anti-move One-piece injection molding durable and waterproof base parts mould

If your washing machine drifts, shakes and creates loud banging noises during high-speed spin cycles, this injection-molded stabilizing foot pad is a cost-effective, high-yield solution for household vibration reduction and anti-slip fixation. Beyond its practical household functions, its structural design is highly optimized for injection molding mass production, balancing product usability, material cost, mold manufacturability and production efficiency perfectly. This blog will break down its user advantages together with professional injection mold development & manufacturing logic.

Part 1: Product Core Advantages for End Users

1. Anti-shift & anti-slip positioningThe enlarged circular base increases contact friction with tile, wood and marble floors. The central positioning hole locks onto the original adjusting screw of washing machine feet, preventing falling off and lateral displacement during strong vibration.

2. Vibration absorption & noise suppressionRadial reinforcing ribs form a buffer support structure to disperse vertical impact force from the washer, weaken resonance transmission to the floor, and effectively reduce disturbance to downstairs neighbors during late-night laundry.

3. Floor surface protectionIsolate metal machine legs from direct contact with the ground to avoid indentations, scratch marks and rust stains on flooring materials, especially friendly to rental houses and high-end decorated rooms.

4. Convenient cleaning & appliance maintenanceThe pad lifts the washer a small distance off the ground, allowing robot vacuums to clean underneath the equipment, prevent moisture accumulation and rust on the washer bottom frame.

5. Universal & tool-free installationNo adhesive or drilling required; directly fit the center hole onto original machine feet screws. One set of 4 pieces matches standard washer/dryer four-point support, compatible with most mainstream household laundry equipment.

Part 2: Structural Design Optimized for Injection Molding Production

2.1 Integral one-shot molding structure

The entire foot pad is finished via single-cavity or multi-cavity one-time injection molding, no secondary assembly or gluing procedures.

• Mold opening, plastic injection, cooling ejection complete the finished product in one cycle, greatly lowering post-processing labor cost and defective rate.

• No assembly gaps, so the product has better structural integrity and compression resistance under long-term load.

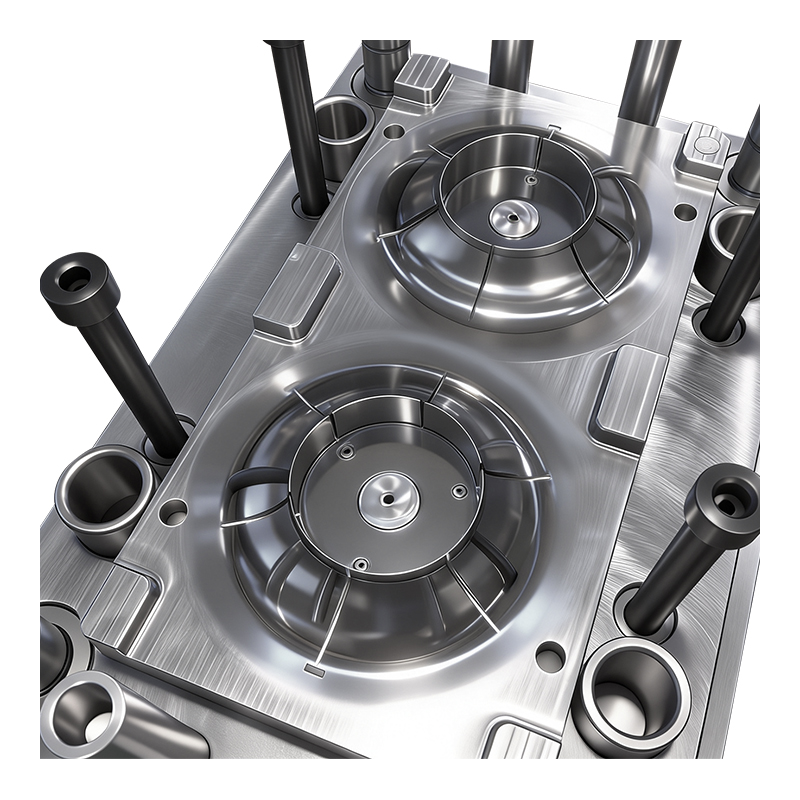

2.2 Radial rib layout mold design logic

The six radial reinforcing ribs are not only for mechanical strength but also tailored for molding:

1. Stress dispersion: Ribs transfer pressure from the central boss to the outer ring base, avoiding local sink marks, shrinkage and deformation on thick wall areas during plastic cooling.

2. Wall thickness control: Thick central column is split by ribs to reduce maximum wall thickness, shorten cooling time of each molding cycle and boost daily output.

3. Uniform material flow: During melt injection, plastic flows evenly along each rib channel, preventing short shot, air trapping and incomplete filling inside the mold cavity.

4. Demolding convenience: All ribs are designed with standard draft angle, so the product can be smoothly ejected by the thimble system without scratching or sticking to the mold core.

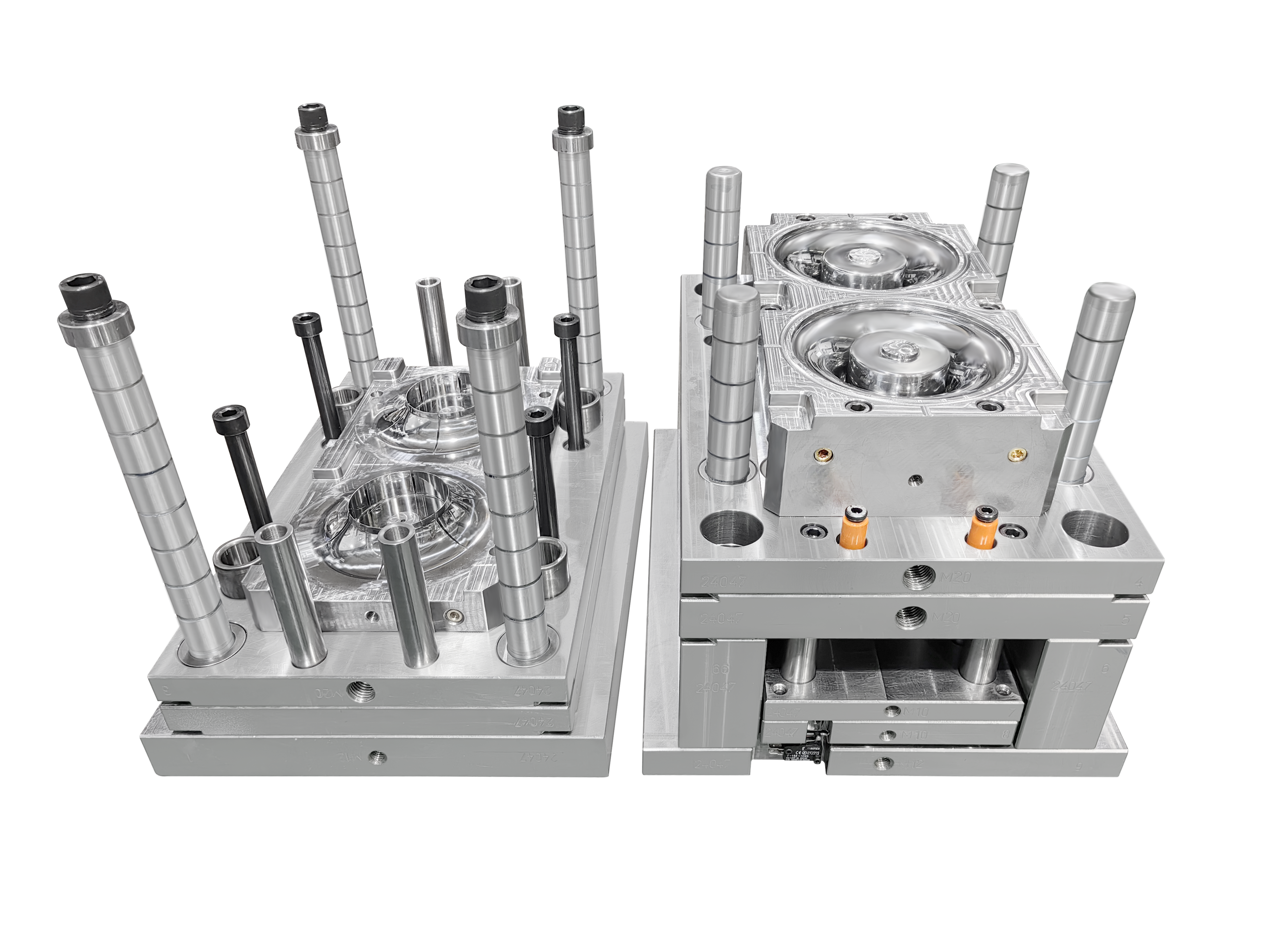

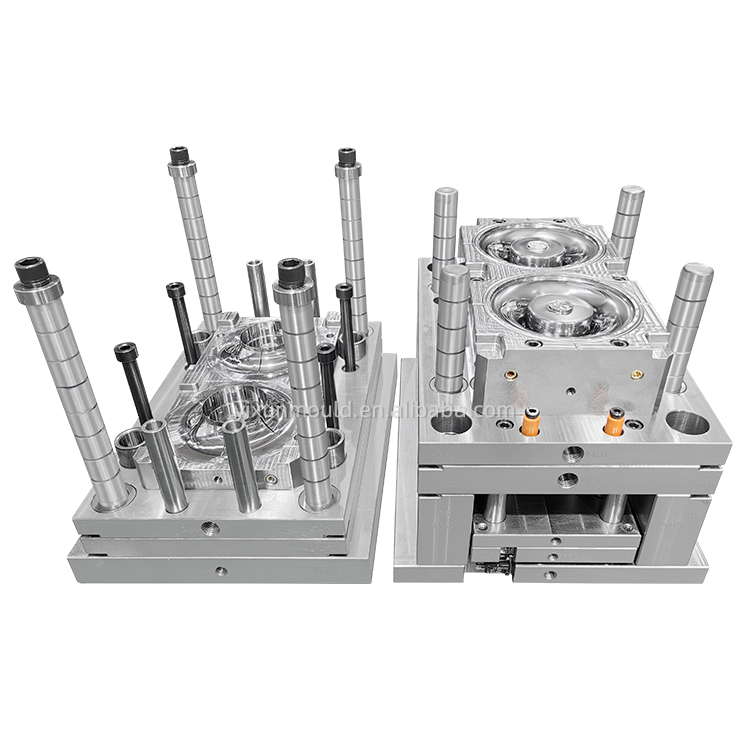

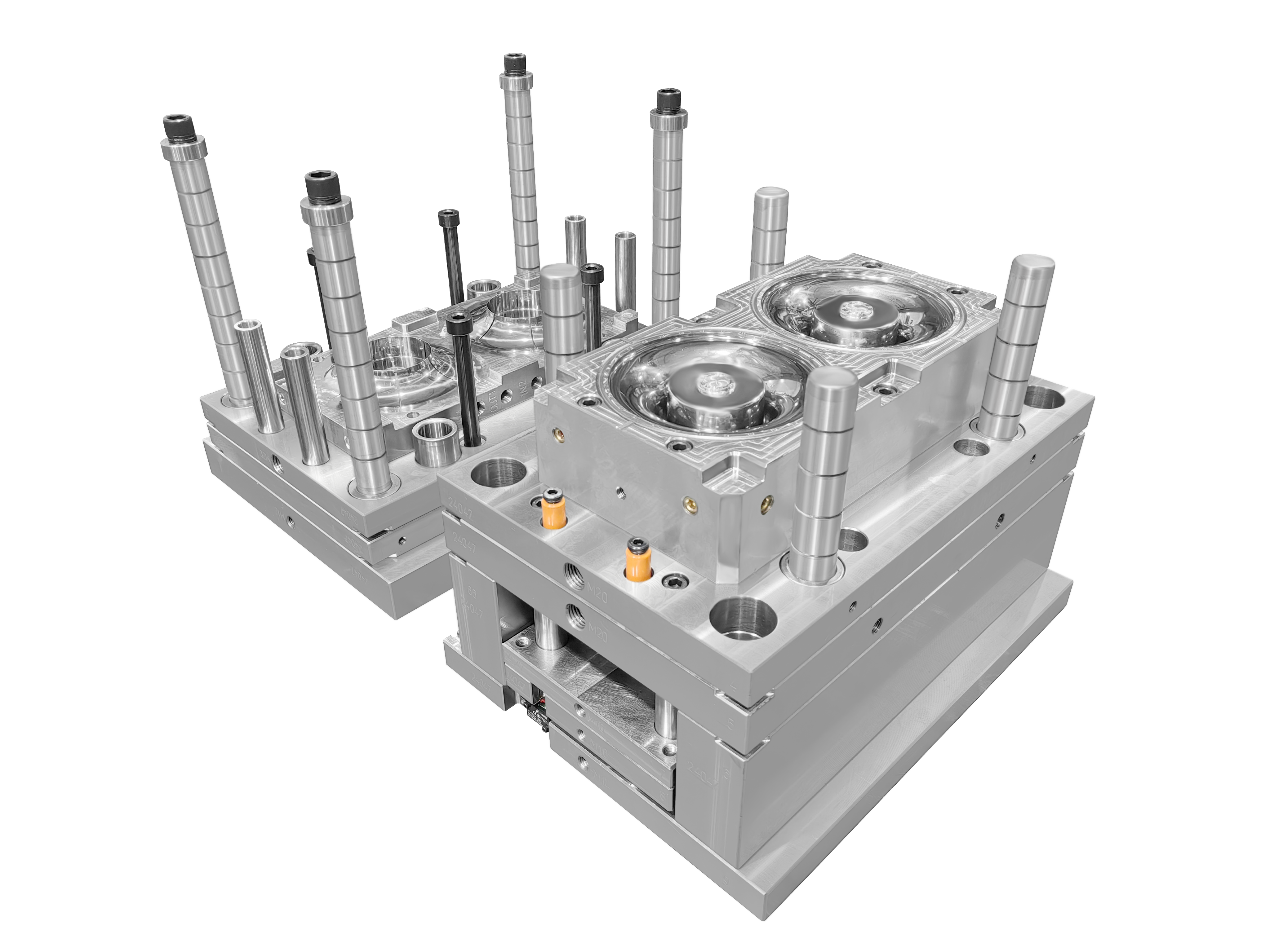

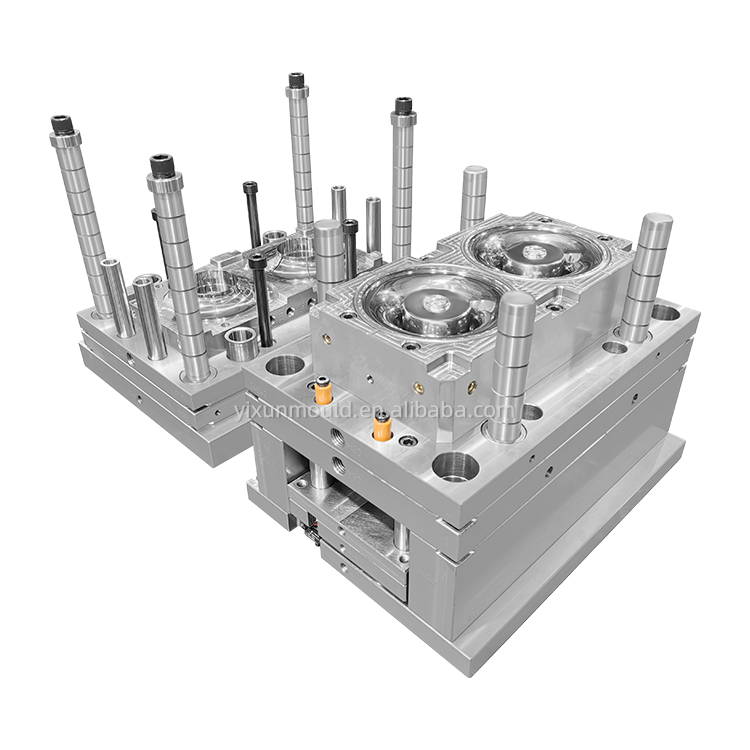

2.3 Key mold structure configuration

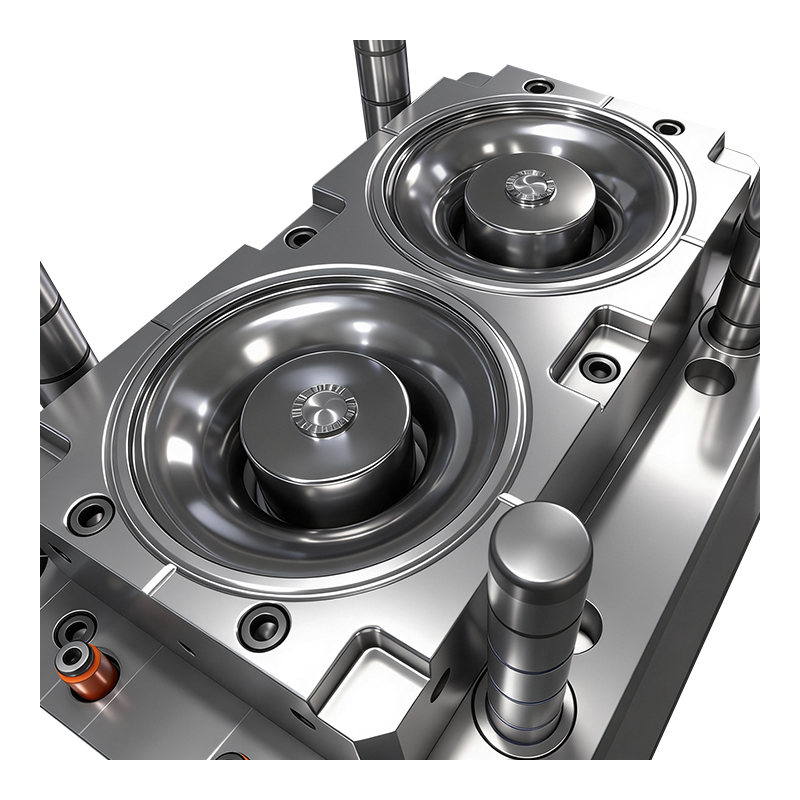

1. Cavity selectionFor bulk order mass production: adopt 4-cavity / 8-cavity multi-cavity mold, one injection shot produces multiple finished pads to improve production efficiency. For small batch trial order: single cavity mold to cut initial tooling expense.

2. Gate system recommendationAdopt side gate or submarine hidden gate at the edge of the outer base. The gate trace is small and does not affect bottom anti-slip contact surface; automatic gate shearing during ejection saves manual trimming work.

3. Surface treatment of mold cavityThe mold surface can be made with matte etching texture directly, so the finished part comes out with frosted anti-slip texture without secondary painting or printing, simplifying post-treatment.

4. Ejector systemArrange ejector pins on the bottom of the outer disc and the end of each rib to ensure balanced ejection, prevent product warpage during demolding.

Part 3: Two Main Material Solutions & Corresponding Molding Processes

Option A: PP Polypropylene Single Material Injection Mold

• Material merit: Low material cost, excellent waterproof and moisture-proof performance, strong compression resistance, suitable for damp balcony laundry environments.

• Mold requirement: Standard single-color injection mold, low mold steel grade requirement, short mold lead time, lowest overall production cost.

• Applicable scenario: Basic version for entry-level wholesale and supermarket bulk sales.

Option B: Hard PP Skeleton + TPE Soft Rubber Double Injection Overmold

• Product upgrade: The bottom layer is wrapped with elastic TPE material, greatly enhancing friction coefficient and shock absorption effect.

• Mold technology: Need dual injection two-color rotary mold or secondary overmold fixture. First inject the rigid PP main body, then place the semi-finished part into the second mold cavity to inject soft TPE bottom layer.

• Advantage: Higher added value of finished goods, stronger product competitiveness for mid-to-high end e-commerce and cross-border sales.

Part 4: Production & Quality Control Points from Mold Perspective

1. Wall thickness consistencyMold design strictly controls wall thickness within 1.5~3mm to eliminate sink marks, bubbles and warpage caused by uneven plastic cooling.

2. Shrinkage compensationReserve PP material shrinkage rate in mold cavity size in advance to guarantee dimensional accuracy of the central mounting hole, ensuring perfect fit with standard washing machine foot screws.

3. Mold wear resistanceThe central hole core pin is easy to wear during long-term mass production, so the mold adopts insertable replaceable core pins, convenient for later maintenance and part replacement without remaking the whole mold.

4. Cycle efficiency optimizationThe rib structure reduces plastic usage and cooling duration. With a standard injection molding machine, the molding cycle can be controlled within 25~40 seconds per shot, supporting large-volume order delivery.

Part 5: Conclusion

This washing machine anti-vibration foot pad is a typical mature injection molding consumer accessory. Its geometric structure is engineered to solve real household pain points while fully complying with injection mold manufacturing principles: simple mold structure, reasonable gating and ejection design, flexible single-color / two-color molding options, low defect rate in mass production and controllable comprehensive cost.

For mold manufacturers and product wholesalers, this item features low tooling investment threshold, stable demand in global household goods markets, and great scalability for customized logo engraving on the mold cavity to support OEM & ODM personalized customization for brands.
