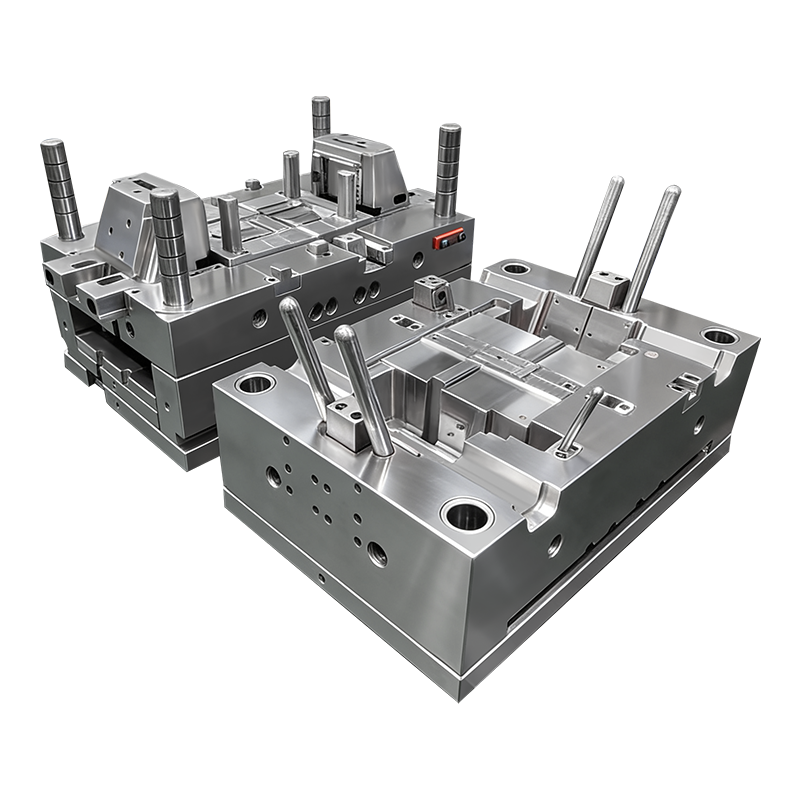

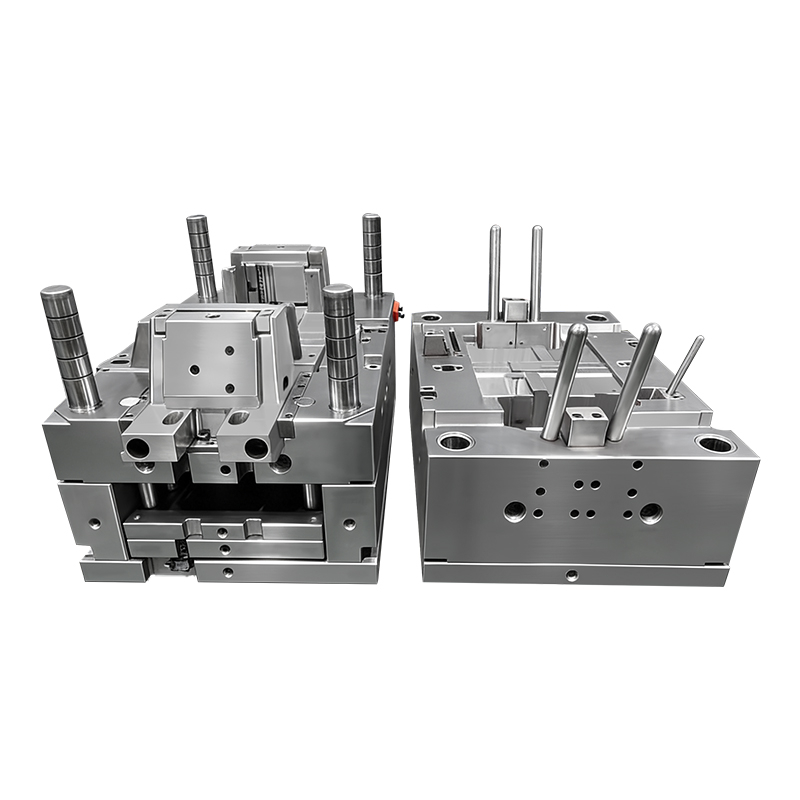

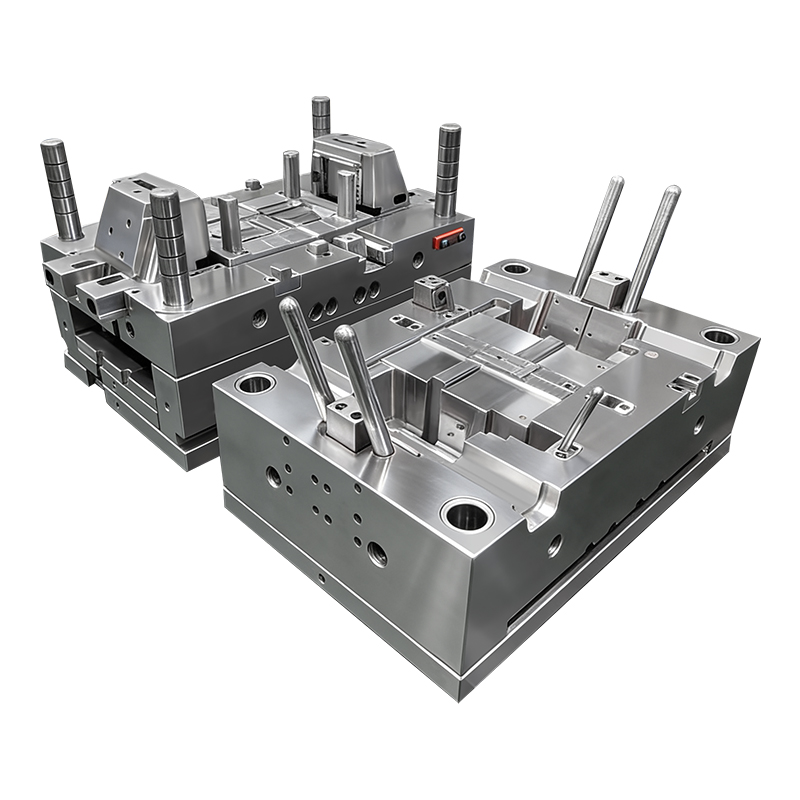

ABS Black 1+1 Cavity Mold Side Gate Side 2083H HRC30-36 Steel Cavity And Core Usual Fine Finishing Plastic Component Molding

This is a practical, cost-effective 1+1 single-cavity injection mold, purpose-built for manufacturing black ABS plastic components. Constructed from reliable 2083H mold steel (HRC30-36) with a standard fine finish on both cavity and core, and featuring a side gate system, this mold delivers consistent quality and smooth production runs for general-purpose plastic parts.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • 23291

  • yixunmold

Product Overview

This is a practical, cost-effective 1+1 single-cavity injection mold, purpose-built for manufacturing black ABS plastic components. Constructed from reliable 2083H mold steel (HRC30-36) with a standard fine finish on both cavity and core, and featuring a side gate system, this mold delivers consistent quality and smooth production runs for general-purpose plastic parts.

Key Features

✅ 1+1 Single-Cavity Layout
A balanced 1+1 cavity design ensures stable material flow, uniform part quality, and easy process control. It is ideal for low-to-medium volume production of black ABS components, offering flexibility for custom geometries without the complexity of multi-cavity molds.
✅ Side Gate Gating System
The side gate configuration offers several practical benefits:

  • Easy to machine and modify during mold development

  • Stable, controlled filling for standard ABS resins

  • Simple post-processing if gate trimming is required

  • Avoids gate marks on visible surfaces for many part designs

✅ 2083H Mold Steel (HRC30-36)
2083H is a widely trusted pre-hardened stainless steel for general-purpose molds:

  • Good corrosion resistance and polishability

  • Balanced hardness (HRC30-36) for wear resistance and easy machining

  • Proven reliability for ABS molding, with long mold life and consistent performance

✅ Standard Fine Finishing on Cavity & Core
Both the cavity and core are finished to a standard fine texture:

  • Eliminates flow lines and blemishes for clean, functional parts

  • Provides a smooth, uniform surface suitable for most black ABS applications

  • Reduces the risk of ejection marks and sticking during production

✅ Optimized for Black ABS Material
Tailored specifically for black ABS molding, the mold design addresses common challenges:

  • Optimized cooling to minimize warpage and shrinkage

  • Balanced venting to prevent burn marks and short shots

  • Consistent black color reproduction across all parts

✅ General-Purpose Versatility
This mold is designed to handle a wide range of plastic component geometries, making it suitable for diverse applications:

  • Consumer electronics housings and internal parts

  • Household appliance components

  • Automotive interior trim and brackets

  • Industrial equipment casings and fasteners

Technical Specifications

Item Specification
Mold Type 1+1 Single-Cavity Injection Mold
Part Application General Black ABS Plastic Components
Material ABS (Acrylonitrile Butadiene Styrene), Black
Gate System Side Gate
Mold Steel 2083H Stainless Steel
Hardness HRC30–36
Surface Finish Standard Fine Finishing on Cavity & Core
Mold Life 300,000–500,000 shots (with proper maintenance)
Customization Available for custom part geometries, sizes, and specifications

Applications

This mold is ideal for producing black ABS plastic components across various industries, including:

  • Consumer electronics and home appliances

  • Automotive interior and exterior trim parts

  • Industrial equipment and machinery components

  • Office furniture and hardware accessories

  • General-purpose plastic housings, brackets, and fasteners

FAQ

Q1: How about your quality control?
A: We implement strict quality control at every stage of mold manufacturing, from material inspection and CNC machining to mold fitting and trial injection. We also provide T1 samples for your approval to ensure the final parts meet all dimensional and appearance requirements.
Q2: What's your lead time?
A: For this type of 1+1 cavity ABS mold, the lead time is typically 25–35 working days after receiving the deposit and approved drawings, excluding Chinese official holidays.
Q3: What information do you need to provide a mold quote?
A: To offer an accurate quotation, we need: 3D part files (STEP/IGS), 2D drawings with tolerances, material type (ABS), estimated annual volume, and injection machine specifications (tonnage, tie-bar spacing).
Q4: Why choose a side gate for black ABS components?
A: Side gates are cost-effective, easy to machine, and provide stable filling for ABS. They keep gate marks off visible surfaces for most parts and are simple to trim if needed, making them ideal for general-purpose applications.
Q5: What is the typical mold life for a 2083H steel mold?
A: With proper maintenance, 2083H molds can achieve 300,000–500,000 shots. Its balanced hardness offers good wear resistance while remaining easy to modify if design changes are needed.
Q6: Can this mold be adjusted for different ABS grades or colors?
A: Yes. The mold can be optimized for different ABS grades (e.g., high-impact, flame-retardant) or color-matched to specific black tones, with adjustments to molding parameters and venting as needed.
Q7: What is included in your mold testing and sampling process?
A: After mold completion, we conduct T1 trials to produce initial samples. We review the samples with you, make necessary adjustments, and provide final approved samples before mass production begins.
