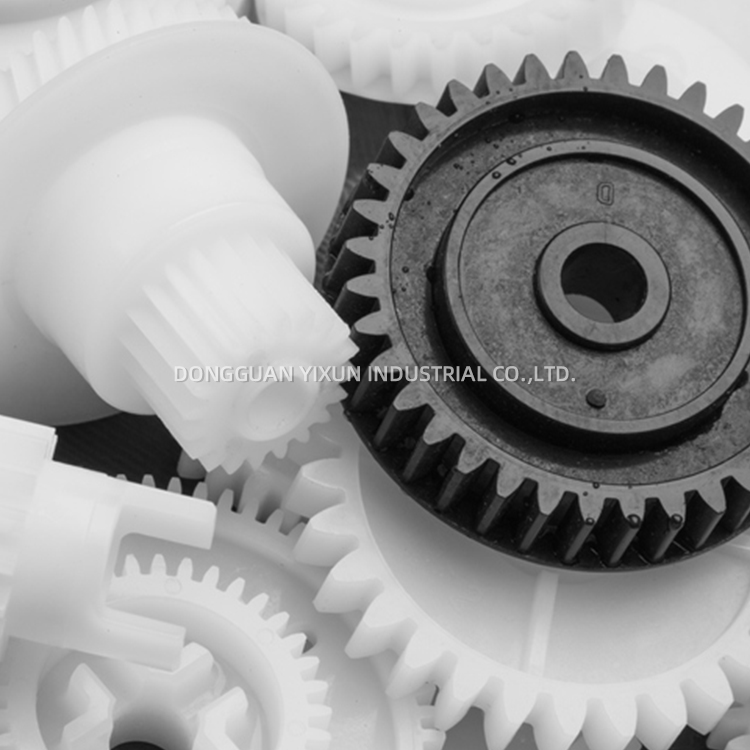

Injection molding is the most widely used method for mass-producing plastic gears.
Process: Plastic pellets are melted and injected under high pressure into a precision mold cavity. After cooling, the mold opens to eject the finished gear.
Advantages:
High efficiency: Ideal for large volumes with low per-unit cost.
High precision: Capable of producing gears up to ISO quality grades 6-7.
Design flexibility: Complex shapes, hubs, and integrated features can be formed in a single step.
Excellent surface finish: Requires little to no post-processing.
Disadvantages:
High upfront cost for mold design and manufacturing.
Difficult to modify once the mold is finalized.
Common Materials: Nylon (PA), Acetal (POM), Polycarbonate (PC), Polypropylene (PP).
Applications: Automotive parts, power tools, consumer electronics, medical devices, and more.
3D printing has become increasingly popular for rapid prototyping and low-volume production.
Technologies:
FDM: Uses thermoplastic filaments; affordable but limited strength and surface quality.
SLA/DLP: Uses photopolymer resins; high accuracy and smooth surface finish.
SLS: Uses powdered materials like nylon; produces functional, durable parts.
Advantages:
No tooling required: Perfect for prototypes and custom designs.
Fast iteration: Easy to implement design changes.
Complex geometries: Supports intricate structures impossible with traditional methods.
Disadvantages:
Generally inferior mechanical properties compared to molded gears.
Lower accuracy and surface quality.
Not cost-effective for mass production.
Common Materials: PLA, ABS, Nylon, Resins.
Applications: Functional prototypes, custom gears, robotics projects, and R&D.
Machining involves shaping gears from plastic blocks or rods using CNC mills, lathes, or gear hobbing machines.
Advantages:
No mold needed: Suitable for one-off parts and large-sized gears.
High precision: Achievable with advanced CNC systems.
Material versatility: Almost any solid plastic can be machined.
Disadvantages:
Material waste and high labor cost.
Cutting may compromise fiber reinforcement integrity (e.g., in glass-filled polymers).
Not suitable for high-volume production.
Applications: Large gear prototypes, replacement parts, and low-volume specialized applications.
This method involves placing a preheated plastic charge into a heated mold and applying pressure to form the gear.
Advantages: Low internal stress, uniform shrinkage.
Disadvantages: Longer cycle times compared to injection molding.
Applications: Often used for thermosetting plastics or specific polyurethane gears.
| Method | Key Features | Volume | Cost Structure | Applications |
|---|---|---|---|---|
| Injection Molding | High precision, high efficiency | Mass production | High mold cost, low part cost | Automotive, appliances, electronics |
| 3D Printing | No tooling, fast design changes | Prototyping/Low volume | No mold cost, high part cost | Prototypes, custom parts |
| Machining | High precision, no mold needed | Very low volume | High part cost, material waste | Large prototypes, replacement gears |
| Compression Molding | Low stress, uniform shrinkage | Medium volume | Moderate mold cost | Thermosets, specialized materials |
Conclusion
Choosing the right manufacturing method for plastic gears depends on factors like production volume, precision requirements, material, and budget. Injection molding dominates mass production, while 3D printing revolutionized prototyping and customization. Machining remains valuable for large or precision one-off gears.
Understanding these processes helps designers and engineers optimize their gear designs for performance, cost, and manufacturability.
