A Guide To Injection Mold Water Nozzles

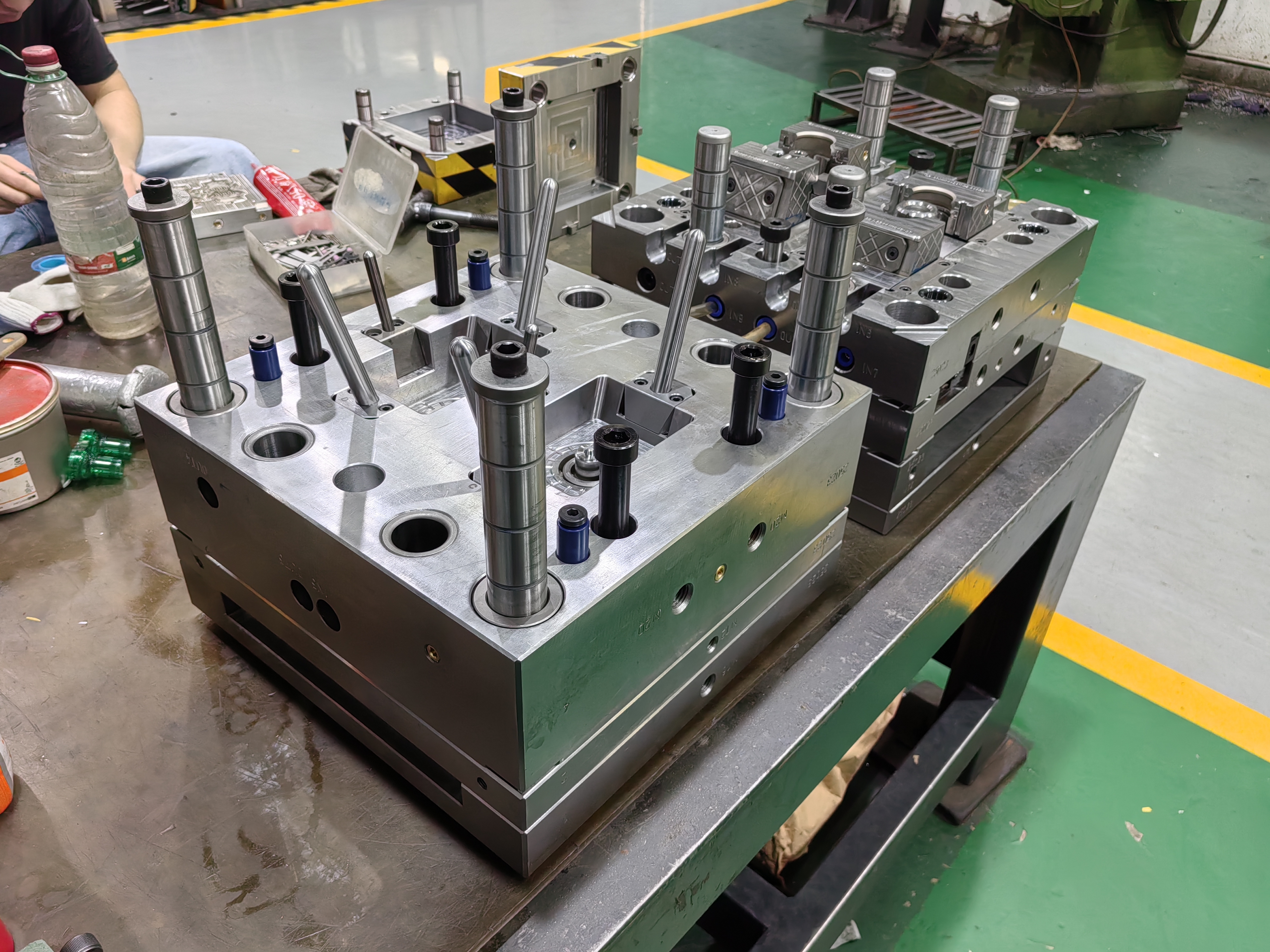

What Exactly is a Water Nozzle?

A water nozzle (also called a cooling water connector, hose connector, or quick connector) is a fitting screwed into the inlet and outlet ports of your mold's cooling channels. Its job is simple but crucial: to provide a fast, secure, and leak-free connection for the hoses that carry cooling water to and from the mold.

Why Are They So Important?

1. Cooling Efficiency: Up to 80% of a molding cycle is dedicated to cooling. Proper cooling ensures dimensional stability, minimizes warpage, and achieves a high-quality surface finish. A leaking or restricted nozzle disrupts flow and pressure, leading to inconsistent cooling and defective parts.

2. Maximizing Uptime (OEE): In today's world of Quick Mold Changes (QMC) and SMED (Single-Minute Exchange of Die), speed is money. The right nozzles allow operators to connect and disconnect hoses in seconds without tools, dramatically reducing downtime.

3. Safety and Cleanliness: A leaking connection creates puddles on the shop floor, a major slip hazard. It also promotes the growth of mold and algae in the cooling system, which can clog your valuable mold's cooling channels.

Key Specifications: Getting the Right Fit

Selecting the correct nozzle requires attention to three key specs:

1. Thread Type (THE MOST CRITICAL): This is how the nozzle screws into the mold.

• NPT (National Pipe Tapered): Common in North America. A tapered thread that creates a seal by itself when tightened (often with sealant tape).

• BSPP (British Standard Pipe Parallel): Common in Europe and Asia. A straight thread that requires an O-ring or washer to create a seal.

• BSPT (British Standard Pipe Tapered): A tapered thread version of BSP.

• Pro Tip: NPT and BSP threads are not compatible! Using the wrong one will damage your mold's threads. Always check your mold's manual.

2. Size: The thread size must match the port in your mold. Common sizes include:

• 1/8"

• 1/4" (The most common standard size)

• 3/8"

• 1/2" (For high-flow applications in large molds)

3. Material:

• Brass: The most common material. Offers a good balance of cost, machinability, and corrosion resistance.

• Stainless Steel: Used for applications requiring high corrosion resistance (e.g., with corrosive cooling additives) or for clean-room/medical molding where ion contamination must be avoided.

Best Practices for Installation and Maintenance

• Use Sealant Properly: For tapered threads (NPT/BSPT), always use PTFE thread seal tape. Apply it clockwise, avoiding the first two threads to prevent tape shreds from entering and clogging the cooling system.

• Avoid Over-Tightening: Tighten the nozzle snugly with a wrench. Over-tightening can strip the threads in your mold, which is a very expensive repair.

• Use Protective Caps: Always install protective caps on nozzles when the mold is in storage or transit. This prevents damage to the threads and keeps dirt out of your cooling channels.

• Inspect Regularly: Check nozzles for leaks, cracks, and corrosion. For QD nozzles, periodically inspect and replace the internal O-rings if they show signs of wear.

The Bottom Line

Water nozzles may be small, but they are a fundamental component of your molding process. Investing in the right quick-disconnect nozzles with the correct thread type and size will pay for itself through reduced downtime, safer operations, and consistent part quality.
