The most common machines you'll find in a mold shop are CNC (Computer Numerical Control) milling machines. They are the undisputed workhorses for creating mold cores and cavities.
How they work: A rotating cutting tool removes material from a solid block (a process called subtractive manufacturing) based on digital CAD/CAM instructions.
Why they're used: They are incredibly versatile and can handle a wide range of materials, from aluminum to hardened tool steels. Modern 5-axis CNC machines can create incredibly complex geometries in a single setup, which is crucial for intricate mold designs. The precision of these machines directly defines the quality of the final mold.

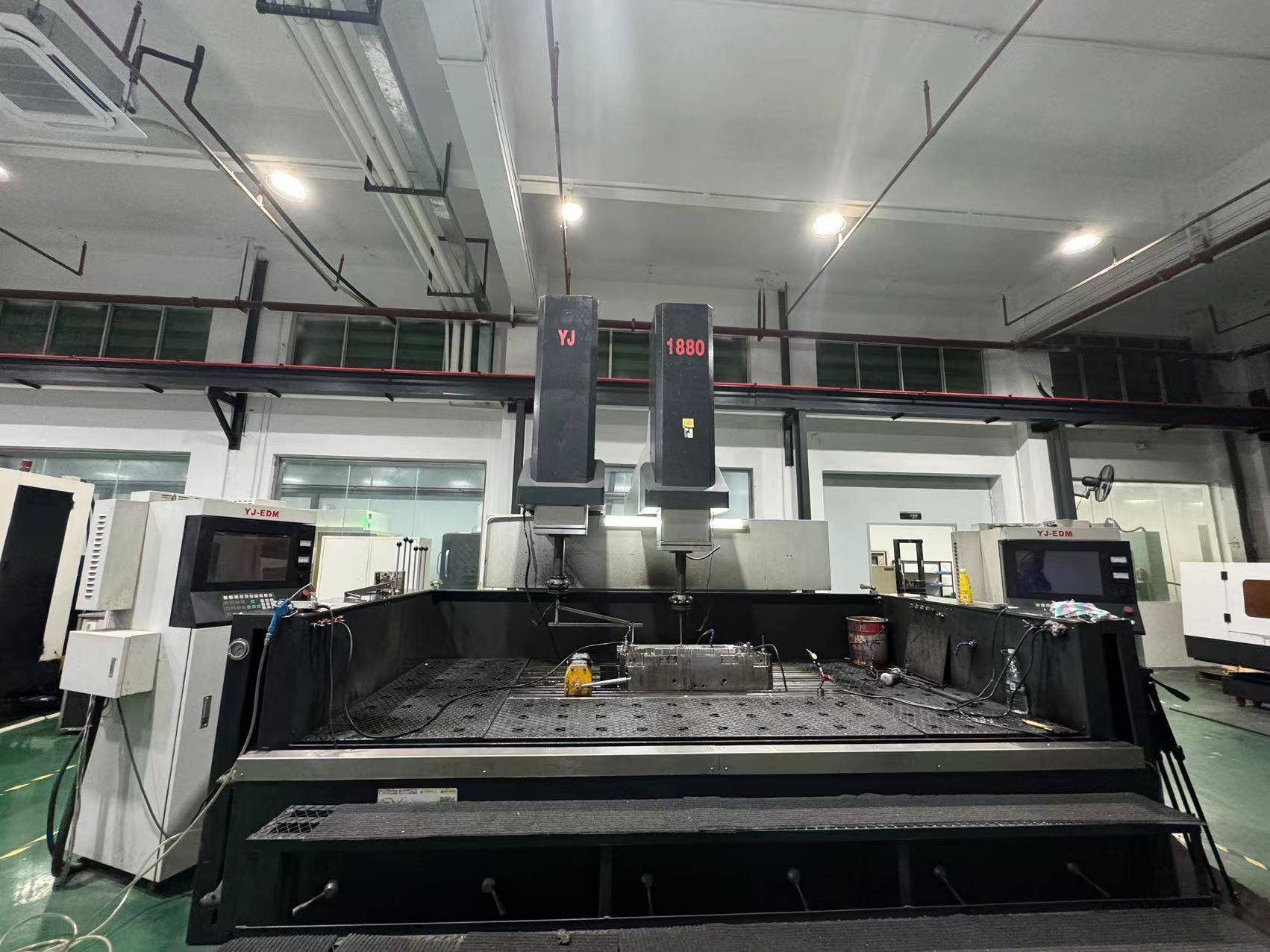

While CNC mills are powerful, they struggle with sharp internal corners and very hard materials. That's where EDM machines come in.
How they work: EDM, or Electrical Discharge Machining, uses controlled electrical sparks to erode material. An electrode (often made from copper or graphite) is shaped inversely to the desired cavity. It is brought close to the mold material, and sparks vaporize tiny particles, precisely copying the electrode's shape.
Why they're used: EDM is perfect for creating sharp corners, deep ribs, and intricate details that a milling tool couldn't reach. It is essential for manufacturing hardened mold components without risking damage to cutting tools.
After roughing and semi-finishing on a CNC mill, grinding machines are used to achieve the final dimensions and a superior surface finish.
How they work: These machines use an abrasive wheel rotating at high speed to remove minute amounts of material. They operate with the highest level of precision.
Why they're used: Grinding is critical for achieving tight tolerances and flat surfaces on mold plates. It's also used for finishing mold components like ejector pins and guide rails. The smooth surface finish from grinding reduces polishing time and helps ensure plastic parts release easily from the mold.
It's important to remember that the journey doesn't end with machining. Once the mold is assembled, it must be tested. This is done on an Injection Molding Machine. This vital machines melts plastic pellets and injects them into the mold under high pressure. Testing on an Injection Molding Machine validates the mold's performance, checks for defects, and produces the first sample parts.
Creating a high-performance mold is not the task of a single machines. It's a symphony performed by specialized machines—each playing a critical role. From the material removal of CNC milling and EDM to the ultra-fine finishing of grinding, each step is vital. The final act, performed on an Injection Molding Machine, brings everything together, transforming the precision-machined mold into thousands of perfect plastic parts. Understanding these mold-making machines gives us a deeper appreciation for the complex engineering hidden within the everyday objects around us.
